WE67K
HARSLE
8462219000
Smart Press Brake
| Quantity: | |
|---|---|
Product Description

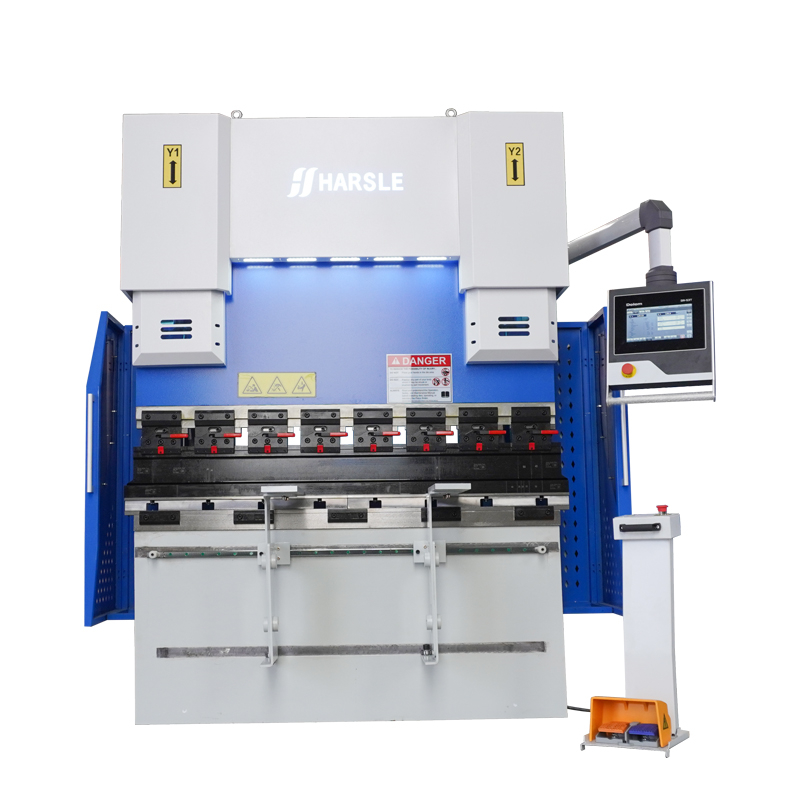

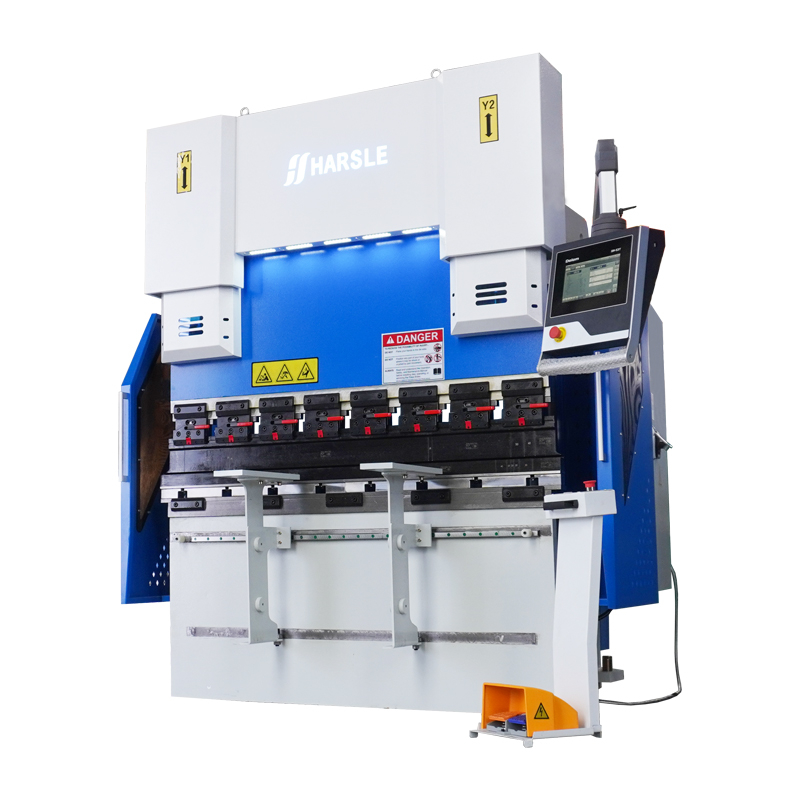

China 40T 1500mm Small Press Brake With DA-53T and X+R Axis Backgauge. Embedded roll balls on front arms and Working area lighting. Footswitch with emergency button and Small and compact design. One-key release fast clamp and Standard Punch and 2V die.
DA-53T Controller
CNC Backgauge
X+R
Technical Parameter
| No. | Item | Unit | 40T/1500 |
| 1 | Bending force | Kn | 400 |
| 2 | Bending Length | mm | 1500 |
| 3 | Columns distance | mm | 1200 |
| 4 | Throat depth | mm | 300 |
| 5 | Cylinder stroke(Y1,Y2) | mm | 150 |
| 6 | Die loading height(Daylight) | mm | 380 |
| 7 | Y-axis down speed | mm/sce | 150 |
| 8 | Y-axis return speed | mm/sce | 120 |
| 9 | Y-axis working speed | mm/sce | 4~15（adjustable) |
| 10 | Y-axis accuracy | mm | ±0.01 |
| 11 | Work-piece linearity | mm | 0.3/m |
| 12 | Max. Back gauge distance | mm | 500 |
| 13 | X-axis and R-axis speed | mm/sec | 400 |
| 14 | X-axis and R-axis accuracy | mm | ±0.01 |
| 15 | Front sliding arms | pcs | 2 |
| 16 | Bending angle accuracy | (') | ≤±18 |
| 17 | Back gauge finger stopper | pcs | 4 |
| 18 | Main motor | KW | 5.5 |
| 19 | Dimension | Length(mm) | 1700 |
| Width(mm) | 1450 | ||
| Height(mm) | 2200 | ||
| 20 | Weight | kg | 3500 |
