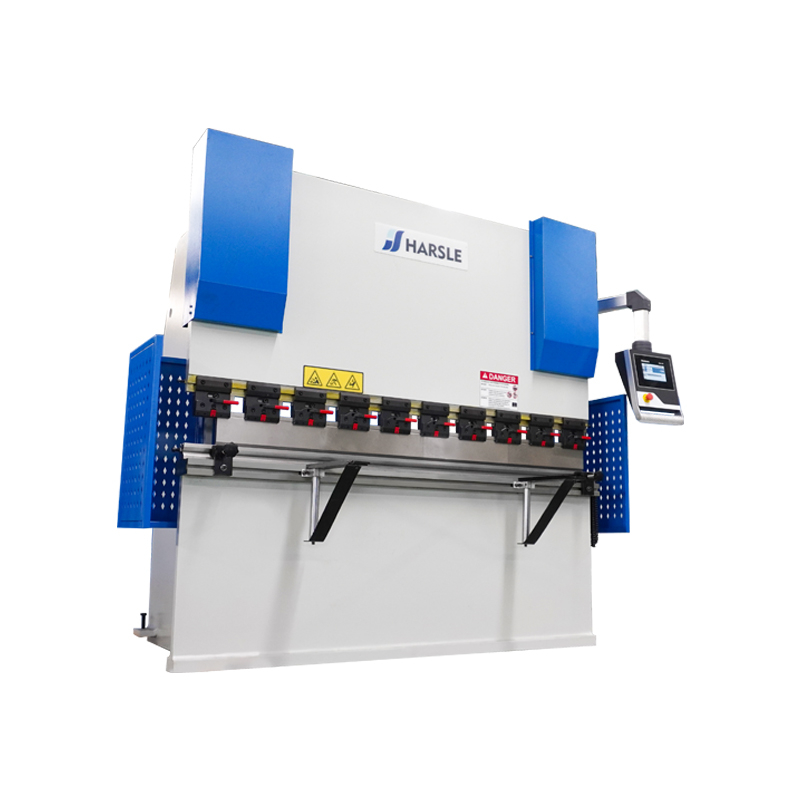

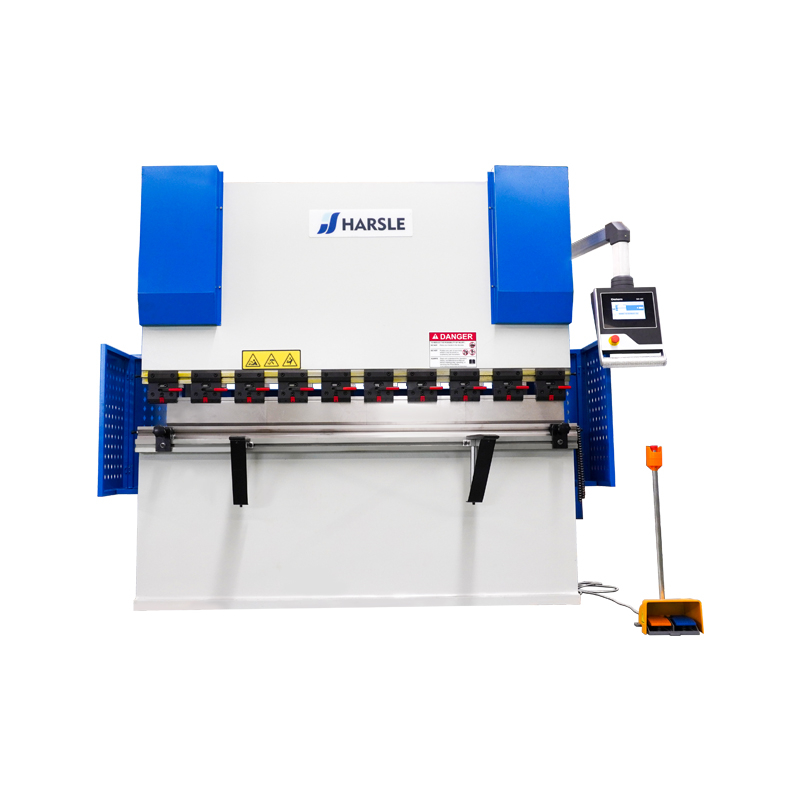

China Sheet Metal Hydraulic NC Press Brake with DA-41T

5 69 Reviews
1. Three-year quality warranty
2. Multilingual interface
3. Bending angle programming
4. Press brake tooling fast clamp
5. DA-41S for X and Y axis control
  • WC67K

  • HARSLE

Availability:
Quantity:

Features

The sheet metal hydraulic NC press brake with DA-41T provides a user friendly and versatile control solution for conventional press brake applications with support for multiple axes. Upon demand it is possible to control the press beam, the backgauge as well as a flexible I/O configuration, based on state-of-the-art electronics. The numerical programming supports bending steps with angle programming, tool and material parameters on hand in a clear table overview. The standard available USB interface supports backup and restore functionality of all products and tools.

Product Description

press brake machinepress brake machinepress brake machine

Specification

Model

Nominal Force

Worktable Length

Column Distance

Throat Depth

Slider Travel

Max Opening height

Power

Dimension

(KN)

(mm)

(mm)

(mm)

(mm)

(mm)

(KW)

L*W*H(mm)

40T/2200

400

2200

1875

230

100

320

5.5

2200*1200*1910

40T/2500

400

2500

1875

230

100

320

5.5

2500*1200*1910

50T/2500

500

2500

1875

230

100

320

5.5

2500*1210*2000

63T/2500

630

2500

2020

250

100

320

5.5

2500*1300*2210

63T/3200

360

3200

2575

250

100

320

5.5

3200*1300*2210

80T/2500

800

2500

2020

300

100

320

7.5

2500*1400*2300

80T/3200

800

3200

2590

320

100

350

7.5

3200*1500*2300

80T/4000

800

4000

3050

320

100

350

7.5

4000*1500*2400

100T/2500

1000

2500

2020

320

120

320

7.5

2500*1600*2400

100T/3200

1000

3200

2600

320

120

370

7.5

3200*1600*2600

100T/4000

1000

4000

3050

320

120

370

7.5

4000*1600*2700

125T/3200

1250

3200

2600

320

120

370

7.5

3200*1600*2600

125T/4000

1250

4000

3050

320

120

370

7.5

4000*1600*2700

160T/3200

1600

3200

2600

320

200

460

11

3200*1700*2700

160T/4000

1600

4000

3000

320

200

460

11

4000*1700*2800

160T/5000

1600

5000

4000

320

200

460

11

5000*1900*3100

160T/6000

1600

6000

4940

320

200

460

11

6000*1900*3200

200T/3200

2000

3200

2600

320

200

460

11

3200*1950*2800

200T/4000

2000

4000

3000

320

200

460

11

4000*1950*2800

200T/5000

2000

5000

4000

320

200

460

11

5000*1950*3000

200T/6000

2000

6000

5000

320

200

460

11

6000*1950*3300

250T/3200

2500

3200

2500

400

250

590

18.5

3200*2000*3200

250T/4000

2500

4000

3000

400

250

590

18.5

4000*2000*3400

250T/5000

2500

5000

4000

400

250

590

18.5

5000*2000*3400

250T/6000

2500

6000

5000

400

250

590

18.5

6000*2000*3400

300T/3200

3000

3200

2530

400

250

590

22

3200*2000*3450

300T/4000

3000

4000

3470

400

250

590

22

4000*2000*3450

300T/5000

3000

5000

4000

400

250

590

22

5000*2000*3450

300T/6000

3000

6000

5000

400

250

590

22

6000*2000*3450

400T/4000

4000

4000

3000

400

250

590

30

4000*2180*3400

400T/5000

4000

5000

4000

400

250

590

30

5000*2180*3500

400T/6000

4000

6000

5000

400

250

590

30

6000*2180*3800
