WC67K
HARSLE
Econom Press Brake
| Quantity: | |
|---|---|
Product Description

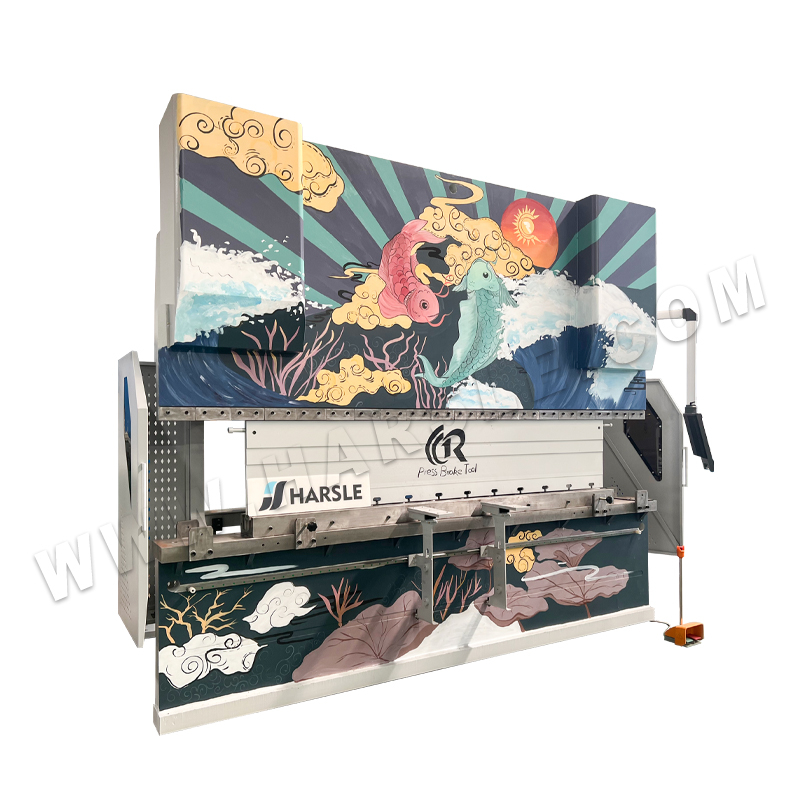

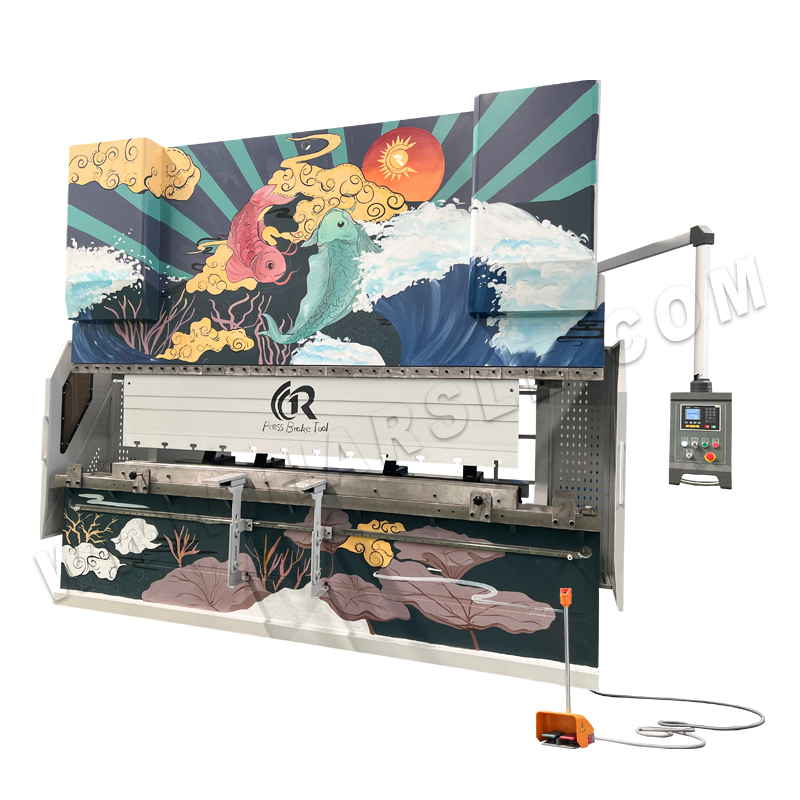

Colored drawing Design. E21 NC Digital Controller. SIEMENS Main Motor. Foot Switch With Emergency Button. Backgauge With Manual R-Axis. Torsion Bar With Rack Structure. Adjustable U shape Die. Operating Demonstration.
E21 controller
Technical Parameter
| No. | Item | Unit | 400T/4000 |
| 1 | Bending force | kN | 4000 |
| 2 | Bending length | mm | 4000 |
| 3 | Columns distance | mm | 3000 |
| 4 | Throat depth | mm | 400 |
| 5 | Ram stroke | mm | 250 |
| 6 | Max. opening height | mm | 590 |
| 7 | Ram down speed | mm/sec | 90 |
| 8 | Ram back speed | mm/sec | 85 |
| 9 | Ram working speed | mm/sec | 5~12 |
| 10 | Work-price linearity | mm | 0.5 |
| 11 | Max. Backgauge distance | mm | 500 |
| 12 | Front sliding arms | pcs | 2 |
| 13 | Bending angle accuracy | ( ' ) | 30 |
| 14 | Backgauge finger stopper | pcs | 4 |
| 15 | Main motor | KW | 30 |
| 16 | Control system | / | E21 |
| 17 | Dimension | (L*W*H)mm | 4100*2180*3400 |
| 18 | Weight | kg | 25000 |
