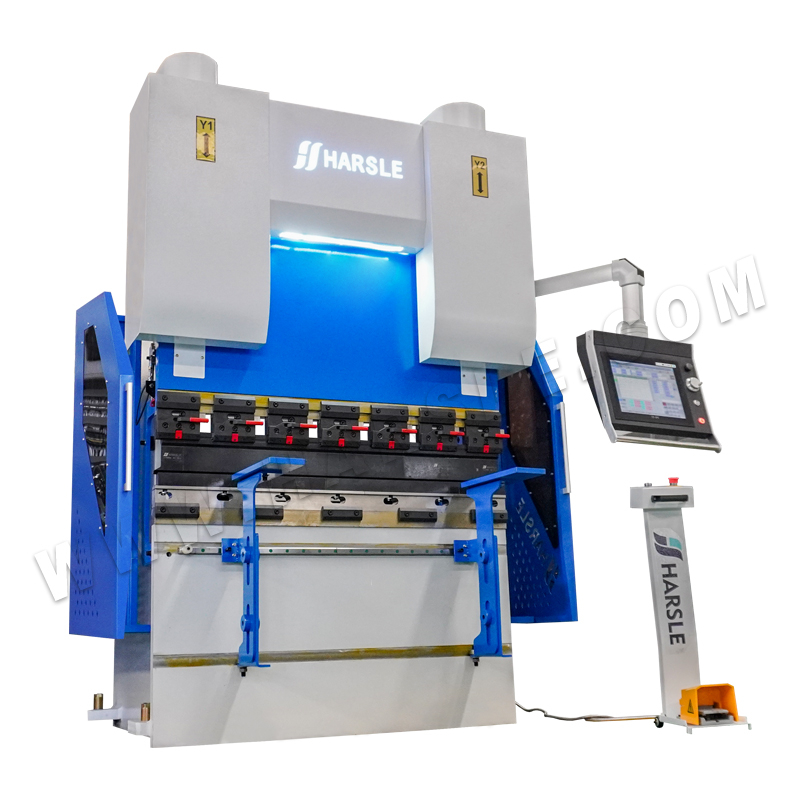

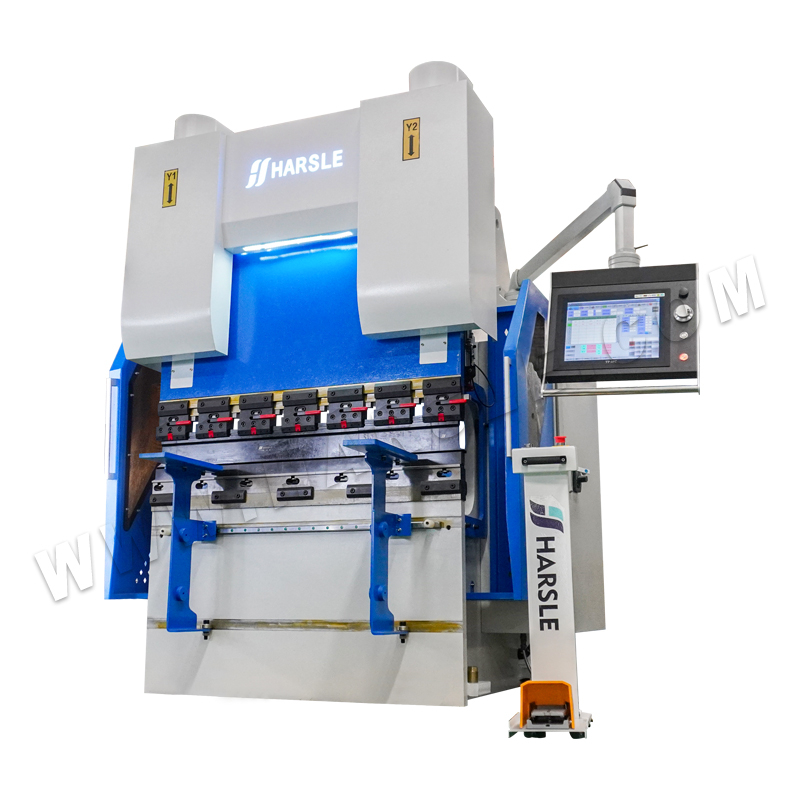

The equipment adopts a spindle power box to transmit bending pressure, heavy-duty ball screw and bearing, ultra-long life design, and sealed protection design to ensure key parts are not affected by external dust. The punch and die can be selected according to different processed products, with special treatments for long and durable service; the 4-axis backgauge (X+R+Z1+Z2) maximumly meets all bending requirements. Equipped with an intelligent touch screen CNC system, adopting high-speed acceleration and deceleration algorithm and trajectory forward-looking algorithm, etc., the overall planning of the movement trajectory is carried out in advance before bending according to the speed and vector characteristics of bending, ensuring good bending accuracy and soft movement characteristics while accelerating and decelerating at high speed, so that high speed and high precision are effectively integrated, high speed: the maximum fast forward speed of Y-axis can be 300mm/s, and the maximum work forward speed can be 50mm/s; high precision: using 5um resolution magnetic scale and high bit encoder double-loop control, repeat positioning accuracy can reach ±5um; processing consistency: avoid the impact of oil temperature changes on the consistency of the bending workpiece. The system is focused on energy saving and environmental protection, the machine will automatically output the right power according to the working condition., with an idle power consumption of less than 0.5kW, also there is no need to use and replace the hydraulic oil, which ends the pollution of the environment from waste hydraulic oil， with reliable performance, high-end design, and simple and clear operation. This press brake is integrated with the highest technology and is user-friendly.
|Die Loading Height (Daylight)||mm||470||470||470|
|Y-Axis Down Speed||mm/sec||135||180||160|
|Y-Axis Return Speed||mm/sec||50||50||50|
|X-Axis Moving Speed||mm/sec||500||500||500|
|R-Axis Moving Speed||mm/sec||200||200||200|
|Z1/Z2-Axis Moving Speed||mm/sec||400||600||900|
|Y Axis Servo Motor||KW||6.5||6.5||6.5|
