D series
HARSLE
Availability: | |
---|---|
Quantity: | |
Features

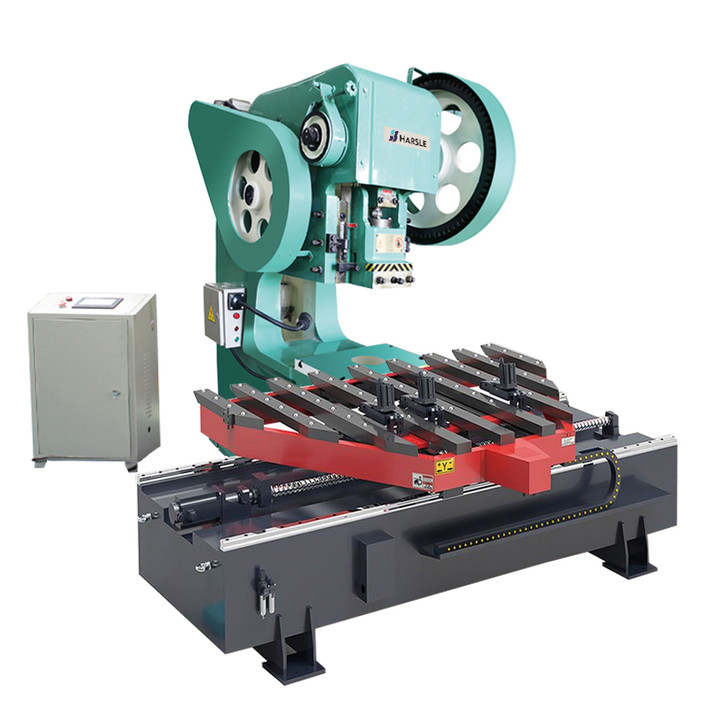

The mechanical deep throat punching machine with CNC feeding table is designed for better one-time processing of the workpiece and to ensure the accuracy of the punching hole pitch. The mechanical deep throat punching machine has a compact structure, stable performance, low oil contamination, low maintenance rate and easy automation. Also equipped with CNC feeding table to enhance the work efficiency, saving labour costs, making the work more convenient and fast.
Specification
Model | D10 | D25 | D30 | D35 | D40 | D50 |
Nominal Force(kn) | 250-1600 | 250-1600 | 250-1600 | 250-1600 | 250-1600 | 250-1600 |
Max.Plate(mm) | 1000x1000 | 2500x1250 | 3000x1250 | 3500x1250 | 4000x1250 | 5000x1250 |
Working Accuray(mm) | ±0.1 | ±0.1 | ±0.1 | ±0.1 | ±0.1 | ±0.1 |
Standard Feeding Speed(m/min) | 30 | 30 | 30 | 30 | 30 | 30 |
Clamps | automatic | |||||
Worktable | whole sheet matal and universal ball | channel steel reinforcement | ||||
Motor | servo | |||||
Guide rail and screw rod | large inlet lead | widened inlet | inlet gear and rack |
