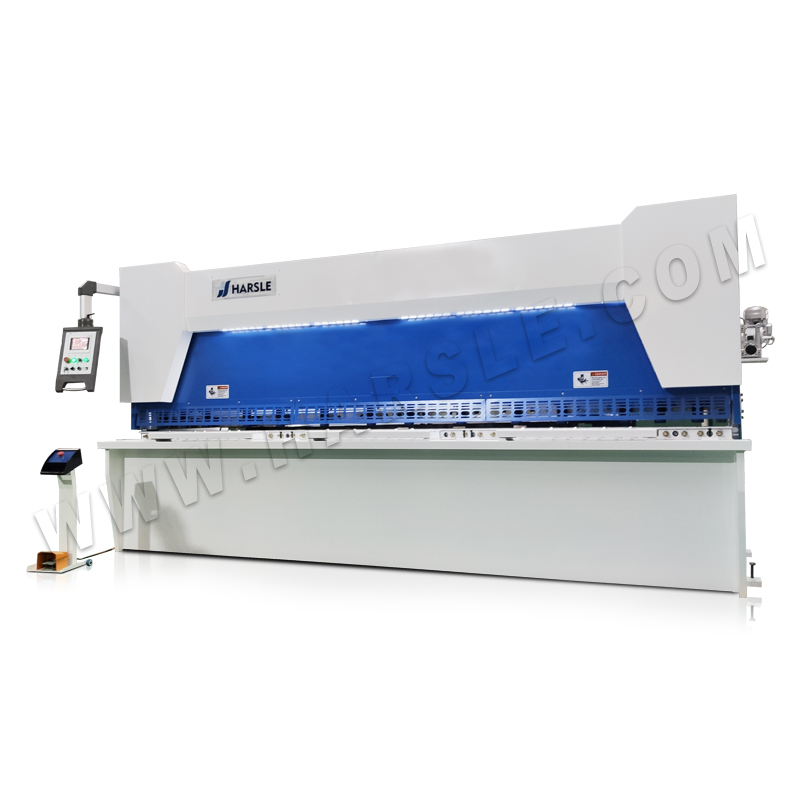

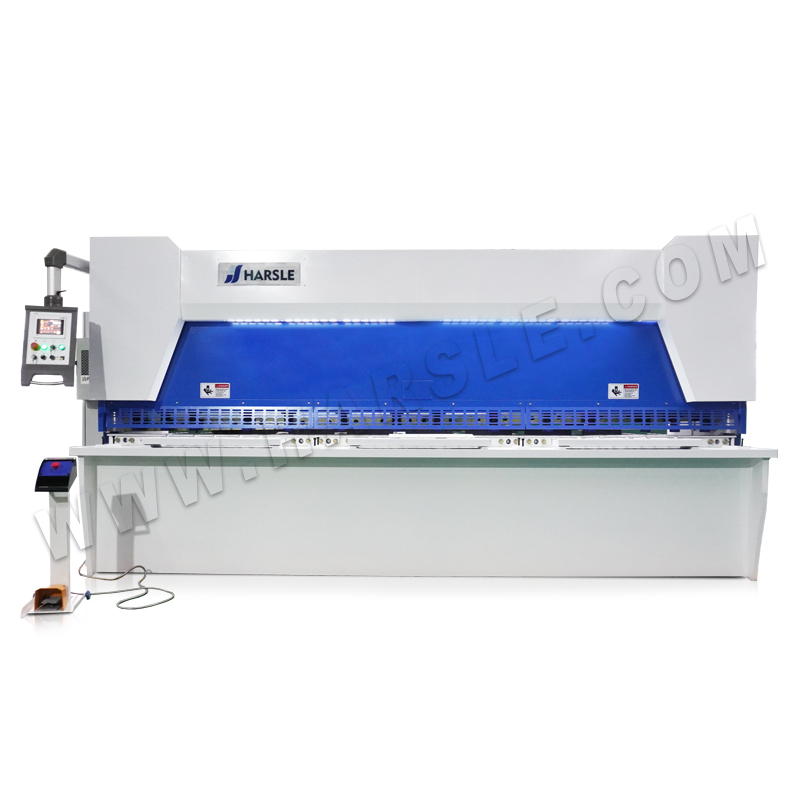

QC11K-6×3200 Guillotine Shearing Machine with ELGO P40T, Automatic Pneumatic Rear Support

5 18 Reviews
CNC guillotine shearing machine can cut a maximum thickness of 6mm and a maximum width of 4000 mm, metal sheet shear with P40T system, Automatic pneumatic rear support.
Price: $ 24000
Discount Price: $ 21000
  • QC11K-
  • HARSLE
  • 8462399000
Availability:
Quantity:

Product Description

guillotine shearing machine

CNC guillotine shearing machine can cut a maximum thickness of 6mm and a maximum width of 4000 mm, metal sheet shear with P40T system, Automatic pneumatic rear support.

P40T controller

guillotine shearing machine

●TFT-Display with touch operation


●Manual inching, single and program mode


●Integrated program memory and auto-cutting machine


●Material depending calculation of gap, angle & pressure


●Sheet support and return to the front function


●Analog inputs and outputs


●Digital outputs upto2 A



Automatic Pneumatic Rear Support

guillotine shearing machine

Technical parameter

No.ItemUnit6*3200
1Max cutting thicknessmm6
2Max cutting lengthmm3200
3Throat depthmm150
4Cutting angle(adjustable)mm30'-1°30'
5Cutting speedCutting times/minutes14-35
6Cutting Bladelengthmm1100*3
quantitypcs3(upper)+3(bottom)
7Backgaugetravelmm500
speedmm/sec200
accuracymm±0.01
8Front armslengthmm800
quantitypcs3
9Spring pressure cylinderpcs12
10Main motorKW7.5
11Control system/P40T
12Dimension(L*W*H)mm3900*1580*2150
13Weightkg6000
