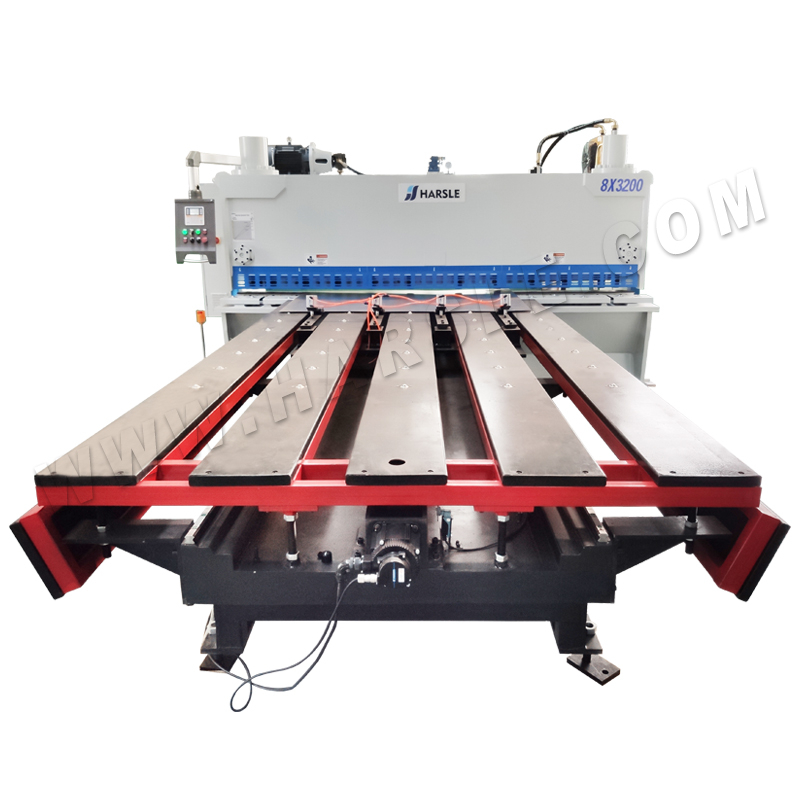

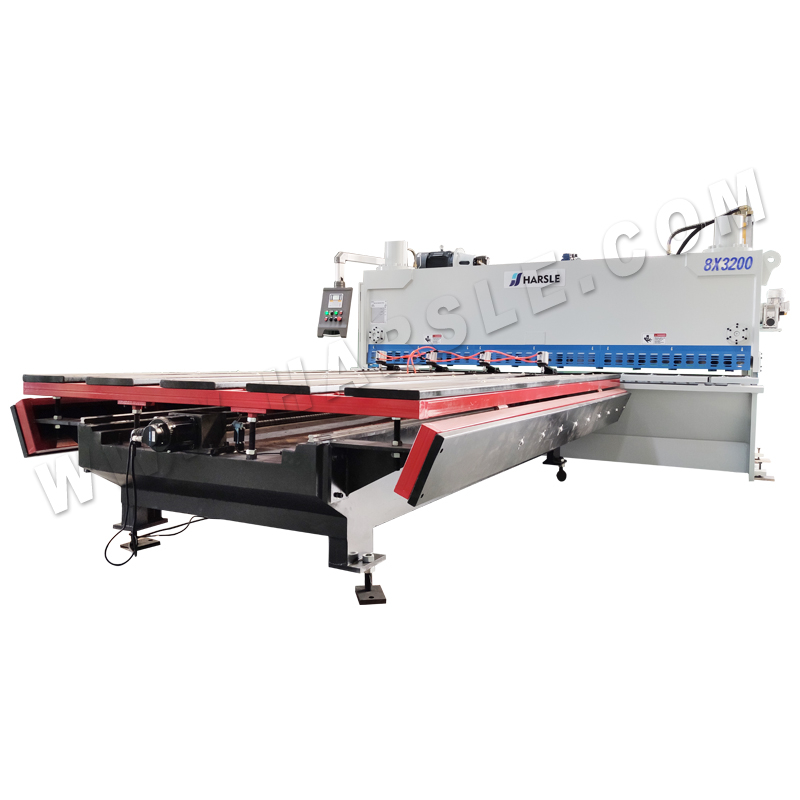

QC11K-8x3200 CNC guillotine shearing machine with P40 and Auto front feeding table

5 23 Reviews
CNC guillotine shearing machine with Auto front feeding table can cut a maximum thickness of 8mm and a maximum width of 3200 mm, metal sheet shear with P40 system.
Price: $ 30000
Discount Price: $ 28000
  • QC11K-
  • HARSLE
  • 8462399000
Size:
Material:
Color:
Controller:
Quantity:

Product Description

guillotine shearing machine

CNC guillotine shearing machine with Auto front feeding table can cut a maximum thickness of 8mm and a maximum width of 3200 mm, metal sheet shear with P40 system.

P40 system
guillotine shearing machine


 LCD Display


● Multi-Language


 Manual inching function


 Single set operation


 Program memory


 Made in Germany


 Cutting angle and knife gap control


Auto front feeding table

guillotine shearing machine

Technical Parameters

No.ItemUnit8*3200
1Max cutting thicknessmm8
2Max cutting lengthmm3200
3Throat depthmm150
4Cutting angle(adjustable)mm30'-2°
5Cutting speedCutting times/minutes12~30
6Cutting Bladelengthmm1100*3
quantitypcs3(upper)+3(bottom)
7Backgaugetravelmm600
speedmm/sec200
accuracymm±0.01
8Front armslengthmm800
quantitypcs3
9Spring pressure cylinderpcs12
10Main motorKW11
11Control system/P40
12Dimension(L*W*H)mm3950*1750*2350
13Weightkg7000


Standard configurations

No.NameOriginal country
1Main motorSIEMENS or WNM
2Electric componentsSCHNEIDERFrance
3Servo motorYASKAWAJapan
4Hydraulic pumpSUNNYUSA
5Foot switchKACONSouth Korea
6Hydraulic valveRexroth-BOSCHGermany
7Tubing connectorEMBGermany
8Seal ringsNOKJapan
9Ball ScrewHIWINTaiwan
10Safe guardEuropean safety standard
11Front support armsBuilt-in ruler
12Spring pressure cylinderFix the metal sheet for cutting
13Cutting blade4 cutting edges for upper blade, 4 cutting edges for bottom blade
