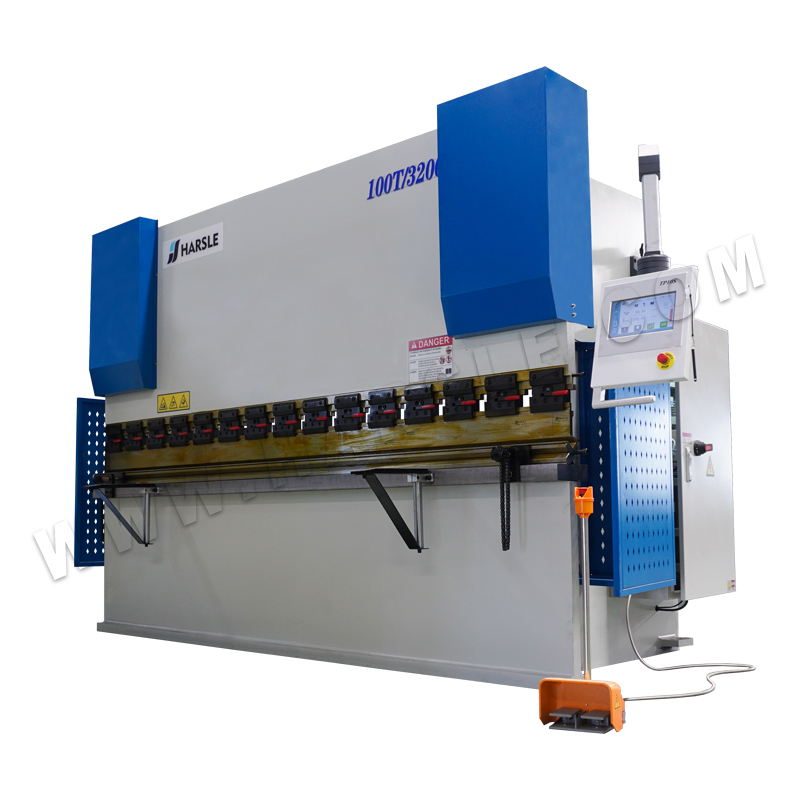

WC67K
HARSLE
Econom Press Brake
| Quantity: | |
|---|---|
Product Description
Step one: the bending angle is ninety degrees, bending length is thirty millimeters.
Step two: the bending angle is one hundred and thirty-five degrees, bending length is eighty millimeters.
Step three: the bending angle is ninety degrees, bending length is thirty millimeters.
Bending is completed, and the workpiece meets the requirements.
TP10S Controller
Technical Parameter
| No. | Item | Unit | 100T/3200 |
| 1 | Bending force | kN | 1000 |
| 2 | Bending length | mm | 3200 |
| 3 | Columns distance | mm | 2600 |
| 4 | Throat depth | mm | 320 |
| 5 | Ram stroke | mm | 120 |
| 6 | Max. opening height | mm | 370 |
| 7 | Ram down speed | mm/sec | 90 |
| 8 | Ram back speed | mm/sec | 85 |
| 9 | Ram working speed | mm/sec | 5~12 |
| 10 | Work-piece linearity | mm | 0.5 |
| 11 | Max. Back-gauge distance | mm | 500 |
| 12 | Front sliding arms | pcs | 2 |
| 13 | Bending angle accuracy | (') | 30 |
| 14 | Back-gauge finger stopper | pcs | 3 |
| 15 | Main motor | kw | 7.5 |
| 16 | Control system | / | TP10S |
| 17 | Dimension | (L*W*H) mm | 3300*1600*2600 |
| 18 | Weight | kg | 6500 |
