WC67K-63T/2500 Hydraulic Press Brake with DA-41T Touch Screen, Sheet Metal Bending Machine for Sale

5 20 Reviews
63 ton 2500mm Hydraulic Press Brake with DA-41T Touch Screen. Features: • Touch Screen control • Bright LCD screen • Beam stop control (Y) • Backgauge control (X) • Retract functionality • Manual movement of all axes • Backgauge control (R) (DA-42T) • Crowning function (DA-42T) • Pressure control (DA-42T)
Price: $ 18050 / set
Discount Price: $ 16100 / set
  • WC67K

  • HARSLE

  • 8462299000

  • Econom Press Brake

SKU:
Availability:
Quantity:

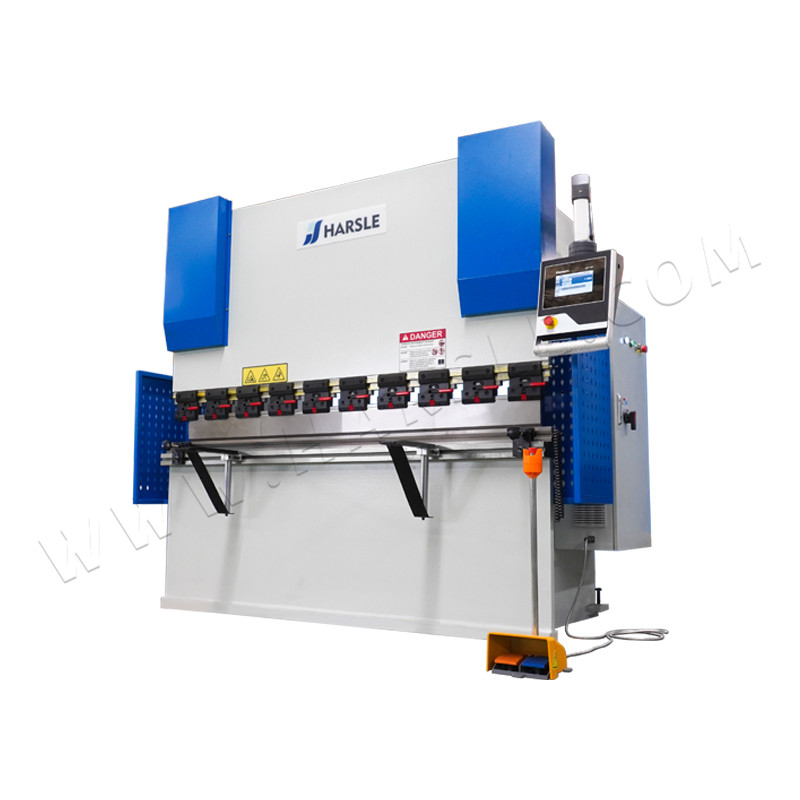

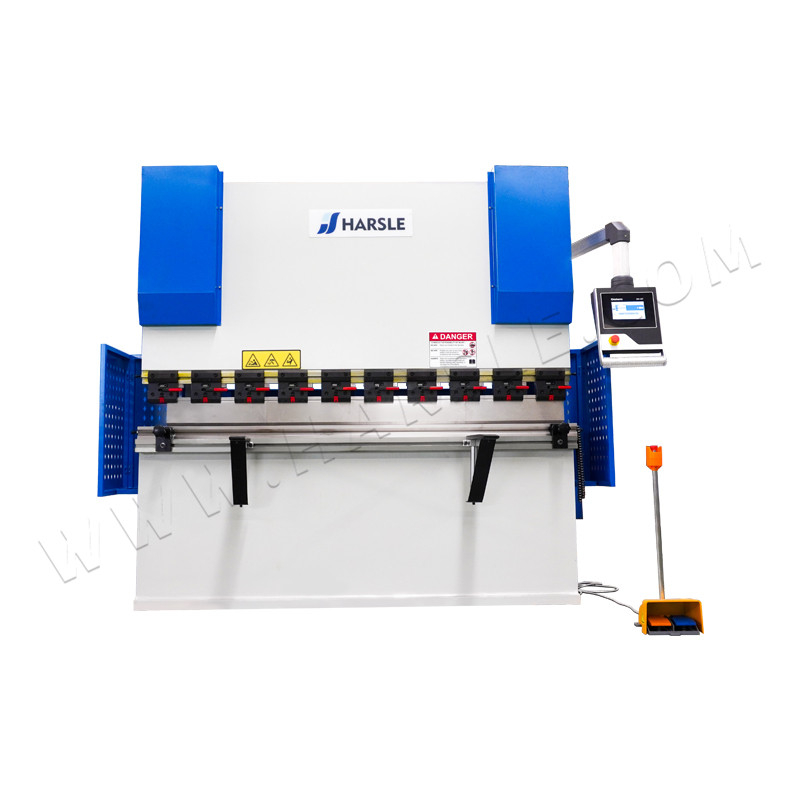

WC67K-63T/2500 Hydraulic Press Brake with DA-41T Touch Screen, Sheet Metal Bending Machine for Sale
WC67K-63T/2500 Hydraulic Press Brake with DA-41T Touch Screen, Sheet Metal Bending Machine for Sale
WC67K-63T/2500 Hydraulic Press Brake with DA-41T Touch Screen, Sheet Metal Bending Machine for Sale

Product Description

sheet metal bending machine

WC67K-63T/2500 Hydraulic Press Brake with DA-41T Touch Screen, Sheet Metal Bending Machine for Sale


DA-41T controller

DA-41T controller



Features:

• Touch Screen control

• Bright LCD screen

• Beam stop control (Y)

• Backgauge control (X)

• Retract functionality

• Manual movement of all axes

• Backgauge control (R) (DA-42T)

• Crowning function (DA-42T)

• Pressure control (DA-42T)



Technical parameter

No.ItemUnit63T/2500
1Bending forcekN630
2Bending lengthmm2500
3Columns distancemm1900
4Throat depthmm250
5Ram strokemm100
6Max. opening heightmm320
7Ram down speedmm/sec90
8Ram back speedmm/sec85
9Ram working speedmm/sec5~12
10Work-price linearitymm0.5
11Max. Backgauge distancemm500
12Front sliding armspcs2
13Bending angle accuracy( ' )30
14Backgauge finger stopperpcs2
15Main motorKW5.5
16Control system/DA-41T
17Dimension(L*W*H)mm2600*1300*2210
18Weightkg4000


Standard configurations

NO.NameBRAMDOriginal country
1Main motorSIEMENS brand
2Electric componentsSCHNEIDERFrance
3Hydraulic pumpSUNNYUSA
4Hydraulic valveRexrothGermany
5Tubing connectorEMBGermany
6Seal ringsNOKJapan
7Foot switchKACONSouth Korea
8Servo motor and
driver
THINKVOChina
9Finger stopperPrecision stoppers with fine
adjustment
10Manual R axisBack-gauge moving up and down
11Side and rear safe
guard
European safety standard
12Front support armsFoldable sheet supporter
13Clamping toolingFast clamps
14Punch and dieStandard punch and multi-V die
