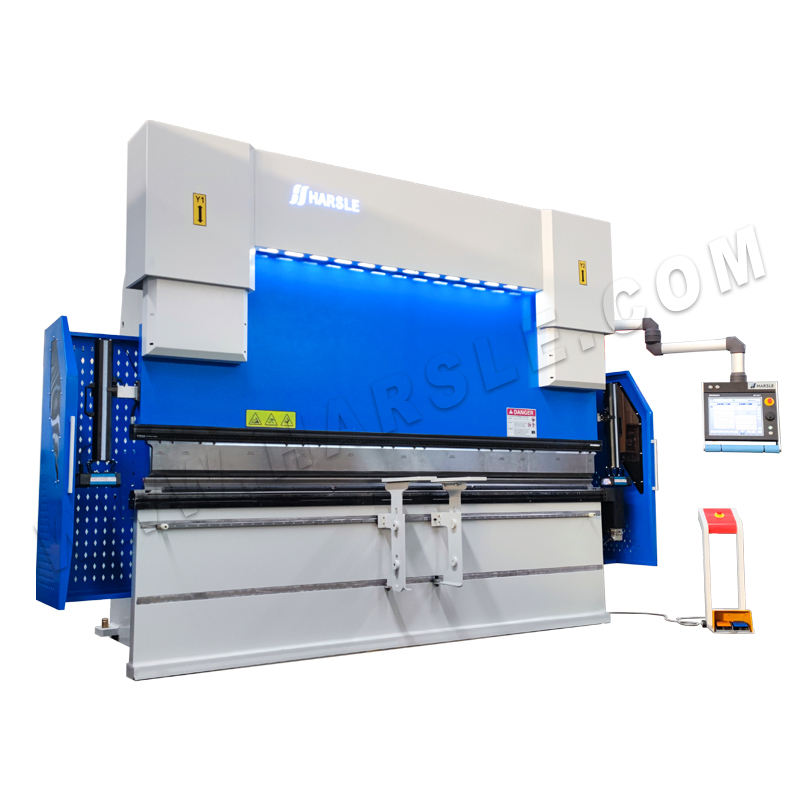

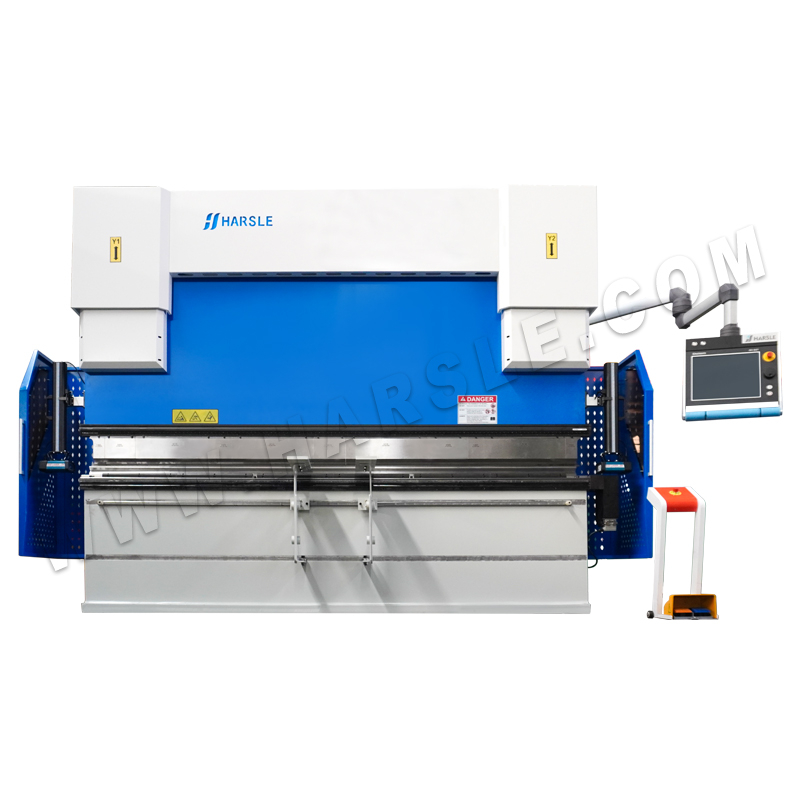

WE67K-160T/3200 Press Brake With 6+1 Axis And DA-66T, Wila Tool Clamp And Servo Pump Unit

5 28 Reviews

WE67K-160T/3200 Press Brake With 6+1 Axis and DA-66T, Wila Tool Clamp and Servo Pump Unit. Gooseneck Punch and 4V die and Air conditioner for electric cabinet and DSP Laser protection.

Model:
WE67K
Brand:
HARSLE
Code:
8462219000

SKU:
Availability:

Quantity:



Inquire Add to Basket

Product Description

press brake

WE67K-160T/3200 Press Brake With 6+1 Axis and DA-66T, Wila Tool Clamp and Servo Pump Unit. Gooseneck Punch and 4V die and Air conditioner for electric cabinet and DSP Laser protection.

DA-66T Controller

● 2D graphical touch screen programming mode

● 3D visualization in simulation and production

● Crowning system control

● 17" high resolution color TFT

● Date backup/ restore via USB

● Bending tool/material/product library

● Full Windows application suite

● Open system architecture

CNC backgauge

6+1 axis

X+R+Z1+Z2

Technical parameter

No.	Item	Unit	160T/3200
1	Bending force	kW	1600
2	Bending length	mm	3200
3	Columns distance	mm	2700
4	Throat depth	mm	400
5	Cylinder stroke(Y1,Y2)	mm	200
6	Die loading height(Daylight)	mm	420
7	Y-axis down speed	mm/sec	180
8	Y-axis return speed	mm/sec	120
9	Y-axis working speed	mm/sec	4~15(adjustable)
10	Y-axis accuracy	mm	±0.01
11	Working-piece linearity	mm	0.3/m
12	Max. Back gauge distance	mm	500
13	X-axis and R-axis speed	mm/sec	400
14	X-axis and R-axis accuracy	mm	±0.01
15	Front sliding arms	pcs	2
16	Bending angle accuracy	( ' )	≤±18
17	Back gauge finger stopper	pcs	4
18	Main motor	KW	11
19	Dimension	Length(mm)	3500
		Width(mm)	1650
		Height(mm)	2500
20	Weight	kg	10000
