WE67K-200T/3200 CNC 8+1 Axis Press Brake Machine with DA-66T From China for Sale

5 19 Reviews

200T 3200mm 8+1 axis CNC press brake with Delem DA-66T Touch Screen. DSP Laser Protection and 4V Die and Standard Punch. Front arm with ball rollers and Foot Switch with the Emergency button.

Price: $ 67200 / set

Discount Price: $ 64100 / set

Model:
WE67K
Brand:
HARSLE
Code:
8462219000

SKU:
Availability:

Quantity:



Inquire Add to Basket

Product Description

da66t 8+1axis

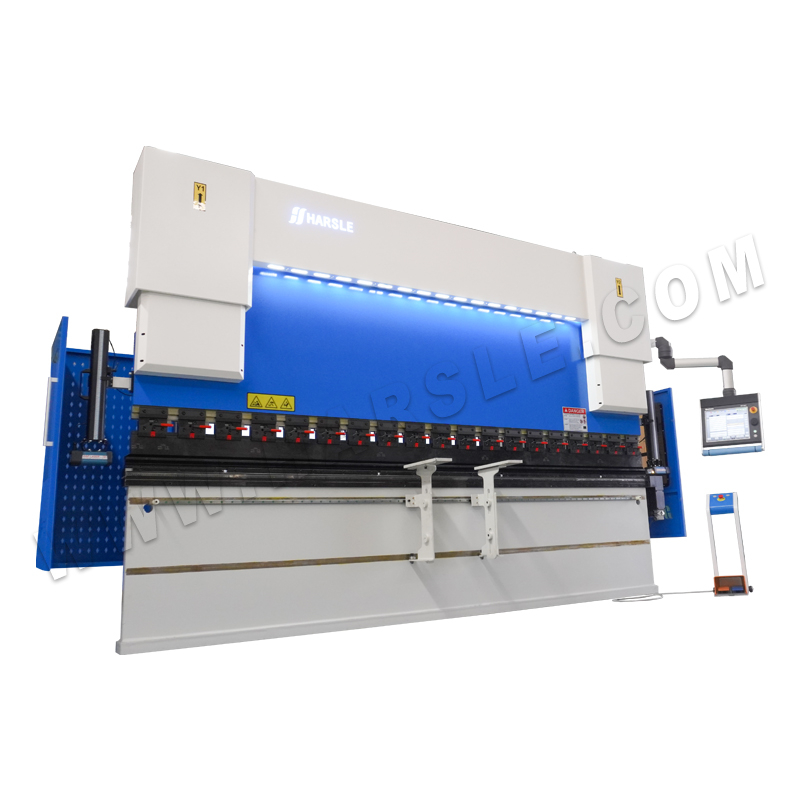

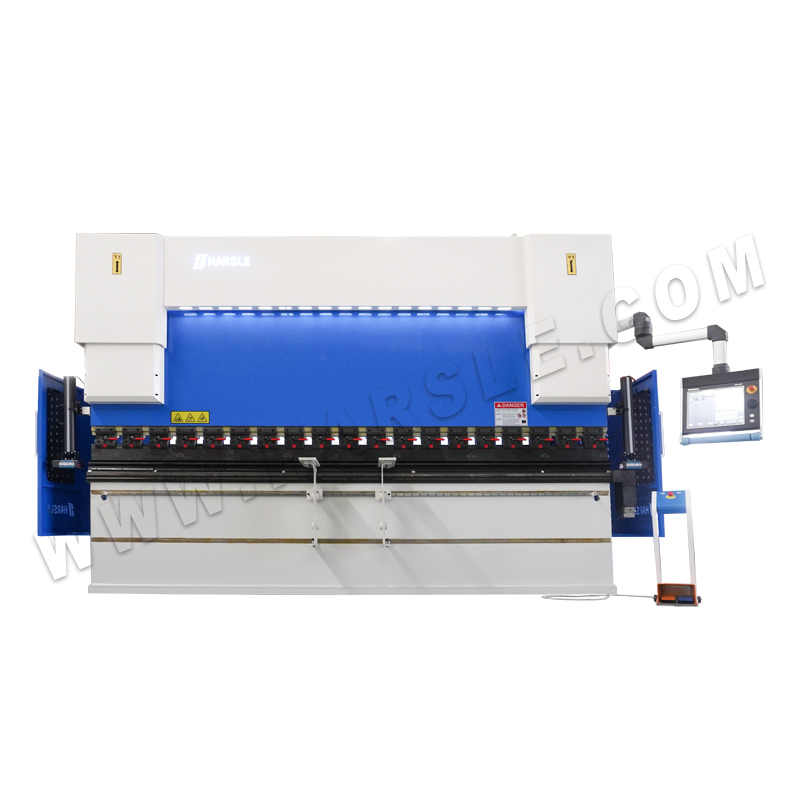

200T 3200mm 8+1 axis CNC press brake with Delem DA-66T Touch Screen.

DA-66T Controller

● 2D graphical touch screen programming mode

● 3D visualization in simulation and production

● Crowning system control

● 17" high resolution color TFT

● Date backup/ restore via USB

● Bending tool/material/product library

● Full Windows application suite

● Open system architecture

CNC Backgauge

8+1 axis backgauge

X1+X2+R1+R2+Z1+Z2

Technical Parameter

No.	Item	Unit	200T/3200
1	Bending force	kW	2000
2	Bending length	mm	3200
3	Columns distance	mm	2700
4	Throat depth	mm	400
5	Cylinder stroke(Y1,Y2)	mm	200
6	Die loading height(Daylight)	mm	420
7	Y-axis down speed	mm/sec	180
8	Y-axis return speed	mm/sec	120
9	Y-axis working speed	mm/sec	4~15(adjustable)
10	Y-axis accuracy	mm	±0.01
11	Working-piece linearity	mm	0.3/m
12	Max. Back gauge distance	mm	500
13	X-axis and R-axis speed	mm/sec	400
14	X-axis and R-axis accuracy	mm	±0.01
15	Front sliding arms	pcs	2
16	Bending angle accuracy	( ' )	≤±18
17	Back gauge finger stopper	pcs	4
18	Main motor	KW	15
19	Dimension	Length(mm)	3400
		Width(mm)	1680
		Height(mm)	2550
20	Weight	kg	14000
