WE67K
HARSLE
8462219000
Smart Press Brake
| Quantity: | |
|---|---|
Product Description

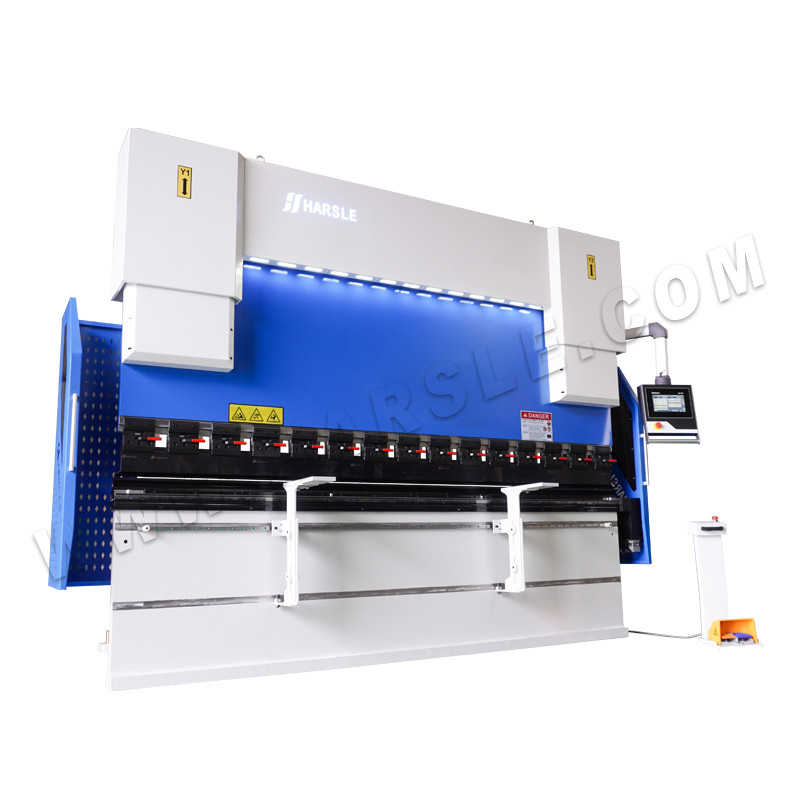

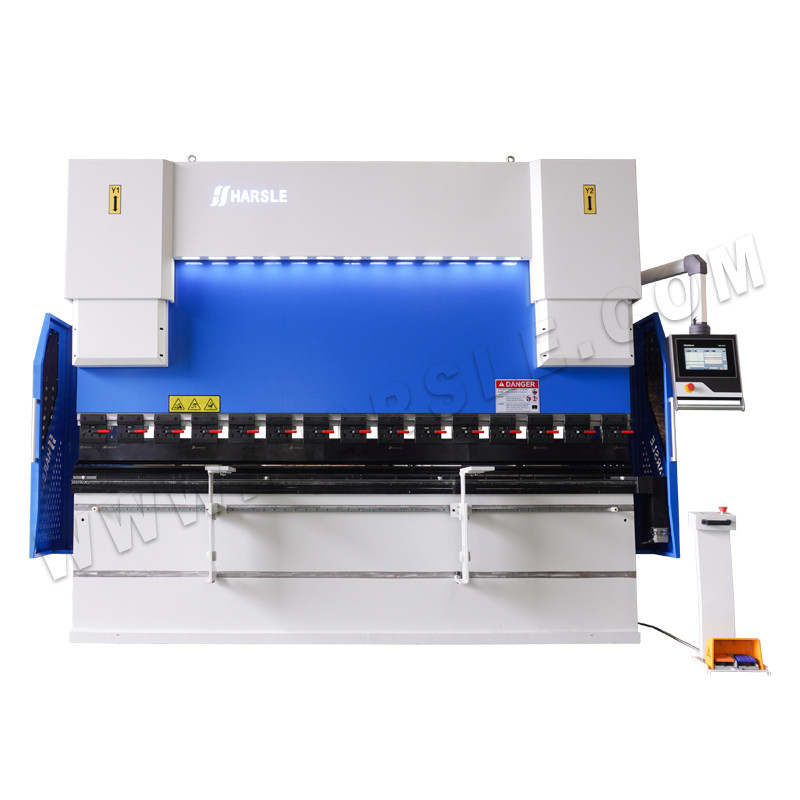

200 ton 3200mm CNC press brake machine with DA-53T and 3+1 axis from China for sale.
DA-53T Controller
CNC Backgauge
Technical Parameter
| No. | Item | Unit | 200T/3200 |
| 1 | Bending force | kN | 2000 |
| 2 | Bending length | mm | 3200 |
| 3 | Columns distance | mm | 2700 |
| 4 | Throat depth | mm | 400 |
| 5 | Cylinder stroke(Y1,Y2) | mm | 200 |
| 6 | Die loading height(Daylight) | mm | 420 |
| 7 | Y-axis down speed | mm/sec | 180 |
| 8 | Y-axis return speed | mm/sec | 120 |
| 9 | Y-axis wording speed | mm/sec | 4~15(adjustable) |
| 10 | Y-axis accuracy | mm | ±0.01 |
| 11 | Work-piece linearity | mm | 0.3/m |
| 12 | Max.Back gauge distance | mm | 500 |
| 13 | X-axis (R-axis) speed | mm/sec | 400 |
| 14 | X-axis (R-axis) accuracy | mm | ±0.01 |
| 15 | Front sliding arms | pcs | 2 |
| 16 | Bending angle accuracy | (') | ≤±18 |
| 17 | Back gauge finger stopper | pcs | 4 |
| 18 | Main motor | KW | 15 |
| 19 | Dimension | Length(mm) | 3300 |
| Width(mm) | 1680 | ||
| Height(mm) | 2550 | ||
| 20 | Weight | kg | 14200 |
