WE67K
HARSLE
Smart Press Brake
| Quantity: | |
|---|---|
Product Description

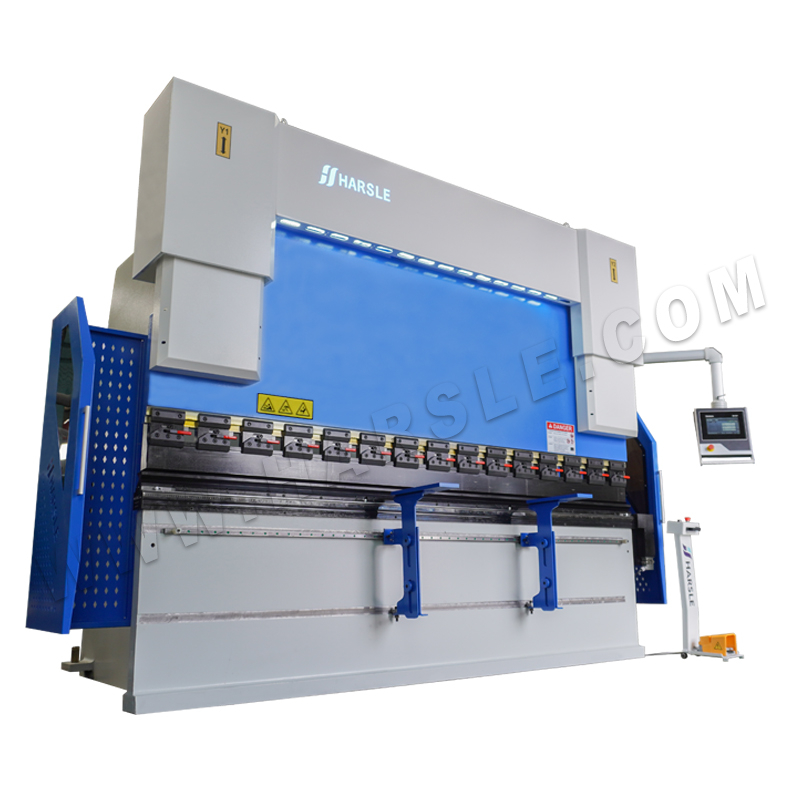

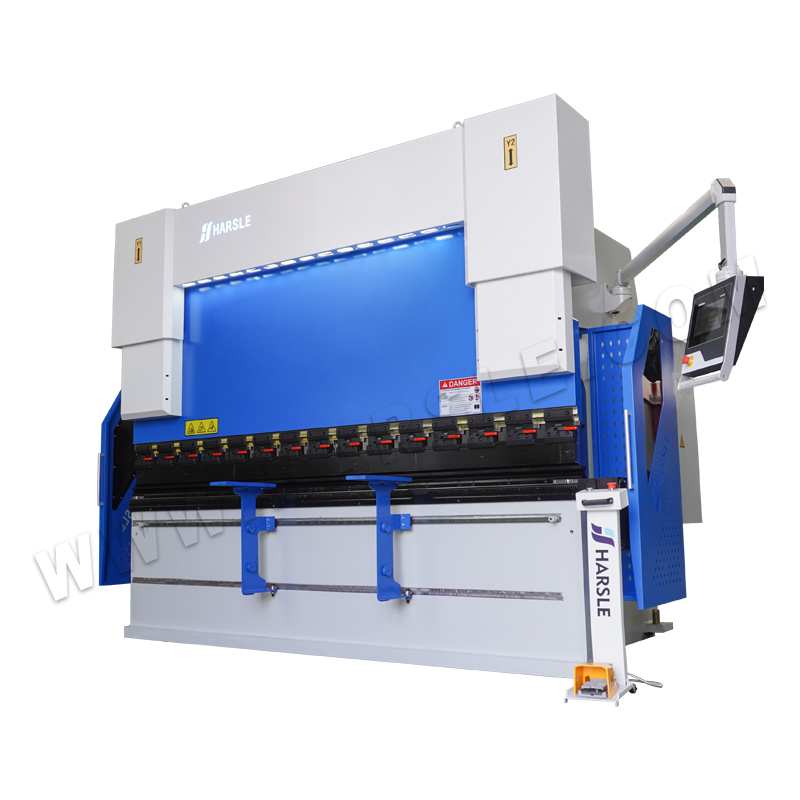

HARSLE WE67K-200T3200 Smart Press Brake is equipped with DELEM DA-53T controller, SIEMENS main motor, the working area LED lighting, CNC motorized crowning system, adjustable stop fingers can not only move in left and right direction but also can be fine adjusted, which ensures the bending accuracy within the controlled range, its front part is with tempering and other special treatment for long service life, the back gauge X and R axes, SCHNEIDER electrical parts, pedal switch with emergency button, special treatments to punch and die, not easy to wear, strong and durable, front arm on linear guide with ball design can ensure the plate will not be worn or scratched, the servo driver runs each axis which ensures the bending accuracy and efficient production.
Control System
Technical Parameter
| No. | Item | Unit | 200T/3200 |
| 1 | Bending force | Kn | 2000 |
| 2 | Bending Length | mm | 3200 |
| 3 | Columns distance | mm | 2700 |
| 4 | Throat depth | mm | 400 |
| 5 | Cylinder stroke(Y1,Y2) | mm | 200 |
| 6 | Die loading height(Daylight) | mm | 420 |
| 7 | Y-axis down speed | mm/sce | 180 |
| 8 | Y-axis return speed | mm/sce | 120 |
| 9 | Y-axis working speed | mm/sce | 4~15（adjustable) |
| 10 | Y-axis accuracy | mm | ±0.01 |
| 11 | Work-piece linearity | mm | 0.3/m |
| 12 | Max. Back gauge distance | mm | 500 |
| 13 | X-axis and R-axis speed | mm/sec | 400 |
| 14 | X-axis and R-axis accuracy | mm | ±0.01 |
| 15 | Front sliding arms | pcs | 2 |
| 16 | Bending angle accuracy | (') | ≤±18 |
| 17 | Back gauge finger stopper | pcs | 4 |
| 18 | Main motor | KW | 15 |
| 19 | Dimension | Length(mm) | 3300 |
| Width(mm) | 1680 | ||
| Height(mm) | 2550 | ||
| 20 | Weight | kg | 14200 |
