Product Description

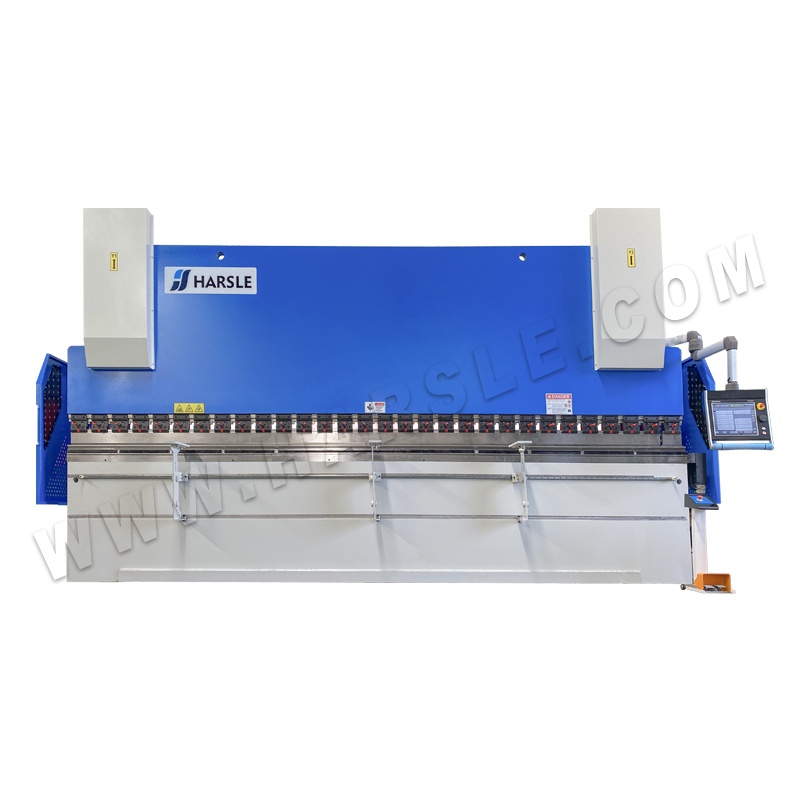

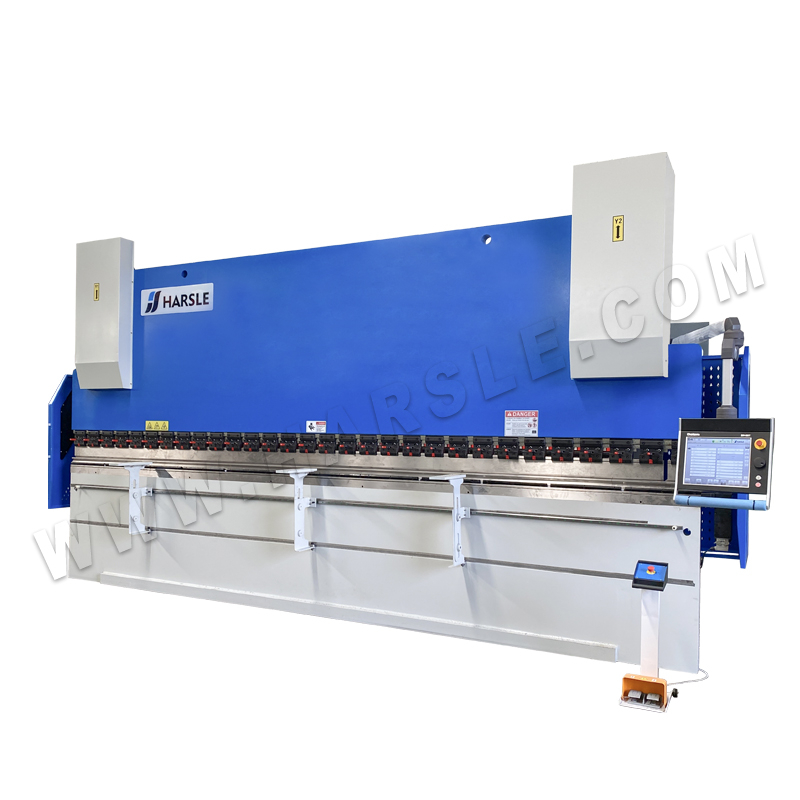

WE67K-300T4000 China Genius CNC Press Brake Machine with DA-66T. X1+X2+R1+R2+Z1+Z2 Backgauge and Segmented Punch and 4V die. Footswitch with emergency button and Front arms on the linear guide.
DA-66T Controller
CNC Backgauge
Technical Parameter
| No. | Item | Unit | 300T/4000 |
| 1 | Bending force | kW | 3000 |
| 2 | Bending length | mm | 4000 |
| 3 | Columns distance | mm | 3500 |
| 4 | Throat depth | mm | 400 |
| 5 | Cylinder stroke(Y1,Y2) | mm | 200 |
| 6 | Die loading height(Daylight) | mm | 420 |
| 7 | Y-axis down speed | mm/sec | 180 |
| 8 | Y-axis return speed | mm/sec | 120 |
| 9 | Y-axis working speed | mm/sec | 4~15(adjustable) |
| 10 | Y-axis accuracy | mm | ±0.01 |
| 11 | Working-piece linearity | mm | 0.3/m |
| 12 | Max. Back gauge distance | mm | 500 |
| 13 | X-axis and R-axis speed | mm/sec | 400 |
| 14 | X-axis and R-axis accuracy | mm | ±0.01 |
| 15 | Front sliding arms | pcs | 2 |
| 16 | Bending angle accuracy | ( ' ) | ≤±18 |
| 17 | Back gauge finger stopper | pcs | 4 |
| 18 | Main motor | KW | 22.5 |
| 19 | Dimension | Length(mm) | 4200 |
| Width(mm) | 1580 | ||
| Height(mm) | 2000 | ||
| 20 | Weight | kg | 21600 |
