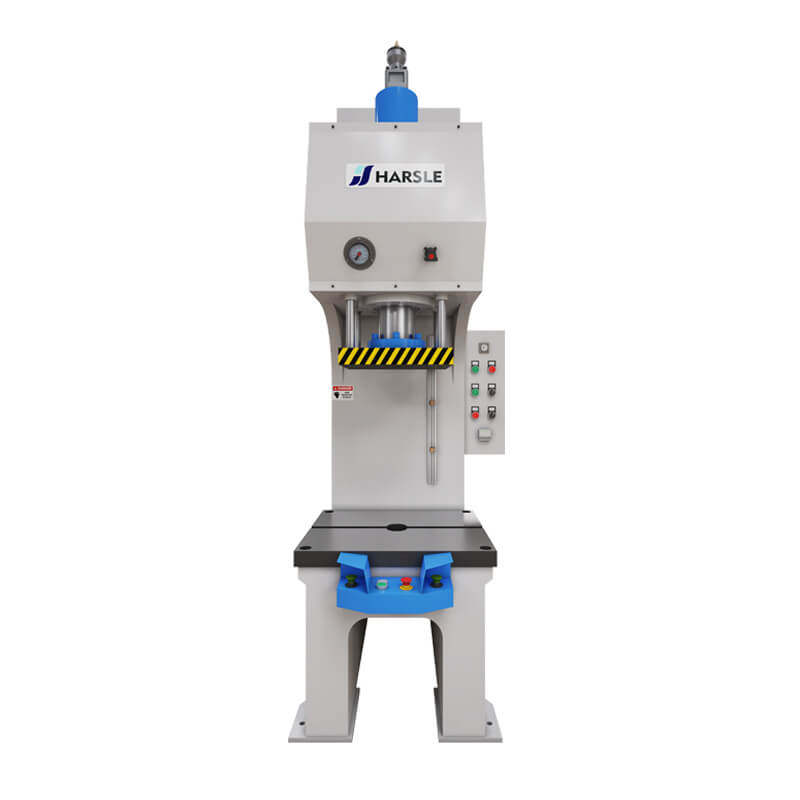

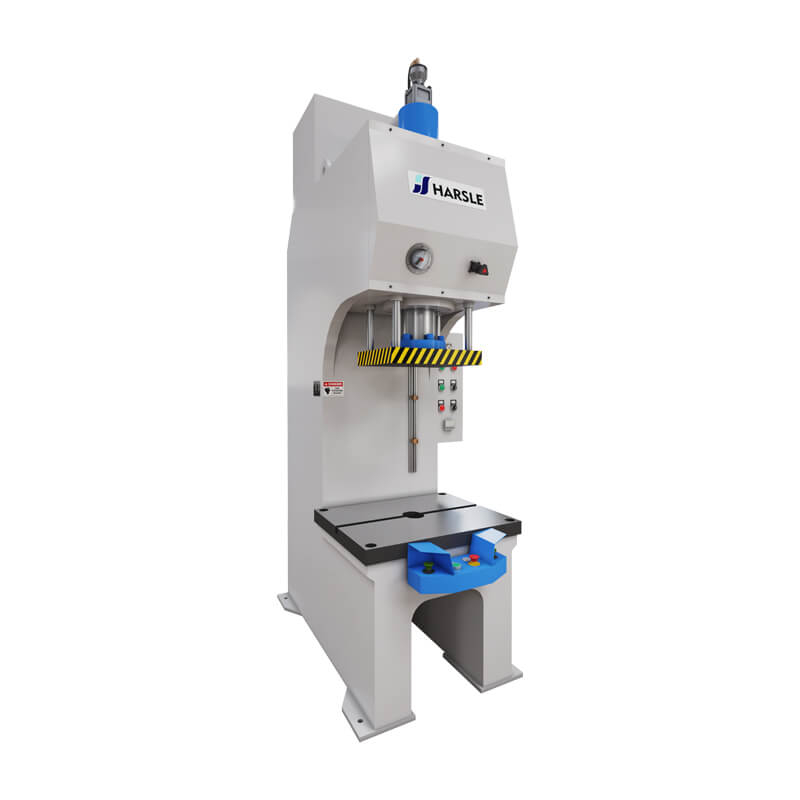

Y41 Single Column Hydraulic Press

5 49 Reviews
1. Manual/ Single/ Cycle function
2. Easy operation and low maintenance
3. Strengthen and calibration
4. Three-year quality warranty
  • Y41

  • HARSLE

Availability:
Quantity:

Features

The Y41 single column hydraulic press is a "C" type single column construction with an all steel welded body. The hydraulic system is arranged in the body and the lower part of the working table is equipped with a hydraulic pad, the working pressure stroke can be adjusted within the specified range. The electrical control system is based on a "PC" programmable controller. The machine is controlled centrally by push-buttons and can be operated in an adjustable, manual or semi-automatic manner. This series of hydraulic presses is suitable for drawing, punching, bending, flanging, correction, pressing, hot and cold extrusion of metal materials, and also for pressing and forming of powder products and plastic products.

Product Description

Y41 Press machinesingle column presssingle cylinder press

Specification

Item

Unit

Y41-16T

Y41-25T

Y41-40T

Y41-63T

Y41-100T

Y41-160T

Y41-200T

 Y41-  250TY41-315T

Nominal   force

KN

160

250

400

630

1000

1600

2500

2500

3150

Maximum Pressure

Mpa

13
2022.524.525.825.5252526.5

Daylight

mm

5005506006308001000100010001000

Stroke

mm

350350400500500500500500600
Decent Speedmm/s
125125135135135120120120120
Pressing Speedmm/s8-158-158-158-158-158-158-158-158-15
Return Speed
mm/s1101101001009090909090
Throat Depth
mm300300320350350350360360400
Table Size
F-BMM500500550650650650660700800
L-RMM6006007007008008008008001000
Worktable Height From Floor
mm700700700700700700700700700
Blanking Hole Diameter(Optional)
mm7070708080100120120120
Motor Power
Kw5.55.55.55.57.515222222

Dimension

F-B

mm

114012801370152015701680178018502060

L-R

mm

7407557607608401000120013001630

Height

mm

199022002250255026702800312032003810

Weight

Kg

1200200025003000400068008000960011000
