Features

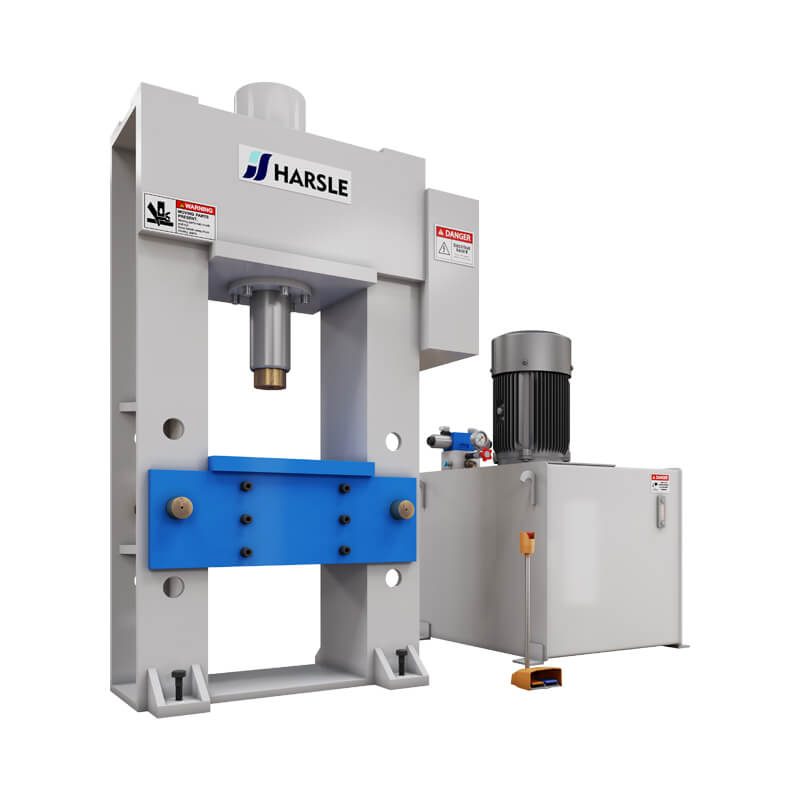

The YL hydraulic shop press machine is mainly used for sheet metal pressing and forming as well as calibration processes. It adopts a three-beam and two-column combined structure, welded with steel plates and stress relieving treatment, with sufficient rigidity and strength, spacious operation space, easy to observe and install and adjust moulds on all sides, simple structure and beautiful appearance of the whole machine. The independent power mechanism and electrical system are controlled by PLC and can be operated in a point-action or semi-automatic manner. The working pressure can be adjusted according to the needs of the process.
Product Description
Specification
Item | Unit | YL-20T | YL-20TK | YL-40T | YL-40TK | YL-60T | YL-60TK | YL-100T | YL-100TK |
Nominal Force | kN | 200 | 200 | 400 | 400 | 600 | 600 | 1000 | 1000 |
Stroke | mm | 200 | 200 | 200 | 200 | 200 | 200 | 350 | 350 |
System Pressure | MPa | 25 | 25 | 30 | 30 | 30 | 30 | 25 | 25 |
Working Table Size（Left and Right） | mm | 360 | 400 | 400 | 400 | 400 | 400 | 440 | 440 |
Working Table Size（Front and Back） | mm | 400 | 460 | 460 | 460 | 490 | 490 | 650 | 650 |
Down Speed | mm/s | 15 | 40 | 6 | 45 | 6 | 45 | 6 | 16 |
Return Speed | mm/s | 23 | 50 | 8 | 60 | 8 | 60 | 8 | 20 |
Motor Power | kW | 2.2 | 4 | 2.2 | 7.5 | 2.2 | 7.5 | 7.5 | 7.5 |
