To maintain the efficiency and precision of your laser welding machine, it is critical to replace the laser welding machine focusing lens as part of your regular maintenance routine. One such maintenance task is the replacement of the focusing lens on the laser welding head. This article serves as a comprehensive guide to help you replace the laser welding machine focusing lens meticulously. At HARSLE, we prioritize meeting our customers’ needs by providing detailed resources, such as instructional videos and articles like this one, to empower and assist in maintenance tasks.

Importance of the Focusing Lens in Laser Welding

Before diving into the step-by-step replacement process, it is essential to understand the significance of the focusing lens in laser welding. The focusing lens is the component responsible for directing the laser beam precisely onto the weld area, ensuring clean and accurate joints. Over time, lenses can accumulate dust, scratches, and other forms of damage, impacting the efficiency and quality of the weld. Therefore, periodic replacement of the laser welding machine focusing lens is crucial to maintaining optimal performance.

Tools Required

Before starting the replacement of the focusing lens, gather the necessary tools:

• Screwdriver or hex key
• Cleanroom gloves or anti-static finger cots
• Microfiber cloth or lens cleaning wipes
• Masking tape (such as painter’s tape)
• A new focusing lens (ensure correct specifications for SUP23T)

Step-by-Step Guide to Replace the Laser Welding Machine Focusing Lens

Here’s a detailed look at how to replace the laser welding machine focusing lens:

Step 1: Remove the Securing Screws

Begin by carefully removing the securing screws on the laser welding head. This initial step is necessary to gain access to the internal components, which include the focusing lens.

Step 2: Take Off the Dust Cover

Next, gently remove the dust cover to expose the internal mechanics, providing a clear path to the focusing lens. This step ensures that the area is free from dust and contaminants, which is vital when you replace the laser welding machine focusing lens.

Step 3: Pull Out the Focusing Lens Drawer

Firmly and carefully pull out the focusing lens drawer from the machine. The drawer needs to be handled with care as it holds the fragile focusing lens.

Step 4: Protect the Drawer Slot

Apply masking tape to cover the original drawer slot. This precaution helps prevent any dust or debris from entering the machine during the replacement of the laser welding machine focusing lens.

Step 5: Remove the Pressure Ring

With a steady grip on the focusing lens drawer, rotate to remove the pressure ring. This action will release the old focusing lens, making it ready for replacement.

Step 6: Replace with a Suitable Focusing Lens

Select a new focusing lens that matches the specifications of your laser welding machine. Ensure that when you replace the laser welding machine focusing lens, the flat side of the lens is facing upwards for correct installation and functionality.

Step 7: Reattach the Pressure Ring

After fitting the new focusing lens in place, securely reattach and lock the pressure ring. This step ensures the lens is properly seated and secured within the drawer.

Step 8: Remove the Masking Tape

Once the lens is secure, remove the masking tape from the drawer slot, ensuring no sticky residue is left behind. This step marks your progression towards the successful completion of the process to replace the laser welding machine focusing lens.

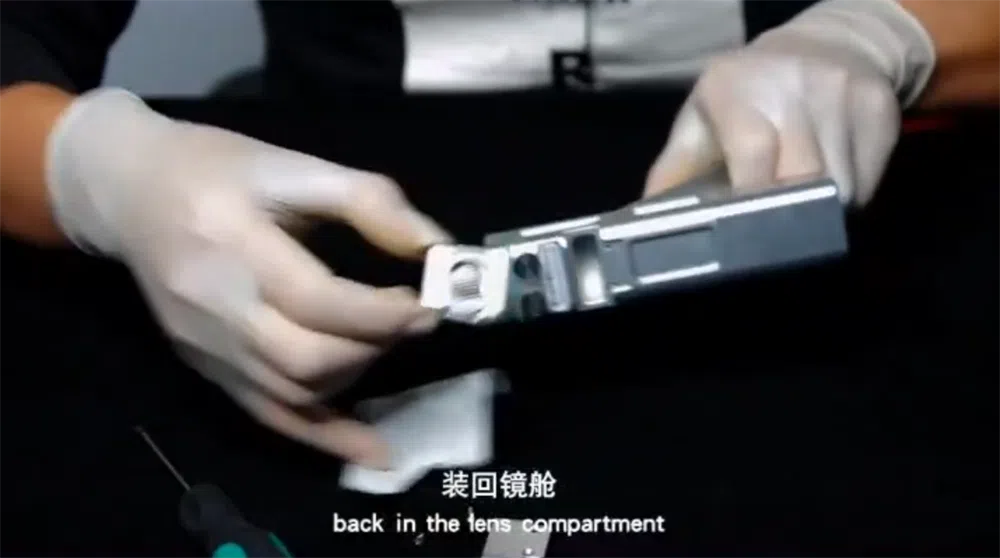

Step 9: Install the Focusing Lens Drawer

Reinsert the focusing lens drawer into the laser welding machine, confirming that it fits snugly and securely into position.

Step 10: Reattach the Dust Cover

Carefully replace the dust cover over the assembly to protect the components, including the newly replaced focusing lens, from dust and environmental factors.

Step 11: Tighten the Securing Screws

Finally, reinstall and tighten all securing screws, ensuring that the assembly is tight and stable. With this concluding step, you have successfully completed the task to replace the laser welding machine focusing lens.

Conclusión

Replacing the laser welding machine focusing lens is a vital maintenance task that helps maintain the precision and efficiency of your welding operations. By following these detailed steps, you ensure that your laser welding equipment remains in top condition, capable of producing high-quality results. En HARSLE, we are committed to providing our customers with the resources and support necessary to carry out effective maintenance, enhancing the longevity and performance of their machinery. Regularly maintaining and replacing critical components like the laser welding machine focusing lens will keep your operations smooth and productive, ensuring you consistently achieve the precision and quality you expect.
