When I started comparing different models on the shop floor, energy consumption of poinçonneuses quickly emerged as the cost that creeps up unnoticed—until the electricity bill arrives. If you want to understand why two seemingly identical presses draw vastly different amounts of power, you’re in the right place. In this guide, I’ll break down the factors that influence energy usage, show you how to measure and interpret data, and share practical steps that have helped me cut consumption without sacrificing throughput or part quality.

Core Machine Factors That Drive Energy Use

Motor Size, Efficiency, and Drive Type

The main motor is the single largest consumer of electricity. High-efficiency servo motors can lower draw by 10–25 % compared with conventional hydraulic drives. Look for IE3 or IE4 efficiency ratings and regenerative drives that recover braking energy.

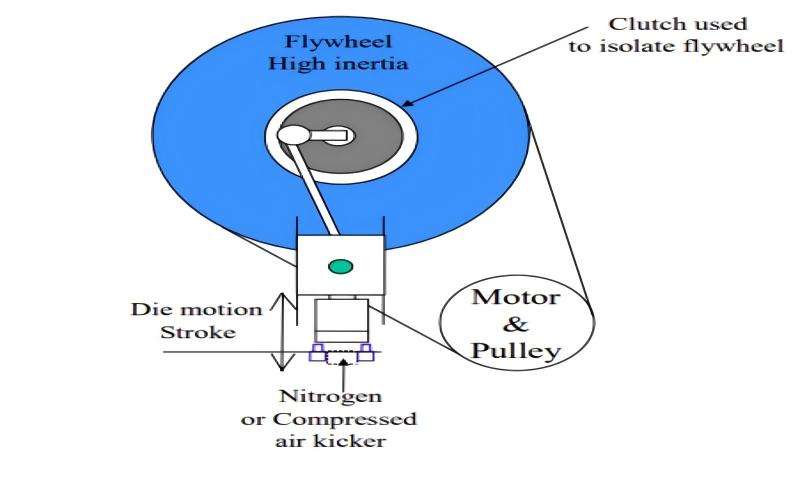

Flywheel and Clutch Design

Older mechanical presses rely on large flywheels that store kinetic energy, but they also dissipate it as heat when the clutch disengages. Modern clutch-brake systems with intelligent controls reduce unnecessary spin time, trimming idle power consumption.

Hydraulic System Pressure and Flow

Hydraulic punching machines use pumps that run at constant pressure unless outfitted with variable-frequency drives (VFDs). By matching pump speed to real-time demand, VFDs cut motor load, reducing the overall energy consumption of punching machines during partial cycles.

Control System and Software

CNC controllers that optimize tool paths, minimize air-punch strokes, and group holes by proximity shorten cycle times and lower the total watt-hours required per part. Up-to-date firmware is an easy win—many vendors overlook that software updates often contain new energy-saving algorithms.

Material and Process Variables That Influence Power Demand

Material Thickness and Strength

Punching thicker or higher-tensile material requires more tonnage, directly raising motor current. I always calculate expected tonnage per sheet before quoting a job to account for the jump in power costs.

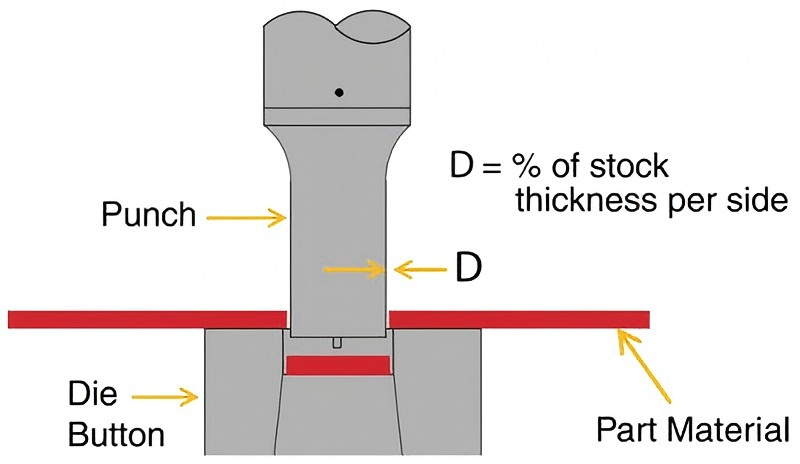

Tooling Condition and Clearance

Dull punches or incorrect die clearance increase required force, forcing the motor to run at higher load. Sharpening tools at regular intervals can drop peak amperage by up to 15 % in my experience.

Stroke Length and Dwell Time

Excessive stroke length wastes energy on non-productive motion. Setting the ram to travel only the distance needed to clear the workpiece—and avoiding unnecessary dwell at the bottom dead center—cuts cycle time and power usage simultaneously.

Operating Techniques to Lower Energy Consumption

Schedule High-Demand Jobs During Off-Peak Hours

Many utilities offer lower rates at night or on weekends. By shifting thick-gauge or long-cycle jobs to off-peak windows, I’ve shaved as much as 20 % off monthly power bills.

Optimize Tool Path Sequencing

Grouping holes to minimize sheet repositioning keeps motors from ramping up and down repetitively. Most CAM packages have an “energy-efficient” nesting option—turn it on and fine-tune the parameters to match your press’s acceleration limits.

Use Standby and Sleep Modes

Today’s CNC punches include eco modes that power down hydraulics or servos when idle. Even a 30-second delay can add up across thousands of cycles. I train operators to hit standby every time they leave the workstation, no matter how brief the pause.

Maintenance and Upgrades for More Efficient Punching

Implement a Predictive Maintenance Schedule

Sensors that monitor oil temperature, motor current, and vibration can signal inefficiencies before they balloon into power-hungry faults. I log these data points weekly and adjust maintenance intervals accordingly.

Retrofit Variable-Frequency Drives

If your punch press uses a fixed-speed motor, adding a VFD is one of the fastest paybacks—often under two years—especially on presses that run variable workloads.

Consider Servo-Electric Retrofits or New Purchases

Servo-electric punching machines eliminate hydraulic oil altogether, reducing not only the energy consumption of punching machines but also cooling requirements. When I upgraded one 30-year-old hydraulic press, the servo replacement delivered a 35 % energy savings and halved annual maintenance.

FAQ

Conclusion

Reducing the energy consumption of punching machines demands a mix of smarter equipment, optimized processes, and disciplined maintenance. By upgrading motors and drives, refining tool paths, and keeping tooling sharp, you can cut kilowatt-hours without slowing production—or worse, delivering subpar parts. If you’re ready to audit your press lineup or explore servo-electric options, reach out to the HARSLE team. We’ll help you find the quickest wins and long-term upgrades to power your punch line more efficiently.
