When selecting the right hydraulic press, you might find it difficult to determine exactly which machine suits your specific requirements. A hydraulic press is a crucial tool for various metal forming tasks, providing outstanding efficiency and accuracy. In this guide, I’ll walk you through the selection process, highlight key factors to consider, and outline important steps, helping you confidently choose the perfect hydraulic press for your needs.

Determine Your Hydraulic Press Application

Assessing Your Primary Use Case

The first step in choosing the right hydraulic press is clearly defining your primary application. Are you planning to use it for deep drawing, stamping, forming, or bending tasks? Each application requires different machine features and specifications. Identifying your main operations upfront ensures your hydraulic press will perform optimally.

Analyzing Material Type and Thickness

Different materials and thicknesses require varying press capacities. For example, thinner metal sheets typically need lower tonnage presses, whereas thick plates or harder metals require higher tonnage capacities. Clearly defining the material type and thickness you’ll work with helps in selecting an appropriately powered hydraulic press.

Evaluate Press Tonnage Requirements

Calculating Required Tonnage

Properly calculating the necessary tonnage is essential for hydraulic press selection. To determine the correct tonnage, consider the material type, material thickness, die size, and the complexity of the task. A common formula to calculate the required press tonnage is:

Tonnage = Material Thickness × Material Strength × Length of Bend / Die Opening Width

Always select a press with a slightly higher tonnage than your calculations to ensure ample capacity and accommodate potential future expansion.

Avoiding Under or Over-Specification

Selecting a hydraulic press with insufficient tonnage can lead to inadequate forming and potential damage to the equipment. Conversely, significantly over-specifying your machine results in unnecessary costs and inefficient energy use. Balance your current and future needs carefully to choose the most cost-effective and practical tonnage.

Selecting Hydraulic Press Type and Configuration

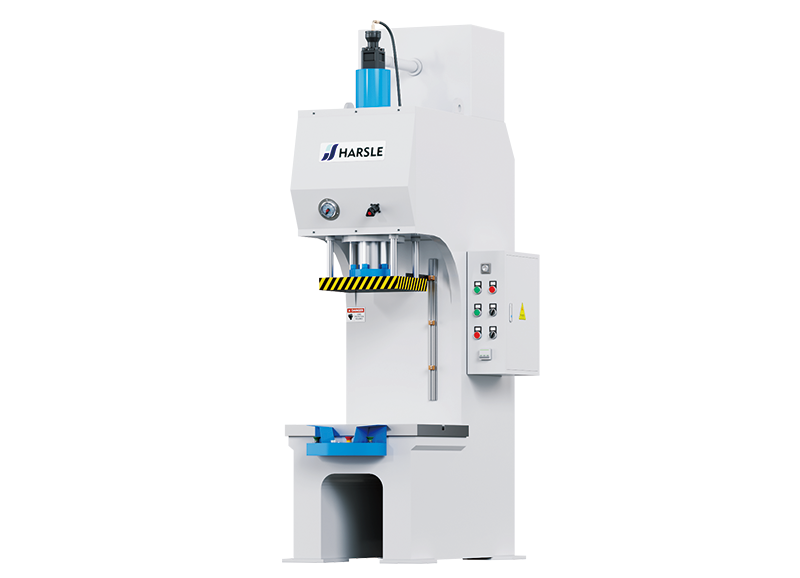

C-Frame Hydraulic Presses for Versatility

Hydraulic presses primarily come in two configurations: C-Frame and H-Frame (also known as four-column or straight-side). C-Frame hydraulic presses provide excellent accessibility from three sides, ideal for smaller-scale tasks or intricate operations. H-Frame presses deliver higher precision and stability, suitable for heavier-duty applications and larger workpieces.

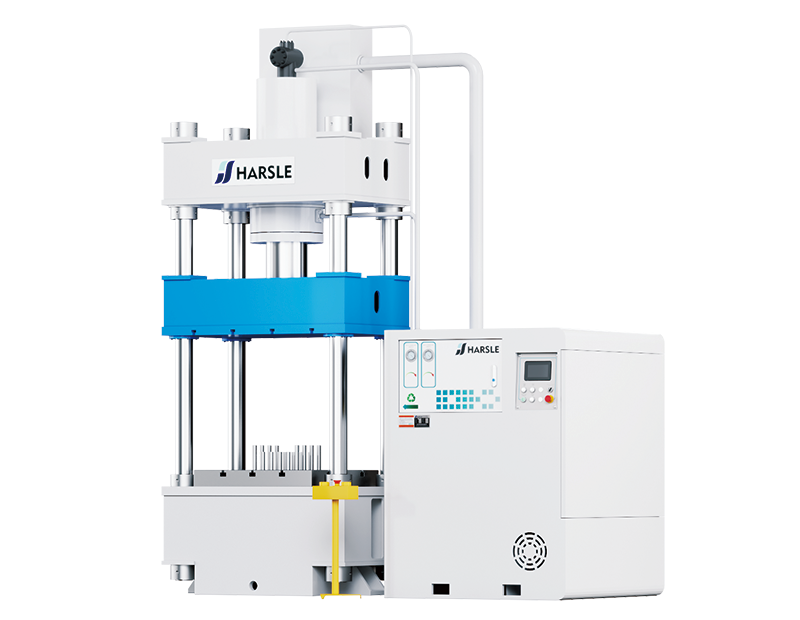

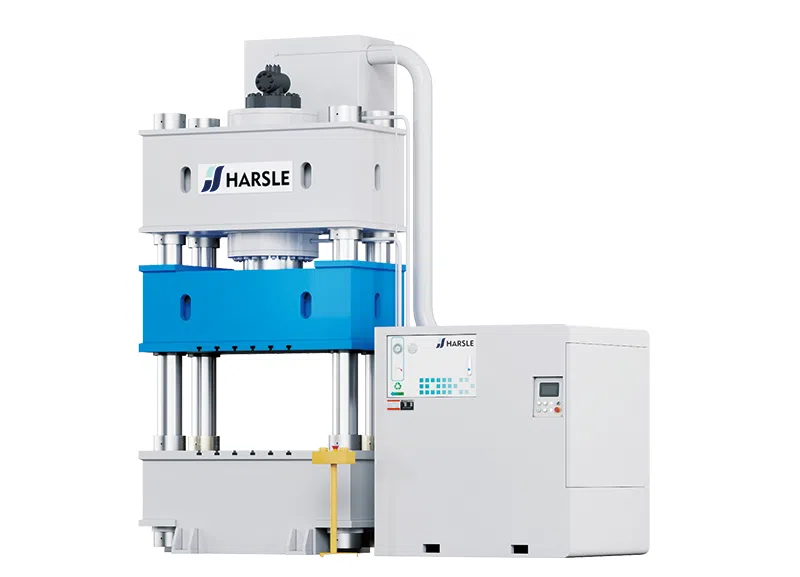

Four-Column Presses for Heavy-Duty Forming

For heavier, high-volume metal forming tasks, a four-column hydraulic press is usually recommended. With enhanced stability, accuracy, and evenly distributed pressure, these presses are excellent for complex deep drawing and stamping operations. If your production requires precision and consistent pressing over longer runs, investing in a four-column press will significantly benefit your operation.

Deciding on Automation Level

Today’s hydraulic presses range from manual operation to fully automated systems. Consider your production volume, required precision, and budget when determining your press’s automation level. Automated hydraulic presses offer greater efficiency, consistency, and reduced labor costs, ideal for high-volume production environments.

Additional Features and Customizations

Press Bed Size and Daylight Opening

Carefully check the press bed dimensions and daylight opening (distance between the bed and ram at full stroke). These specifications are essential to ensure your workpieces and tooling fit comfortably within the press. A sufficient daylight opening allows versatility, accommodating various die heights and workpiece thicknesses without compromising accuracy.

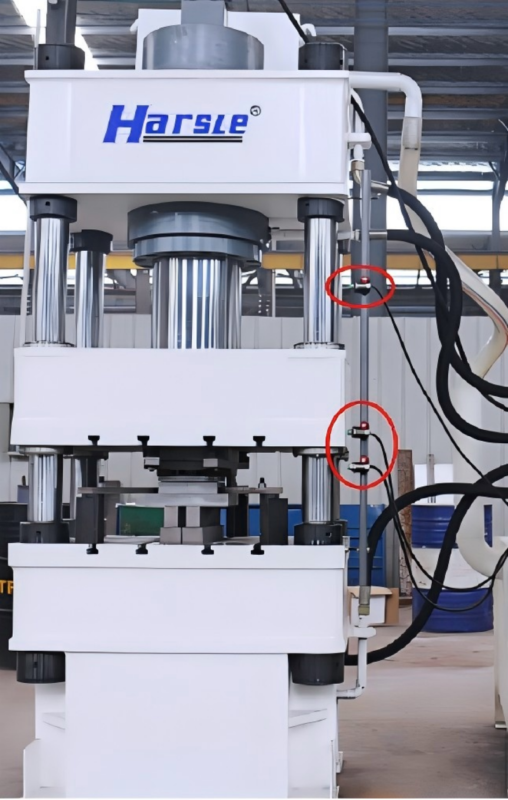

Stroke Length and Daylight Opening

The stroke length and daylight opening (maximum vertical distance between the press bed and ram) are critical specifications. Ensure your selected hydraulic press can accommodate your tallest workpieces and tooling, including any dies or molds you may utilize.

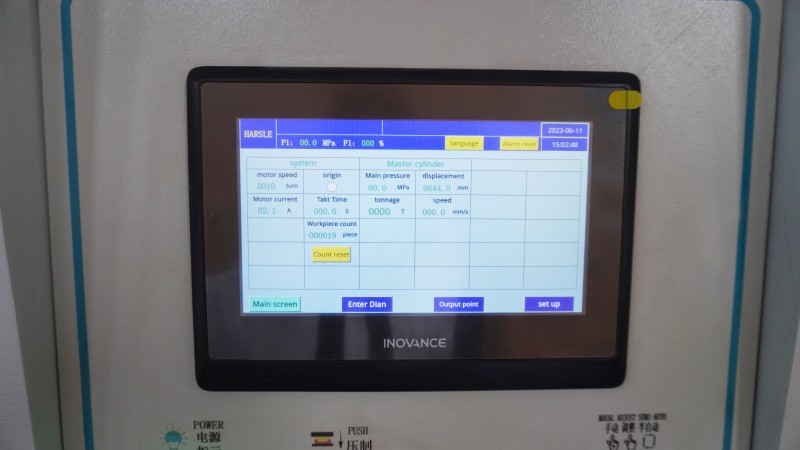

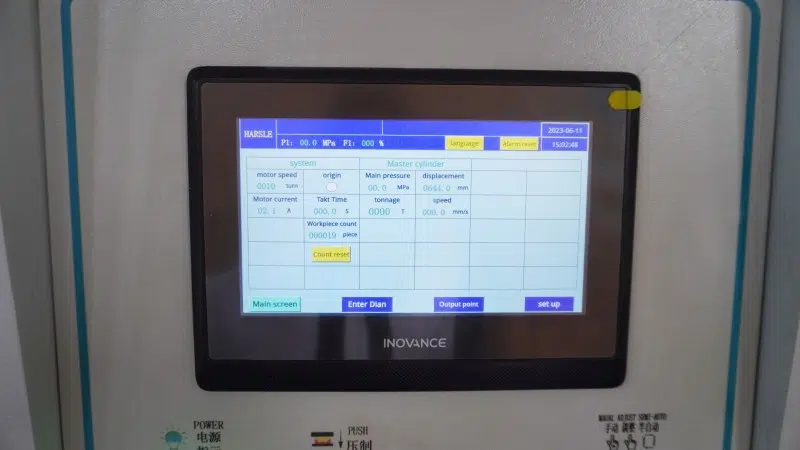

Control Systems and Safety Features

Modern hydraulic presses come equipped with various control systems and safety features, such as pressure sensors, programmable controls, emergency stops, and safety curtains. Choose a press featuring intuitive and user-friendly controls, and make safety a priority to protect operators and enhance productivity.

Budget Considerations and ROI Analysis

Understanding Pricing vs. Performance

When purchasing a hydraulic press, pricing will inevitably be a factor. Cheaper machines might seem appealing initially but often result in higher long-term costs due to maintenance, downtime, and inefficiency. Investing in a high-quality hydraulic press from reputable manufacturers ensures reliability, reduced downtime, and overall lower lifecycle costs.

Calculating Return on Investment (ROI)

Perform a thorough ROI analysis by factoring in productivity improvements, maintenance costs, expected lifespan, and initial investment. A reliable hydraulic press can significantly boost your productivity, lower operational costs, and provide lasting value, making it a worthwhile investment.

FAQ

Conclusion

Selecting the right hydraulic press involves thoroughly analyzing your operational needs, calculating required tonnage, evaluating press configurations, and considering additional features. By carefully examining these factors and performing an informed ROI analysis, you can confidently choose a hydraulic press tailored perfectly to your production environment. If you require further assistance or detailed specifications, feel free to contact our experienced team at HARSLE—we’re always here to help you find the ideal solution.
