Shearing Machines in Metal Fabrication are essential tools for achieving precise and efficient cutting of metal sheets. If you’ve ever wondered exactly how these machines operate in real-world fabrication settings, you’re in the right place. In this article, I’ll walk you through how shearing machines work, provide step-by-step operational guidance, and share practical tips for maximizing performance. Whether you’re just starting out in metalworking or looking to improve your current processes, this guide offers valuable insights you can apply immediately.

Understanding the Basics of Shearing Machines

What is Metal Shearing?

Metal shearing refers to a mechanical cutting process where a sheet of metal is divided into parts by applying a powerful force. Unlike other cutting methods, shearing doesn’t involve melting or burning the metal, making it ideal for clean, straight cuts. Shearing machines in metal fabrication precisely apply force through two blades: an upper movable blade and a lower fixed blade.

Main Components of Cisailles

To understand how shearing machines in metal fabrication operate, it’s important to know their core components:

• Upper Blade (Movable Blade): Moves vertically to apply pressure and cut the metal.
• Lower Blade (Fixed Blade): Remains stationary, providing the resistance required for cutting.
• Hold-Downs: Secure the metal sheet firmly, preventing shifting during cutting.
• Backgauge System: Accurately positions the metal to ensure precision and repeatability.

Step-by-Step Operation of Cisailles in Metal Fabrication

Step 1: Preparing the Machine and Material

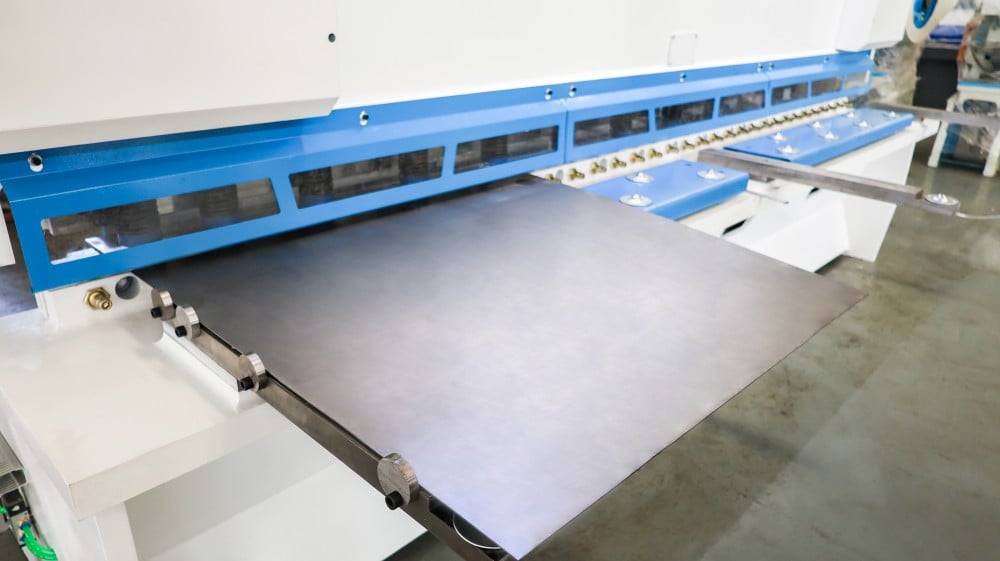

Before operating the shearing machine, ensure it’s properly calibrated and clean. Remove debris from the blades and workspace. Check the blades for sharpness and damage. Place the metal sheet precisely on the machine bed, aligning it with the backgauge for accuracy.

Step 2: Securing the Metal Sheet

Activate the hold-down system, which firmly clamps down on the metal sheet. Ensuring the sheet is securely fastened prevents movement during the cutting process, guaranteeing a clean, straight cut.

Step 3: Setting the Backgauge and Blade Clearance

Proper blade clearance is crucial for optimal cut quality. Adjust the clearance according to the thickness and type of metal. Set the backgauge precisely to the desired cut length, ensuring consistency in production.

Step 4: Executing the Cut

Initiate the cutting operation, usually by pressing a foot pedal or control panel button. The upper blade swiftly moves downward, shearing the metal sheet against the fixed lower blade. The shear force cleanly separates the sheet along the intended cutting line.

Step 5: Inspecting and Finishing the Cut

After shearing, inspect the edges of the cut metal to ensure accuracy and quality. Properly cut edges should appear smooth and clean. Regular inspection allows you to quickly detect if adjustments to clearance or blade sharpness are required.

Tips for Maintaining Optimal Shearing Machine Performance

Routine Blade Maintenance

Blades should regularly be inspected for wear or damage. Frequent sharpening or replacement ensures precision cutting and reduces material waste. Remember, dull blades can cause uneven edges or machine strain.

Proper Lubrication

Regular lubrication of moving parts significantly enhances the machine’s longevity and operation smoothness. Always follow the manufacturer’s lubrication guidelines, using recommended lubricants.

Regular Machine Calibration

Routine calibration checks ensure your shearing machine maintains cutting accuracy. Periodic calibration prevents unexpected errors and ensures consistently high-quality results.

FAQ

Conclusion

Understanding how shearing machines in metal fabrication work empowers you to utilize these essential tools efficiently. By following clear operational procedures, maintaining regular inspections, and adhering to routine maintenance, you can achieve accurate, high-quality metal cuts and prolong your machine’s service life. If you need further assistance, detailed specifications, or have additional questions, please contact our experienced team—we’re here to help.
