Introduction for Press Brake with DA-66S System

Views: 35     Author: Site Editor     Publish Time: 2023-09-27      Origin: Site

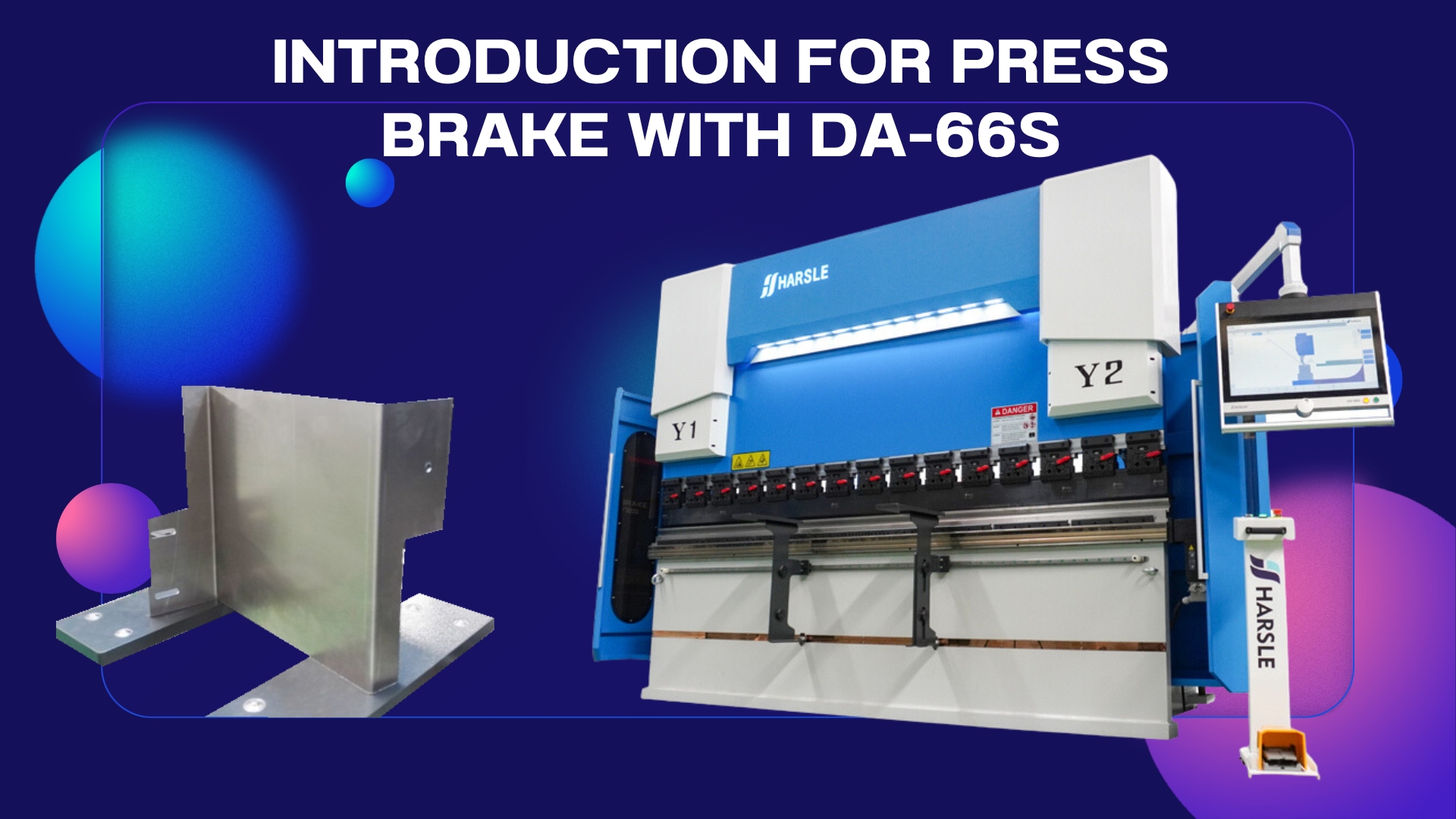

Introduction for Press Brake with DA-66S

Introduction for Press Brake Machine with DELEM new generation DA-66S touch screen control system, with a 24-inch high-resolution color TFT touch screen display, which provides 2D product programming, automatic calculation of bending processes, and collision detection functions. The 3D all-around, multi-station mold shows the feasibility of the bending operation of real machine tools in real-time. A more efficient algorithm is used to optimize the entire machine tool work, shorten the operation cycle, improve the machine tool work efficiency, and make the adjustment and control of the machine tool more convenient.

Press Brake Machine

DELEM DA-66S System Features

The new generation DA-Touch controls offer an even higher grade of efficiency in programming. operation and control of today's press brakes. Ease of use combined with state-of-the-art technology go hand in hand with improving productivity. The touch screen gives access to the proven Delem user interface and enables direct navigation between programming and production. Functions are directly located where you need them, offering optimized ergonomics throughout the application.

The DA-66S offers 2D programming that includes automatic bend sequence calculation and collision detection. Full 3D machine set-up with multiple tool stations giving true feedback on the product feasibility and handling. Highly effective control algorithms optimize the machine cycle and minimize set-up time. This makes using press brakes easier, more efficient, and more versatile than ever.

Press Brake DA66S

Realizing Industry 4.0

2D product programming

Bend sequence calculation, 3D-simulation, and production visualization

Operator in-control during machine cycle

DXF import option, for 2D products and tools (punches, dies, adapters)

Industry 4.0 ready

Profile-SL offline software

Press Brake

CNC 7+1 axis Press Brake Features

The new model of the equipment has a simple and novel shape, with sleek and smooth lines, soft blue and white colors, and exquisite craftsmanship. The overall appearance is simple, modern, and technological, and is in line with user aesthetics.

Introduction for Press Brake

Main motor servo control, closed-loop control, overcomes the problem of out-of-step, good high-speed performance, and strong overload resistance.

The workbench is equipped with LED lighting, CNC electric compensation V-axis, and the movable finger can be moved left and right and fine-tuned forward and backward to ensure that the bending accuracy is within a controllable range. The front end position has undergone special treatment such as tempering, which is not easy to wear and has a longer service life.

Introduction for Press Brake

5-axis backgauge(X+X PRIME+R+Z1+Z2), more flexible bending.

Built-in safety PLC, compliant with CE safety standards.

Schneider brand electrical components, a foot switch with an emergency stop button, and the ball design of the front support material of the linear guide ensure that there will be no scratches or wear when the plate moves.

Servo drives each axis to ensure bending accuracy and efficient production.

HARSLE CNC creates more value and achieves more efficient bending solutions.
