Come padroneggiare efficacemente il funzionamento del DELEM DA-69T?
When it comes to mastering the DELEM DA-69T operation, understanding its intricacies can greatly enhance your workflow efficiency. If you are looking for a comprehensive guide to effectively operate the DELEM DA-69T, you’re in the right place.
In this article, I’ll provide you with a detailed overview of the DELEM DA-69T operation, ensuring you have the knowledge needed to make the most of this advanced controller. Whether you are a newcomer aiming to learn the basics or an experienced user seeking to refine your skills, this guide will show you how to navigate and optimize the DELEM DA-69T for your specific operational needs.
Understanding the Control Unit of DELEM DA-69T
Getting Acquainted with the Control Panel
The control unit is the heart of the DELEM DA-69T operation. Before diving into specific tasks, it’s crucial to familiarize yourself with the layout and functionality of the control panel.
- Discover the Display Interface: The DELEM DA-69T features an intuitive touchscreen interface that displays all critical information. Navigating this effortlessly helps streamline operations.
- Accessing Control Settings: Understanding how to access and modify control settings enables operators to tailor the machine to their specific needs.

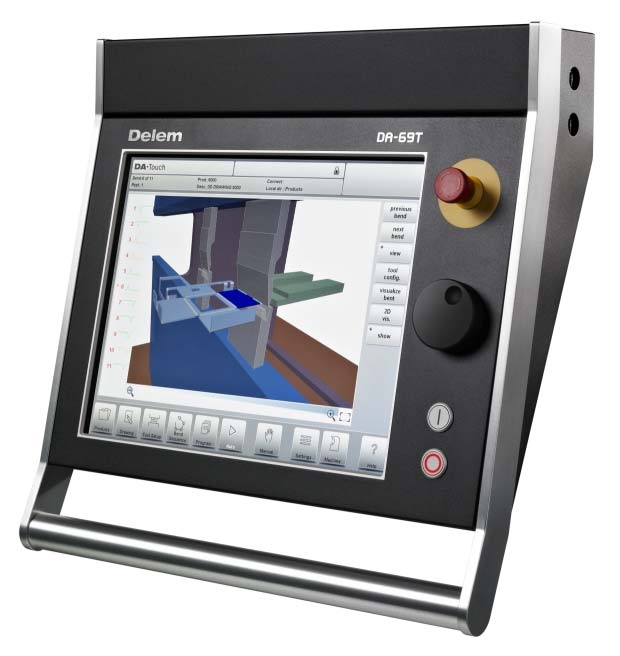

Il controllo si presenta come segue:
The precise appearance of your control may differ. Operation of the control is mainly done over the touchscreen. Beside the touch controls the front of the control consists of an emergency stop, the handwheel and the start and stop buttons.Special function keys, which can be mounted in the top panel of the control, have their specific description parallel to this user manual and will be supplied by the machine manufacturer.
Front Control Elements and USB Connectors
The front control elements are designed for seamless interaction with the DELEM DA-69T. These elements allow direct engagement with core operations.
The frontpanel, beside display, consists of the following control elements:
Emergency stop button, to be implemented by machine manufacturer.
Handwheel; manual control of any axis (Y + backgauge axes)
Start button
Stop button
The DELEM DA-69T comes equipped with USB connectors, greatly enhancing its operational capabilities.
At the right side of the control two USB ports are available for connection of external devices, such as memory sticks or an external keyboard / mouse.
Navigating Operation and Programming Modes of DELEM DA-69T
Switching between different operation and programming modes allows for flexibility in handling various tasks.

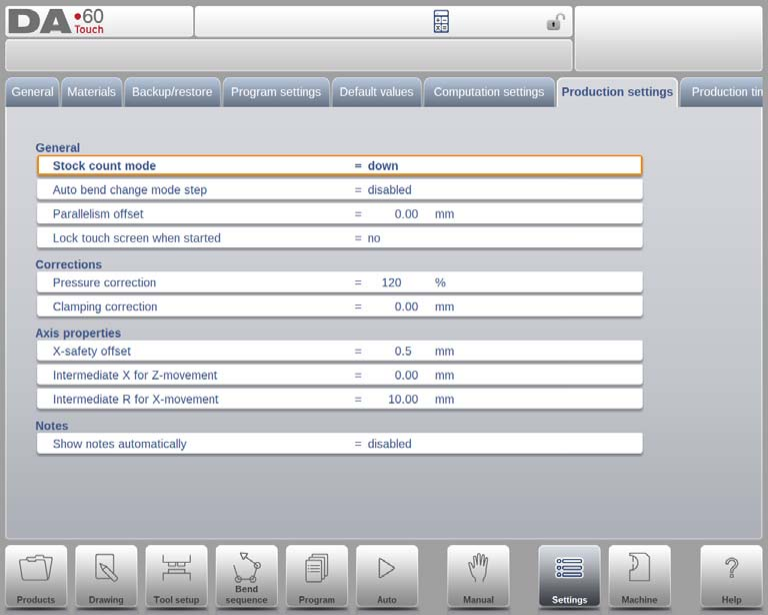

La schermata principale del controllo DA-Touch si presenta come segue:
The main screen displays different options depending on the active navigation button. Tapping the various modes allows you to select a specific mode easily, with the Products function active by default.
La struttura della schermata principale è la seguente:
Pannello del titolo
In the top title panel, you will find the logo, current product information, product directory, service row (when enabled), and machine indicators.
Pannello informativo
Nel pannello informativo vengono visualizzate e reperibili tutte le funzioni e le visualizzazioni relative alla modalità selezionata.
Pannello di comando
Il pannello dei comandi fa parte del pannello Informazioni ed è il luogo in cui si trovano i controlli relativi al pannello Informazioni.
Pannello di navigazione
The Navigation panel, always visible, houses all major modes. Large icon buttons enable direct switching between these modes.
Explanation of the main modes / navigation buttons:
To make a new program and select a program out of the product library.
To draw/create a new product or edit an existing product (graphically).
To setup the machine and modify existing tool setups.
To create a new CNC-program or edit an existing CNC- program numerically.
To start production of the selected product/program.
To program all settings for making one single bend, not related to a program.
User settings and preferences applicable to the programming of new products and programs.
User settings and preferences applicable to the machine.
Via this button you can access the help system which will provide you with context sensitive information.
Getting Started with DELEM DA-69T
Step 1: Introduction to DELEM DA-69T Operation
To achieve an effective bend program, begin by creating a product drawing and calculating a valid bend sequence for the product. This sequence fully utilizes the DELEM DA-69T operation capabilities to generate a product program. Here’s a quick overview:
- Navigate to Products mode and start a new product.
- Enter product details and create a 2D profile using Drawing mode.
- Adjust your tooling setup in Tool Setup mode.
- Determine the sequence using Bend Sequence mode.
- Modify the CNC program in Program mode if necessary.
- Execute the program by tapping Auto and pressing Start.
Step 2: Essential Preparations
Before diving into the DELEM DA-69T operation, ensure all materials and tools are correctly programmed:
- Program the materials in the Materials library via the Settings mode.
- Define necessary tools in the Tool Library, found in Machine mode.
Step 3: Creating a Product Drawing
Leverage the drawing functionality of the DELEM DA-69T to sketch your intended product:
- Utilize sketching and value setting techniques to draft your design, adjusting line lengths and angles as needed.
- Use the Zoom, Fit-To-Screen, Panning, and Rotating functions for precise adjustments.
- Design features include 2D and 3D graphical design, sheet thickness scaling, and the ability to add or modify bends.
Step 4: Determining the Bend Sequence
Once your drawing is complete, use the Tool Setup and Bend Sequence modes:
- Program the exact tool set-up in Tool Setup mode.
- In Bend Sequence mode, you can program and visually verify your bend sequence. The DELEM DA-69T operation allows for both automatic and manual determination of this sequence.
Step 5: Creating a Numerical Program
Access the numerical program in the Program menu:
- Start a numerical program directly or generate one from a graphical bend simulation.
- The DELEM DA-69T operation enables visualization and editing during production. A completed program triggers post-processing and the creation of a numerical program.
Step 6: Utilizing Auto and Manual Modes
Run your product program in different modes:
- Auto mode allows execution of the program bend by bend.
- Manual mode provides a test environment for individual bends, useful for understanding the system’s behavior.
Step 7: Backup and External Storage
Store product and tool files for backup and exchange between systems:
- Depending on your setup, store files on a network or USB stick.
Mastering these steps ensures effective use of the DELEM DA-69T operation, optimizing production and minimizing errors.
Programming Aids for DELEM DA-69T
Programming aids are invaluable for operators looking to maximize the DELEM DA-69T’s potential.
Testo di aiuto
Questo controllo è dotato di una funzione di Aiuto in linea. Premendo il pulsante Aiuto nel pannello di navigazione, verrà visualizzata una guida contestuale.

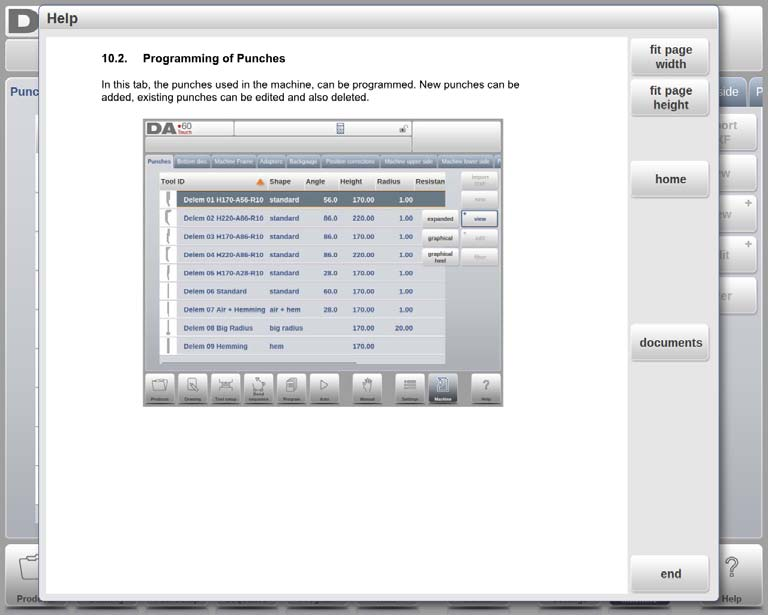

Per attivare una finestra di aiuto per un parametro, toccare il pulsante Aiuto nel pannello di navigazione.
Viene visualizzata una finestra pop-up con informazioni sul parametro attivo.
Questa finestra della Guida contiene le stesse informazioni del Manuale operativo.
To use the help window, scroll through the text by sliding a finger in the direction you want. Tap the screen’s lower or upper part to navigate between pages. Use the Index function to jump to the table of contents, where hyperlinks allow direct navigation to topics. Tap “End” to close the Help window.
Funzionalità della casella di riepilogo

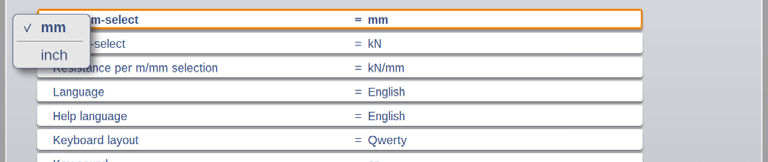

Some parameters have a limited set of selectable values. Tap the parameter line to open a list of options and choose your desired value. To close the listbox without changing the selection, tap outside the box.
Filter, live search, auto filter
In certain modes, such as Products mode, you can view lists of entities like products, tools, or materials. To find a specific item, use the Filter function: press the Filter button, enter part of the ID, and the list will automatically narrow to match your input. Separate multiple search terms with a space.
To close the filter screen, use the keyboard-close button next to the keyboard.
Auto filter

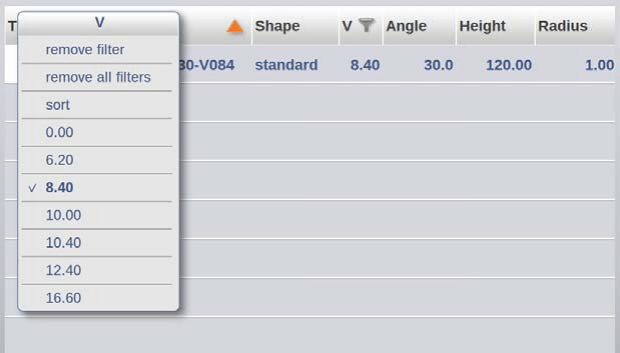

In addition to the filter function, the tool and product selection tables feature auto-filter functionality via column headers. Tapping a header sorts the list by that column, indicated by a triangle for sort order. An auto-filter list box appears, offering filter options from column entries. For example, in die selection, you can filter by V-opening. Filters can be removed similarly, with an option to clear them.
Navigazione
In alcune modalità, le schermate del programma sono suddivise in schede.
Le schede possono essere facilmente selezionate semplicemente toccandole. Quando una scheda non è completamente visibile o non è visibile affatto, è sufficiente trascinare orizzontalmente la riga delle schede per "tirare" la scheda desiderata e selezionarla.
Inserimento e modifica del testo
When operating the DELEM DA-69T, efficient data entry is facilitated by tapping the desired position to place the cursor for text or value input. This is particularly useful in Edit notes, where you can enter multiple lines and use the Enter key for linefeed. The on-screen keyboard provides editing conveniences such as Cut, Copy, and Paste, along with Undo and Redo options to enhance your DELEM DA-69T Operation.
For ease, the keyboard can be shown or hidden using the arrow key in the lower-left corner, streamlining your data entry process.
Digitazione di caratteri alfanumerici vs. caratteri speciali
When mastering the DELEM DA-69T Operation, it is essential to understand the use of both alphanumeric and special characters throughout the control. A full on-screen alphanumeric keyboard will appear when needed. In fields requiring numeric input only, alphanumeric characters are disabled, and only the numeric keypad is active.
For fields allowing alphanumerical strings, the entire keyboard is available, with special characters accessible via the special character button. Holding a character (like ‘a’) reveals additional special characters (á, à, â, etc.), offering versatility in input during DELEM DA-69T Operation.
Calcolatrice
To effectively master the DELEM DA-69T Operation, make use of the built-in “desktop calculator.” Accessible via the calculator icon at the top of the screen, this tool provides essential functions such as addition, subtraction, multiplication, division, as well as percentage, square root, and memory features. For calculations involving parameter values, you can seamlessly switch to the calculator during parameter entry.
This integration allows parameter values to be directly used, with the results automatically updating in the input line, thereby eliminating any need for manual data transfer. The calculator streamlines the computation process as part of the DELEM DA-69T Operation, enhancing overall efficiency.
Messages centre
When messages are generated from the PLC, Safety systems, LUAPs, or the Sequencer, they are directed to the ‘Messages Centre.’ In DELEM DA-69T Operation, the message centre icon, located in the top row alongside the calculator and keylock symbols, indicates active messages. Tapping this icon removes messages from the screen to facilitate uninterrupted programming and editing. Tapping it again displays all messages. If new messages arrive while in the background, the message centre icon shows an additional indicator, ensuring you remain informed about all communication within the DELEM DA-69T Operation system.
Rete
Il controllo CNC è dotato di un'interfaccia di rete. La funzione di rete offre agli operatori la possibilità di importare i file di prodotto direttamente dalle directory di rete o di esportare i file del prodotto finito nella directory di rete desiderata.
Funzione di blocco tastiera
To prevent unauthorized changes to products or programs in the DELEM DA-69T operation, the keylock function provides security by locking the control. There are two levels of locking:
- Program Lock: Allows only product selection and execution in Automatic mode.
- Machine Lock: Completely locks the machine, disabling the control.
To activate a lock, tap the lock symbol at the top of the screen. Entering the appropriate code will engage either Program Lock, shown as a grey lock, or Machine Lock, displayed in red. This feature ensures that your DELEM DA-69T operation remains secure and precise.

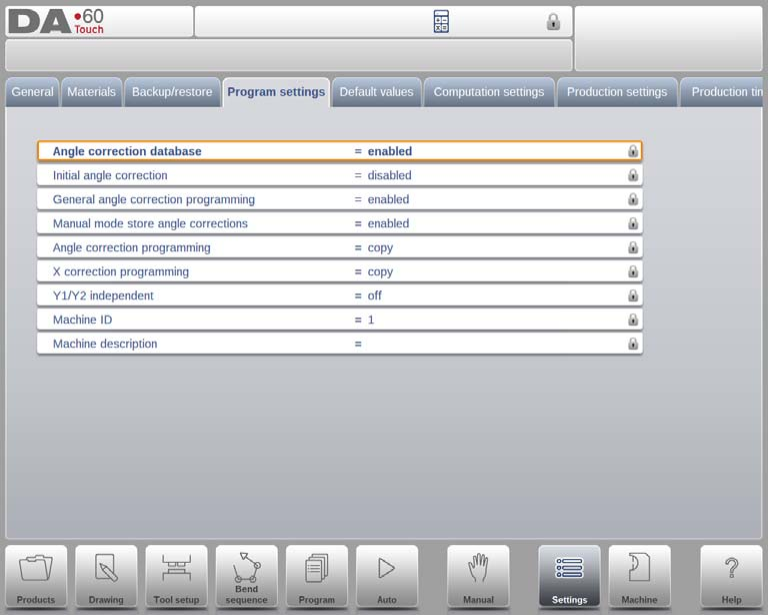

When Program Lock is active on the DELEM DA-69T, lock symbols appear behind parameters, indicating that modifications are not allowed. To unlock, tap the lock symbol and enter the correct code. Once entered, the lock symbol will indicate it is unlocked, and the lock symbols behind the parameters will vanish.
Codes can be changed upon desire. The procedure to manages codes can be found in the Installation manual.
OEM function panel
Depending on machine manufacturers implementation, the upper right corner of the screen can be used for special indicators. To access functions related to those indicators, the OEM function panel can be opened by tapping this corner of the screen.
Versioni del software
La versione del software nel tuo controllo è visualizzata nella scheda Informazioni di sistema nel menu Macchina.
Example of version number:
V 1.2.3
V stands for version
V 1.x.x is the major version number
V x.2.x is the minor version number
V x.x.3 is the update version number
IL major version number of the DELEM DA-69T Operation software is updated with significant new features that might alter the usual workflow. The minor version number increases when enhancements are added without affecting existing operations. The update version number is reserved for software corrections within the current version.
By following this guide, users will not only become adept at using the DELEM DA-69T but will also optimize its functionality, resulting in improved productivity and precision in their operations.
Frequently Asked Questions (FAQ)
What are the key safety practices when operating the DELEM DA-69T?
Safety is paramount during DELEM DA-69T Operation. Always wear appropriate personal protective equipment, such as gloves and safety goggles. Ensure the emergency stop button is always within reach, and never bypass safety interlocks. Regularly train all operators on safety protocols and the correct operation procedures of the DA-69T.
What essential steps should I follow during DELEM DA-69T Operation to ensure accuracy?
To ensure accuracy during DELEM DA-69T Operation, it’s crucial to first verify that the machine setup aligns correctly with the digital control system. Utilize the built-in calibration features of the DA-69T to fine-tune the positioning of the bending tool. Regularly check and adjust these settings according to the user manual to maintain precision.
How can I troubleshoot common issues encountered during the DELEM DA-69T Operation?
When facing common issues during DELEM DA-69T Operation, first consult the troubleshooting section of your manual. Look out for error codes displayed on the control panel. These codes provide specific guidance on potential malfunctions. Ensure all connections are secure and that there is no obstruction in the machinery’s moving parts.
Conclusione
Mastering the DELEM DA-69T Operation involves understanding its key features, navigating the interface effectively, and performing routine maintenance checks. By following the outlined steps, operators can maximize the efficiency and accuracy of their press brake operations, reducing downtime and enhancing overall productivity.
By ensuring proper setup and routine maintenance, you’ll not only extend the lifespan of your DELEM DA-69T but also optimize your workflow. For more detailed support or any specific questions you might have, don’t hesitate to contact our team. Additionally, explore our other resources and documentation for in-depth guidance on CNC machine operations and enhancements.
