Quale ruolo svolgono le presse piegatrici negli ascensori e nelle apparecchiature di sollevamento?
Elevator and hoisting equipment rely on precision-engineered metal components to ensure safety, durability, and seamless operation. If you’re curious about how press brakes contribute to manufacturing these critical systems, you’re in the right place. In this article, I’ll explain the essential role of press brakes in producing elevator parts and hoisting machinery, share practical tips for optimizing their use, and address common challenges faced in this specialized field. Whether you’re a fabricator, engineer, or simply exploring the industry, this guide will help you understand why press brakes are indispensable in creating reliable vertical transportation solutions.
How Press Brakes Shape Elevator and Hoisting Equipment
Precision Bending for Structural Integrity
Elevator cabins, hoisting platforms, and support frames demand metal parts with exact dimensions and consistent quality. Press brakes enable manufacturers to bend high-strength steel and aluminum into shapes like reinforced brackets, guide rails, and load-bearing panels required for these systems.
Custom Tooling for Unique Elevator Components
Specialized tooling, such as multi-V dies or rotary benders, allows press brakes to create complex profiles. For instance, elevator door panels often require tight-radius bends to fit compact designs, while hoisting equipment components like pulley brackets need heavy-duty forming to handle extreme loads.
Ensuring Compliance with Safety Standards
Elevator and hoisting equipment must meet strict global safety regulations (e.g., EN 81 or ASME A17.1). Press brakes with CNC systems ensure repeatability, guaranteeing that every bend aligns with engineering specifications. A single miscalculation in a counterweight bracket’s angle could jeopardize system stability, making precision non-negotiable.

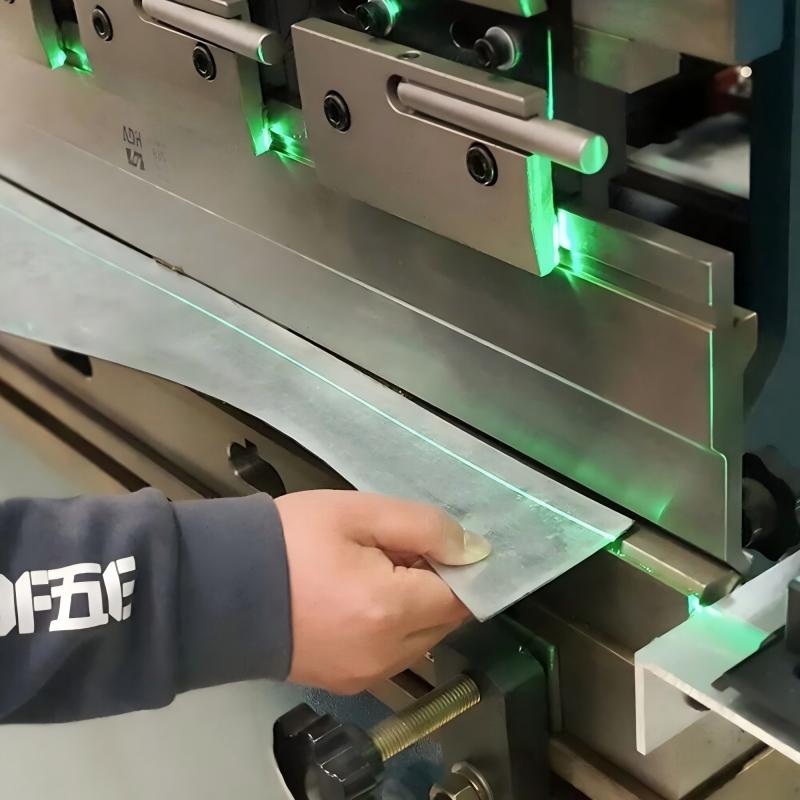

Utilizzando Laser Measurement for Critical Bends
Advanced press brakes integrate laser sensors to verify bend angles in real time. This feature is critical for components like elevator guide rails, where deviations exceeding ±0.5° can cause misalignment, leading to operational failures or safety hazards.
Optimizing Press Brake Setup for Elevator Manufacturing
Proper setup ensures flawless production of elevator and hoisting components.
Step 1: Selecting the Right Tooling
Choose tooling based on material thickness and bend radii. For example, stainless steel elevator panels may require a 12mm V-die to prevent surface scratching, while thick hoisting chain brackets might need a 25mm die for deeper bends.
Step 2: Calibrating the Backgauge for Repeatability
Program the backgauge to align with the part’s blueprint. For elevator door frames, even a 1mm error in positioning can lead to assembly mismatches. Use digital calibration tools or built-in CNC software to achieve micron-level accuracy.
Step 3: Testing with Prototype Materials
Before mass production, perform test bends on scrap metal. For hoisting equipment parts made from abrasion-resistant steel (AR400), adjust pressure settings to avoid overloading the tooling, which could cause premature wear.
Maintaining Press Brakes for Heavy-Duty Applications
Elevator and hoisting equipment manufacturing involves high-volume, high-stress operations. Regular maintenance ensures press brakes remain reliable under demanding conditions.
Daily Checks for Hydraulic and Electrical Systems
Inspect hydraulic oil levels and look for leaks, especially when bending thick steel plates for hoisting platforms. Verify electrical connections to CNC systems, as loose wiring can disrupt programming for elevator rail profiles.
Monthly Tooling Inspections
Inspect dies and punches for cracks or deformation caused by heavy use. For example, shaping AR500 steel for crane hooks exerts significant force, necessitating tool rotation or replacement every 3–6 months.

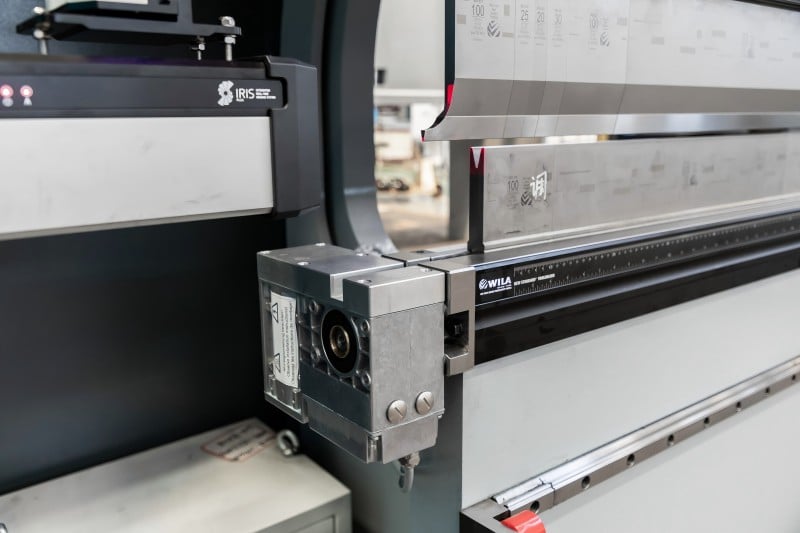

Addressing Alignment Issues
If bends become inconsistent, check the parallelism of the ram and bed. Misalignment during the production of elevator counterweights can lead to uneven stress distribution, risking component failure.
FAQ: Press Brakes in Elevator and Hoisting Equipment
What type of press brake is best for elevator component manufacturing?
CNC hydraulic press brakes, such as the HARSLE HMB series, offer the precision and power needed for high-strength materials. Their angle correction systems ensure compliance with strict tolerances.
How do I prevent material cracking when bending stainless steel elevator panels?
Use a larger bend radius (e.g., 4x material thickness) and apply slow bending speeds. Lubricating the material surface with anti-scratch coatings can further reduce stress.
How often should I recalibrate my press brake for critical elevator parts?
Recalibrate after every 200 hours of operation or when switching between materials like aluminum and hardened steel. Daily laser validation checks are recommended for high-risk components.
Elevate Your Manufacturing Precision Today
Press brakes are the backbone of producing safe, reliable elevator and hoisting equipment. By mastering setup protocols, prioritizing maintenance, and leveraging CNC technology, manufacturers can meet industry standards while boosting productivity. For tailored solutions or technical support, contact HARSLE’s engineering team to explore our robust press brakes designed for heavy-duty applications. Download our free Guide to Bending High-Strength Alloys to optimize your workflow today.
