In my experience working with hydraulic machines, I have come to appreciate the critical role of the Hydraulic machine body structure in overall performance and durability. The design and construction of the machine body influence its stability, strength, and ability to withstand operational stresses. Over the years, I have studied various body structures and their impact on hydraulic functionality, gaining insights into how each component contributes to the machine’s effectiveness. In this article, I will delve into the hydraulic machine body structure, discussing its key elements and how they work together to ensure optimal performance in various applications.

●Overview of Hydraulic Machine Body Structure

The most common is the three-beam four-column type, which is widely used in hydraulic presses of various tonnages and applications. The beam is a cast structure and is also welded. The upper and lower beams also form a rigid closed frame to withstand the full working load of the hydraulic press. Care must be taken to ensure that the column and the beam are rigidly connected and that there should be no looseness.

The columns tend to have stress concentrations near the junction. The situation of endurance deteriorated. In some hydraulic presses, due to frequent loading, unloading and sudden release of load. It can cause severe vibration of the rack. As a result, the life of the hydraulic press is shortened. The beam combination is divided into four columns, two columns, three columns and multiple columns.

●Key Components of Hydraulic Machine Body Structure

1. Telaio

The frame is the backbone of any hydraulic machine. It provides the necessary support and stability during operation, ensuring that all components remain securely in place. A robust frame is essential to withstand the high pressures and forces generated during hydraulic operations. Typically made from high-strength steel or other durable materials, the frame must be designed to minimize vibrations and maintain accuracy during pressing, cutting, or forming processes.

2. Columns

In many hydraulic machines, especially those with a four-column design, the columns serve as vertical supports that guide the movement of the ram or working table. These columns are critical for maintaining alignment and stability, allowing for precise operations. Their design and material selection are vital, as they must endure significant loads while minimizing deflection and wear over time.

3. Ram

The ram is the moving part of the hydraulic machine that applies force to the workpiece. Its design and construction are crucial for ensuring uniform pressure distribution and effective operation. Rigid and well-engineered, the ram must be capable of withstanding the forces exerted during hydraulic operations without bending or deforming. Additionally, the ram’s surface finish is important for reducing friction and wear against the guides or bearings.

4. Cilindro idraulico

At the heart of any hydraulic machine is the hydraulic cylinder, which converts hydraulic energy into mechanical force. The cylinder’s design, including its diameter and stroke length, determines the machine’s capacity and efficiency. High-quality seals and materials are essential to prevent leaks and maximize performance. Understanding the hydraulic system’s layout and components helps operators maintain optimal pressure and fluid flow.

5. Base

The base of a hydraulic machine provides a stable foundation for the entire structure. It must be designed to absorb vibrations and support the weight of the machine while ensuring proper alignment of all components. A well-constructed base contributes to the longevity of the machine and enhances overall operational safety.

6. Control Panel

While not part of the Hydraulic machine body structure, the control panel is integral to the operation of hydraulic machines. It allows operators to monitor and adjust settings such as pressure, speed, and stroke length. A well-designed control panel enhances usability and ensures that operators can efficiently manage operations, contributing to the overall performance of the hydraulic system.

●Three Beam Four Column Type

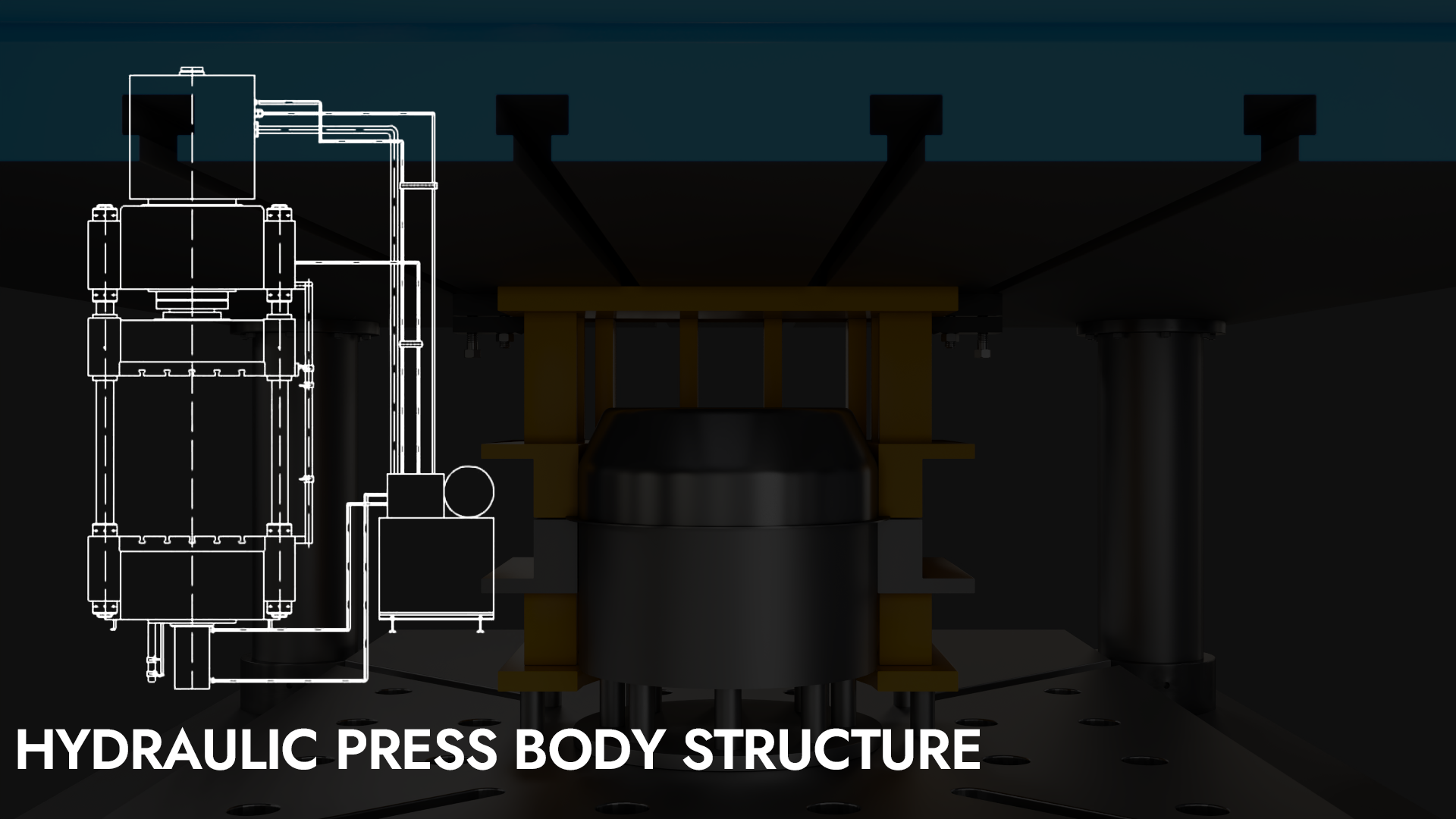

The beam four-column hydraulic press is the most commonly used structural form. As shown in the figure, it has an upper beam, a lower beam, four columns and 16 inner and outer nuts to form a closed frame. The frame is subjected to the full working load and the working cylinder is fixed on the upper beam. The working cylinder is provided with a working piston connected to the working beam.The movable beam is guided by 4 columns and is reciprocated between the upper and lower beams. An upper anvil is fixed under the movable beam, and the lower anvil is fixed on the workbench on the lower beam.

When the cylinder is operated in the high-voltage night machine, a great pressure is exerted on the plunger, and the piston, the movable beam and the upper anvil are pushed upward to cause plastic deformation of the forging between the upper and lower anvils.A return cylinder is also fixed on both sides of the upper beam. When the high pressure liquid enters the working cylinder, a great pressure is generated on the plunger, and the piston, the movable beam and the upper anvil are pushed upward to cause plastic deformation of the forging between the upper and lower anvils.

A return cylinder is also fixed on both sides of the upper beam. When the high pressure liquid enters the return cylinder, the return piston is pushed upward, and the movable beam realizes the return movement through the top small beam and the tie rod.
