Prasy hydrauliczne jednostronnego działania czy dwustronnego działania: która jest lepsza?
Jeśli chodzi o wybór właściwego prasa hydrauliczna for your production line, understanding the difference between Single-Acting vs Double-Acting Hydraulic Presses can make a big impact on your efficiency and results. Whether you’re forming, bending, punching, or pressing metal, the type of press you choose determines how much control and power you have over the process. In this guide, I’ll break down what sets these two types of hydraulic presses apart, how they work, and which might be better suited for your needs.

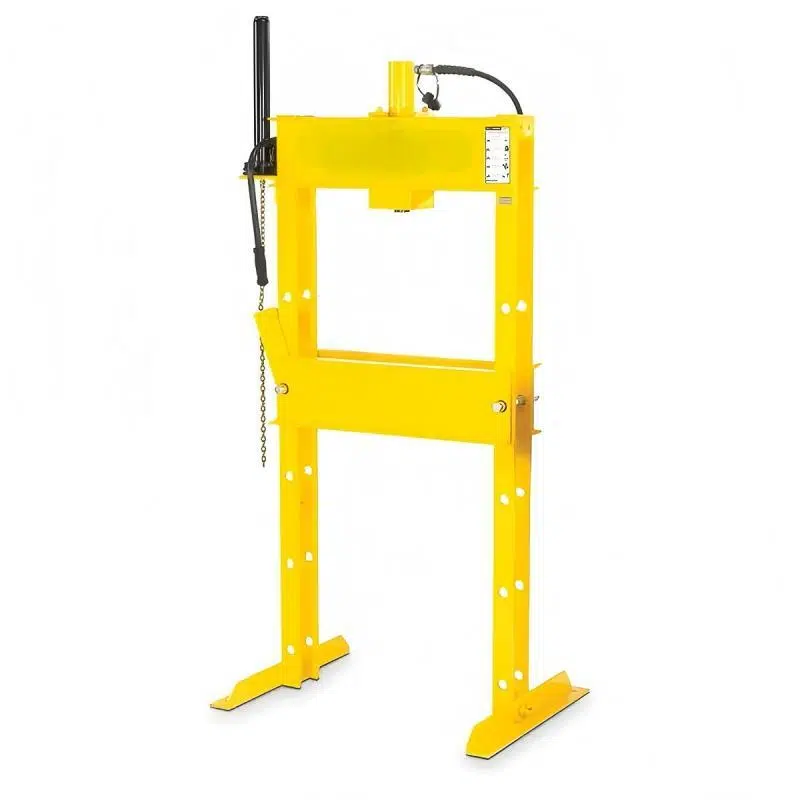

What Is a Single-Acting Hydraulic Press?
A single-acting hydraulic press uses hydraulic pressure to move the ram in one direction only—typically downward. It relies on a spring or the weight of the ram to return it to its original position after the pressing operation is completed.

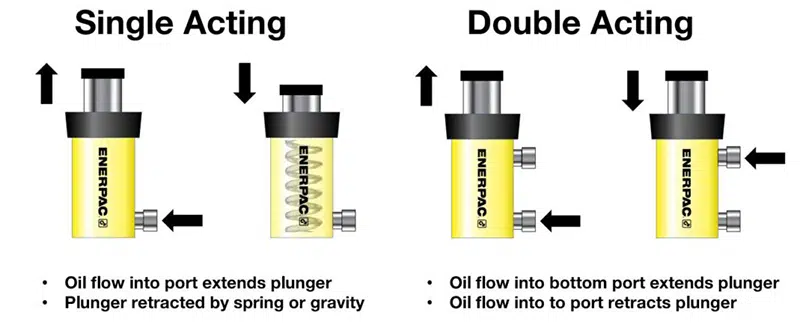

How a Single-Acting Hydraulic Press Works
In a single-acting system, hydraulic fluid is pumped into the cylinder to push the ram down. Once the pressure is released, the ram retracts on its own. This simple mechanism makes it easy to operate and maintain.
Advantages of Single-Acting Hydraulic Presses
- Simplicity: With fewer moving parts, it’s easier to troubleshoot and maintain.
- Lower cost: Generally more affordable than double-acting versions.
- Compact design: Takes up less space on the factory floor.
- Ideal for basic operations: Great for straightforward pressing tasks like stamping or forming.
Limitations of Single-Acting Presses
- Limited control: Less control over the return stroke and overall speed.
- Not suitable for complex operations: Can’t handle applications that require precision in both directions.

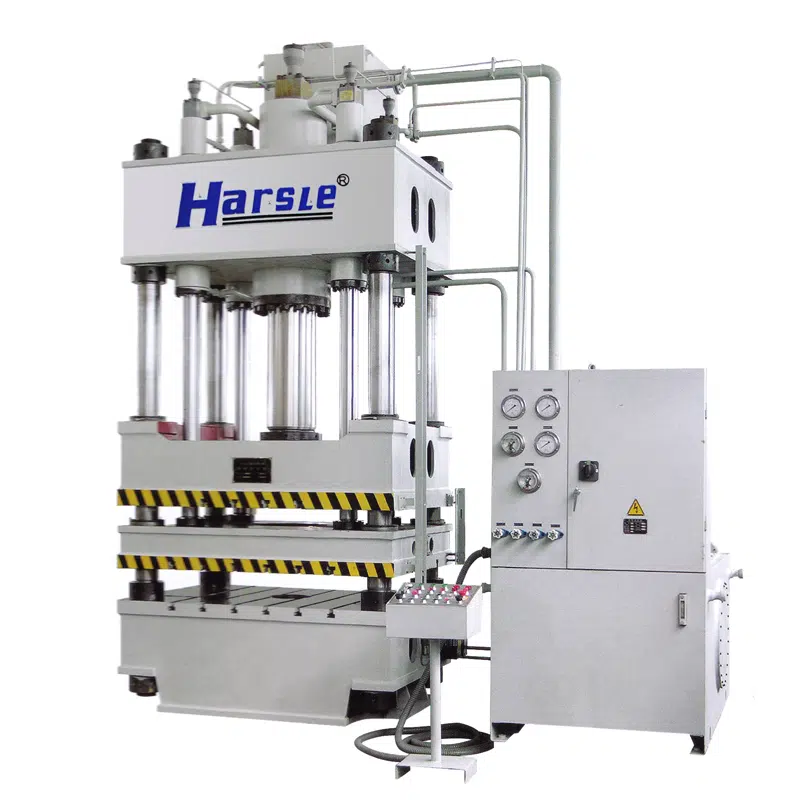

What Is a Double-Acting Hydraulic Press?
A double-acting hydraulic press uses hydraulic power to move the ram in both directions—down and up. This gives the operator greater control and precision during the entire pressing cycle.
How a Double-Acting Hydraulic Press Works
Unlike single-acting models, a double-acting press has two sets of hydraulic lines—one to push the ram down and another to push it back up. This dual action offers consistent pressure throughout both strokes.
Benefits of Double-Acting Hydraulic Presses
- Increased control: Full control over both the downward and upward motion.
- Better for complex jobs: Ideal for deep drawing, high-precision bending, or tasks requiring uniform pressure.
- Faster cycle times: Because both strokes are powered, operations can be quicker and more consistent.
Drawbacks of Double-Acting Presses
- Higher cost: More complex systems typically come with a higher price tag.
- More maintenance: With more hydraulic lines and valves, they require regular upkeep.
- Larger footprint: These machines tend to be bulkier and take up more space.
Single-Acting vs Double-Acting Hydraulic Presses: Key Differences
| Funkcja | Single-Acting Hydraulic Press | Double-Acting Hydraulic Press |
|---|---|---|
| Ram Movement | Powered downstroke only; return by spring or gravity | Powered both downstroke and return stroke |
| Kontrola | Basic control, less precise | Full control over both directions, highly precise |
| Structure Complexity | Simple mechanism | More complex system |
| Aplikacje | Suitable for simple tasks like stamping and forming | Ideal for deep drawing, high-precision bending, complex operations |
| Koszt | Lower initial investment | Higher cost due to advanced features |
| Konserwacja | Minimal maintenance required | Requires regular maintenance of hydraulic lines and valves |
| Prędkość | Slower cycle times | Faster and more consistent operation cycles |
| Machine Size | Compact, space-saving | Larger footprint |
| Best For | Small workshops, basic metal forming | Industrial-level operations, complex metal fabrication |
Często zadawane pytania
Which type of hydraulic press is best for deep drawing operations?
A double-acting hydraulic press is better suited for deep drawing because it applies consistent hydraulic pressure in both directions, ensuring uniform material flow and preventing wrinkling or tearing.
Can I upgrade from a single-acting to a double-acting press?
Technically, it’s not a simple upgrade since the hydraulic system, cylinder, and frame are all different. If your operations evolve, it’s better to invest in a dedicated double-acting hydraulic press.
Are single-acting hydraulic presses reliable for heavy-duty tasks?
They are reliable for many tasks but may struggle with high-precision or high-force operations. For consistent heavy-duty performance, a double-acting model jest lepszym wyborem.
What maintenance is required for double-acting presses?
Regular inspections of hydraulic lines, seals, and valves are necessary. Because both directions are powered, any fluid leak or imbalance can affect performance. It’s a good idea to schedule routine maintenance every 500–1,000 operating hours.
Wniosek
Understanding the differences between Single-Acting vs Double-Acting Hydraulic Presses helps you choose the right tool for your production needs. Single-acting presses are simple, cost-effective, and perfect for basic tasks. Double-acting presses offer greater control and are ideal for more complex operations that require precision and force in both directions.
If you’re unsure which type is best for your business, feel free to reach out to our team. We’re here to help you find the right hydraulic solution for your metalworking operations. You can also browse our documentation section for more machine insights and setup guides.
