When it comes to setting up a hydraulic press, selecting the right dies and tooling for hydraulic press applications can make all the difference between clean, precise parts and costly rework. I’ve spent years working alongside fabricators and toolmakers, and I’ve learned that understanding the nuances of each die type, material compatibility, and setup procedure is essential. In this guide, I’ll walk you through how to evaluate your requirements, match dies to specific operations, and ensure safe, accurate installation so you can maximize productivity and part quality.

Understanding Dies and Tooling Options for Hydraulic Press

Punch Dies for Shearing and Blanking

Punch dies are often the first tooling choice in many hydraulic press operations. When you need to shear sheet metal or blank out shapes, a well‑matched punch-and-die set reduces burrs and extends tool life.

• Material selection: I look for high‑carbon tool steel or tungsten carbide punches when working on hardened alloys.
• Coatings and treatments: Titanium nitride (TiN) coatings help reduce friction and workpiece adhesion.

Forming Dies for Deep Drawing and Embossing

For operations like deep drawing or embossing decorative patterns, dies and tooling for hydraulic press must resist high stresses and promote uniform material flow.

• Die geometry: I recommend multi-radius forming dies to prevent wrinkling at steep angles.
• Lubrication channels: Integrated oil passages in the die reduce heat buildup and improve surface finish.

Specialty Dies for Coining and Broaching

When precision is paramount—such as in coining or broaching—tooling tolerances tighten to a few microns. Investing in precision-ground dies and hardened punches helps achieve complex profiles and maintain consistent dimensions, even over thousands of cycles.

Matching Dies and Tooling to Your Application Requirements

Step 1: Identify Your Material and Thickness Requirements

I always start by listing the exact type of material—stainless steel, aluminum, or composite—and its thickness. Dies wear differently based on material hardness and abrasive properties:

• Soft metals (<2 mm): Standard tool steel dies work well.
• Hard alloys (>4 mm stainless): Tungsten carbide or PVD-coated dies extend life.

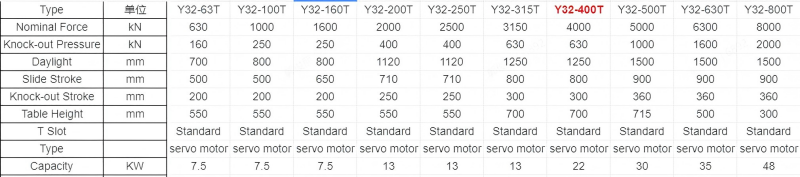

Step 2: Determine Required Tonnage and Press Capacity

Next, I calculate the tonnage needed for the operation. A blanking die might require 10 tons per square inch of shear edge, while a deep‑drawing die may demand 2–3× that tonnage to overcome metal flow resistance. Matching die size to press capacity ensures you’re neither underpowered nor risking press damage.

Step 3: Select Die Material and Surface Treatments

Choosing between tool steels (D2, A2) and carbides depends on cycle count, part tolerances, and budget. I typically use:

• D2 tool steel for moderate-volume runs with wear resistance.
• Carbide dies for high-volume production or abrasive materials.
• Surface treatments such as chrome plating or TiCN coatings further boost die life and part release.

Installation and Safe Setup of Prensa hidráulica Ferramentas

Preparing the Hydraulic Press Work Area

Before mounting any tooling, I clear and clean the press table, checking that the bed is level and the ram guides are free of debris. A clutter‑free workspace prevents misalignment and potential hazards.

Aligning and Securing Dies on the Press

Accurate die alignment is critical. I use precision parallels and feeler gauges to center the bottom die on the press bed. Then, I lower the ram gently to seat the top die, confirming parallelism with a dial indicator. All bolts should be torqued to the manufacturer’s specifications to avoid shifting under load.

Testing and Fine‑Tuning

With the tooling installed, I run a few dry cycles at low tonnage to verify stroke length and ram alignment. If necessary, I adjust the die height shims or backgauge settings so each bend or cut meets my target dimensions.

Perguntas frequentes

Conclusão

Escolhendo o caminho certo dies and tooling for hydraulic press applications means understanding your material, tonnage requirements, and production goals. By following these selection and setup steps—identifying material specifics, matching tonnage, choosing appropriate die materials and coatings, and ensuring precise installation—you’ll achieve consistent, high-quality results. Ready to upgrade your press tooling or need expert advice? Contact our team today for tailored solutions and technical support.
