Como escolher uma bomba hidráulica para sua prensa?
When you’re working with a prensa hidráulica, choosing the right hydraulic pump is critical to ensuring efficient performance, reliable operation, and long-term durability. Whether you’re setting up a new press or upgrading an existing system, selecting the proper hydraulic pump for your press can make a significant difference. In this guide, I’ll walk you through the essential factors to consider, the different pump types available, and how to match the right one to your specific press machine needs. If you’ve been searching for clear guidance on how to make this important choice, you’re in the right place.
What Is a Hydraulic Pump and Why Does It Matter?
A hydraulic pump is the heart of your press system—it converts mechanical energy into hydraulic energy, powering the movement of your press. Choosing the right hydraulic pump for your press directly impacts speed, pressure, energy consumption, and the overall performance of the machine. If your pump is underpowered or mismatched, it could lead to reduced efficiency or even machine damage over time.
Types of Hydraulic Pumps for Press Machines

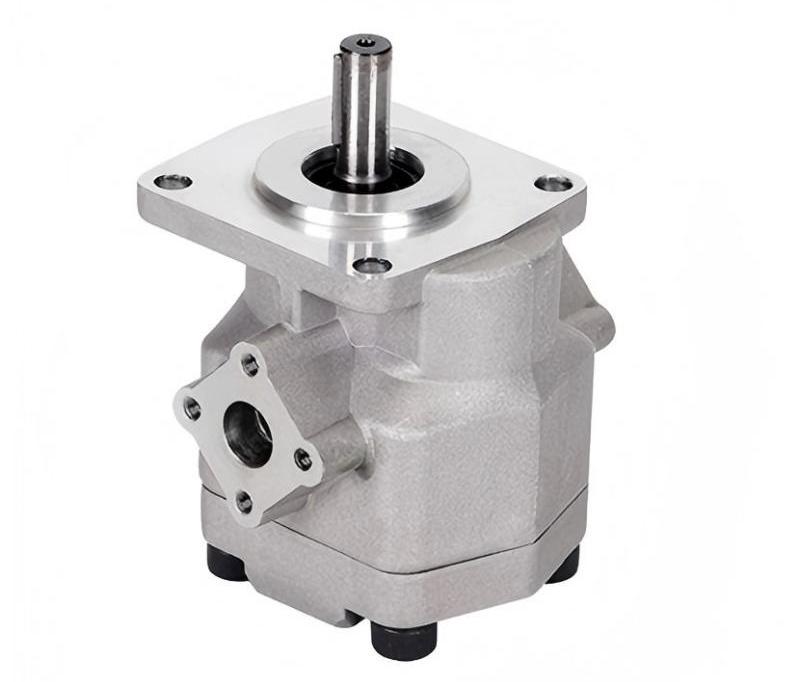

Gear Pumps: Affordable and Simple
Gear pumps are a common choice for smaller or low-duty presses. They are simple in design and relatively low cost, making them ideal for basic applications. However, they may not be suitable for high-pressure or high-precision operations.

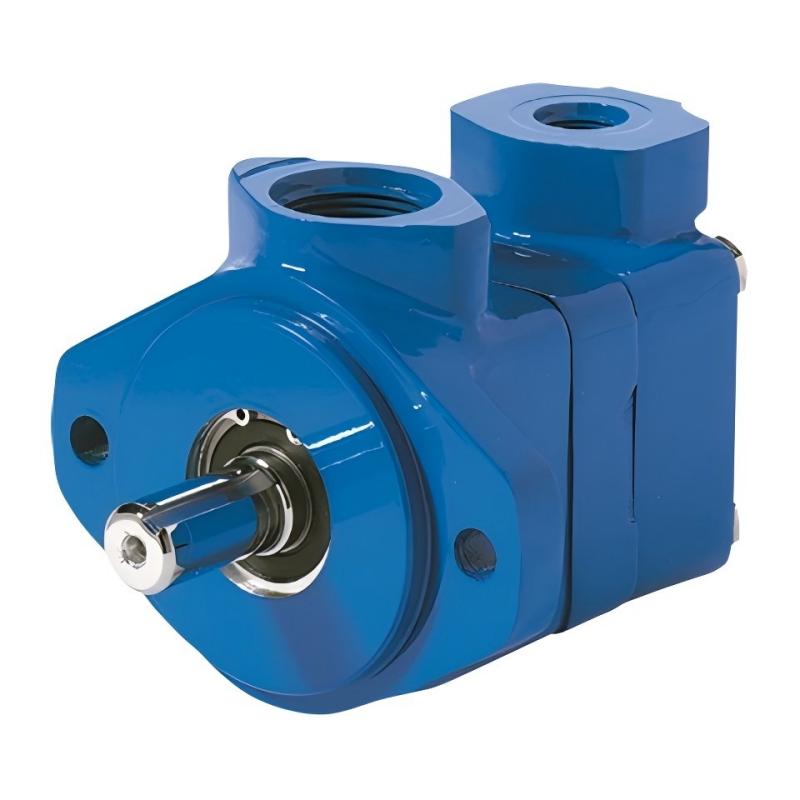

Vane Pumps: Quieter and More Efficient
Vane pumps provide smoother operation and better efficiency than gear pumps. They are generally quieter and offer more consistent flow, making them a solid choice for medium-duty hydraulic press applications.

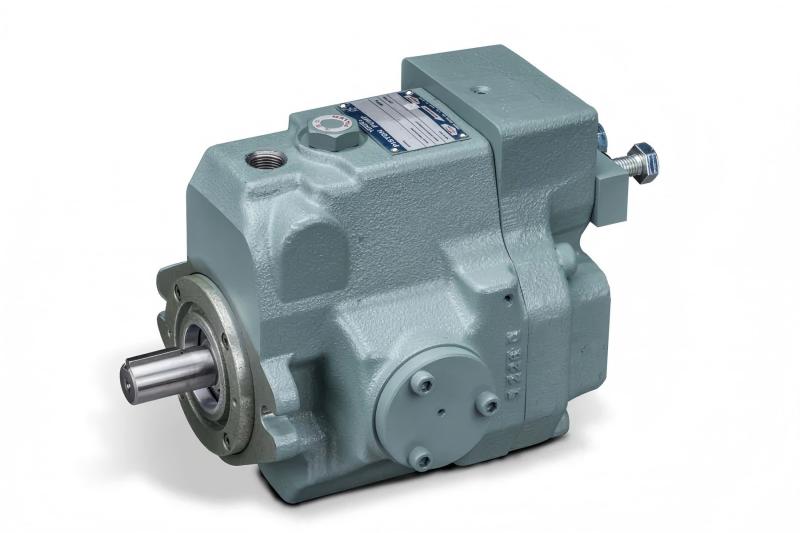

Piston Pumps: High-Performance and Durable
For heavy-duty press machines that require high pressure and continuous operation, piston pumps are the best option. They’re more expensive but offer exceptional performance, durability, and control.
How to Match a Hydraulic Pump to Your Press
Step 1: Understand Your Press Requirements
Before selecting a pump, know your press’s working pressure, flow rate, and cycle time. For example, if you need high tonnage and fast cycle times, you’ll need a pump that can deliver high flow and pressure.
Step 2: Consider the Application Type

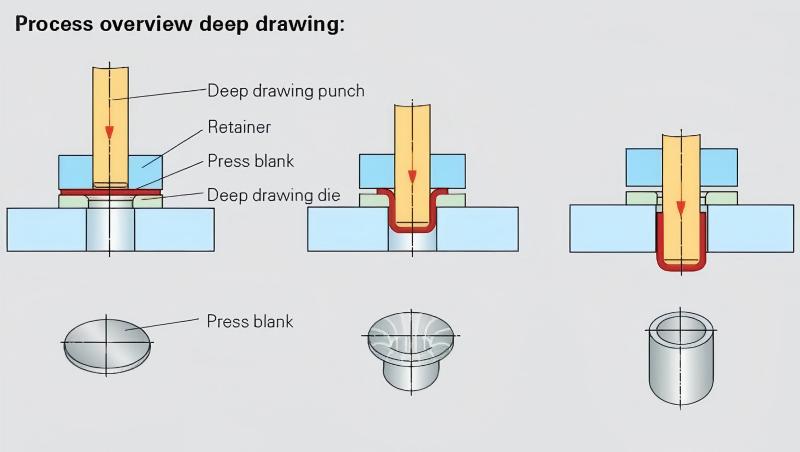

Different applications—such as forming, punching, or deep drawing—require different levels of force and speed. Match the pump type based on the demand of your process.
Step 3: Check Compatibility with Your Hydraulic System
Ensure the selected hydraulic pump is compatible with your existing hydraulic circuit, valve system, and motor. Consider the pump’s displacement and speed range to avoid energy waste and system inefficiency.
Step 4: Evaluate Energy Efficiency
Energy costs can add up quickly. Choose a pump that offers good efficiency and power matching. Variable displacement piston pumps, for example, automatically adjust flow according to demand, helping you save energy.
Step 5: Think About Maintenance and Availability
Choose a pump that’s easy to maintain and has readily available parts in your region. Long-term support and ease of servicing can save you a lot of time and money down the road.
Common Mistakes to Avoid When Choosing a Hydraulic Pump
Choosing Based Only on Price
Going for the cheapest option often leads to higher costs in the long run due to poor performance, breakdowns, and replacements.
Ignoring Flow and Pressure Needs
Overlooking your press’s actual pressure and flow needs can result in underperforming or overheating systems.
Not Considering Future Upgrades
If you plan to upgrade your press system later, pick a pump that allows for scalability and flexibility.
Perguntas frequentes
What’s the best type of hydraulic pump for a 100-ton press?
For a 100-ton press used in continuous operations, a piston pump is usually the best option due to its high pressure capabilities and efficiency.
How do I calculate the required flow rate for my hydraulic pump?
Multiply the cylinder volume by the desired speed (in/min). This gives you the minimum GPM (gallons per minute) your pump needs to supply.
Can I upgrade my press by just changing the hydraulic pump?
In many cases, yes. Upgrading to a more efficient pump can improve cycle times and energy efficiency, but make sure it’s compatible with your existing system.
How often should I maintain my hydraulic pump?
Regular maintenance every 500–1000 hours is recommended, including checking for leaks, oil quality, and filter replacements.
Conclusão
Choosing the right hydraulic pump for your press is more than just a technical decision—it’s an investment in performance, reliability, and efficiency. By understanding your press requirements, evaluating the different pump options, and considering both current and future needs, you can make a smart choice that benefits your operation long-term. If you need help selecting the right pump for your specific machine or application, don’t hesitate to reach out to the HARSLE team—we’re here to support you with expert advice and tailored solutions.
