As someone deeply involved in the manufacturing sector, I’ve witnessed firsthand the advantages of the automated cable tray гибочная машина. This innovative equipment streamlines the bending process, significantly increasing efficiency and accuracy in production. In this article, I will delve into the features and benefits of this machine, highlighting how it can revolutionize cable tray fabrication. By automating the bending process, we not only reduce labor costs but also enhance the quality of our products. Join me as we explore the transformative impact of the automated cable tray гибочная машина on our operations.

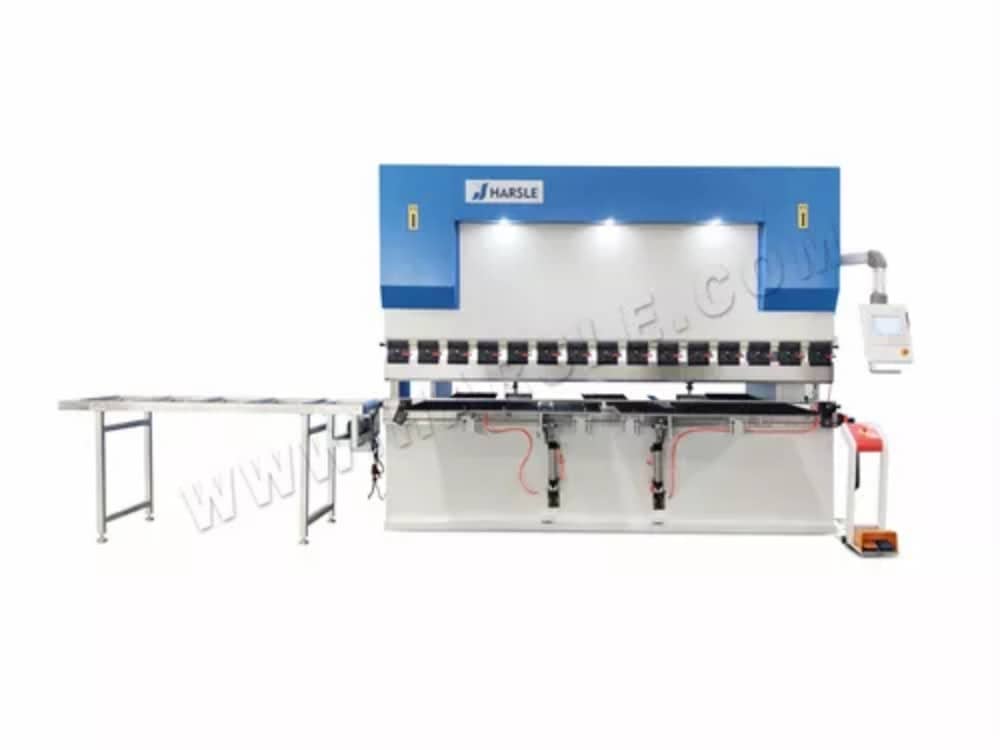

Bridge type hydraulic Гибочный станок с ЧПУ is a newly developed automatic bending equipment on the basis of hydraulic servo CNC bending machine, which integrates automatic material absorption, automatic material support, automatic bending and automatic material discharge functions. The equipment meets first-line production while also effectively improving production efficiency, safety factors and saving labor cost.

Machine Advantages

Bridge type hydraulic CNC bending machine processing is relatively complex workpiece than ordinary bending machine speed, processing thickness is not limited, processing length is also not limited, a good solution to part of the processing center. Bridge type hydraulic CNC bending machine with a manipulator to use, you can achieve turn around folding back knife, the efficiency is twice the efficiency of the traditional manipulator.

Applicable Industries

Bridge type hydraulic CNC bending machine is suitable for bridge industry, electric cabinet industry, file cabinet industry, cabinet industry, etc, a number of small batches of multiple types of processing industry. Small to non-ferrous metals, ferrous metal plates, automotive ships, electrical power, decorative decoration, kitchen plates, chassis cabinets, elevator cabinet door shear, bending processing; large to the aerospace field, the bridge type hydraulic CNC bending machine is playing an increasingly important role.

1. In decoration industry, bridge type hydraulic CNC bending machine is widely used, generally with the use of CNC shearing machine, which can complete the stainless steel plate, doors and windows, as well as production of some special places such as decoration;.

2. in electrical power industry, shearing machine first shear the plate into different needs of the size of the size, and then through the bridge type hydraulic CNC bending machine for reprocessing, such as computer cases, electrical cabinets, refrigerators and air conditioners shells are made in this way to complete;.

3. in the kitchen catering industry, all kinds of varieties and specifications of stainless steel kitchenware need secondary processing, such as welding, bending, etc.

4. In wind communication industry, wind power poles, road light poles, communication tower poles, traffic light poles, traffic signal poles, monitoring poles, etc. need to be bent.

5. In the automotive and marine industries, generally will use a large bridge type hydraulic CNC bending machine, mainly to complete the plate bending, etc.

6. In aerospace industry, the general requirements of high precision, high-precision bridge-type hydraulic CNC bending machine can be used, accurate and efficient

Конструктивные особенности

1. Bridge type hydraulic CNC bending machine overall body using steel plate welding after a clamping, and by the CNC five-sided body machining center overall processing, to ensure the extremely high rigidity of the body and processing accuracy.

2. Full-featured backstop mechanism, which can be extended to up to six axes.

3. The compensation is automatically adjusted by the CNC system, and the mechanical electric compensation is both convenient and accurate.

4. Equipped with segmented upper die of different lengths, which can be assembled into certain widths according to the requirements of workpieces to meet the processing needs of special workpieces.

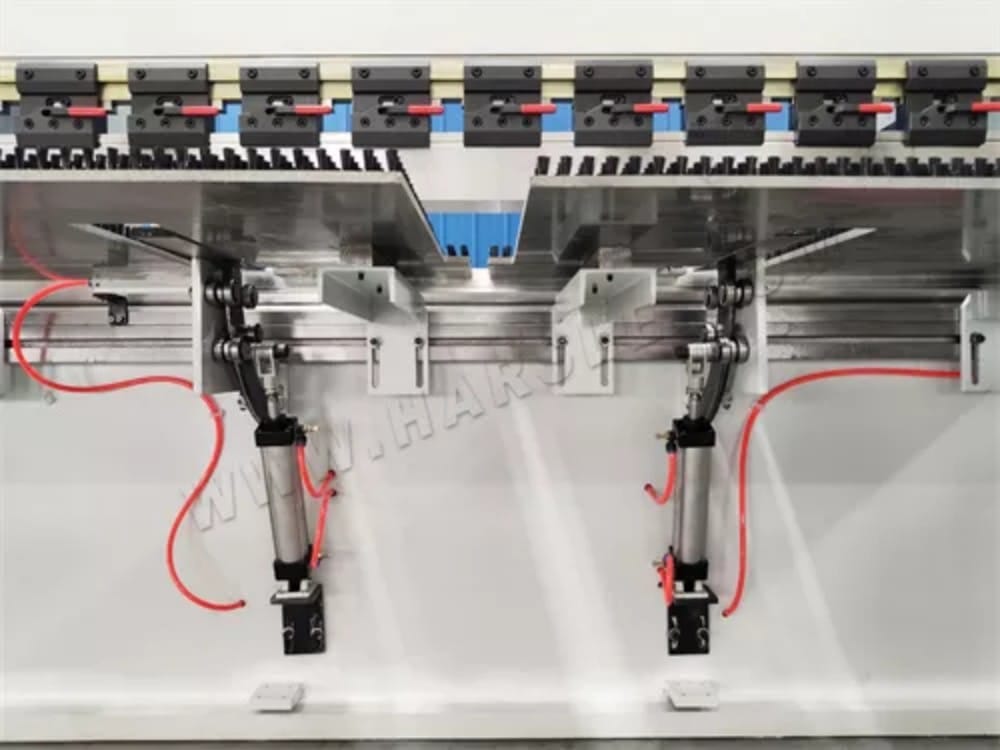

5. The front and rear ends of the machine are equipped with brushes to reduce the friction between the bending machine and the plate material, which not only protects the surface of the plate material, but also extends the life of the bending machine and its mold.

6. Flexible operation mode can be used, both double machine linkage to solve the processing of extra-long plates, and single machine operation to process short pieces, improving the machine utilization rate and reducing energy consumption.

7. Equipped with a TP10S system, simple operation and good compatibility.

System Introduction

Compared with other bending machine systems of the same grade, TP10S price is slightly lower and more advantageous, and the same can be configured with electric compensation, dual-servo pump control and other functions, more importantly, TP10S system can be perfectly compatible with the bridge bending machine, the system to operate the machine to achieve high precision and high efficiency of bending.

1. Cylinder stroke (Y axis)

2. ControlBackgauge (X axis) control

3. Angle programming

4. Tool programming

5. Retract function

6. Up to 220 programs

7. Servo control

8. Up to 24 bends per program

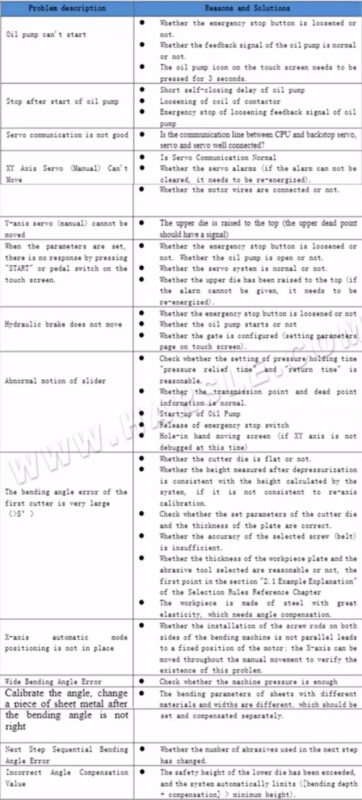

Поиск неисправностей
