In my journey through metal fabrication, I’ve developed a deep understanding of bending machines and their crucial components. Each bending machine part plays a specific role in ensuring precise and efficient bending operations. From the ram to the back gauge, understanding these parts and their functions is essential for optimizing performance and maintaining safety during operation. Over the years, I’ve explored how each component contributes to the overall effectiveness of the machine. In this article, I will provide an overview of bending machine parts and their functions, offering valuable insights for both novice and experienced operators in the field.

Importance of Bending Machine Parts

Гибочные станки, also known as press brakes, are used to bend sheet metal or other materials to a specific angle or shape. These machines consist of various parts that work together to achieve the bending process. Here are some common bending machine parts found in bending machines:

1. Frame: The frame provides the structural support for the bending machine and holds all the components together.

2. Bed: The bed is a flat surface where the material to be bent is placed. It typically has V-shaped grooves or slots to accommodate different tooling options.

3. Ram: The ram is the moving part of the bending machine that applies the force to bend the material. It can move vertically or horizontally, depending on the machine’s design.

4. Punch: The punch is the upper tool that comes into contact with the material and applies the bending force. It is attached to the ram and can be changed to accommodate different bending requirements.

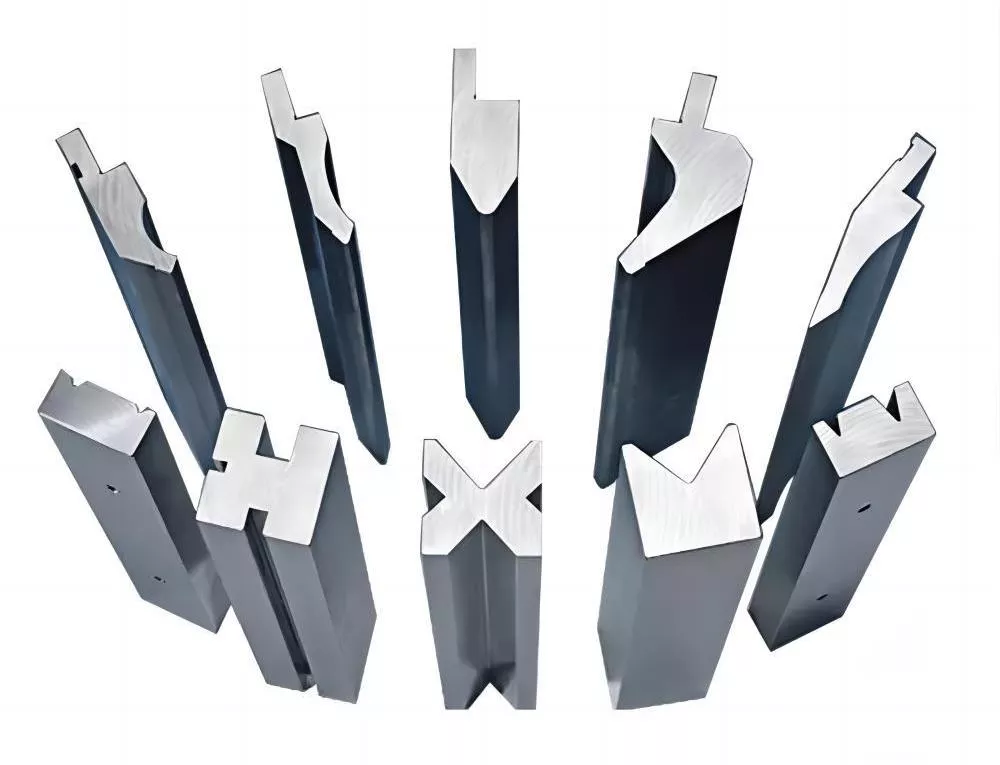

5. Die: The die is the lower tool that supports the material during bending. It is usually fixed to the bed and has a shape that corresponds to the desired bend angle or shape.The punch and die are critical for defining the bend’s angle and shape. Selecting the appropriate tooling for specific materials and thicknesses ensures clean cuts and accurate bends, minimizing waste and enhancing efficiency.

6. Back Gauge: The back gauge is an adjustable stop or finger that helps position the material accurately for consistent bending. It ensures precise repeatability of bends. Accurate positioning is vital for maintaining dimensional tolerances. A properly set back gauge reduces setup time and enhances productivity by ensuring that each piece is bent to the correct specifications.

7. Hydraulic System: Many bending machines use hydraulic systems to generate the force required for bending. The hydraulic system includes a pump, cylinders, valves, and hoses to control and transmit the hydraulic pressure. The hydraulic system allows for smooth and controlled operation, enabling the bending of various materials and thicknesses. Proper maintenance of the hydraulic components ensures reliability and efficiency.

8. Control Panel: The control panel houses the controls and displays for operating the bending machine. It allows the operator to set parameters such as bend angle, back gauge position, and bending speed.

9. Safety Features: Bending machines often include safety features like emergency stop buttons, safety curtains, and interlocking systems to protect operators from potential hazards.

These are some of the key parts commonly found in bending machines. However, it’s important to note that specific designs and configurations may vary depending on the manufacturer and the type of bending machine.

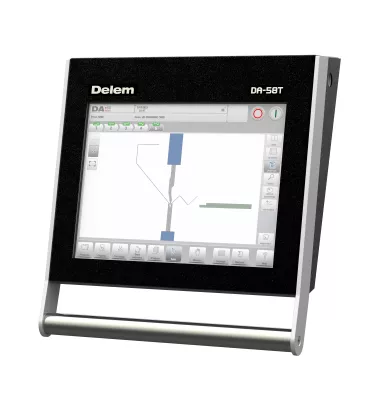

1 DA-58T CNC controller ●2D Graphical touch screen programming ●15″ LCD TFT color display ●Bend sequence determination ●Developed length calculation ●Bending tool/material/product library ●Automatic bending angle calculation ●Up to 4 axes (Y1,Y2,and 2 auxiliary axes) ●Advanced Y-axis control algorithms for closed and open loop valves

2 Fast Clamps  Extremely accurate clamping, positioning, and alignment.

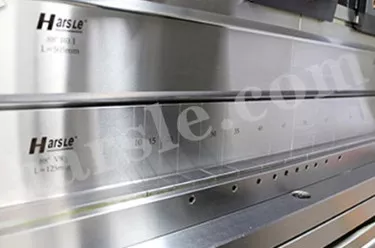

3 Segmented Bending Tooling  Extremely fast press brake tooling changes.

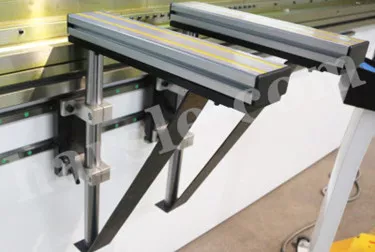

⒋ Front Arms  Movable in different directions.

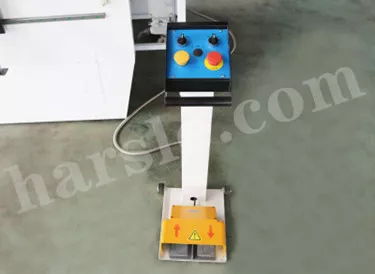

5 Foot Switch South Korea brand footswitch is movable and can stop the machine anytime by the emergency button.
