In the world of laser cutting, precise laser alignment is crucial for ensuring high-quality results and optimal machine performance. Whether you are a seasoned professional or a newcomer to laser cutting, mastering laser alignment can make a significant difference in your projects. In this comprehensive guide, we will walk you through the essential steps and tips to achieve perfect laser alignment on your laser cutting machine.

What is Laser Alignment?

Laser alignment is a pivotal process in the realm of laser cutting, serving as a cornerstone for both maintaining and enhancing the performance of sophisticated laser cutting machines. It encompasses the careful and detailed process of finetuning the laser beam so that its path is perfectly aligned with the nozzle, mirrors, lenses, and various other essential components that comprise the cutting apparatus. This precision alignment is absolutely crucial for ensuring that the laser beam is directed accurately to the intended location on the workpiece. By doing so, the machine is capable of producing clean, precise cuts and high-quality finishes, which are integral to meeting the exact specifications required in many industrial applications. Moreover, well-executed laser alignment helps in minimizing the chances of errors during the cutting process, thereby optimizing productivity and ensuring efficient use of materials.

Why Laser Alignment Matters

The significance of laser alignment extends beyond mere operational functionality; it plays a vital role in the efficiency, cost-effectiveness, and safety of laser cutting machines. The ramifications of misaligned lasers can be substantial, leading to a series of undesirable outcomes. Firstly, laser misalignment can result in inaccurate cuts, compromising the integrity and precision of the final product. This issue not only leads to parts that fail to meet design specifications but also necessitates costly rework or scrapping of materials. Additionally, misalignment contributes significantly to increased material waste, as inaccurately placed cuts reduce the amount of usable material, driving up costs and diminishing operational efficiency.

Misaligned lasers also put additional stress and wear on machine components, leading to more frequent maintenance and reducing the lifespan of these components. This increased wear accelerates degradation, necessitating premature replacement of parts and contributing to higher maintenance costs. This can lead to increased downtime, detracting from the machine’s overall reliability and efficiency. By achieving precise laser alignment, operators ensure that their machines function at peak performance, guaranteeing clean cuts and enhancing the machine’s longevity. Laser alignment is a proactive measure that safeguards your investment in cutting technology, ensuring optimal outcomes and supporting the long-term success of manufacturing processes.

Required Tools for Laser Alignment

Performing precise laser alignment requires specific tools to ensure accuracy and efficiency in the process. Among the essential tools needed are transparent tape, a 1.5mm nozzle, and an Allen wrench (also known as a hex key). Transparent tape is used to capture the laser beam’s path, allowing for careful observation and adjustments. The 1.5mm nozzle is crucial for maintaining the correct size and direction of the laser beam as it exits the machine. Lastly, an Allen wrench is necessary for adjusting various components of the laser cutting apparatus, ensuring that each part is perfectly aligned for optimal performance. Having these tools on hand facilitates the alignment process, making it more straightforward and effective.

Step-by-Step Guide to Achieve Laser Alignment

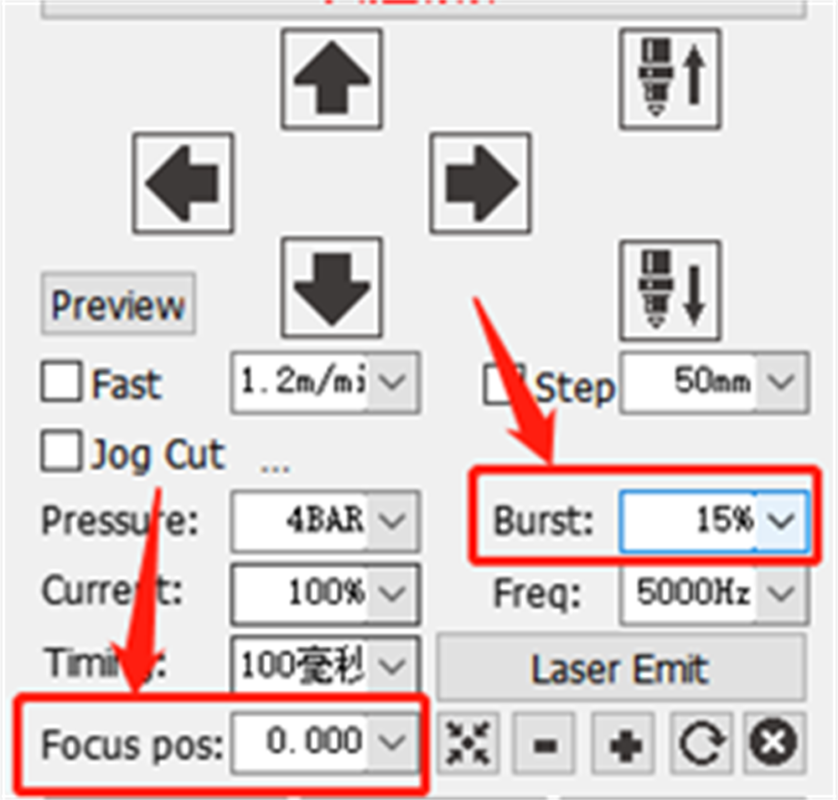

1. Return Focus to Zero in Cutting Software
   • Start by returning the focus to the original point in your cutting software. Set the piercing power between 15% and 30%. This step is crucial for establishing a baseline for alignment.

2. Install Nozzle 1.5

• Install a 1.5 nozzle onto your laser cutting machine. This step is necessary for testing the alignment accurately.

3. Apply Transparent Tape to the Nozzle

• Take a piece of transparent tape and place it over the nozzle. The tape will help you identify the position of the laser beam during testing.

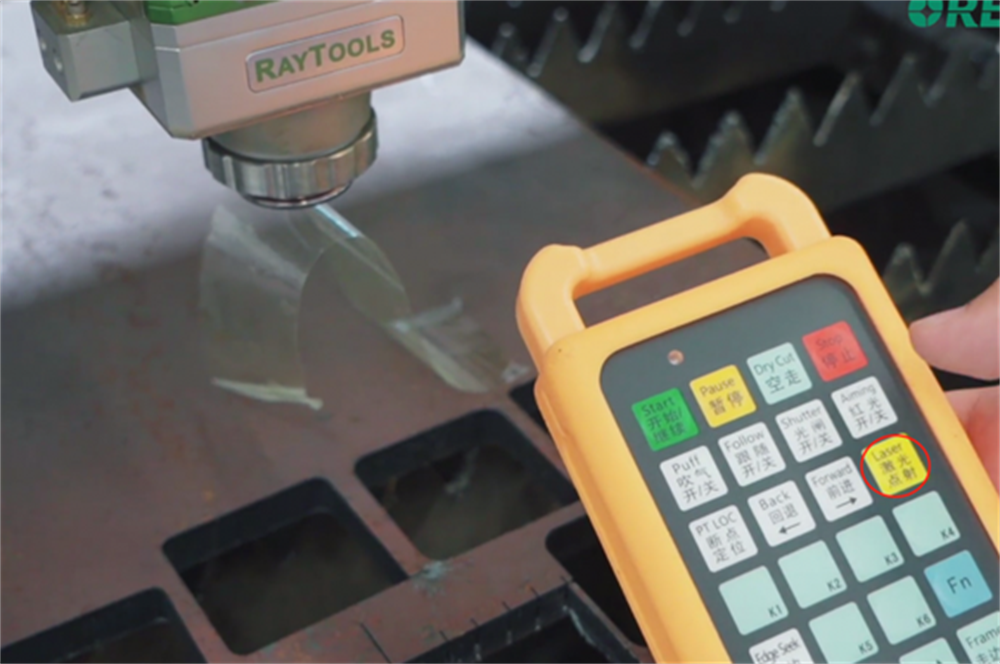

4. Open the Shutter and Test the Laser

• Open the laser shutter and press the laser button, then immediately release it. This action allows a brief laser pulse to mark the tape.

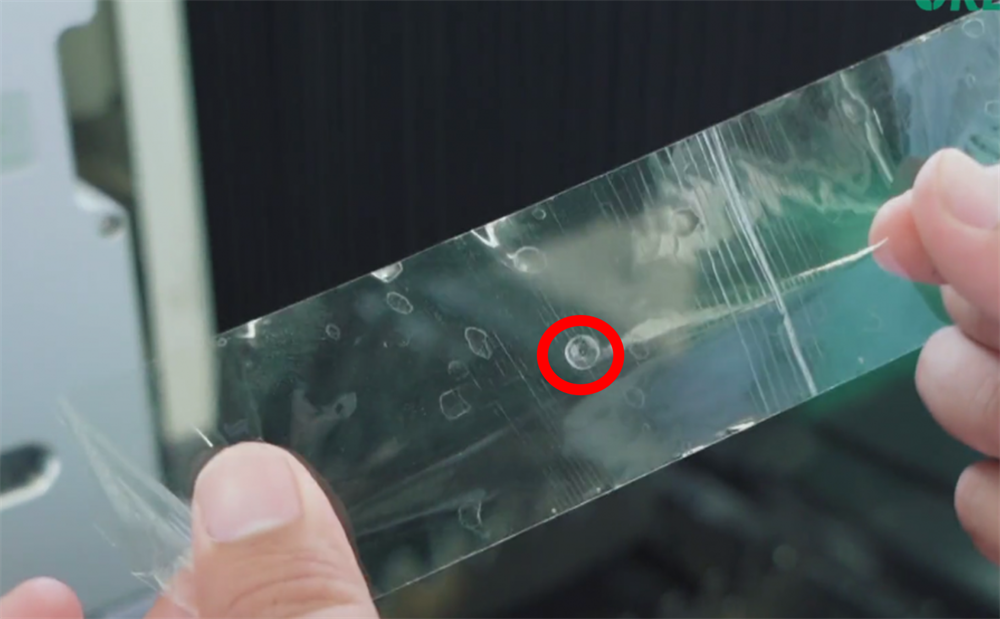

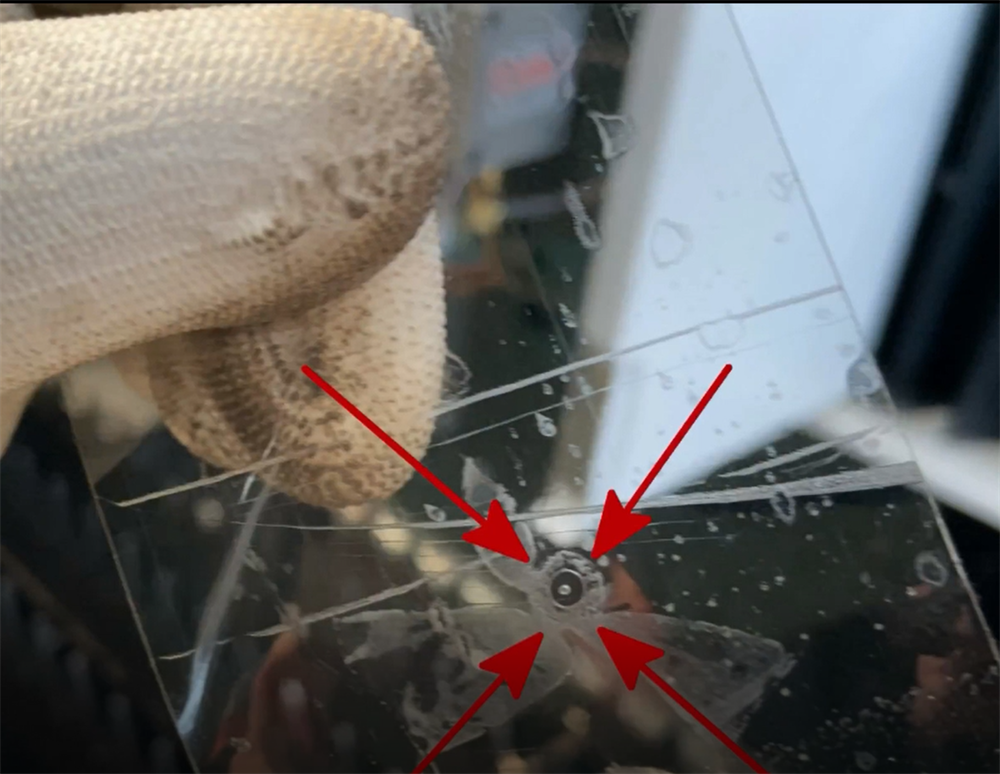

5. Inspect the Tape for Beam Position

• Carefully remove the tape without rotating it, and inspect it to see where the laser beam has passed through. Look for a circle with a diameter indicating the beam’s position relative to the nozzle center.

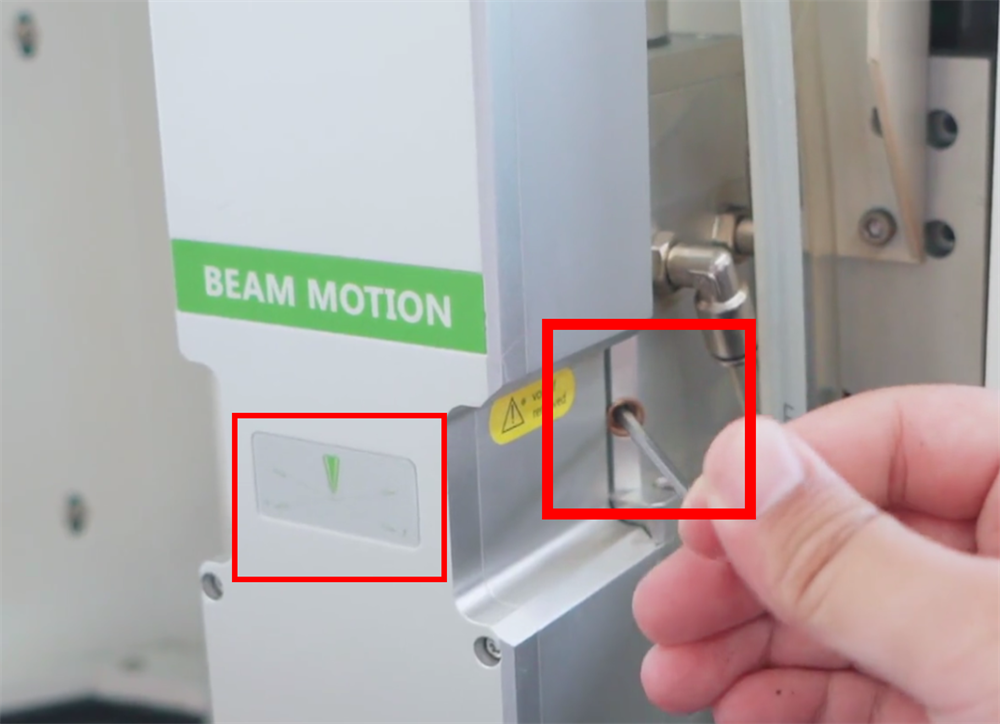

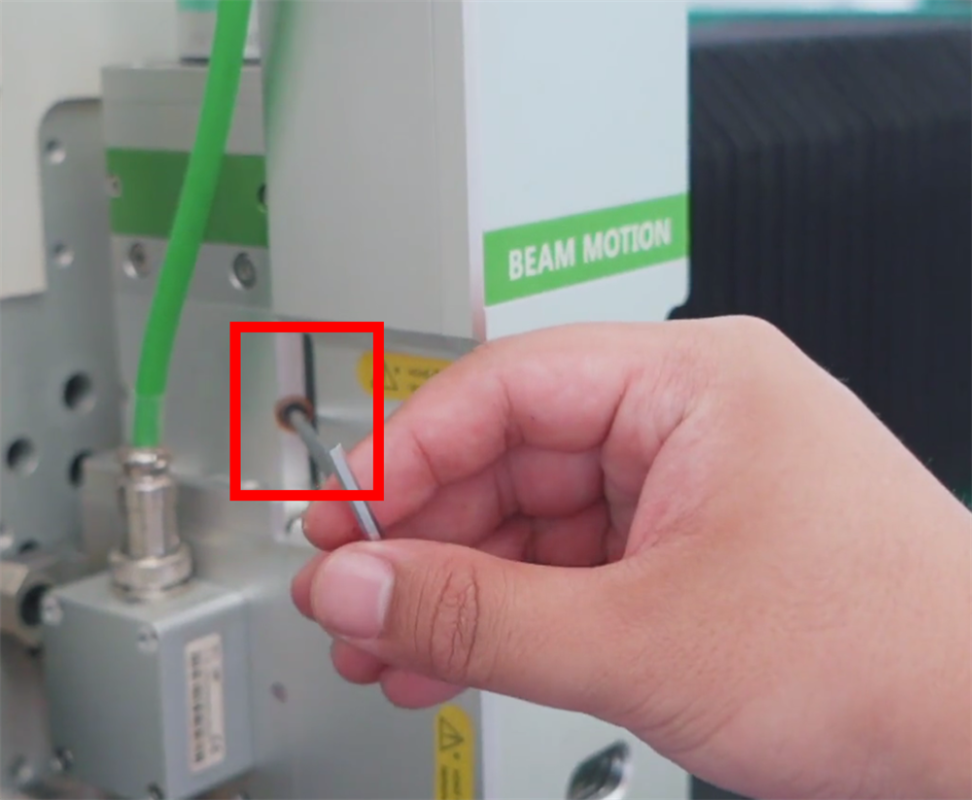

6. Adjust Beam Position Using Allen Wrench

• If the beam is not centered, adjust its position by turning the left and right screws with an Allen wrench. This process requires patience as you’ll need to test and adjust multiple times.

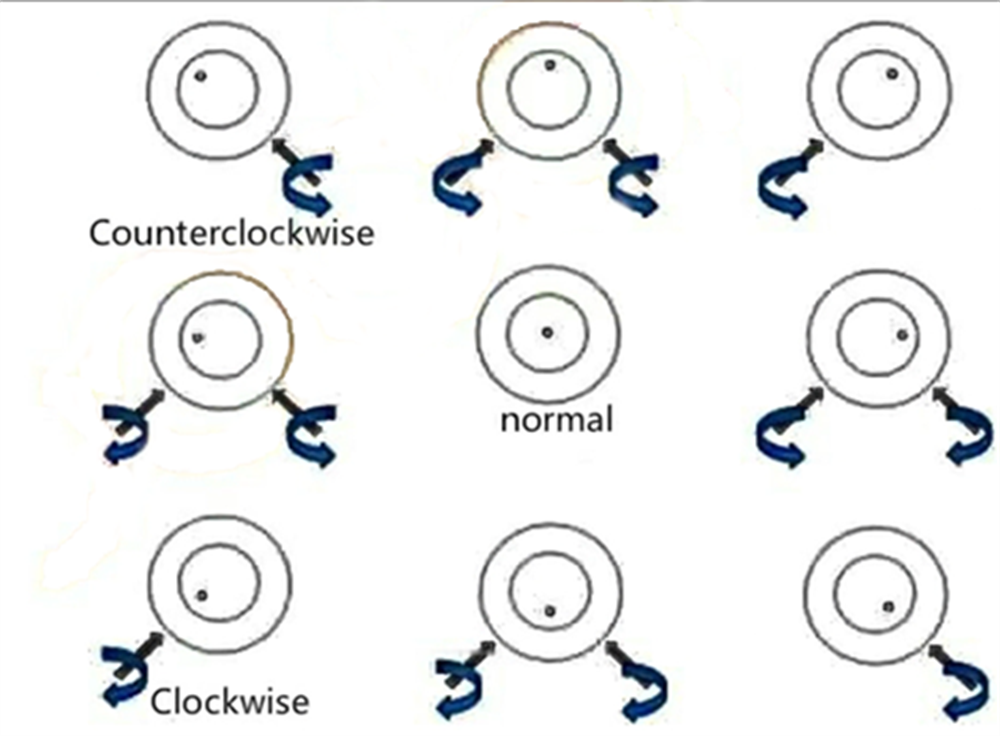

7. Make Precise Adjustments Based on Relative Position

• Based on the beam’s position relative to the circle, make fine adjustments. Continue testing and adjusting until the beam is perfectly centered.

8. Finalize Coaxial Adjustment

• Through repeated testing and meticulous adjustments, complete the coaxial adjustment until the beam aligns precisely at the center of the circle.

Tips for Successful Laser Alignment

• Regular Maintenance: Regularly clean and maintain your laser cutting machine to ensure optimal alignment performance.
• Use Quality Tools: Ensure that your Allen wrench and other tools are in good condition to facilitate precise adjustments.
• Stay Patient: Laser alignment is as much an art as it is a science. Take your time to ensure accuracy.

Заключение

Achieving precise laser alignment on your laser cutting machine is vital for delivering high-precision cuts and enhancing the machine’s overall efficiency. By following these steps and maintaining a rigorous testing and adjustment routine, you can ensure that your laser alignment remains perfect. Remember, investing time in proper alignment translates to better results and a longer-lasting machine. Perfect your laser alignment and watch your cutting efficiency soar!
