When it comes to building modern ships, efficiency and precision are critical. Punching Machines in Shipbuilding Industry play an essential role by enabling accurate hole-making, cutting, and shaping of steel plates and structural components. If you’re wondering where these machines are applied in shipyards and how they contribute to ship production, you’re in the right place. In this article, I’ll explain their key applications, highlight common operating practices, and share insights into maintenance and troubleshooting. By the end, you’ll understand exactly why punching machines are indispensable in shipbuilding.

Приложения Штамповочные машины in Shipbuilding Industry

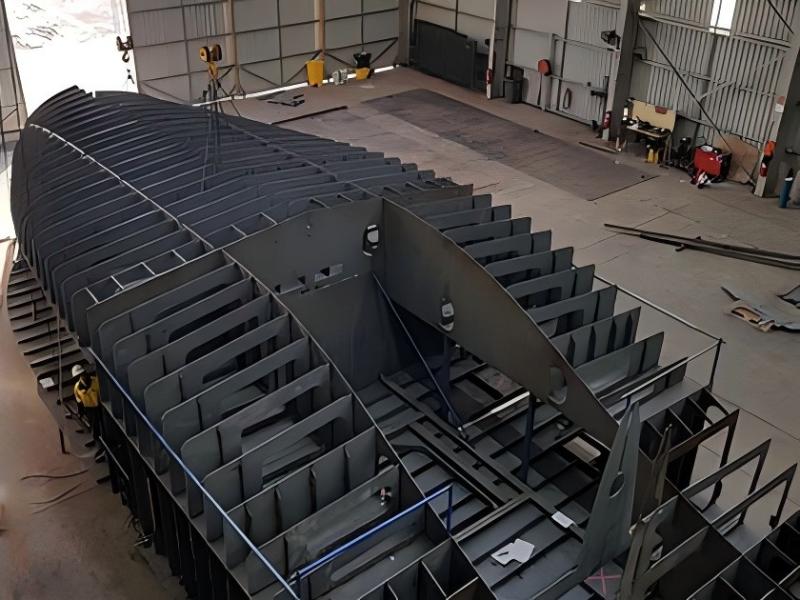

Structural Steel Fabrication

Punching machines are widely used to process large steel plates that form the hull, deck, and bulkheads of a ship. These machines allow precise hole punching for rivets, bolts, and welding points, ensuring strong and reliable joints. The accuracy of the punching process eliminates misalignment, which is especially important for maintaining the strength and safety of large marine structures.

Assembly of Ship Frames

In shipbuilding, frames provide the skeleton of the vessel. Punching machines are applied to create connection holes on beams, girders, and ribs, which are then assembled into the ship’s framework. By automating this process, workers save significant time and avoid errors that could compromise the frame’s integrity.

Deck and Superstructure Components

Ship decks and superstructures contain numerous panels, stairs, and platforms that require holes for fasteners, handrails, and fittings. Punching machines make it possible to create uniform holes quickly, supporting efficient assembly. This is especially valuable when multiple identical parts must be produced consistently.

Pipe and Tube Processing

Shipbuilding also involves extensive piping systems for fuel, water, and exhaust. Punching machines can be used to cut openings in panels and supports where pipes will be routed. With precise alignment, these openings reduce the need for rework during pipe installation and improve overall workflow efficiency.

Specialized Equipment Installation

Punching machines in the shipbuilding industry are also applied when preparing mounting points for heavy machinery such as engines, cranes, or winches. By creating accurately placed holes, they ensure that these machines are securely installed and properly aligned with the ship’s structural framework.

Operating Штамповочные машины for Shipbuilding

Подготовка рабочей зоны

Before starting, I always make sure the workspace is clean and the steel plates are positioned correctly. Any debris or uneven surfaces can affect punching accuracy and damage the material.

Setting Up the Tooling

Different ship components require different punch sizes. I carefully select and install the correct die and punch set for the job. For large steel plates, hydraulic or CNC-controlled punching machines provide the most efficient and precise results.

Adjusting for Precision

To achieve consistent accuracy, I calibrate the punching machine according to the plate thickness and hole size. This step prevents deformation of the material and ensures that holes align properly with assembly requirements.

Performing Routine Checks

Throughout the operation, I monitor the machine’s performance, checking for tool wear, misalignment, or hydraulic pressure drops. Keeping a close eye on these factors helps avoid costly downtime during production.

Common Maintenance Tips for Shipyard Punching Machines

Обычные проверки

I recommend inspecting the machine daily for worn punches, damaged dies, and hydraulic system leaks. Early detection of these issues helps prevent unexpected failures.

Смазка и очистка

Proper lubrication of moving parts is essential. In a shipyard environment, dust and metal shavings can accumulate quickly, so I make sure to clean the machine regularly to extend its lifespan.

Preventive Maintenance for Consistency

Scheduling preventive maintenance every few hundred hours of operation keeps punching machines running at peak performance. This reduces unplanned downtime and ensures that shipbuilding projects remain on schedule.

Вопросы и ответы

Заключение

Punching Machines in Shipbuilding Industry are applied in almost every stage of ship construction, from processing structural steel plates to installing machinery and piping systems. Their ability to deliver precise and efficient results makes them indispensable for modern shipyards. By following proper setup, operation, and maintenance practices, you can maximize the performance of your punching machine and keep your shipbuilding projects on track.

If you’d like to learn more about how these machines can benefit your shipyard, feel free to contact our team for detailed guidance and solutions tailored to your production needs.
