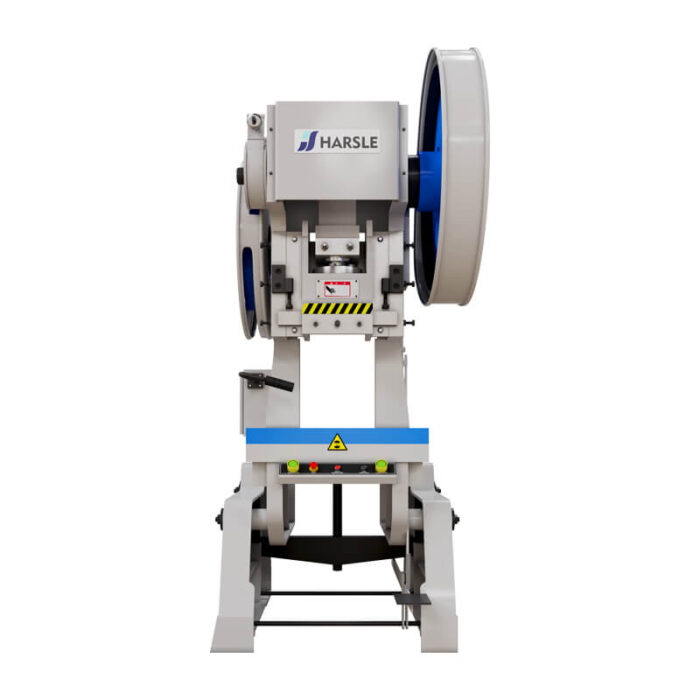

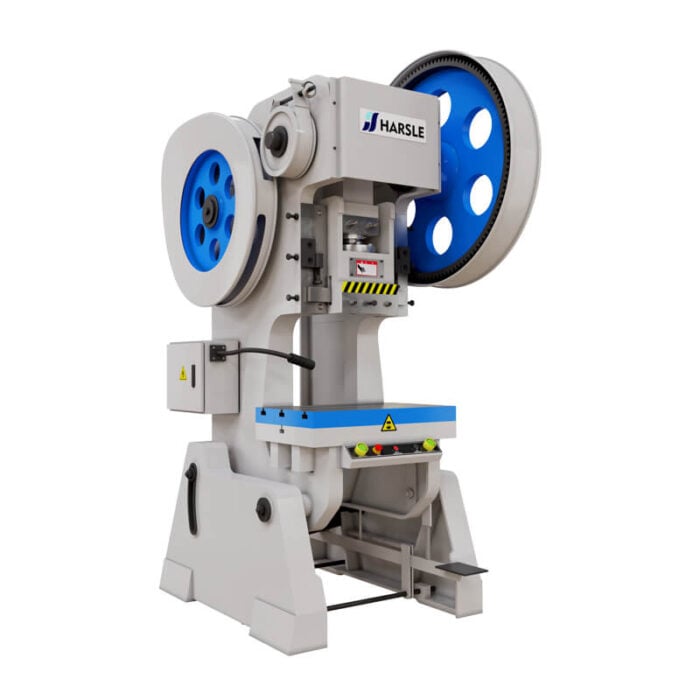

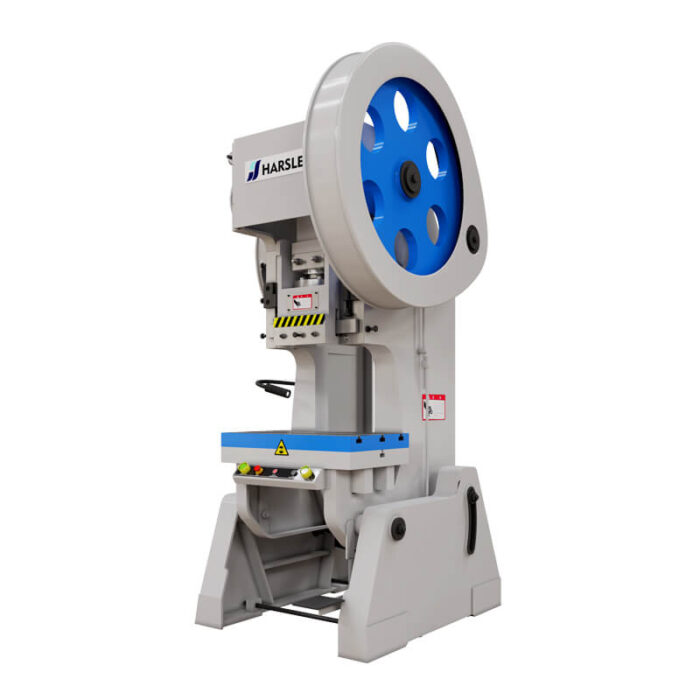

J23 Neigbare Stanzmaschine
Die neigbare Stanzmaschine J23 ist für vielseitige Metallstanzanwendungen konzipiert. Die Neigefunktion ermöglicht einen einfachen Zugriff und die Positionierung der Werkstücke und steigert so Effizienz und Präzision. Diese robuste Maschine liefert konstante Leistung und eignet sich für verschiedene Materialien und Stärken. Die J23 eignet sich ideal für Industrie und Werkstatt und sorgt für hohe Produktivität und Zuverlässigkeit in Ihren Metallbearbeitungsvorgängen.
100 vorrätig
J23 Neigbare Stanzmaschine
| Beschreibung | Typ | J23-10T | J23-16T | J23-25T | J23-40T | J23-63T | J23-80T | J21-100T | J21-125T | J21-160T |
| Nennkraft | kn | 100 | 160 | 250 | 400 | 630 | 800 | 1000 | 1250 | 1600 |
| Gleitstrich | mm | 50 | 60 | 70 | 100 | 100 | 115 | 130 | 130 | 130 |
| Anzahl der Schläge | Mal/min | 140 | 100 | 70 | 50 | 50 | 45 | 40 | 40 | 35 |
| Geschlossene Höhe | mm | 200 | 250 | 290 | 350 | 380 | 410 | 420 | 420 | 410 |
| Höhenverstellung schließen | mm | 40 | 40 | 40 | 60 | 60 | 60 | 60 | 60 | 80 |
| Halstiefe | mm | 130 | 180 | 200 | 250 | 280 | 280 | 320 | 320 | 360 |
| Spaltenabstand | mm | 170 | 200 | 230 | 320 | 350 | 360 | 400 | 430 | 330 |
| Tischgröße (FxB) | mm | 230 | 280 | 330 | 420 | 450 | 500 | 600 | 650 | 650 |
| Tischgröße (L x R) | mm | 370 | 450 | 530 | 640 | 700 | 750 | 900 | 1000 | 1100 |
| Größe der Folienunterseite (F x B) | mm | 100 | 130 | 170 | 190 | 220 | 250 | 280 | 350 | 340 |
| Größe der Folienunterseite (L x R) | mm | 145 | 180 | 200 | 250 | 310 | 300 | 325 | 380 | 420 |
| Shouk-Dimension (Durchmesser) | mm | 30 | 35 | 40 | 50 | 50 | 60 | 60 | 70 | 80 |
| Shouk-Dimension (Tiefe) | mm | 50 | 60 | 60 | 100 | 100 | 100 | 100 | 100 | 100 |
| Tischdicke | mm | 30 | 40 | 45 | 70 | 80 | 90 | 100 | 110 | 120 |
| Abmessung (F x B) | mm | 740 | 900 | 1000 | 1400 | 1500 | 1600 | 1800 | 1900 | 1800 |
| Abmessungen (L x R) | mm | 600 | 780 | 830 | 1100 | 1200 | 1300 | 1300 | 1500 | 1600 |
| Abmessung (Höhe) | mm | 1500 | 1720 | 1950 | 2300 | 2400 | 2600 | 2650 | 2800 | 2900 |
| Motor | kw | 1.1 | 1.5 | 2.2 | 4.0 | 5.5 | 7.5 | 7.5 | 11 | 15 |
| Gewicht | kg | 350 | 700 | 1100 | 2400 | 3100 | 4000 | 5000 | 7300 | 9600 |
7
Leute, die sich dieses Produkt jetzt ansehen!
Beschreibung
The J23 Inclinable Punching Machine is designed for precise and efficient punching operations in metalworking. With a robust construction and adjustable angle feature, it allows for versatile applications, making it ideal for sheet metal processing.
Hauptmerkmale:
- Inclinable Design: Allows for multiple punching angles to accommodate various workpieces.
- Hohe Präzision: Ensures accurate punching for different sheet thicknesses.
- Langlebig und zuverlässig: Built to withstand heavy-duty operations.
- Einfache Bedienung: User-friendly controls for efficient work processes.
Ideal for industries requiring consistent and precise metal punching, the J23 offers a cost-effective solution for your production needs.
WAS WIR ANBIETEN
Produktmerkmale im Überblick
Geschmiedetes Stahlgetriebe
Langlebige Zahnräder aus geschmiedetem Stahl liefern konstante Leistung, ideal für präzise Stanzanwendungen mit hoher Festigkeit.
Bremsband
Ein zuverlässiges Bremsband sorgt für kontrolliertes Anhalten und verbessert die Betriebssicherheit und Genauigkeit bei intensiver Nutzung.
Öffnungsanpassung
Der einstellbare Öffnungsmechanismus unterstützt vielseitige Stanztiefen, passt sich verschiedenen Materialien an und ermöglicht eine präzise Steuerung.
Beleuchtungsausrüstung
Die integrierte Beleuchtung verbessert die Sicht im Arbeitsbereich und fördert so Präzision und Sicherheit während der Arbeit.
Schmiersystem
Das automatische Schmiersystem minimiert die Reibung, verlängert die Lebensdauer der Maschine und sorgt für einen reibungslosen, effizienten Betrieb.
Bedientasten
Ergonomisch gestaltete Tasten ermöglichen dem Bediener eine einfache und effiziente Steuerung und maximieren so Produktivität und Komfort.
Vertrauenswürdige globale Partner
Unsere geschätzten Partner kommen aus verschiedenen Branchen weltweit und tragen zu innovativen Lösungen und gemeinsamem Wachstum bei. Wir sind stolz auf die Zusammenarbeit mit diesen renommierten Marken, die Verbesserung der Servicequalität und den Ausbau unserer globalen Präsenz in der Metallbearbeitungstechnologie.
Warum HARSLE wählen
Direkter Hersteller
Direkt ab Werk, keine Zwischenhändler, wodurch wir unseren Kunden die besten Preise garantieren.
3 Jahre Garantie
Genießen Sie die Sicherheit einer dreijährigen Garantie und des kostenlosen Teileaustauschs.
Mehrsprachiger Support
Unser mehrsprachiges Team gewährleistet eine effiziente Kommunikation für alle Ihre Bedürfnisse.
Pünktliche Lieferung
Die Maschinen werden termingerecht geliefert, sodass unsere Kunden diese umgehend erhalten.
Qualitätssicherung
Umfassende Qualitätskontrollen garantieren die Qualität jeder Maschine.
Lokalisierter Service
Zu Ihrer Bequemlichkeit bieten wir in mehreren Ländern einen schnellen, lokalisierten Service.
Referenzen
Hören Sie, was unsere Kunden sagen
Wir bei HARSLE glauben an die Kraft der Zusammenarbeit. Unsere vertrauensvollen Partnerschaften mit führenden Marken der Metallverarbeitungsbranche erweitern unsere Fähigkeiten und unser Angebot. Gemeinsam streben wir danach, innovative Lösungen zu entwickeln, die den sich wandelnden Bedürfnissen unserer Kunden gerecht werden. Diese Partnerschaften ermöglichen uns nicht nur den Austausch von Wissen und Expertise, sondern stellen auch die Bereitstellung hochwertiger Maschinen und Dienstleistungen sicher. Unser Engagement für Spitzenleistungen spiegelt sich in den starken Beziehungen wider, die wir aufgebaut haben und die letztendlich unseren Kunden zugutekommen. Feiern Sie mit uns unsere geschätzten Partner, die unsere Vision von Qualität und Innovation teilen.
★★★★★ 5/5
Außergewöhnliche Qualität und Leistung!
Wir nutzen die Stanzmaschine von HARSLE seit drei Jahren und sind mit ihrer Leistung, Qualität und dem hervorragenden Kundenservice äußerst zufrieden.
Peru
★★★★★ 5/5
Jedes Mal hervorragender Service!
Wir nutzen die Stanzmaschine von HARSLE seit drei Jahren und sind mit der Qualität und dem hervorragenden Kundendienst sehr zufrieden.
USA
Die beliebtesten Fragen
Wir bieten verschiedene Arten von Stanzmaschinen an, darunter hydraulische Stanzmaschinen, mechanische Stanzmaschinen und CNC-Stanzmaschinen, die für unterschiedliche Anwendungen und Produktionsanforderungen konzipiert sind.
Unsere Stanzmaschinen können je nach Modell und verwendetem Werkzeug eine Vielzahl von Materialien effektiv verarbeiten, darunter Weichstahl, Edelstahl, Aluminium und andere Metalle.
Die maximale Stanzkapazität variiert je nach Modell und liegt typischerweise zwischen 20 und über 100 Tonnen. Detaillierte Informationen zu den Leistungsfähigkeiten der einzelnen Maschinen finden Sie in den technischen Daten.
Ja, wir bieten Anpassungsoptionen zur Erfüllung spezifischer Produktionsanforderungen, einschließlich Änderungen der Stanzkapazität, der Werkzeuge und zusätzlicher Funktionen.
Unsere Stanzmaschinen sind mit Sicherheitsfunktionen wie Not-Aus-Schaltern, Schutzvorrichtungen und Überlastschutzsystemen ausgestattet, um einen sicheren Betrieb zu gewährleisten.
Wir bieten eine Standardgarantiezeit von 12 Monaten ab dem Installationsdatum, die alle Herstellungsfehler abdeckt und die Kundenzufriedenheit gewährleistet.
Wir bieten komplette Installationsservices und Schulungen für Ihr Personal an, um sicherzustellen, dass die Stanzmaschine richtig eingerichtet und effizient betrieben wird.
Die Lieferzeit beträgt in der Regel 30 bis 60 Tage, abhängig vom Modell und den Bestellspezifikationen. Den voraussichtlichen Liefertermin teilen wir Ihnen mit der Auftragsbestätigung mit.
Ja, wir bieten umfassenden Kundendienst, einschließlich technischer Hilfe, Wartungsdienste und Zugang zu Ersatzteilen, um die Langlebigkeit Ihrer Stanzmaschine zu gewährleisten.
Auf jeden Fall! Wir können Ihnen Referenzen und Erfahrungsberichte unserer zufriedenen Kunden vorlegen, die die Zuverlässigkeit und Leistungsfähigkeit unserer Stanzmaschinen belegen.
Holen Sie sich noch heute Ihr individuelles Angebot!
Entdecken Sie, wie HARSLE Ihre Anforderungen in der Metallbearbeitung erfüllen kann. Klicken Sie unten, um Ihre Anfrage zu senden und eine maßgeschneiderte Lösung von unserem Expertenteam zu erhalten. Lassen Sie uns gemeinsam für Ihren Erfolg arbeiten!
Zusätzliche Informationen
| Gewicht | 999 kg |
|---|---|
| Größe | 1400 × 1100 × 2300 mm |
| Funktion |
Stanzen |
| Lieferzeit |
45 Tage |
| Marke |
HARSLE |
| Zahlungsbedingungen |
LC ,TT |
| Preisbegriff |
EXW |
| Garantie |
3 Jahre |
