Large Radius Arcs are effortlessly handled by the ESA S630, a cutting-edge bending machine designed for precision and versatility in modern manufacturing. Explore its advanced CNC technology and discover how it can meet your demanding project needs. The ESA S630 bending machine is one such innovation, offering cutting-edge functionalities that simplify the arc bending process, especially when dealing with large radius arcs. These capabilities make the ESA S630 an indispensable tool across a variety of applications, from structural engineering and construction to the creation of artistic metalworks. Understanding how to effectively manage and manipulate large radius arcs has become an essential skill for any technician or engineer looking to enhance productivity and ensure superior outcomes.

Whether you are an experienced technician or a newcomer to CNC programming, mastering the techniques for handling large radius arcs is crucial. Not only does it enhance operational efficiency, but it also guarantees high-quality results for each workpiece. This guide is dedicated to providing detailed instructions tailored for the ESA S630’s large radius arc capabilities, helping users unlock the full potential of this powerful machine. By systematically mastering these processes and techniques, manufacturing enterprises can streamline operations and secure a competitive advantage in the ever-evolving market.

Introduction to the ESA S630

The ESA S630 is a highly efficient and versatile bending machine renowned for its precision and adaptability in the metal fabrication industry. Designed to handle a variety of materials, this machine excels in producing complex bends and large radius arcs with ease. Its advanced CNC control system ensures precise operations, enabling users to achieve consistent, high-quality results for both small-scale and large-scale production needs. The ESA S630 is engineered for durability and performance, making it an invaluable asset for manufacturers seeking to enhance their production capabilities and innovate in custom metalwork. Whether you are working on intricate architectural components or robust industrial parts, the ESA S630 delivers unmatched reliability and precision.

Detailed Steps for Graphical Programming of ESA S630

• Enter the System and Select Mode:
  • Device Startup: Power on the bending machine, ensuring the ESA S630 controller is correctly initiated.
  • Select Graphical Programming Mode: Navigate to “Graphical Programming” via the menu, and select to enter configuration for large radius arcs.

• Design Workpiece Profile:

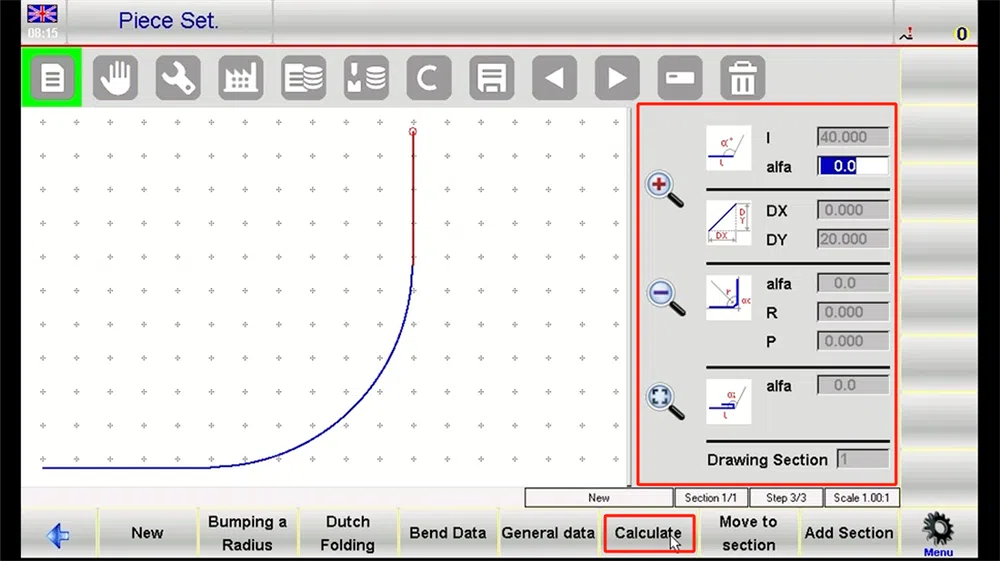

  • Sketch Drafting: Enter the graphical editing interface and use drawing tools to sketch the basic shape of the workpiece, focusing especially on large radius arcs.
  • Refine Geometric Features: Use the “Arc” drawing tool, inputting specific start and end points, and adjusting the radius and angle for precise replication of design plans tailored for large radius arcs.
• Input Operational Parameters:
  • Select Arc: Click on the large radius arc section, entering specific geometric parameters such as radius and center.
  • Set Material Attributes: Enter material type and thickness to assist calculations, utilizing preset templates for initialization of large radius arcs.

• Automatic Step Generation:
  • Computation and Generation: Use the built-in automatic calculation feature to allow the system to analyze and generate optimized bending paths, translated into executable steps specific to large radius arcs.
  • Manual Adjustment: Review the automatically generated path and manually adjust step distance and angles to correct minor deviations in the large radius arcs.

• Verify and Simulate:
  • Visual Simulation: Run a 3D simulation to visualize the entire bending process and observe workpiece changes, focusing especially on the accuracy of large radius arcs.
  • Verification and Adjustment: Cross-check the simulation results, making necessary tweaks to ensure the program’s accuracy for large radius arcs.

• Program Confirmation and Execution:

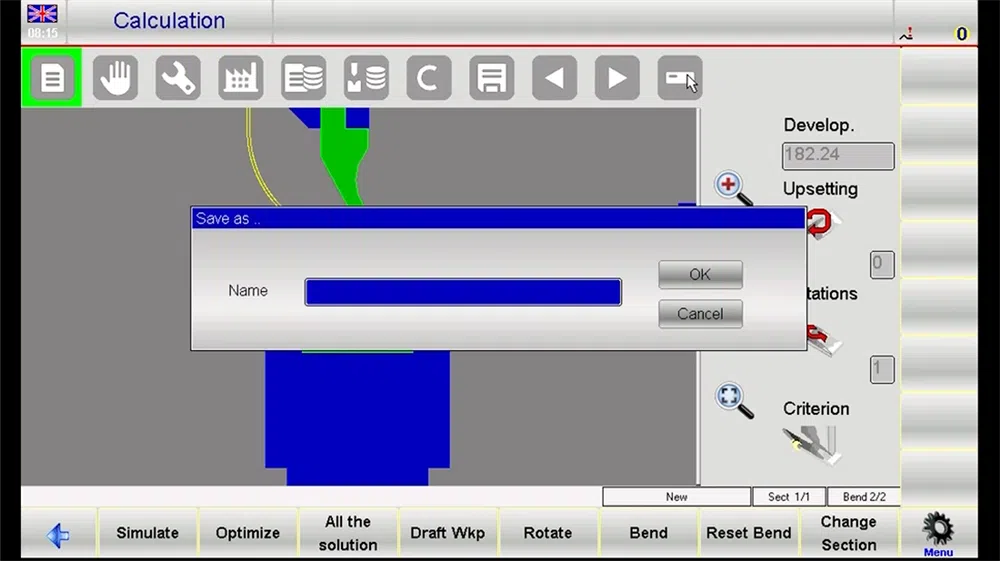

  • Save Confirmation: Double-check step mappings for correctness regarding large radius arcs, then save the programmed sequence using a clear, identifiable name.

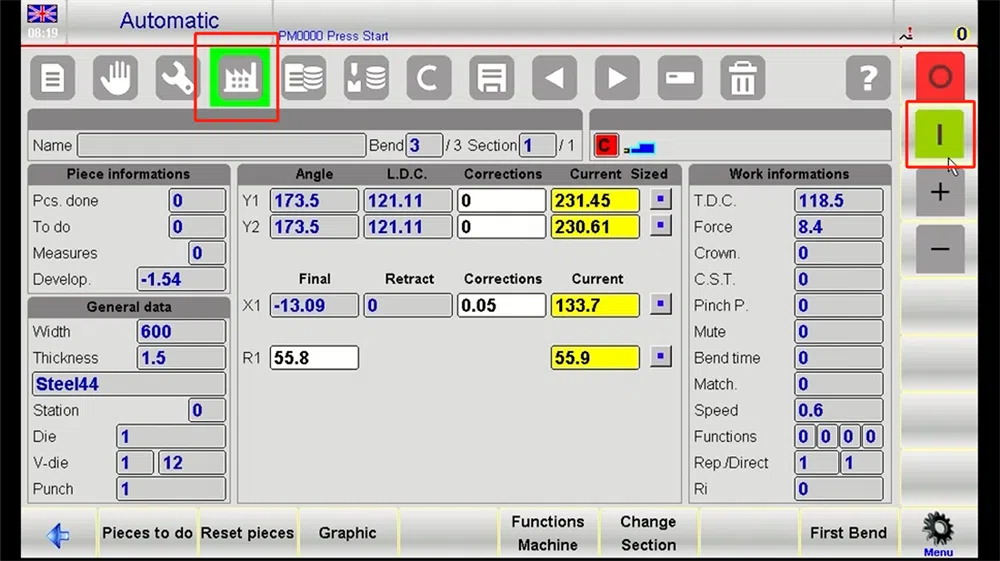

  • Initiate Execution: Return to the operation panel in preparation for executing the bending program focusing on large radius arcs.

Detailed Steps for Numerical Programming of ESA S630

• Create a New Program:

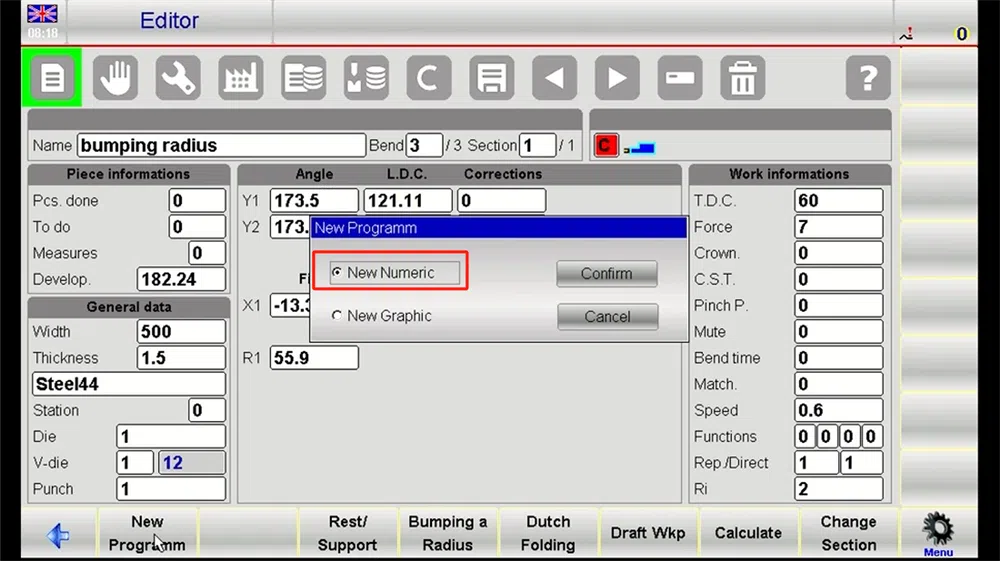

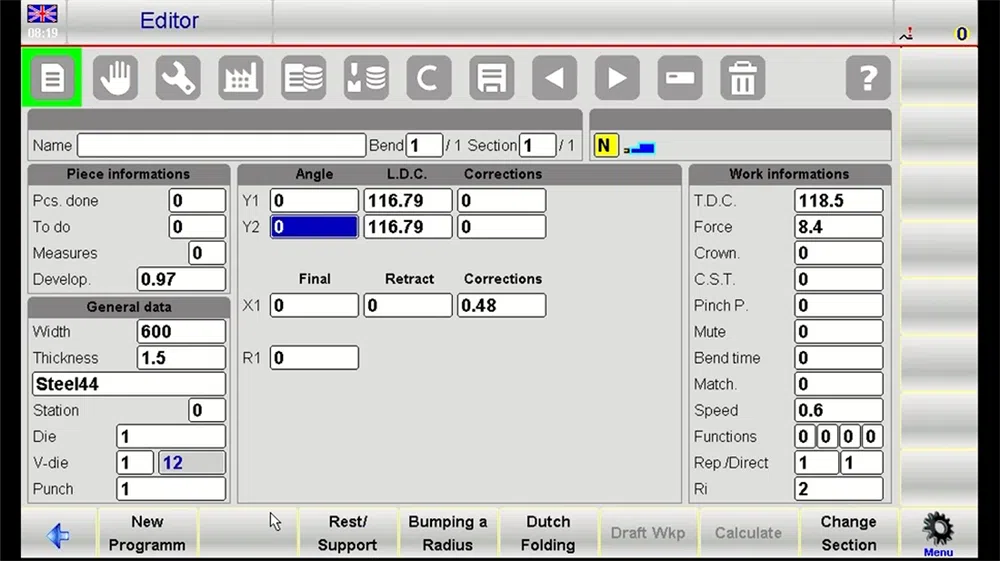

  • Program Initialization: Choose the “Create New Program” option. You will be prompted to enter a file name; choose a descriptive name for easy future reference.
  • Define Workpiece Type: Specify the workpiece type as “Arc Bending” for large radius arcs, allowing the system to adjust its built-in parameters accordingly.

• Input Material Parameters:

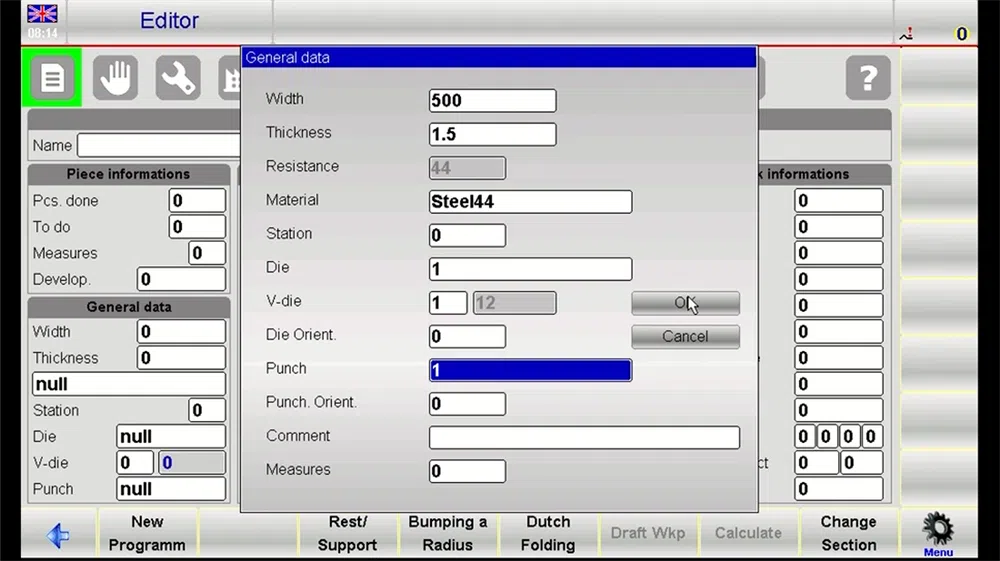

  • Material Selection: Enter specific material type (e.g., stainless steel, aluminum) and thickness so the system can calculate the bending force needed for large radius arcs.
  • Correction Factors: Enter necessary springback correction factors based on material characteristics to ensure precision in large radius arcs.

• Set Bending Parameters:

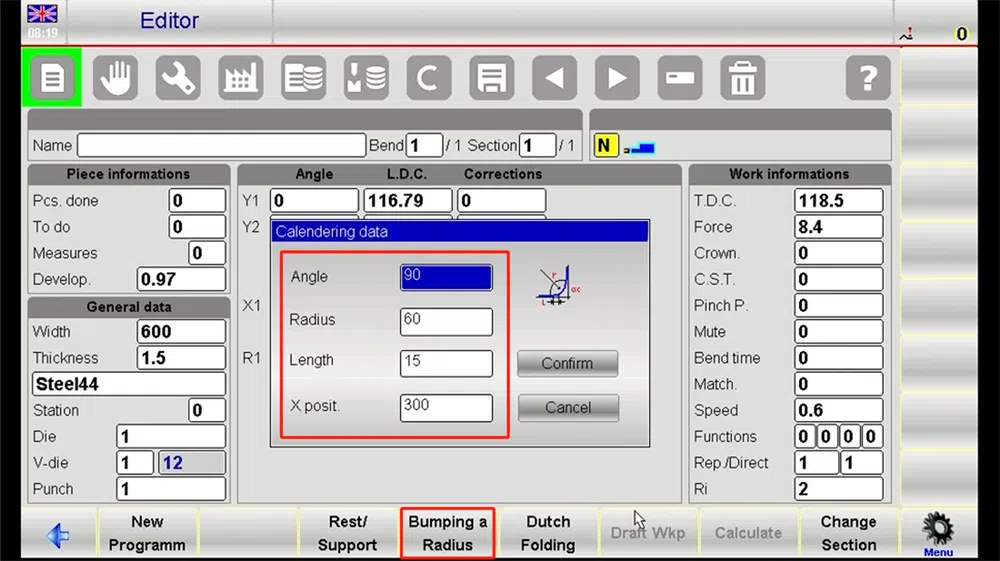

  • Arc Radius and Angle: Input the radius and bending angle of the large radius arc, ensuring these match the design specifications.
  • Longueur de courbure : Input the effective bending length, which is related directly to the width and positioning of the workpiece designed for large radius arcs.

1. Define Step-by-step Details:

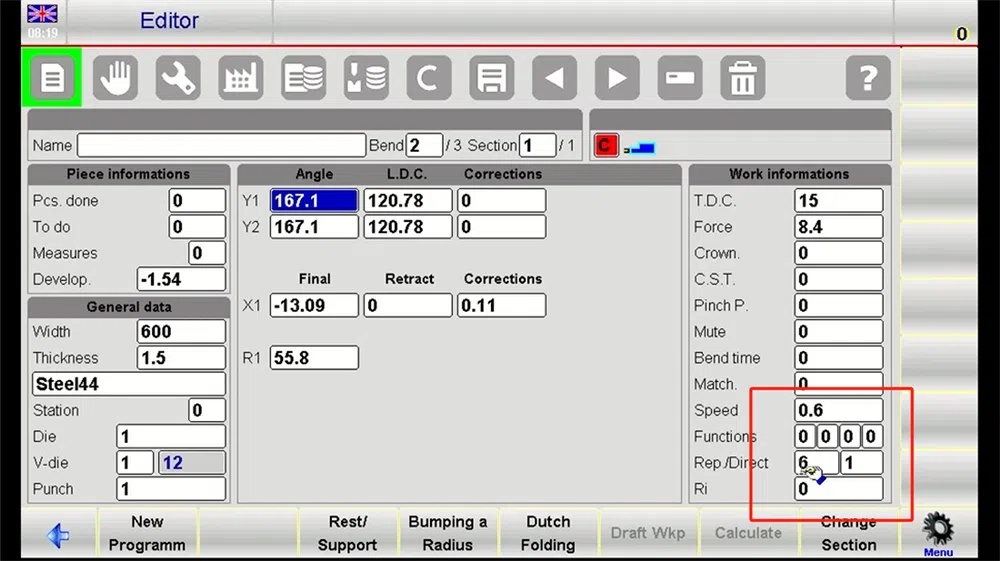

   • Sequential Definition: Break down the large radius arc into multiple bending steps (e.g., bend every 10 degrees), clearly specifying each bending angle and feed distance.
   • Fine-tuning Parameters: Make necessary fine-tuning adjustments to optimize the bending path and accuracy for large radius arcs.

• Simulation and Optimization:

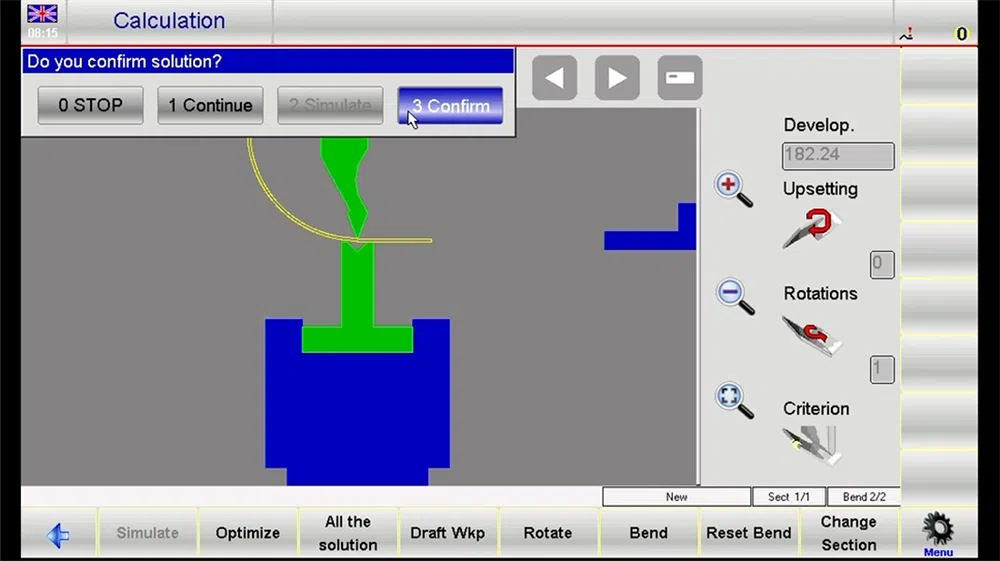

  • Run Simulation: Use the software simulation feature to visualize the program’s execution, ensuring no collision or overtravel occurs even with large radius arcs.
  • Dépannage : Adjust parameters based on simulation outcomes to refine the large radius arcs. If issues arise, backtrack and verify each program step.
• Save and Execute:
  • Program Saving: Once all parameters for large radius arcs are verified, save the program. Store it in a commonly used path for easy retrieval.

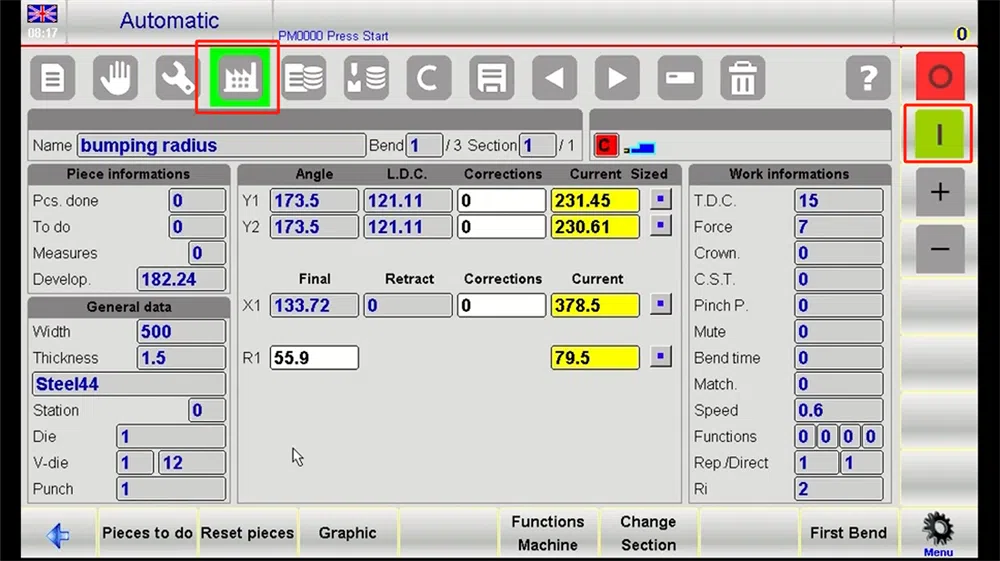

  • Execution Preparation: Switch to operation mode and prepare for physical execution of large radius arcs.

Conclusion

The ESA S630 bending machine, with its robust capabilities in both numerical and graphical programming, stands as an invaluable asset for precision arc bending tasks, especially when meeting the intricate demands of large radius arcs. By meticulously following the detailed steps outlined in this guide, users can achieve superior results, streamline their operations, and significantly enhance productivity. As you develop new manufacturing processes or refine existing ones, mastering the functionality of the ESA S630 for large radius arcs will position you at the forefront of innovation and efficiency within the industry.

As you continue to explore the potential of advanced CNC programming, regularly consulting your equipment’s manual will ensure both safety and accuracy. Harnessing the transformative power that comes with effectively managing large radius arcs will enable your manufacturing capabilities to grow and excel. In the process of production and manufacturing, as technology and techniques for large radius arcs continue to evolve, you will witness leaps in efficiency and capacity, ensuring you remain competitive in the marketplace. Through sustained learning and application of advanced techniques, your enterprise will gain unprecedented competitive advantages and opportunities for growth.
