Panel Flipper for Sheet Metal Handling

Name: Panel Flipper for Sheet Metal Handling | HARSLE
SKU: HS202662201
Price: 29900 USD
Availability: InStock

Le prix initial était : $33,000.Le prix actuel est : $29,900. Ensemble

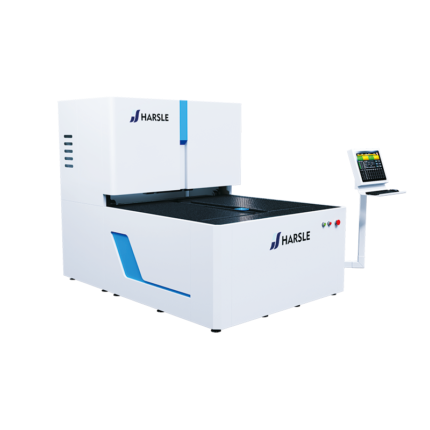

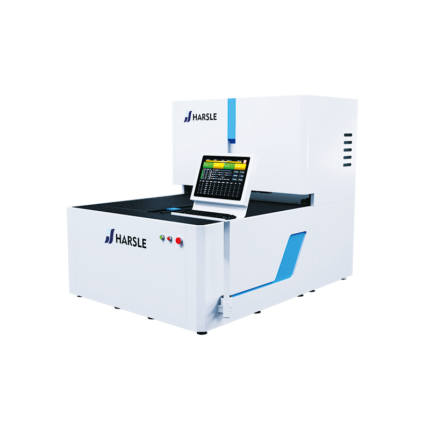

The Panel Flipper is an advanced sheet metal handling solution designed for safe and efficient panel rotation in fabrication lines. It helps operators flip and position large metal sheets with precision, reducing manual labor and improving production safety. Suitable for press brake and panel processing systems, it ensures stable handling of heavy panels. With a compact structure and reliable performance, the Panel Flipper enhances workflow efficiency and supports automated production environments in modern metal fabrication industries.

100 en stock

Note: Les prix varient selon le modèle et la configuration. Cliquez sur " Envoyer une demande " pour obtenir un devis personnalisé.

Comparer

Ajouter à la liste de souhaits

ENVOYER UNE DEMANDE

Panel Flipper

Article	Unité	AutoFlip 1200	AutoFlip 1600	AutoFlip 2000
Longueur de pliage maximale	mm	1200	1600	2000
Largeur de pliage maximale	mm	600	600	600
Hauteur de pliage maximale	mm	80	80	80
MS	mm	1.2	1.2	1.2
SS	mm	0.6	0.6	0.6
AL	mm	1.5	1.5	1.5
Min. Bending Thickness	mm	0.3	0.3	0.3
Rayon de courbure minimal	mm	2	2	2
Range of Folding Angles	°	0-120	0-120	0-120
Angular Accuracy	°/m	±1	±1	±1
Bend Dimensional Accuracy	mm/m	±0,1	±0,1	±0,1
Working Accuracy	mm	0.001	0.001	0.001
Vitesse de pliage	s/flexion	0.2	0.2	0.2
Operating Noise	dB	50	50	50
Air Supply Pressure	MPA	0.5	0.5	0.5
Total Number of Controlled Axes	-	7	7	7
User Operating Environment	-	win10	win10	win10
Min. Inside Size (Four-Side)	mm	150*80	150*80	150*120
Min. Inside Size ( Double-Side)	mm	80	80	120
Puissance de travail moyenne	KW	1.5	1.8	2.1
Longueur	mm	2500	3200	4500
Largeur	mm	1800	2200	2300
Hauteur	mm	2100	2100	2100

9 Les gens regardent ce produit maintenant !

Description

The Panel Flipper is a high-performance material handling device designed for modern sheet metal fabrication industries. It is used to rotate, flip, and position large or heavy metal panels safely and efficiently, reducing the need for manual handling and improving overall production efficiency.

This equipment is widely integrated into press brake production lines, panel bending systems, and automated fabrication workflows. By enabling smooth and controlled panel transfer, it helps prevent surface damage and ensures precise positioning for the next processing step.

Caractéristiques principales :

Safe panel rotation with stable control system
Heavy-duty structure for large sheet handling
Smooth and precise flipping operation
Compatible with automated production lines
Reduced labor intensity and improved safety
High efficiency for continuous production workflows
Durable design for long-term industrial use

The Panel Flipper is an essential solution for manufacturers seeking higher automation levels and improved handling efficiency. It supports consistent workflow optimization and is suitable for various metal fabrication applications, including steel structures, appliance manufacturing, and industrial sheet processing.

Questions les plus populaires

What is the AutoFlip Panel Flipper and how does it work?

The AutoFlip Panel Flipper is an automated sheet metal turnover machine designed to rotate heavy flat panels safely and precisely. The workpiece is placed on the flipper table and secured by adjustable clamps or a vacuum/suction system. A hydraulic or servo-driven mechanism then rotates the panel through 90° or 180° in a controlled motion. The entire cycle is completed in seconds with a single operator command — eliminating the need for cranes, slings, or manual repositioning.

Why is an automated panel flipper safer than manual turning methods?

Manual flipping with cranes, forklifts, or chains is physically demanding, time-consuming, and carries a high risk of dropped loads, pinch-point injuries, and surface damage. The AutoFlip Panel Flipper keeps the operator at a safe distance while the machine performs a smooth, synchronized rotation. Built-in safety interlocks, emergency stops, and mechanical position locks ensure the panel remains securely held throughout the entire flip cycle.

What types of panels and materials can the AutoFlip handle?

The AutoFlip Panel Flipper is built for a wide range of flat workpieces, including laser-cut, plasma-cut, and flame-cut steel sheets, stainless steel panels, aluminum plates, welded assemblies, electrical enclosures, and structural frames. It handles both individual panels and stacked sheet bundles. Optional rubber mats, nylon brushes, or felt linings can be fitted to protect pre-painted, powder-coated, or polished surfaces during rotation.

What are the load capacity and maximum panel size specifications?

We offer AutoFlip Panel Flipper models with load capacities from 750 kg up to 5,000 kg, with custom heavy-duty configurations available for loads exceeding 10 tons. Standard table sizes accommodate panels up to 1,200 × 800 mm, while extended models support panels up to 3,000 × 1,500 mm or larger upon request. Material thickness typically ranges from 0.5 mm thin sheets to 50 mm heavy plates, depending on the model selected.

Can the AutoFlip rotate panels to custom angles, not just 180°?

Yes. While 180° full turnover is the most common operation, the AutoFlip Panel Flipper supports programmable rotation to any angle between 0° and 180°, including 90° vertical-to-horizontal transitions. The hydraulic system maintains pressure at intermediate stop positions, allowing the panel to be held securely at the desired angle for welding, inspection, or machining access on both sides without additional support fixtures.

Where can the AutoFlip Panel Flipper be integrated in a production line?

The AutoFlip integrates seamlessly into sheet metal fabrication workflows — positioned between laser or plasma cutting and folding/bending stations, alongside welding cells for double-sided access, or at quality inspection points for top-and-bottom surface checks. It can be connected to roller conveyors, belt transfer systems, or robotic loading/unloading units for fully automated inline operation with minimal manual intervention.

Does the AutoFlip protect delicate or coated panel surfaces during flipping?

Absolutely. The flipper table surface can be equipped with replaceable rubber pads, nylon brushes, or soft felt covers to prevent scratching on painted, galvanized, brushed, or mirror-finish panels. Adjustable clamping pressure and vacuum suction options distribute holding force evenly across the panel surface. The smooth, vibration-free hydraulic drive ensures no impact or sudden jerking that could dent or mar the workpiece.

How long does a typical flip cycle take?

Cycle time depends on the model and rotation angle. Pneumatic AutoFlip models complete a 180° flip in approximately 5–10 seconds, making them ideal for high-frequency turnover tasks. Hydraulic models handling heavier loads typically complete a full rotation in 35–60 seconds. Compared to manual crane-based flipping that can take 5–15 minutes per panel, the AutoFlip dramatically reduces downtime and frees operators for other tasks.

What safety features are included with the AutoFlip Panel Flipper?

Every AutoFlip Panel Flipper is equipped with emergency stop buttons, mechanical and hydraulic position locks, synchronized cylinder operation to prevent tilting imbalance, and automatic pressure-hold at any stop angle. Optional safety fencing, light curtains, and two-hand control panels are available for enhanced operator protection. All units comply with CE safety standards and include automatic soft-reset and position-lock functions in case of power interruption.

What is the lead time, warranty, and after-sales support?

Standard production lead time is 15–30 working days for common models, with custom configurations requiring 30–45 days. We provide a 12-month warranty covering manufacturing defects, along with free lifetime technical support. Our after-sales team offers remote diagnostics, spare parts supply, on-site installation and commissioning, operator training, and preventive maintenance programs to keep your AutoFlip running at peak performance.
