When engineers or workshop managers search for production capacity and working range of máquinas de laminação, they usually want a quick, practical way to discover whether a specific model can shape their plates, cones, or cylinders without wasting time or material. In this guide I’ll unpack the core factors that define a rolling machine’s true capacity, explain how the working range affects job planning, and show you how to match machine specs to real-world projects.

Understanding the Key Specifications That Drive Capacity

The nameplate capacity only tells part of the story. To judge whether a rolling machine fits your workload I always start with four data points.

Maximum Plate Thickness and Width

Manufacturers rate capacity using a mild-steel baseline (typically 250 MPa yield strength). If you frequently roll stainless or high-strength alloys, de-rate the advertised thickness by 30 – 50 %. For example, a 20 mm × 2 500 mm capacity on mild steel drops to roughly 14 mm when you swap to 304 stainless.

Minimum Achievable Diameter (Pre-Bend and Rolling)

Two numbers matter here: the pre-bend diameter—how tight a cylinder you can close without a flat spot—and the rolling diameter once the seam is tacked. Small shop jobs such as exhaust components thrive on machines that can pre-bend to 1.1 × top-roll diameter.

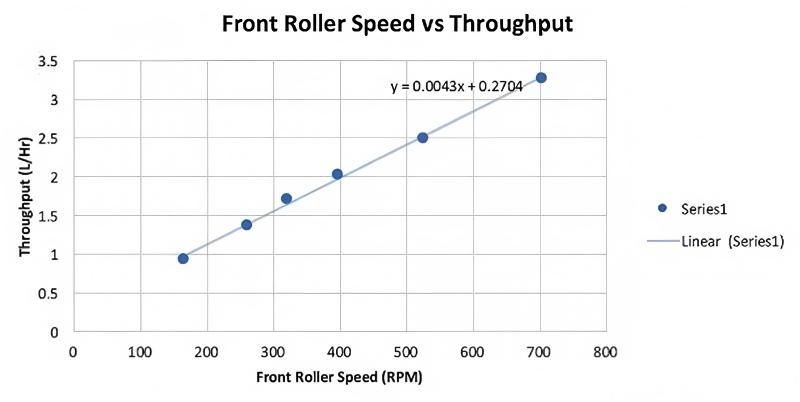

Roll Speed and Throughput

Higher surface speed boosts hourly tonnage, but only if your upstream cutting and downstream welding cells keep pace. I calculate net capacity as:

Net tons per hour = (Roll speed × plate width × thickness × ρ) ÷ cycle time

where ρ is material density. This equation reveals whether upgrading motor horsepower will actually shorten your delivery schedule.

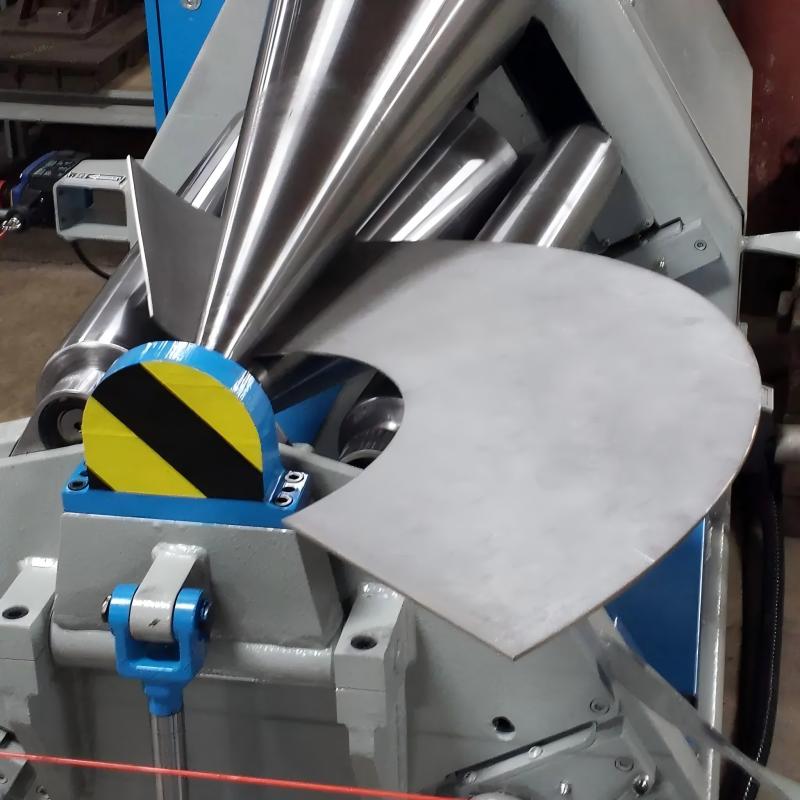

Cone Rolling Capability

If you build hoppers or silos, look for separately powered side rolls or adjustable drop-end yokes. They expand the working range far beyond simple cylinders and let you quote more complex contracts.

How to Evaluate Production Capacity for Your Specific Job

Material Type, Yield Strength, and Bending Radius

I keep a quick-reference table that converts mild-steel capacity into equivalents for aluminum, stainless, and Hardox. Increasing yield strength or demanding a smaller bending radius both subtract from nominal capacity—sometimes dramatically.

Batch Size, Shift Schedule, and Maintenance Windows

A machine that technically rolls your thickest plate might still bottleneck production if it can’t meet daily volume. I multiply batch tonnage by shift count, then add 10 % downtime for roll cleaning and bearing lubrication to find the effective capacity.

Integration With Cutting and Welding Stations

Rolling machines rarely stand alone. Measure conveyor height, forklift aisle width, and welding rotator limits to ensure your chosen working range dovetails with upstream and downstream processes.

Determining the Working Range for Diverse Projects

Minimum and Maximum Width Settings

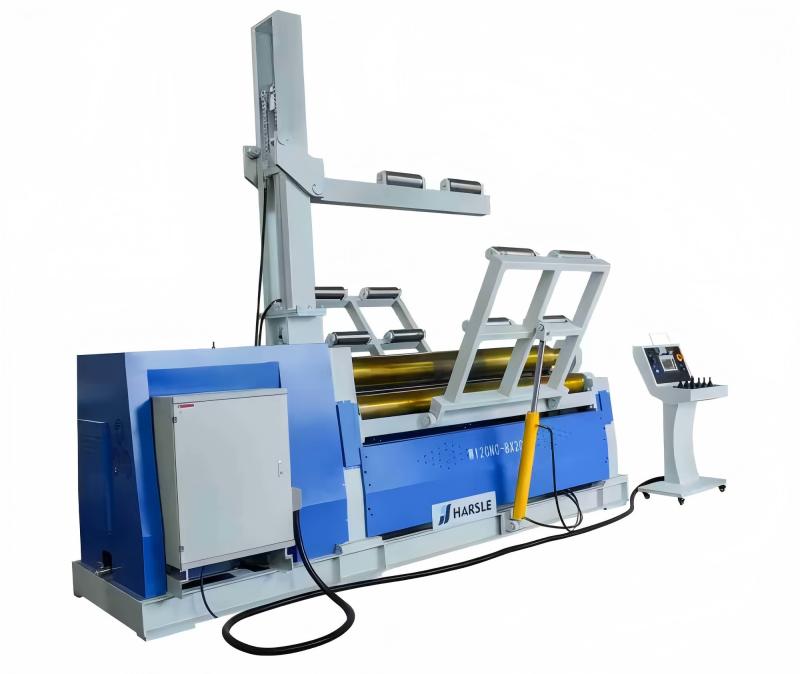

Four-roll machines with independent side-roll positioning often handle narrow strips better than three-roll asymmetrical designs. If you roll both 300 mm straps and 3 000 mm wind-tower shells, verify the clamping pressure stays consistent across that span.

Thinning and “Dog-Bone” Effects

Rolling thick plate into small diameters stretches the outer fiber. I use a 3 % thinning guideline: if calculated thinning exceeds this, either choose a larger diameter or upgrade to higher-yield material.

Special Profiles—Elliptical, Polycentric, and Spiral

Custom shapes expand your service catalog. Machines equipped with NC or CNC crowning compensation maintain uniform curvature even when the left- and right-hand rolls travel different paths.

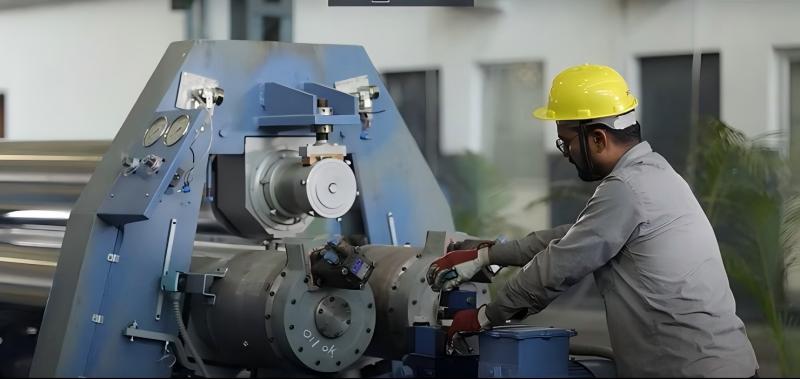

Practical Tips to Maximize Rolling Machine Efficiency

1. Warm-Up Passes: When pushing the upper limit of the production capacity and working range of rolling machines, I add one low-pressure forming pass to “set” the yield point before the final roll.
2. Smart Lubrication: Upper roll bearings fail early if grease films shear off under heavy compression. Automatic central systems extend bearing life and cut unplanned downtime.
3. Digital Readouts and CNC Upgrades: Retrofitting optical encoders on side-roll actuators reduces rework by up to 25 %—an easy win for any continuous-improvement program.
4. Tooling Storage: Keep alternative crowned rolls and bar-inserts on a nearby rack so operators can swap setups in minutes, not hours. Faster changeovers equal more billable tonnage.

Perguntas frequentes

Conclusão

Selecting a machine with the right production capacity and working range of máquinas de laminação means more than reading a catalog number—it requires matching material grade, plate size, and throughput goals to real-world shop conditions. By tracking thickness, width, minimum diameter, and roll speed, I can confidently quote jobs, reduce rework, and deliver cylinders, cones, or spirals on schedule. If you need deeper guidance or a tailored capacity calculation, reach out to the HARSLE engineering team—our experts are ready to help you roll with precision.
