Y27
HARSLE
Availability: | |
---|---|
Quantity: | |
Features

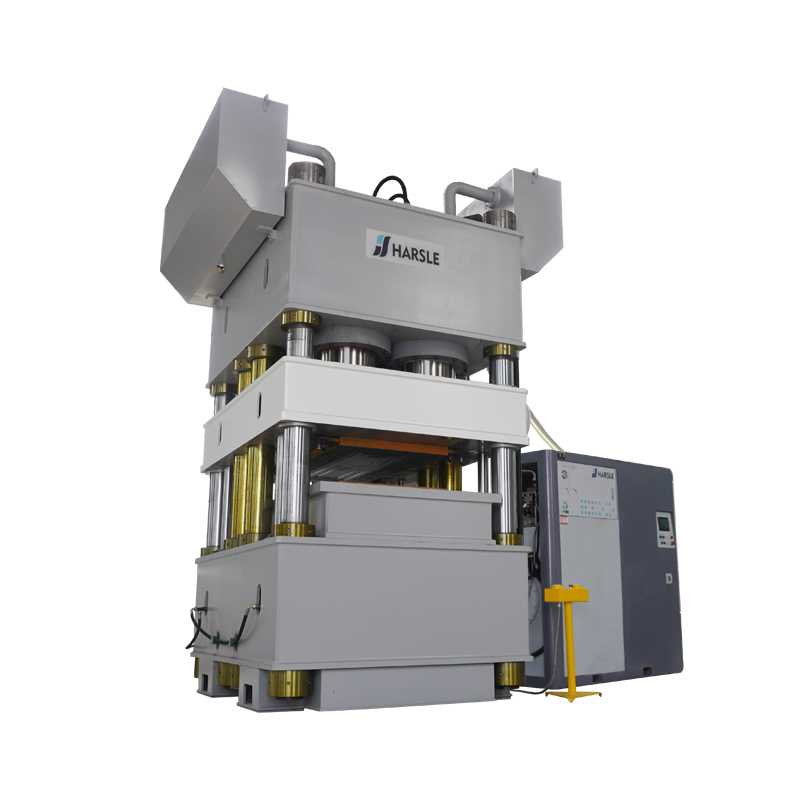

The whole welded machine structure achieves high rigidity; the machine is designed by ANSYS software which can ensure the reliability and precision of the double-action hydraulic steel metal door embossing machine. One skin mold is for one design, different skin molds with same size can be used on the same mold frame. The lifetime for each skin mold is more than 300, 000 pieces of sheets and the design depth of each skin mold is writhin 15mm. Column-type structure can achieve higher strength, stable working process and longer lifetime. The machine can make the full designs on the door sheet by the mold frame and skin mold.
Product Description
Specification
No. | Item | Value | |
---|---|---|---|
1 | Main cylinder force | 30000kN | |
2 | Main cylinder reture force | 425kN | |
3 | Main cylinder stroke | 600mm | |
4 | Ejection cylinder stroke | 200mm | |
5 | Ejection cylinder force | 15000kN | |
6 | Hydraulic die cushion size | 2200*680*250mm | |
7 | Column diameter | 235mm*4PCS | |
9 | 225mm*4PCS | ||
10 | Hydraulic system pressure | 25MPa | |
11 | Opening height | 750mm | |
12 | Ram speed | Fast down | 100-120mm/s |
Working | 7-10mm/s | ||
Return | 100mm/s | ||
13 | Worktable size | 2600mm*1500mm | |
14 | Motor power | 30kw+30kw | |
15 | Main cylinder | ZSG500 X 600 X 6PCS | |
16 | Ejection cylinder | HSG500/450X220 X 1PCS | |
ZSG500 X 200 X 2PCS |
