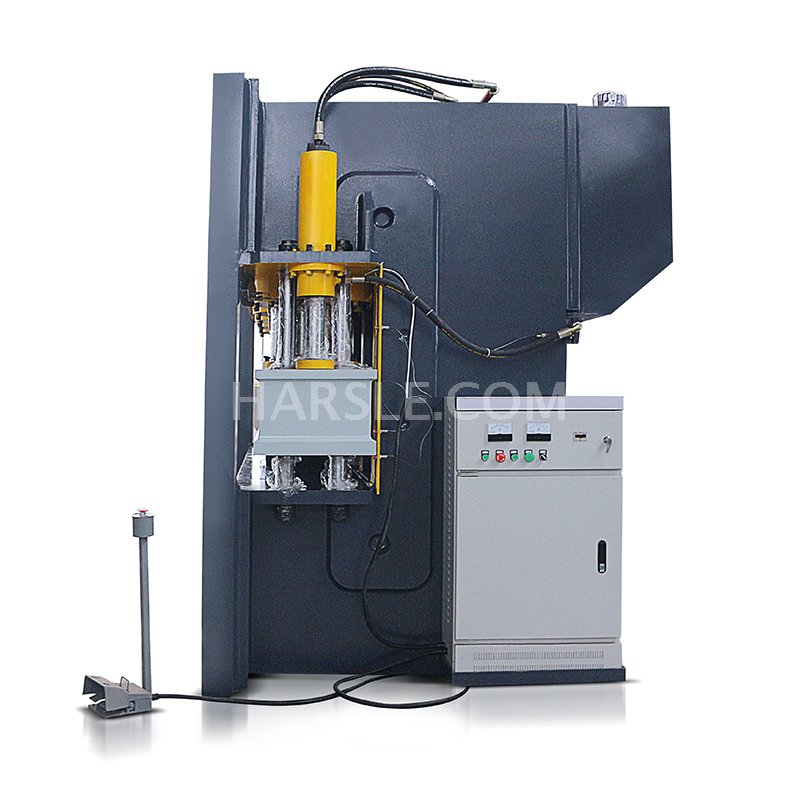

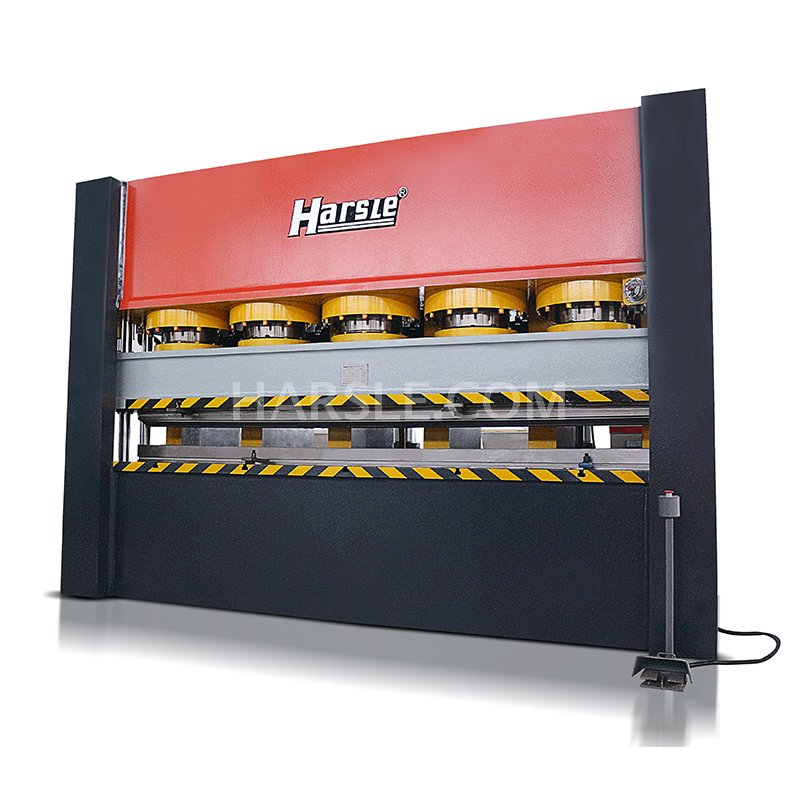

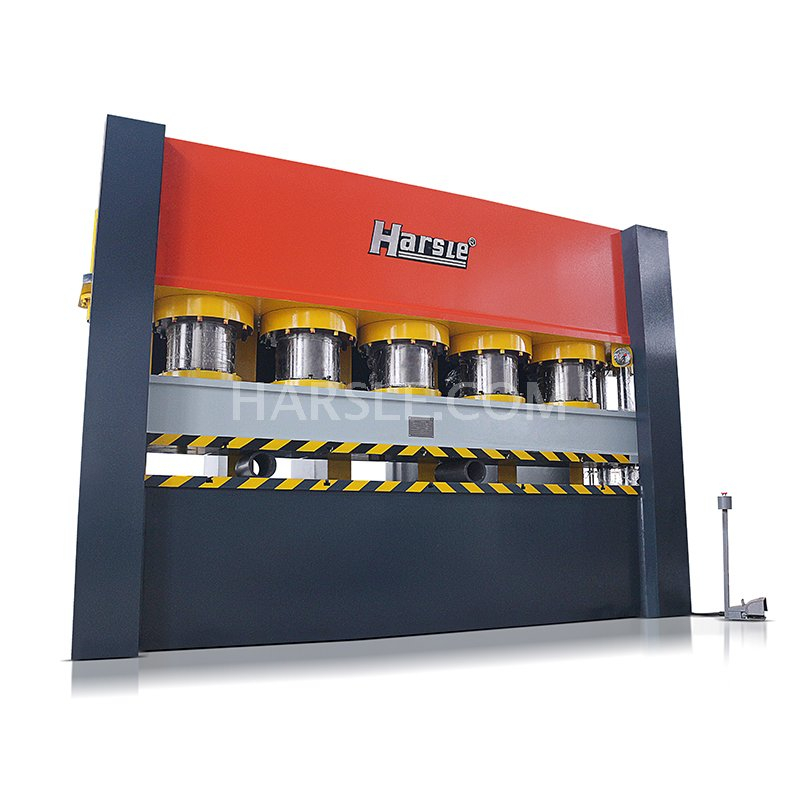

YM Steel Door Frame Embossing Machine

5 21 Reviews

1. Low maintenance and easy operation
2. Fast working speed and high efficiency
3. Frame structure with high rigidity
4. Professional manufacturer in door production line

Model:
YM
Brand:
HARSLE

Availability:

Quantity:



Inquire Add to Basket

Product Description

Specification

Item		Unit	YM Series Door Frame Embossing machine
Item		Unit	2400T	2000T	1800T	1600T	1400T	1200T	800T
Nominal capacity		KN	24000	20000	18000	16000	14000	12000	8000
Return force		KN	385	350	350	300	280	280	260
Max working pressure		MPa	25	25	25	25	25	25	25
Ram stroke		mm	250	250	250	250	250	250	250
Max opening height		mm	400	400	400	400	400	400	400
Speed of ram	Descent	mm/s	180	180	180	180	180	180	180
	Pressing	mm/s	10-12	10-12	10-12	10-12	10-12	10-12	10-12
	Return	mm/s	120	120	120	120	120	120	120
Dimension of working table	L-R	mm	4000	4000	4000	3600	3200	2800	2800
Dimension of working table	F-B	mm	600	600	500	500	500	450	400
Motor power		KW	55	45	37	37	37	22	22

Video

Download

Features

The whole welded machine structure achieves high rigidity; the machine is designed by ANSYS software which can ensure the reliability and precision of the door frame embossing machine. The cylinder block material is #35 forged steel, the cylinder plunger material is chilled cast iron. The surface hardness is up to HRC 45. One door frame mold is for one deign, for different designs, customers need to buy different molds. The lifetime for each mold is more than 200,000 pieces of sheets and the design depth of each mold is customized. The machine has two different operation modes: manual and semi-auto. Frame-type structure can achieve higher strength, stable working process and longer lifetime.
