How does CNC Press Brake Crowning Work

Press Brake Crowning

Press brake crowning is a technique used in metal forming processes, specifically in press brake operations, to ensure accurate bending of metal sheets or plates. When bending a metal sheet, especially a wide or thick one, the material tends to flex or bend differently along its width due to the varying pressure applied by the bending tool (punch and die). This can result in a curved or uneven bend, which is undesirable for many applications.

To overcome this issue, press brake machines are equipped with a crowning system. Here's how it works:

Understanding the Deflection: When a metal sheet is placed on the press brake machine and pressure is applied, the sheet tends to deflect or bend under the applied force. The degree of deflection depends on various factors, including the material type, thickness, width, and the tonnage applied by the press brake.

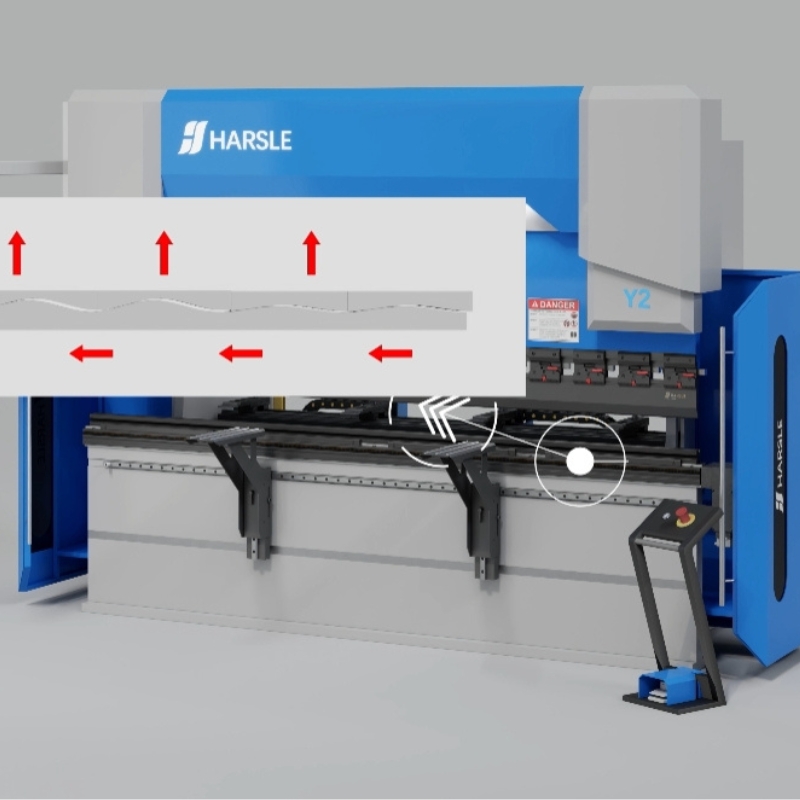

Crowning System: The crowning system in a press brake involves a hydraulic or mechanical mechanism installed beneath the bed of the machine. This system can be adjusted to create a slight curve or crown in the bed of the press brake. This curve compensates for the anticipated deflection of the metal sheet when pressure is applied.

Compensating for Deflection: By adjusting the crowning system, the operator can compensate for the expected deflection of the metal sheet. The crowning system counteracts the natural tendency of the metal to bend unevenly, ensuring a more uniform and accurate bend across the entire width of the sheet.

Uniform Bending: With the crowning system properly adjusted, when the metal sheet is bent using the press brake, the compensating curve in the bed counterbalances the deflection of the sheet. As a result, the bending process results in a uniformly bent workpiece, maintaining the desired angle and preventing unwanted curves or deformations.

Fine-Tuning: Skilled operators use their experience and sometimes trial and error to fine-tune the crowning system according to the specific material and bending requirements. Modern press brake machines often have computerized controls that allow for precise adjustments, ensuring highly accurate bends.

In summary, press brake crowning is a technique that involves adjusting the bed of the press brake to compensate for the natural deflection of the metal sheet during bending. By using a crowning system, manufacturers can achieve precise and uniform bends across the entire width of the workpiece.
