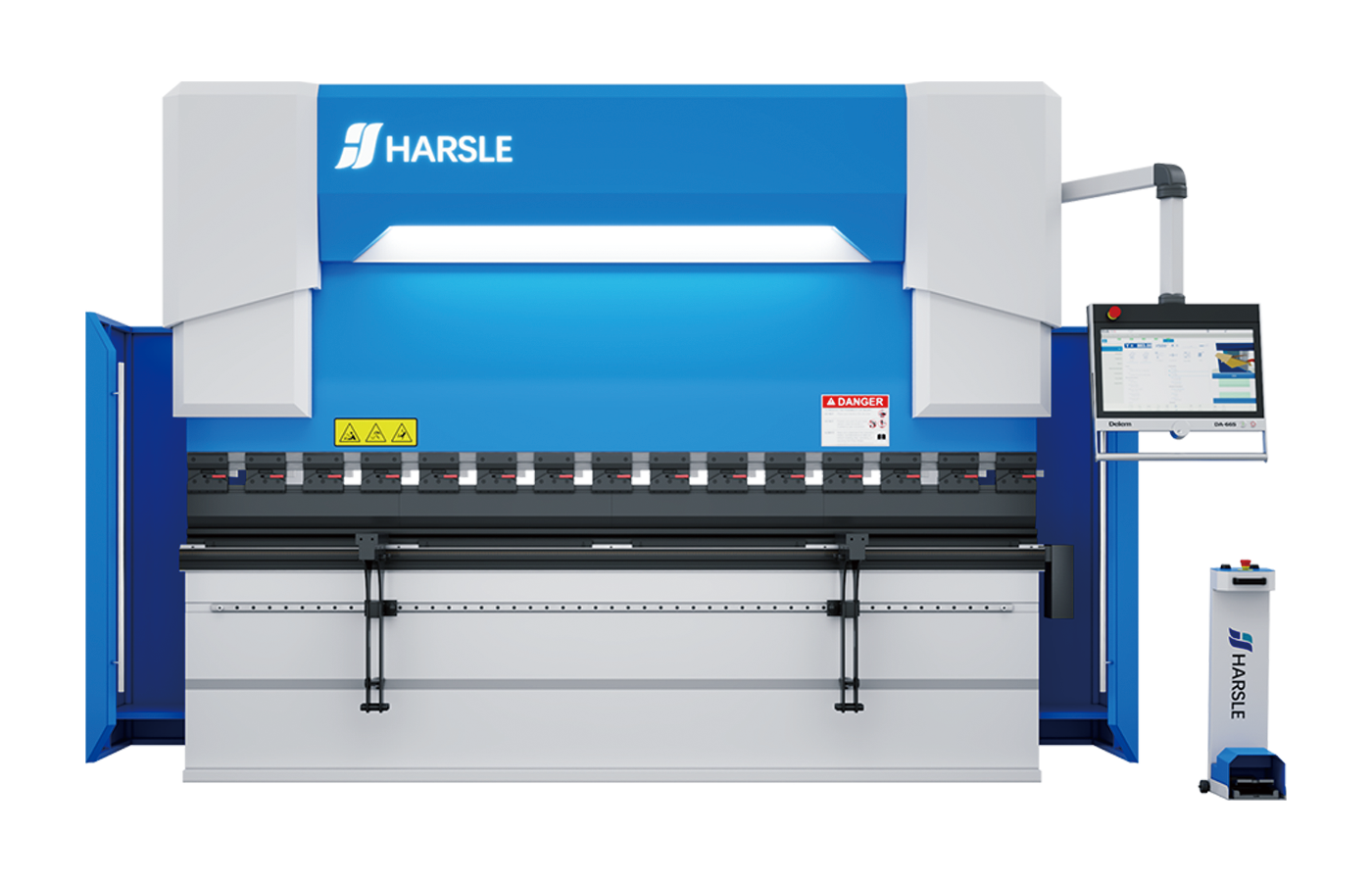

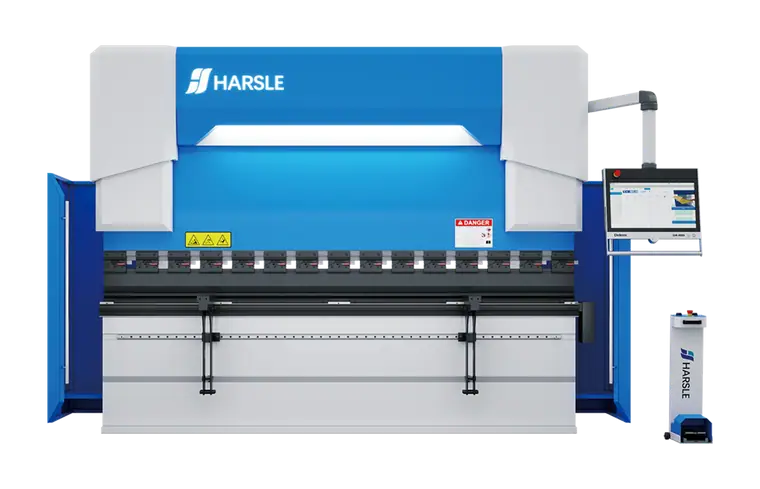

Press Brake For Sale

​​​​​​​
Press brake machine is a mechanical device that is used for bending and forming metal sheets into a desired shape. It is widely used in the metal fabrication industry for producing complex and precise shapes from metal sheets. The machine consists of a bed with a horizontal lower die and a vertical upper die, which are brought together by hydraulic pressure to apply force to the metal sheet, bending it into the desired shape. The machine is operated by a hydraulic control system and can be adjusted to different shapes, lengths, and thicknesses of metal sheets. The press brake machine has made metal fabrication easier and more efficient, and is an essential tool in modern manufacturing. HARSLE is one of the top-rated CNC press brake manufacturer in China for many years, we offer several options in hydraulic bending machines. Genius type is the top level machine which usually has the 2D program function and 4-axis or 6-axis backgauge system, the most choice of the controller will be DA-69T and DA-66T. Smart type will come with DELEM Controller like DA-58T and DA-53T which will have the 2-axis or 1-axis backgauge system. Econom type is the torsion-bar NC Press brake machine which is the economic option for startups. HARSLE is the professional factory which endeavours to manufacture eligible brake press machine for all customers in the world. HARSLE Engineer can also design different types of press brake toolings for the end users job, we have different press brake for sale and you can contact us to get an immediate quote.
​​​​​​​

CONTACT US

Get in Touch
If you have any questions, please contact us, we will get back to you as soon as possible
阿斯达是===RUpfALcqNKOg
MNpAUKDMfYAg nIKVleOpagft
GET SOCIAL
E-MAIL
WHATSAPP
​​​​​​​+86-18052080815
ADDRESS
​​​​​​​Mingjue Industrial Park, Lishui, Nanjing, Jiangsu, China
Backgauge Axis
Press brake backgauge is a critical component in metal fabrication machinery. It refers to the system that automatically positions the workpiece for bending operations accurately. Press brake backgauges typically have multiple axes that can be controlled to adjust the position of the workpiece. The number of axes can vary depending on the complexity of the press brake machine. X-Axis: The backgauge moves horizontally along the bed of the press brake. It controls the position of the workpiece from left to right. R-Axis: The vertical movement of the backgauge is controlled by the R-axis. It adjusts the height of the backgauge fingers to accommodate different material thicknesses. Z-Axis: Some press brakes have a Z-axis, which controls the depth of penetration of the backgauge fingers into the material.
Crowning System
The stress can cause the ram and worktable some deformation during the process of bending; the CNC crowning can make relevant compensation to the ram deformation, which improves the precision pf press brake by a wide margin. Press brake crowning refers to the process of compensating for material deflection that occurs when bending sheet metal or other flat material. Crowning is the method of adding a curve, or crown, to the top of the press brake's upper die to counteract deflection and ensure accurate, uniform bends. When a flat material is bent, it tends to deflect or bow in the center, which can result in a wavy or uneven bend. To overcome this problem, the press brake's upper die is designed with a curved surface, or crown, which helps to distribute the bending force evenly across the material, producing a uniform bend.

Delem Controller Chart

Delem is a well-known manufacturer of industrial controllers for press brakes, which are machines used in metalworking to bend and shape sheet metal. The Delem controller is an electronic control system that manages and automates the operation of a press brake. It is used to program and control the bending process of the press brake, which involves setting the angles, positions, and depths of the bends. It allows the operator to enter the desired specifications for the bending job, which are then executed automatically by the press brake. It has a user-friendly interface and offers advanced features such as automatic calculation of bending parameters, automatic angle correction, and easy programming of complex bending sequences. It also has safety features to prevent accidents and protect the operator and the machine. HARSLE CNC press brake will equipped with DELEM high level controller to achieve higher accuracy and efficiency.

Controller


Screen

Maximum Axis

Program

Network

Tooling DXF File Import

Product DXF File Import

3D File Import

Offline Software

DA-53T

da-53t

10.1“touch screen

4+1

Digital+2D(optional)

X

X

X

X

Profile-53TL(activation code)

DA-58T

da-58t

15“ touch screen

4+1

Digital+2D

Optional

X

X

X

Profile-53TL(activation code)

DA-66T

da-69t

17“ touch screen

More than 8+1

Digital+2D

Optional

Optional

X

Profile-TL(dongle)

DA-69T

da-69t

17“ touch screen

More than 8+1

Digital+2D+3D

Profile-T3D(dongle)




Press Brake Blog

The press brake blog is focused on topics related to press brakes, which are machines used in metal fabrication to bend and shape metal sheets. It may cover various aspects of press brakes, including their operation, maintenance, safety, and technological advancements. It may also feature news, reviews, and interviews related to the industry, as well as tips, tricks, and tutorials for users of all skill levels. The press brake blog is a useful resource for anyone who works with press brakes, whether as a professional metal fabricator or a hobbyist.
Understanding Ram Travel Control in Hydraulic Press Brakes
Learn how NC hydraulic press brakes control ram travel using mechanical stop blocks. Discover the working process, how to set stop blocks, and the advantages of this system for precise and consistent metal bending.
June 12, 2024
Safety And Efficiency Essentials: The Electrical Components of Press Brake
Press brake machines, like other industrial machinery, typically require specific electrical components and configurations to operate safely and efficiently. Choosing the right power cable for a press brake machine involves considering several factors, with the current being one of the most critical
May 15, 2024
未命名的设计 (15).jpg
How to Master Press Brake Leveling
Master the press brake leveling maintenance with our step-by-step tutorial for optimal performance and accuracy.
April 18, 2024

Press Brake Video

Press brake video will demonstrate the operation and capabilities of a press brake machine. HARSLE press brake is a machine tool used in the metalworking industry to bend and shape sheet metal into various forms. The videos typically show the machine in action, with a demonstration of its various features, such as the ability to adjust the bending angle, the thickness of the metal it can handle, and the precision with which it can bend the metal.

Press Brake FAQ

  • Q What is a press brake?

    A

    Unlike the hydramechanical press brake that converted the hydraulic energy to mechanical energy with a hydraulic motor fixed to an eccentric shaft, the modern hydraulic press brake uses a hydraulic pump and hydraulic cylinders to mover the ram. This design is far more efficient, allowing increased speed and accuracy.

    The modern hydraulic press brake can be divided into two basic subgroups , up-acting and down-acting(all other types of press brakes are down-acting only.)

    The French designed and were first to use, the up-acting style of press brake. In our opinion, up-acting is the best type of press brake, not only because of the ram’s guidance and arrangement of rollers, but also because of its natural antideflection characteristics. On this machine you have gravity on your side, working with you instead of against you.

    For any mechanical device to have movement, it must have some clearance built in to allow the mechanism to function freely. On the press brake, an important clearance lies between the power source and the ram body. The clearance is just right when the machine is new or rebuilt. However, with age and use this clearance will increase (sometimes dramatically), causing an ever-increasing amount of play in the mechanism. When the press is a down-acting, this excess clearance, or “play” is located on the bottom when no load is present. When a load is applied, such as when a piece of material is formed, this error moves to the toe of the connection. This hurts the ram’s repeatability, often leading to vast swings in bend angle from one workpiece to the next, the up-action press brake, on the other hand, always keeps this play on the bottom, whether under pressure or not.

    Down-acting hydraulic press brakes represents 90% of all press brakes in use today. Of all the down-acting press brakes, the hydraulic is, by far, the most accurate, these machines are controller by a CNC or DNC controller (computer numerical control or direct numerical control). The computers, in turn, control a proportional valve system. This system allows for ram control in the downward direction, which, in turn, gives accurate bend angle control.

  • Q What is a press brake used for?

    A
    The press brake machine is widely used for the steel sheet metal processing, mostly they will be used in the following fields:
    Decoration industry
    The CNC press brake machine will be used for bending the stainless-steel elevator, steel door and frame, steel windows and skirting line. Sometimes we will use the CNC V grooving machine after bending to get the perfect bending angles.
    Electric industry
    The press brake plays an important role in the production of electric cabinet. After the steel sheet cut by the shearing machine, we will use the press brake machine to bend them into different size of the cabinet by different types of the punch and die. The segmented tooling is also the necessary part during the production, especially for the left and right horns of the punch, it is vital to form the box in the final stage.
    Kitchen industry
    Most of the kitchen devices are made of stainless steel, we need to use the press brake to bend them into different shapes before the final product is finished. Mostly we will use the CNC Press brake with different punch and die, like gooseneck punch and 2V die by segments. We can also use this machine to make the HVAC and other related products.
    Automobile and ship industry
    In this field, large capacity press brake and CNC press brake will be widely used and it as higher requirement for the bending accuracy and efficiency. HARSLE is one of the press brake manufacturers in China who is capable to produce such machines and offer good service for customers from all over the world.
    Aerospace industry
    High precision is generally required in this industry, because the product which produced by CNC Press brake is the key part for the final product and the bending tolerance should be within the acceptable range. HARSLE has many customers in this field and they are all satisfied with our press brake.

  • Q How does a press brake work?

    A
    The bending proceed is executed by the punch and die, the upper punch is installed on the ram and the bottom die is anchored on the table. When the punch moves together with the ram up and down, the sheet will be bent into different angles or shapes. There are three different types of bending methods used in forming sheet metal: coining, bottom bending, and air forming. Each has a specific purpose and application.
    Coining
    Coining was probably the first bending method practiced in the sheet metal trade. The process requires an amount of tonnage so great that the material being formed actually flows. This flowing goes out from the coined segment to that part of the workpiece not under pressure. If the bend radius is sharp (less than 63% of the material thickness), the punch tip can actually penetrate into or past the neutral axis of the bend. There the yield of the material is broken. With this penetration of the neutral axis by the punch tip, the springback almost disappears, and material remains permanently deformed at the point where the pressure was released.
    Bottom Bending
    There are many similarities between coining and bottom bending. With coining, however, the entire surface of the material comes into contact with the tooling, which is stamped so severely that the material actually flows, with bottom bending, on the other hand, only the radius is stamped into the material. Springback is the characteristic of most materials to try to return to the flat position after forming. The angular tooling clearance should be equal to the springback. As pressure is applied to the radius, the material passes by the required angle and up to a total equal to the required angle and the springback; then it is forced back to the required bend angle.
    Air forming
    Air forming is a three-point bending operation. The three points are the punch tip and both top corners of the die, Air forming uses the penetration of the punch tip into the die space as the determining factor in achieving the required bend angle. Because its tonnages are greatly reduced from those required for coining or bottoming, air forming is fast becoming the method of choice by most manufacturers. Wear and tear on the press brake and tooling is greatly reduced, leading to a marked increase in equipment longevity.
    Each of there foregoing styles of metal forming has a purpose. Each is capable, within its limitations , of producing an excellent product, it takes the practiced eye of the journeyman to know why and when specific techniques should be used.

  • Q How much does a press brake cost?

    A
    The press brake price depends on the machine capacity, configurations, optional devices, degree of automation, axis quantity, controller difference, etc. Here we will give you a brief introduction about how much does the HARSLE press brake cost:
    Econom press brake
    This is the most economic press brake among HARSLE Product. This is widely accepted by startup and new operators. Actually, its price starts from USD3,500, when the bending capacity and bending length is more, the price will increase accordingly. This type of press brake is equipped with X any Y axis and its operation will be much easier than other high-level machines. HARSLE will use E21 controller as the standard for the cheapest level, customer can also upgrade it into DELEM DA-41S, TP10S, CT8 controllers, compared with E21, these controllers can program the bending angle for fast bending purpose, but they are all torsion-bar structure.
    Smart press brake
    This is the second level in HARSLE press brake. It will be upgraded from torsion-bar structure into electro-hydraulic type. The controller will be smarter and more functional. There will be two proportional valves on the top of two cylinders and two linear scales on each side of the machine vertical plate. The linear encoder can detect the distance between cylinder and the table for each side and give the feedback to CNC controller, when the controller gets the signal, it will send the signal to the proportional valve to control the movement of the cylinder. They will be a closed-loop system.
    When we talk about the press brake, we will also think more about the back-gauge axis. The press brake price varies by the quantity of the axis. Actually, if you want to add one more axis, the price will be USD2,000-USD2,500 more. The smart press brake can support Maximum 4+1 axis and X+R axis for the back gauge.
    For the controller, mostly we will recommend DA-52S, DA53T, DA-58T from DELEM or CT 8PS, CT12 from CYBELEC or S530, S630 from ESA.
    Genius press brake
    This is the highest level in HARSLE press brake, this will be chosen by most of professional companies or the customers who have high requirement on the fabrication process, like aerospace industry and automobile industry. The axis will be upgraded into like 6+1 axis or 8+1 axis and the controller will support 3D simulation or 3D programming, it will largely optimize the bending process, the offline software will be the helpful tool to boost the productivity and this software will be for free. Actually Genius press brake price will be 1.5 times higher than smart press brake, but if customer will choose other configurations, the price will increase accordingly.
  • Q What is the difference between NC and CNC press brakes?

    A
    Structure
    The design principle for both machines is different, it results in the different synchronous structures on both sides of the ram.

    Accuracy
    The ram parallelism will affect the workpiece accuracy. The NC Press brake synchronization is kept mechanically and it has no real time feedback for the error, what is more, it can not adjust by itself and will cause the low bending accuracy.

    Working speed
    For the press brake, we are always talking about three speeds: Down speed, working speed and return speed.

    Mechanic rigidity
    Because of its design, NC press brake can not bend by partial load. If it is working like this for long time, the torsion-bar will deform easily.

    Crowning system
    For most NC press brakes, it will not come with the crowning system as standard. The operator needs to adjust the bending angle manually before bending the official product. It will take a long time and waste material; it will also be difficult to make the product in a very precise way.
  • Q Which brand of press brake is best?

    A
    With the development of the economy, the development of industrial processing technology is very rapid. Under these circumstances, people's demand for the industry will be assisted by a large number of mechanical equipment. Bending machine plays an important role in the manufacturing process of modern mechanical equipment. In the current market, manufacturers of high-quality bending machines have emerged one after another. So how to make the right choice among many bending machine brands?
    HARSLE is located in special economic zones of the ancient capital in Nanjing. Their company has a number of better educated, younger workers who devote themselves to developing and designing sheet metal processing machines, production department applies CAD, CAPP, PDM and other CAD software to the field of product upgrading, which enables the team has the strong designing capability, adopt advanced international management mode and introduce German machinery technology. That is the reason why our product quality moves to a higher level constantly.
    Aliko Oy Ltd provides its customers with added value via its advanced comprehensive solutions for machining heavy materials. Decades of experience in product development and machine manufacturing provide a unique insight into what product solution is right for the customer’s production process.
    Amada Co., Ltd. is a large multinational company specializing in the production of sheet metal processing machinery. From the aspects of market scale, product structure, product technical performance and comprehensive operation and management system, it has gradually formed a group listed company integrating product development, design, manufacturing, education and training, after-sales service and marketing network.
    TRUMPF mission is to further develop and digitally connect production technology, to make it even more efficient, precise, and future-proof. In doing so, they want to make manufacturing and its upstream and downstream processes more efficient. This is how we build the industrial world of tomorrow. They are market and technology leaders in machine tools and lasers for industrial manufacturing, and work with our innovations in almost every sector. Their software solutions pave the way to the Smart Factory, allowing them to implement high-tech processes in industrial electronics.
  • Q How do you run a press brake?

    A
    According to industrial requirements, the bending machine can bend some very hard and thin plates to make them in a bent state, with good bending effect and no rebound. And it is suitable for almost all types of thin plates. It will not break the plate while maintaining performance, and it is safe to use. However, from their structural analysis, the operation of the equipment is very particular, so how does the user operate and use it?

    The first is to turn on the power, turn on the key switch on the control panel, and then press the oil pump to start, so that you can hear the sound of the oil pump turning. The machine does not work at this time.
    Stroke adjustment, the use of the bending machine must pay attention to adjusting the stroke, and be sure to test the car before bending. When the upper die goes down to the bottom, there must be a gap of plate thickness. Otherwise, it will cause damage to the mold and the machine. The adjustment of the stroke also has electric quick adjustment and manual gastric adjustment.

    For the selection of the bending notch, it is generally necessary to select a notch with a width of 8 times the thickness of the plate. For bending 4mm sheet, you need to choose a notch of about 32.

    The rear gauge adjustment generally has electric quick adjustment and manual fine adjustment, the method is the same as that of the shearing machine.

    Step on the foot switch to start bending, you can release it at any time, when you release the foot, the bending machine stops and continues to descend.
  • Q What factors should I consider when purchasing a press brake?

    A
    A press brake is a simple machine with a lot of accessories that can connect to it. There are a number of things that you should consider when you want to purchase a press brake.
    Length
    Tonnage
    Throat
    Gauge
    Energy Consumption
    Angle Controls
    and so forth.
    The maximum length of the piece that you are using and keep the length of the machine depending on that. The tonnage (bending capacity) depends on the type of material that you are using, so, make sure that you try to fix the tonnage with a tonnage calculator or some other tool.
  • Q What are the types of bending machines?

    A
    Common classifications of bending machines are as follows:

    Manual bending machine
    This type of bending machine has a relatively simple structure and is labor-intensive through manual operation, and is suitable for small-scale processing.

    CNC bending machine
    The essence of the CNC bending machine is a CNC bending machine mold for bending thin plates. The mold is composed of a bracket, a worktable and a clamping plate. Clamping of thin plates. Because the electromagnetic force clamping method is adopted, the pressing plate is made according to the specific workpiece requirements, the operation is simple, and the workpiece with the sidewall can be processed.

    Hydraulic CNC bending machine
    Hydraulic bending machines can be divided into torsion shaft synchronization, machine-hydraulic synchronization, and electro-hydraulic synchronization according to the different synchronization methods. Hydraulic bending machine is divided into the upper-moving type and lower-moving type according to the different movement modes.
    The hydraulic bending machine is mainly used in the sheet metal industry, such as bending and forming automobiles, doors and windows, steel structures, etc.: V-grooving of metal sheets and other fields. Its structure and working characteristics are all-steel welded structure, vibration relief stress, high machine strength and good rigidity. Hydraulic upper transmission, is stable and reliable. Mechanical stop, torsion axis synchronization, high precision. The back gauge distance and the stroke of the upper slider are electrically adjusted, manually fine-tuned, and digital display.
  • Q What is a bending machine called?

    A
    A brake is a metalworking machine that allows the bending of sheet metal. A cornice brake only allows for simple bends and creases, while a box-and-pan brake also allows one to form box and pan shapes. It is also known as a bending machine or bending brake or in Britain as a sheet metal folder or just a folder.

    A bending machine is a machine that can bend thin plates. Its structure mainly includes a bracket, a workbench, and a clamping plate. The workbench is placed on the bracket. The workbench is composed of a base and a pressure plate. The base is composed of a seat shell, a coil, and a cover plate, the coil is placed in a recess of the seat shell, and the top of the recess is covered with a cover plate. When in use, the coil is energized by the wire, and after the electricity is energized, the pressure plate is gravitationalized, so as to realize the clamping of the thin plate between the pressure plate and the base. Due to the use of electromagnetic force clamping, the pressing plate can be made into various workpiece requirements, and the workpiece with sidewalls can be processed, and the operation is also very simple.

    The hydraulic bending machine includes a bracket, a worktable, and a clamping plate. The worktable is placed on the bracket. The worktable is composed of a base and a pressure plate. The base is connected to the clamping plate by a hinge. The base is composed of a seat shell, a coil, and a cover plate. The coil is placed in the recess of the seat shell, and the top of the recess is covered with a cover plate.

    When in use, the coil is energized by the wire, and after the electricity is energized, the pressure plate is gravitationalized, so as to realize the clamping of the thin plate between the pressure plate and the base. Due to the use of electromagnetic force clamping, the pressing plate can be made into various workpiece requirements, and the workpiece with sidewalls can be processed. The bending machine can meet the needs of various workpieces by replacing the bending machine mold.
