The DELEM DA-66S Machine Mode is a powerful feature designed to enhance the operational efficiency of your press brake. If you’re looking to optimize production management, understanding how to leverage DELEM DA-66S Machine Mode is essential.

This article provides clear insights into its core functionalities, such as event logging, maintenance practices, and system information handling. Whether you’re aiming to streamline your operations, ensure timely maintenance, or simply navigate the system’s capabilities, DELEM DA-66S Machine Mode offers comprehensive solutions tailored for better management.

Explore how these features can be integrated into your workflow for enhanced productivity.

Event Logging

Event logging in the DELEM DA-66S Machine Mode allows you to register specific events on the control system. This functionality creates text files that can be reviewed later, making it a vital tool for production management. By configuring the parameters on this page, you can determine which events are logged, thus providing valuable data for analyzing machine performance and operational efficiency.

حدود

Here’s how to set and optimize the event logging parameters:

Event Logging Activation
Toggle the event logging function on or off to start tracking activities.

Filename
Specify the desired log file name. The system automatically adds a ‘.txt’ extension for consistency.

Storage Path
Designate where the log file will be stored—options include internal memory, a USB stick, or a network drive. Use the Select Path function during setup to choose your preferred directory.

Maximum File Size
Set the maximum log file size in kilobytes. Once the file hits this limit, it will automatically close, rename, and a new file will instantly open to continue logging.

Loggable Events
Choose which events to log by toggling the relevant parameters. Ensure at least one parameter is active:

• Controller Start: Logs when the control system is initiated.
• Controller Stop: Tracks when the control system is halted.
• Step Change: Logs transitions to the next bend step.
• Product Complete: Marks the completion of the bend program.
• Mode Change: Captures when a different mode is selected.
• Error Message: Records the occurrence of error messages.

Optimizing these parameters helps streamline your production management, enabling better oversight and efficiency within your operations.

Explanation

One line in the log file can look as follows:

<log time=”20100129T122021.477″ event=”mode” mode=”1″/>

or:

<log time=”20100129T122034.464″ event=”start” prod=”EVENTLOG” step=”1″ stock=”32767″/>

Each line is one event, with a few possible attributes. The time is always listed, followed by the nature of the event.

The time is listed as follows:

log time=<date>T<time>

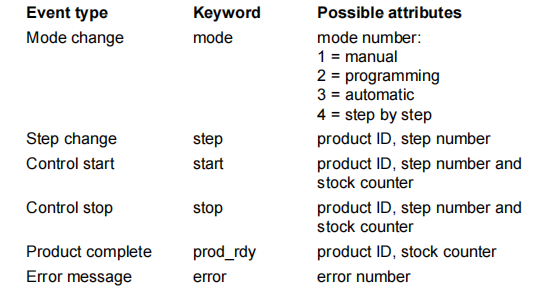

The date is shown in the order year-month-date, the time is shown in the order hours-minutes-seconds-milliseconds. These two fields are separated by the T character. The nature of the event is indicated by a keyword. Depending on its nature, one or more attributes are listed.

Each attribute is indicated by a keyword. The following keywords are possible:

One line in the log file takes approximately 50 Bytes, so with a file size of 10 KiloBytes it is possible to log about 200 events. This can vary, since the description length of one event can vary.

If a large file is necessary to record a lot of events, it could be wise to use an external USB stick or a network location to store the file. The maximum file size supported by the control is 1 megabyte (1000 kilobytes).

صيانة

Maintenance functions within the DELEM DA-66S Machine Mode are crucial for optimal machine performance. This section includes the machine hour counter and stroke counter, along with tools to replace modules and store diagnostic data. Regular maintenance checks ensure that your machine runs smoothly, lowering the risk of unexpected downtimes and extending the lifecycle of your press brake.

On this tab maintenance related functions are located. Next to the machine hour counter and the machine stroke counter also functions to help replace modules and to store diagnostic data can be found here.

Below are key features designed to streamline upkeep processes and enhance operational efficiency:

Hours & Strokes Monitoring

Track the machine’s operational metrics effortlessly:

• Hours: Keep tabs on how long the machine has been running.
• Strokes: Monitor the total number of strokes executed by the press beam.

Logging Mode

Enable or disable the logging mode for in-depth service analysis:

• Activate the logging mode by entering a special access code.
• For activation details and codes, consult your machine manufacturer.
• Deactivate the service logging by setting the code to 0.

Lock Screen

Use the Lock Screen feature to secure the display during cleaning:

• Prevent accidental inputs by locking the screen.
• Unlock by pressing the STOP button.

Create .dat-File

Generate and store critical product and control data:

• Tap ‘Create .dat-file’ to save data to a connected USB stick.
• Utilize this file for maintenance support and troubleshooting.

Replace Module

Seamlessly swap out an axis module without needing special access:

1. Turn off the DA-control and disconnect the DM-module needing replacement.
2. Connect a new DM-module of the same type and restart the machine.
3. An error message will display the original module’s ID.
4. Navigate to the Maintenance tab in Machine mode.
5. Click ‘Install Module’ and confirm.
6. The system will reboot to initialize the new module; software updates occur automatically if needed.

Restart Controller

Restart the application with ease to refresh system operations.

By integrating these maintenance features into your routine, you can ensure your machine operates effectively and reliably. For further assistance or detailed guidance, contacting your manufacturer or exploring additional resources is recommended.

Scheduled Maintenance (Optionally Available)

In the DELEM DA-66S Machine Mode, the Scheduled Maintenance feature is an invaluable tool for proactive machine management. When activated by the manufacturer, this tab displays a list of maintenance tasks tied to the machine’s setup. These tasks are triggered by a timer or machine usage, such as strokes, to prompt timely maintenance.

Users have the flexibility to perform maintenance tasks themselves or enlist a service technician. Each task can be marked as completed, with some tasks requiring a specific code upon setup to verify completion. The interface provides clear visibility of the upcoming tasks, their planned timelines, and records of the last service performed.

Schedule Properties

The interface allows users to efficiently monitor the status of each maintenance task. Users can easily update the task status, marking them as complete, ensuring all maintenance activities remain organized and up-to-date.

By integrating scheduled maintenance into your routine, DELEM DA-66S Machine Mode ensures your equipment runs smoothly, reduces the risk of unexpected downtime, and extends the press brake’s lifespan.

System Information

The system information tab in DELEM DA-66S Machine Mode provides crucial details about software versions, module IDs, and OEM-specific files. Additionally, it supports software updates, keeping your machine’s software current and protecting against vulnerabilities. This information is critical for maintaining compatibility and leveraging the latest technological advancements.

On this tab system information can be found. Next to version information on the software also ID’s of the installed modules and version of OEM-specific files can be read.

Next to information also software update functionality is available here.

System Information: Enhancing Management with DELEM DA-66S Machine Mode

In the DELEM DA-66S Machine Mode, the System Information screen provides essential details about the control system, critical for service and maintenance. Here’s a concise breakdown of its key components:

• Application Version: Displays the current application’s version, crucial for ensuring your system’s functionality is up-to-date.
• Option ID: A unique identifier for your control’s options, helping in system configuration tracking.
• Sequencer Version: Shows the version of the running sequencer, vital for operation sequence management.
• KO-table: Lists the KO-table number and description, providing insight into key operational tables.
• Disk Space: Indicates available and total user disk space, assisting with storage management.

Software Management Features

• Update Software: Easily install software updates via a USB stick. A directory browser guides you through selecting and initiating the desired update.
• Backup System: Create a complete system backup on a USB stick with a unique timestamp, ensuring safe retention of DELEM software, OEM data, and user files.
• Restore System: Use this function to restore from a previously made backup, allowing selective restoration for tailored recovery processes.
• برامج غير متصلة بالإنترنت: Generates an offline software setup file on a USB stick for updating existing offline software, ensuring compatibility with control software.

By utilizing these features, you can maintain optimal system performance, enhance operational efficiency, and ensure seamless integration with your DELEM DA-66S Machine Mode. Proper management of system information not only aids in troubleshooting but also enhances overall machine management.

الأسئلة الشائعة

خاتمة

Proper setup and maintenance are essential to ensure the longevity and performance of your press brake machine. By understanding and utilizing the DELEM DA-66S Machine Mode, you can minimize downtime and significantly enhance production efficiency. For more detailed support or any questions, don’t hesitate to reach out to our team. Additionally, be sure to explore other documentation to maximize your use of machine features and capabilities.
