When it comes to optimizing your machine’s performance, integrating the DELEM DA-69T Profile-T with your existing system can significantly enhance efficiency and precision.

If you’re looking to seamlessly incorporate this advanced control unit into your workflow, you’ve come to the right place. In this article, I will guide you through the integration process of DELEM DA-69T Profile-T, ensuring that you harness its full potential for improved automation and productivity. Whether you’re upgrading your current setup or starting from scratch, this guide provides the insights you need to successfully integrate this powerful tool into your operations.

Setting Up DELEM DA-69T Profile-T Software

Einführung

Das Offline-Programm Profile-T bietet eine ähnliche Benutzeroberfläche wie die Delem-Steuerung der DA-Touch-Reihe. Die vorherigen Kapitel zur Bedienung und Verwendung der DA-Touch-Steuerung dienen als Referenz für die Verwendung dieser Offline-Software. Dieses Kapitel konzentriert sich auf einige spezielle Funktionen, die nur in der Software Profile-T verfügbar sind.

Step 1: Checking System Requirements

Before starting the installation of DELEM DA-69T Profile-T, ensure your computer meets the necessary system requirements. To run Profile-T on a computer it should at least be equipped with the following features:

• IBM-kompatibler PC;

• Minimum Screen resolution of 1024×768;

• Windows XP / Windows 7;

• CD-ROM-Player (nur für verteilte CD-ROM-Systeme);

• Free USB port.

Step 2: Installing Profile-T Software

To install Profile-T, use the installation CD-ROM provided with your software package. Depending on the purchase package the Profile-T software is distributed on a CD-ROM or can be generated at the control.

The complete CD-ROM package contains the following items:

• Profile-T installation CD-ROM;

• USB licence key;

Profile-T software distributed together with the control consists of:

• USB key for installation and back-up purposes;

• USB licence key;

• Installation steps printed inside the Profile-T box.

Nach einer Standardinstallation sind die folgenden Symbole auf Ihrem Windows-Desktop vorhanden:

Das Installationsprogramm hat außerdem einen neuen Eintrag namens Delem im Windows-Startmenü platziert, sofern keine Änderungen an der Installation vorgenommen wurden. In diesem Menü werden die folgenden Einträge angezeigt:

Profil-T: Profile-T software

Profile-T manuals: Operation manuals of the DA-Touch control

Operating DELEM DA-69T Profil-T

Step 1: Understanding the Profile-T Interface

Upon launching Profile-T, you will be greeted with a user-friendly interface similar to the DA-Touch line Delem control. The mode selection keys at the bottom of the screen help guide the workflow, allowing you to select or generate new products starting from the left and working towards the right.

For programming products, programs, and tools with DELEM DA-69T Profile-T, use the built-in Help (? key) and operation manual included with the software. Unlike a DA-Touch control, Profile-T offers extra functions: the ‘machine library’ button to change machine data, a ‘print’ button in Products mode, and a ‘Transfer’ mode to export products, including tooling, to various locations.

Step 2: Using the Machine Library Function

In DELEM DA-69T Profile-T, it’s crucial that the parameters align with the machine’s control system to ensure offline-generated programs are fully compatible. You can install multiple machines on one offline programming station for comprehensive coverage across your production floor.

To add a machine in Profile-T, use the ‘machine library’ button in Products mode. This action opens a window where you can select ‘install machine’.

SYS-Datei: A back-up file from a DA-Touch control.

DAT-Datei: A .dat file from a DA-Touch control.

DAonW 3.x back-up: Back-up directory from a DAonWindows control running software version V3.x (Profile-T2D and Profile-T3D only).

To create a SYS file on a DA-Touch control, choose ‘backup system’ in Machine mode on the system information page.

When Profile-T is generated from the control a machine data file (i.e. a .dat file) is generated automatically and copied to the USB installation stick, and is loaded automatically into the Profile-T software during installation.

Please contact the machine supplier how to get the backup of the DAonWindows control.

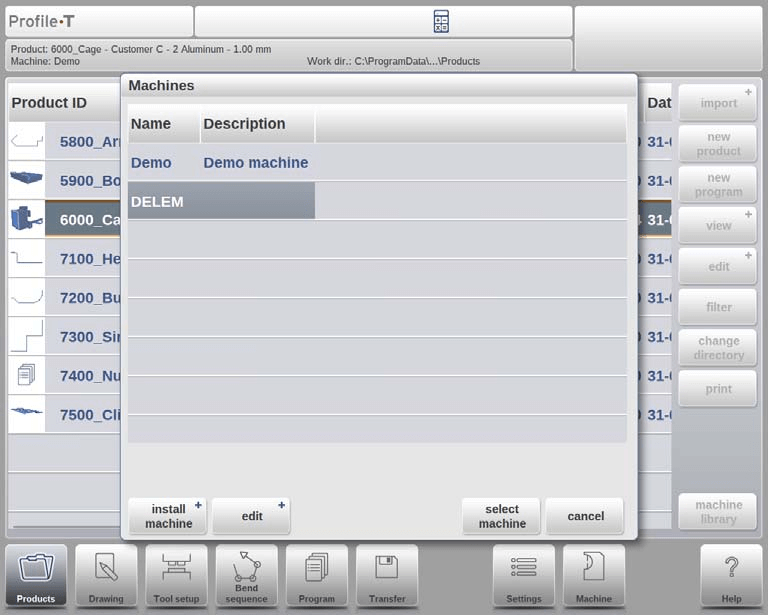

In the example below a SYS file from a DA-Touch control is imported. The name of the machine in Profile-T is the same as the name of the control on the machine. After installation of the machine in Profile-T the machine name can be changed (edit -> rename machine) if necessary.

Sie können zwischen den installierten Maschinen wechseln, indem Sie den gewünschten Maschinennamen auswählen und dann auf die Schaltfläche „Maschine auswählen“ klicken.

Mit dem Button „Bearbeiten“ kann die ausgewählte Maschine umbenannt, entfernt oder kopiert werden.

Utilizing Special Functions of Profile-T

Step 1: Printing Product Designs

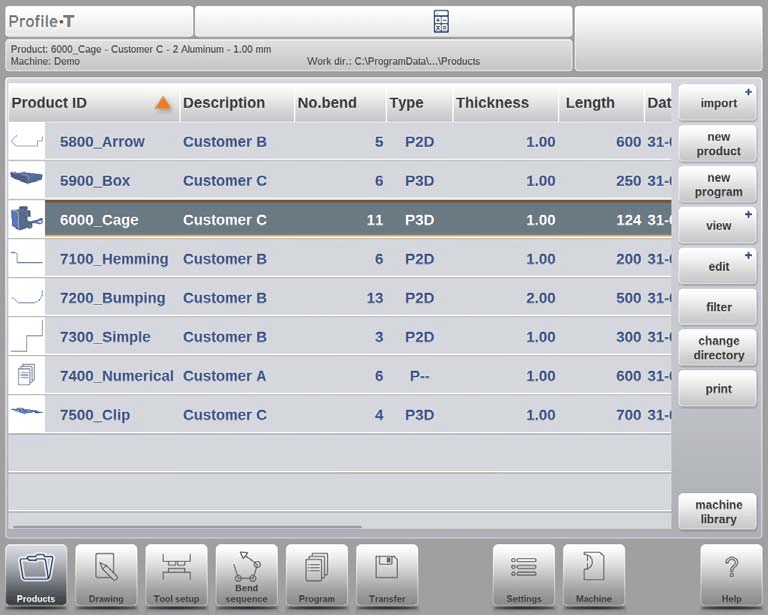

In Products mode, utilize the ‘print’ button to generate a printout of the selected product. This feature is available in Profile-T2D and Profile-T3D and opens the standard Windows printer menu for you to choose your printer settings.

Step 2: Transferring Product Data

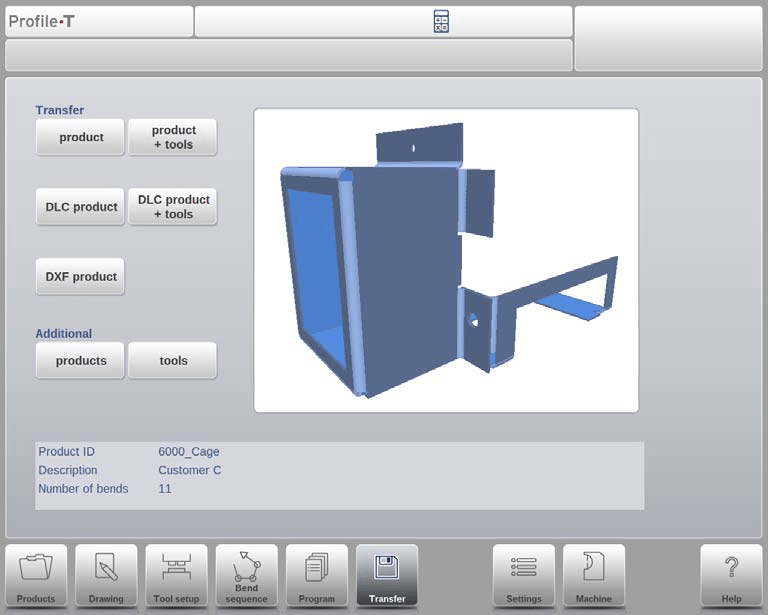

When you finish designing a product and generating its CNC program, transfer the data to a USB device using the ‘Transfer’ mode. Profile-T offers multiple options for copying program data to a directory.

In this mode there are 5 options:
Produkt: Kopieren Sie die Programmdaten in ein angegebenes Verzeichnis.

Produkt + Werkzeuge: Kopieren Sie die Programmdaten und die verwendeten Werkzeugdaten in ein angegebenes Verzeichnis.

DLC product: Export the program data to DLC file format and copy it to a specified directory (Profile-T2D and Profile-T3D only).

DLC product + tools: Export the program data and used tooling data to DLC file format and copy it to a specified directory (Profile-T2D and Profile-T3D only).

DXF-Produkt: Export the product including the bend deductions as a contour in a DXF file and copy it to a specified directory (Profile-T2D and Profile-T3D only).

Zusätzlich können neben dem ausgewählten Produkt auch andere Produkte und andere Werkzeuge übertragen werden.

Integrating the DELEM DA-69T Profile-T into your system enhances operational efficiency by providing a seamless interface for designing and transferring machine data. This simple setup and operation can optimize your workflow, ensuring you get the most out of your machinery.

Häufig gestellte Fragen (FAQ)

Abschluss

In summary, integrating DELEM DA-69T Profile-T with your system requires careful alignment of machine and control parameters to ensure compatibility. Follow these key steps to ensure a seamless process: assess and align machine parameters, utilize the ‘machine library’ feature for machine addition, and ensure proper generation and installation of machine data files.

To optimize your system’s performance and ensure efficient offline programming, ensure all parameters match those on your machine’s control system. This integration facilitates smooth operation across your production floor.

For further assistance or more detailed information about DELEM DA-69T Profile-T, feel free to contact our support team or explore additional documentation available on our website. Ensuring proper setup guarantees enhanced productivity and system reliability.
