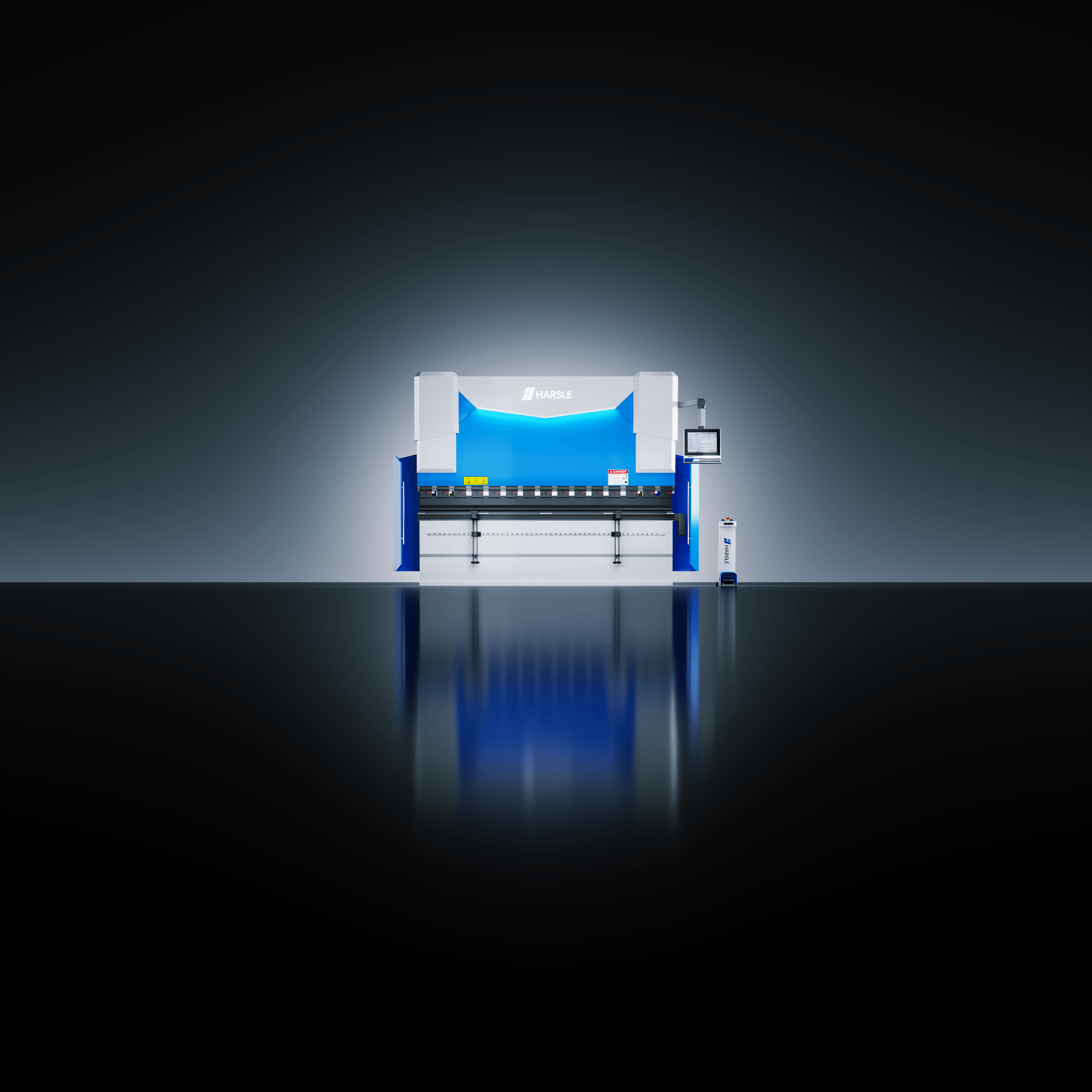

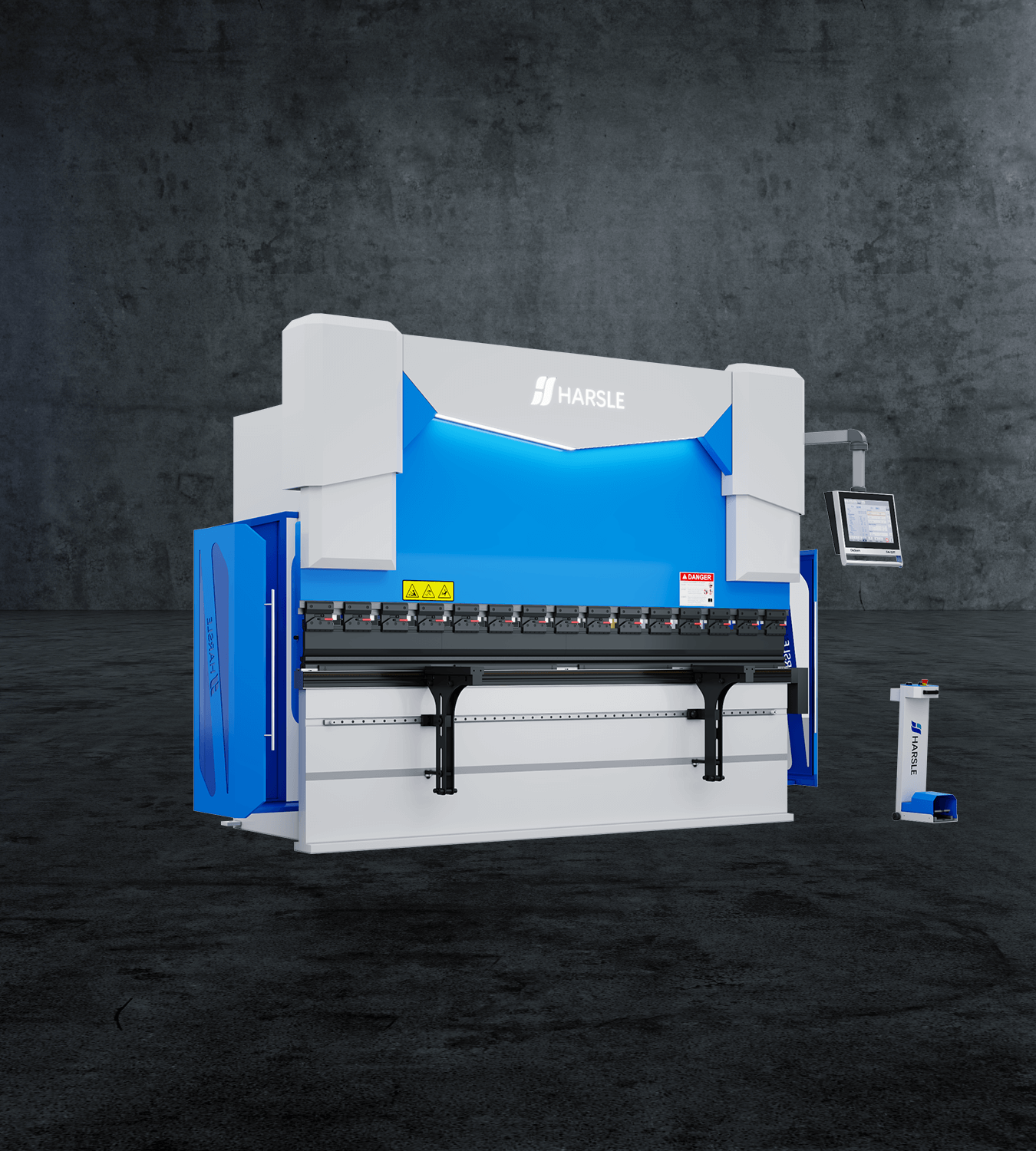

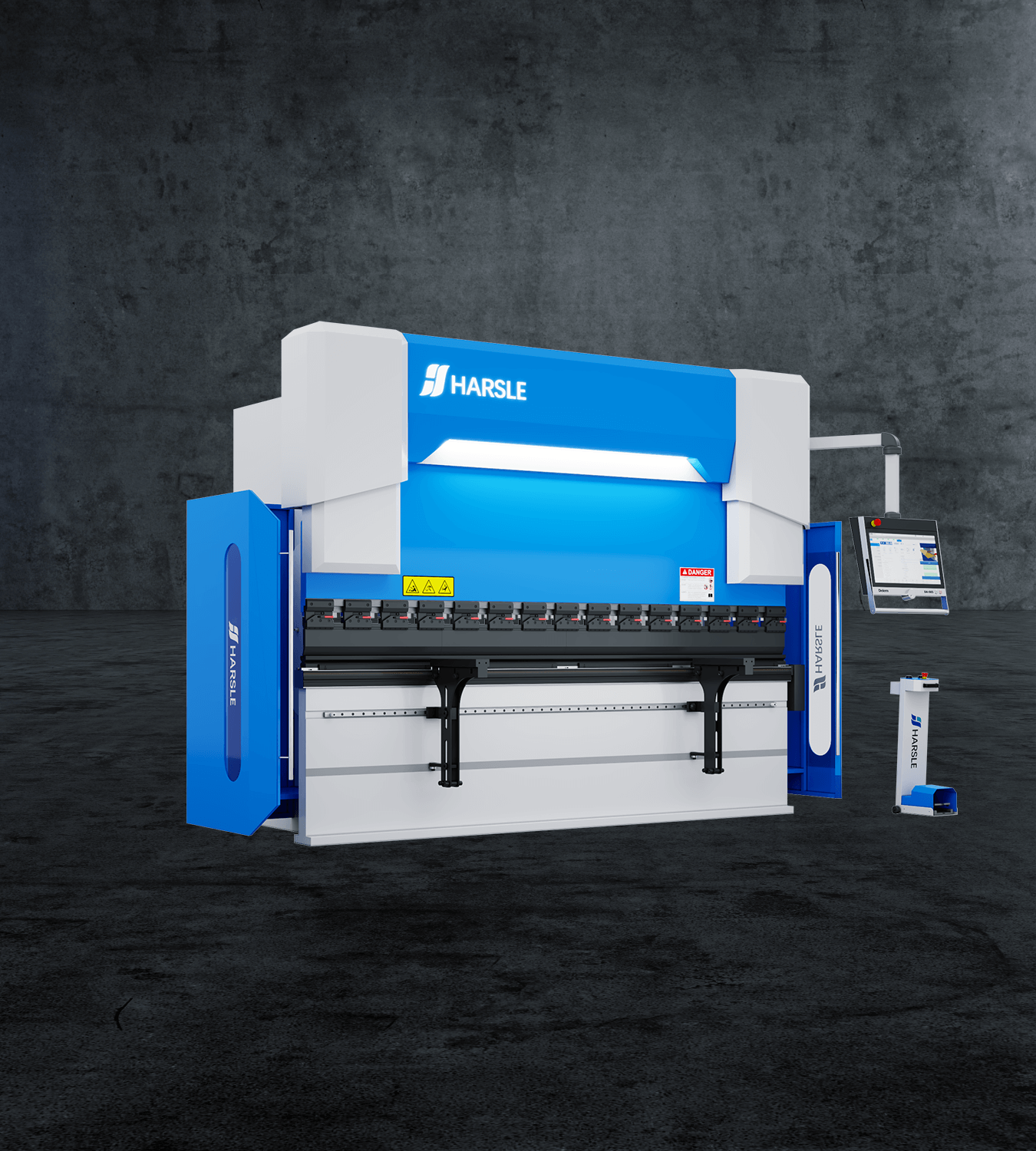

FlexBend
Adaptive flexibility meets intelligent control. Engineered for complex bending.
Powered Software

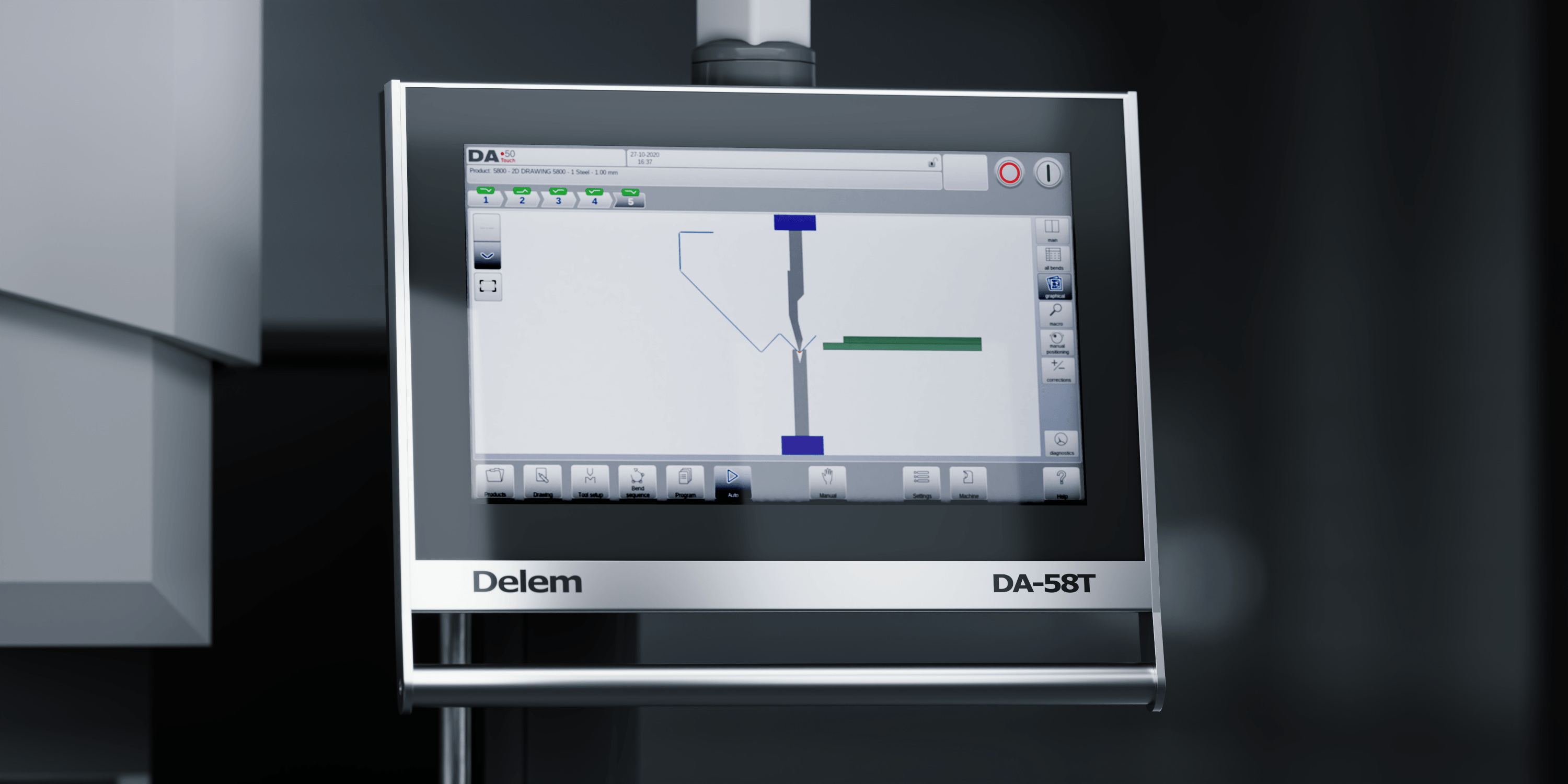

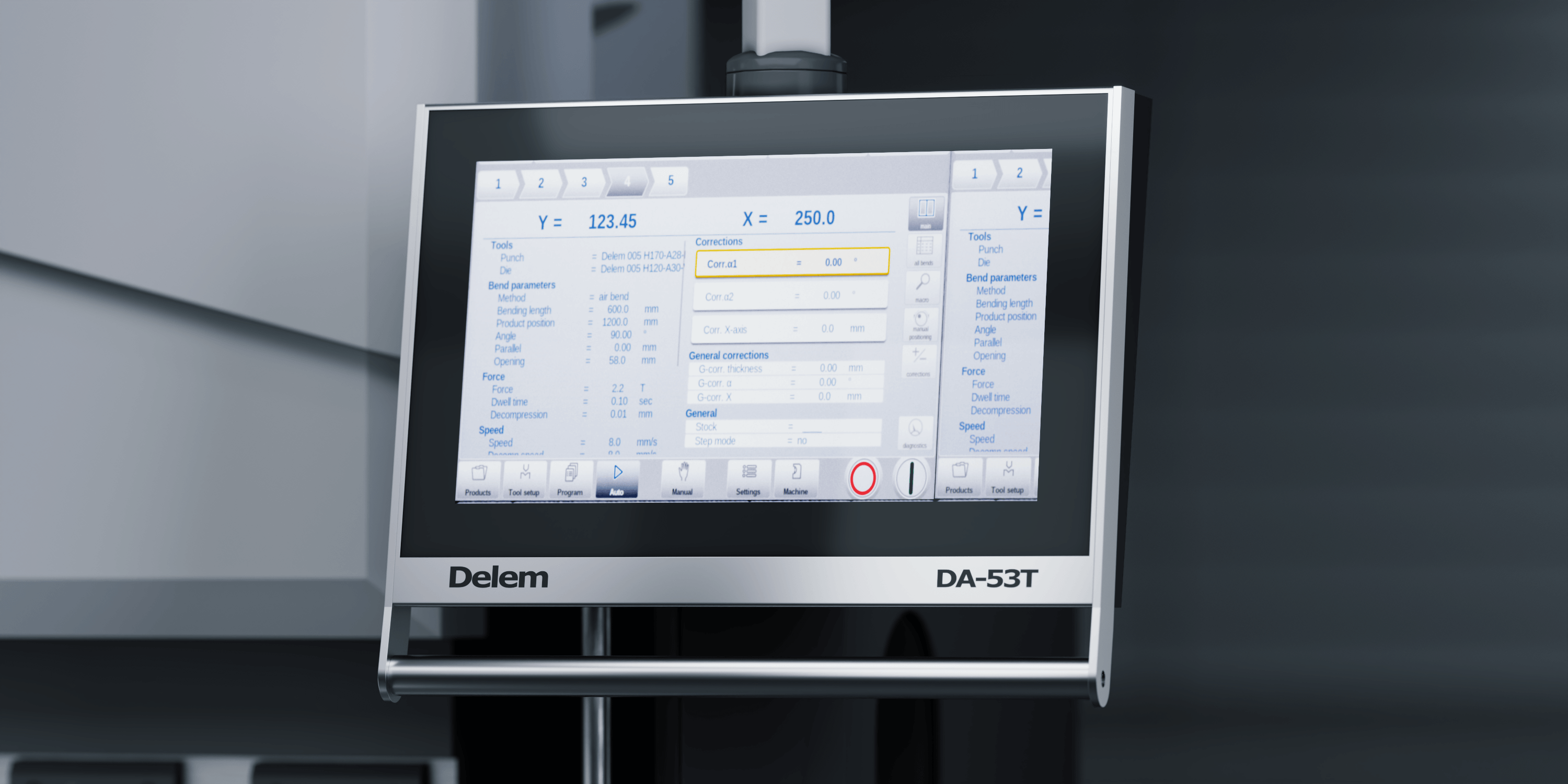

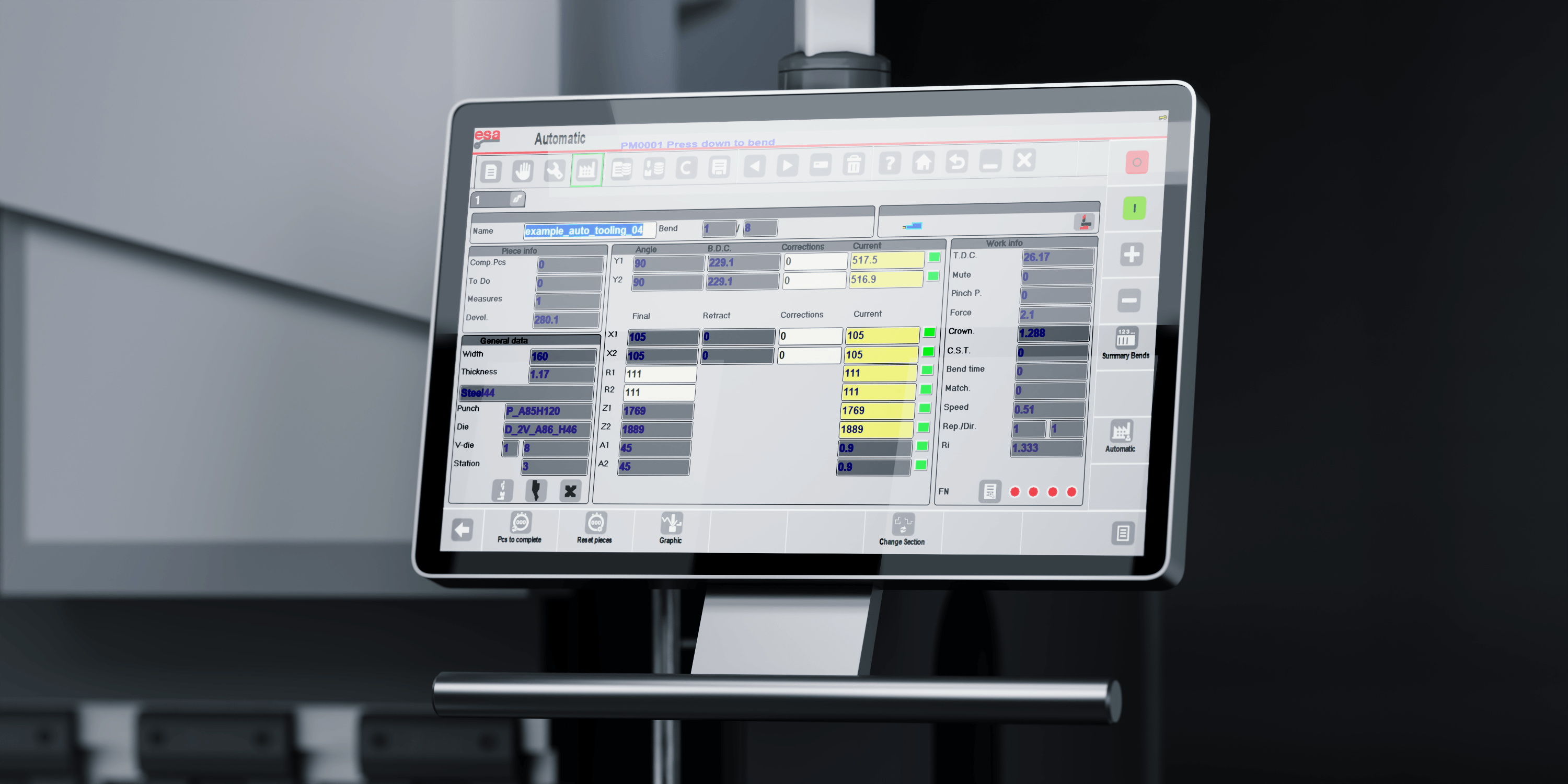

Intelligent Control
Unmatched Accuracy
Backgauge System

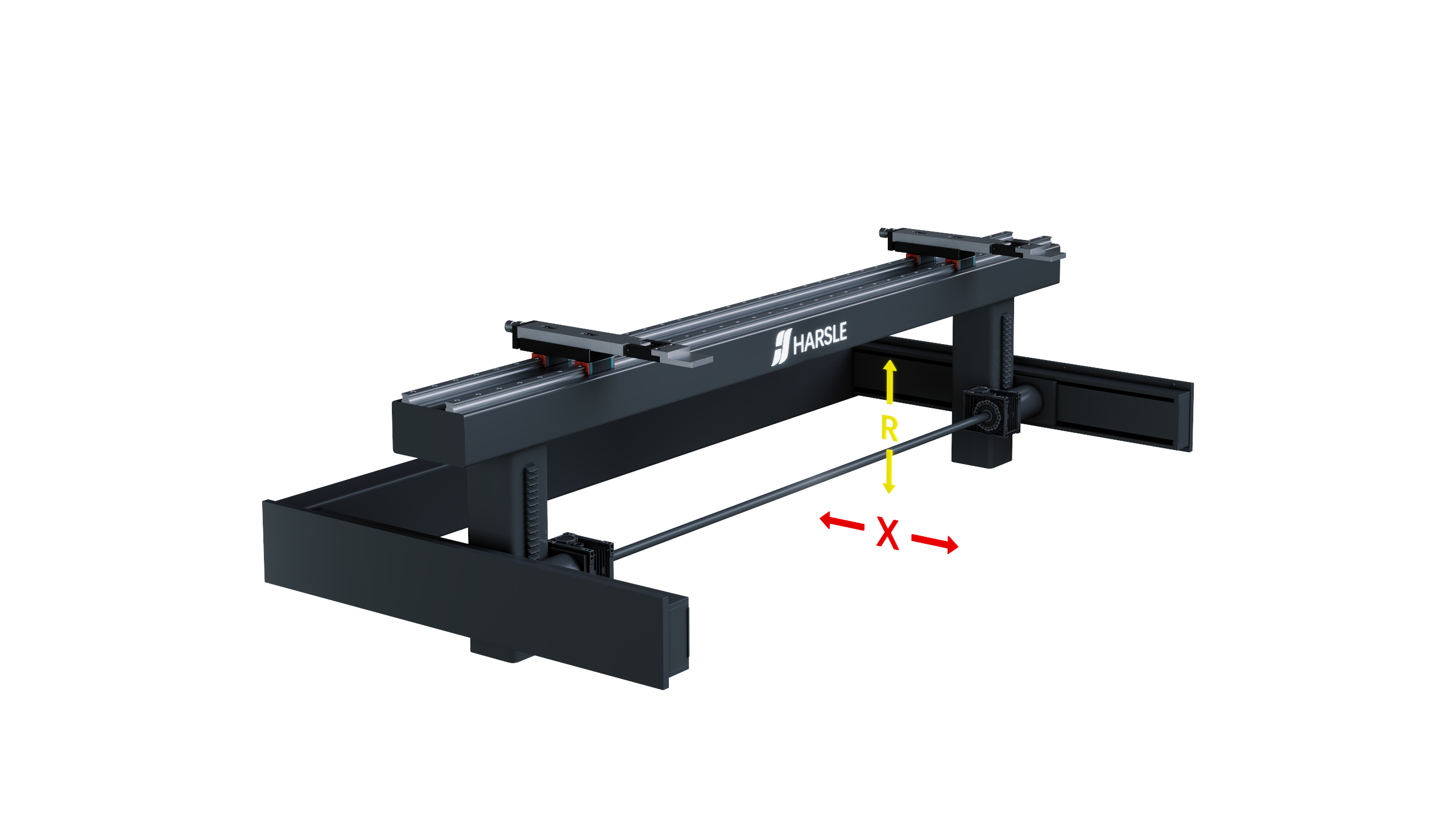

A reliable X+R axis backgauge designed for efficient standard bending tasks, offering stable movement, quick positioning, and consistent accuracy for daily production.
A high-performance X+R+Z1+Z2 axis backgauge delivering superior flexibility and precision, ideal for complex bending applications requiring multi-dimensional positioning and advanced control.
Smart Bending
Offline Programming
Offline Programming
Software

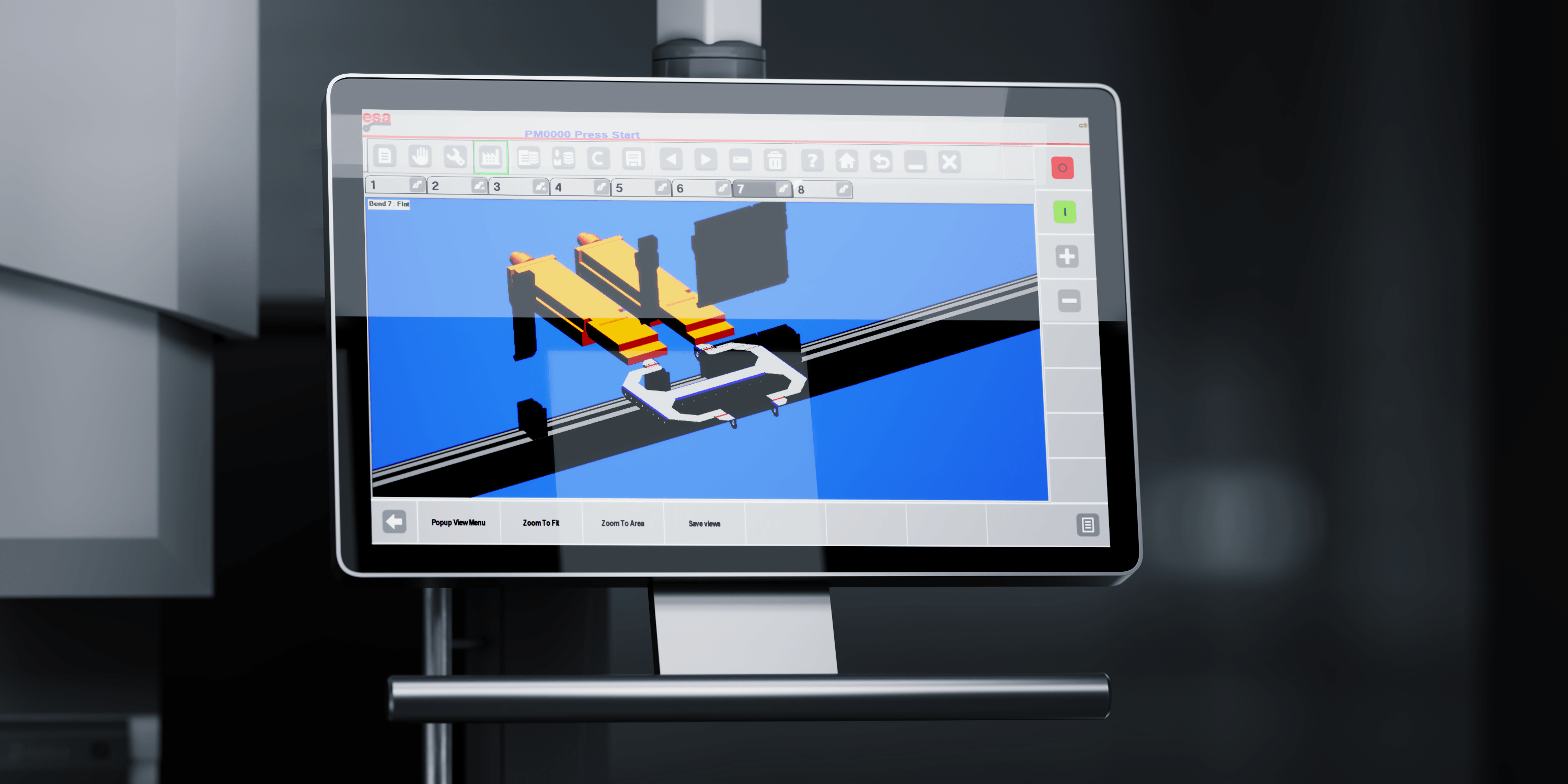

Create bending programs with advanced offline simulation, reduce setup time, and eliminate trial-and-error. From 2D layouts to 3D visualization, achieve faster production, higher accuracy, and smarter workflow integration.
High Efficiency
Dynamic Source
AC Motor
Driven by a high-performance AC motor, delivering unstoppable torque, superior efficiency, and ultra-smooth precision for next-level bending performance..

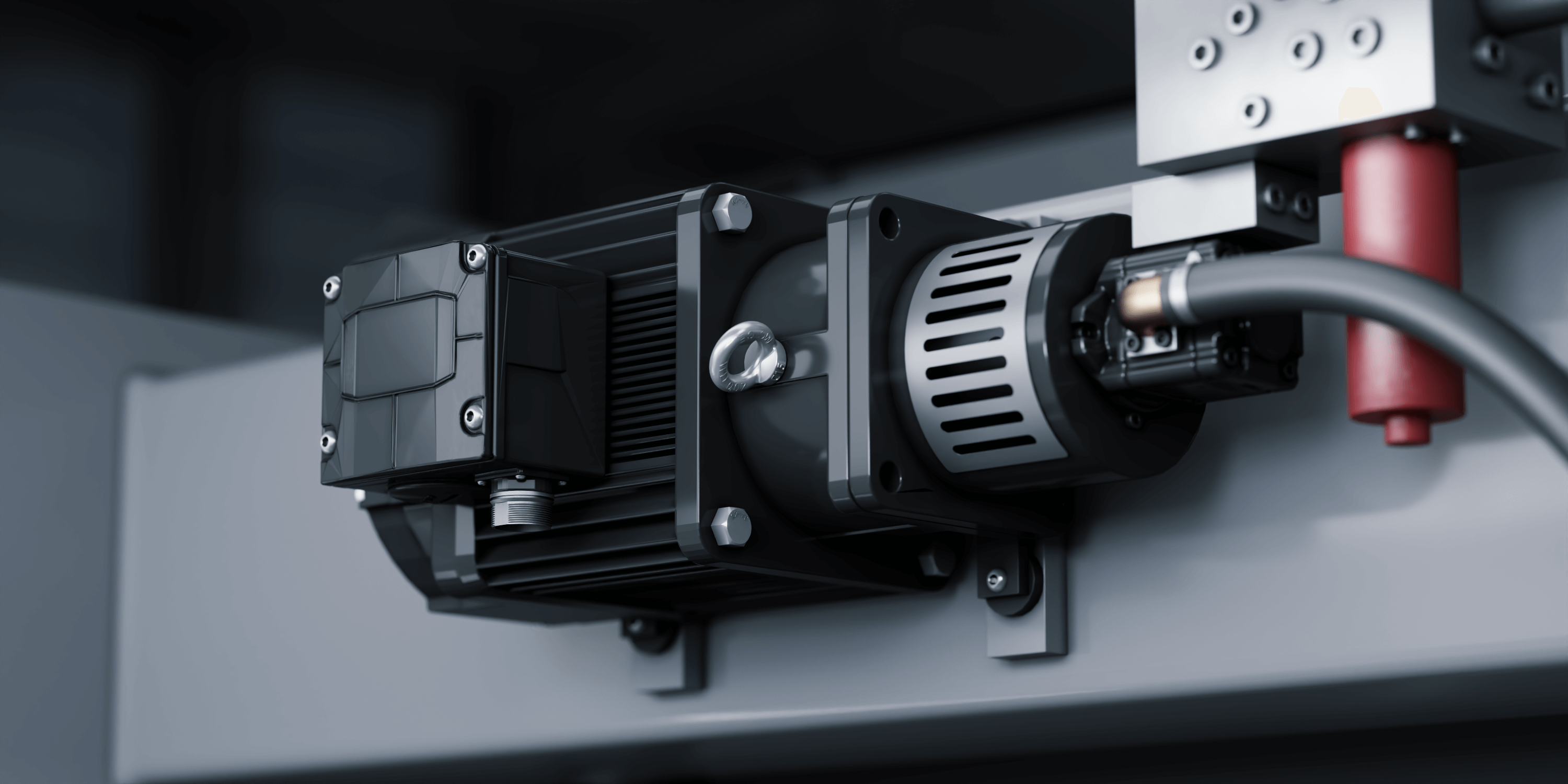

Servo Motors
High-performance servo motor provides precise, energy-efficient hydraulic power. Only runs at full capacity during active bending — near-zero standby consumption.
Instant Locking
Fast Clamping
Ensures fast tool changes, secure locking, and perfect alignment—maximizing efficiency while minimizing downtime.
Precision Lock

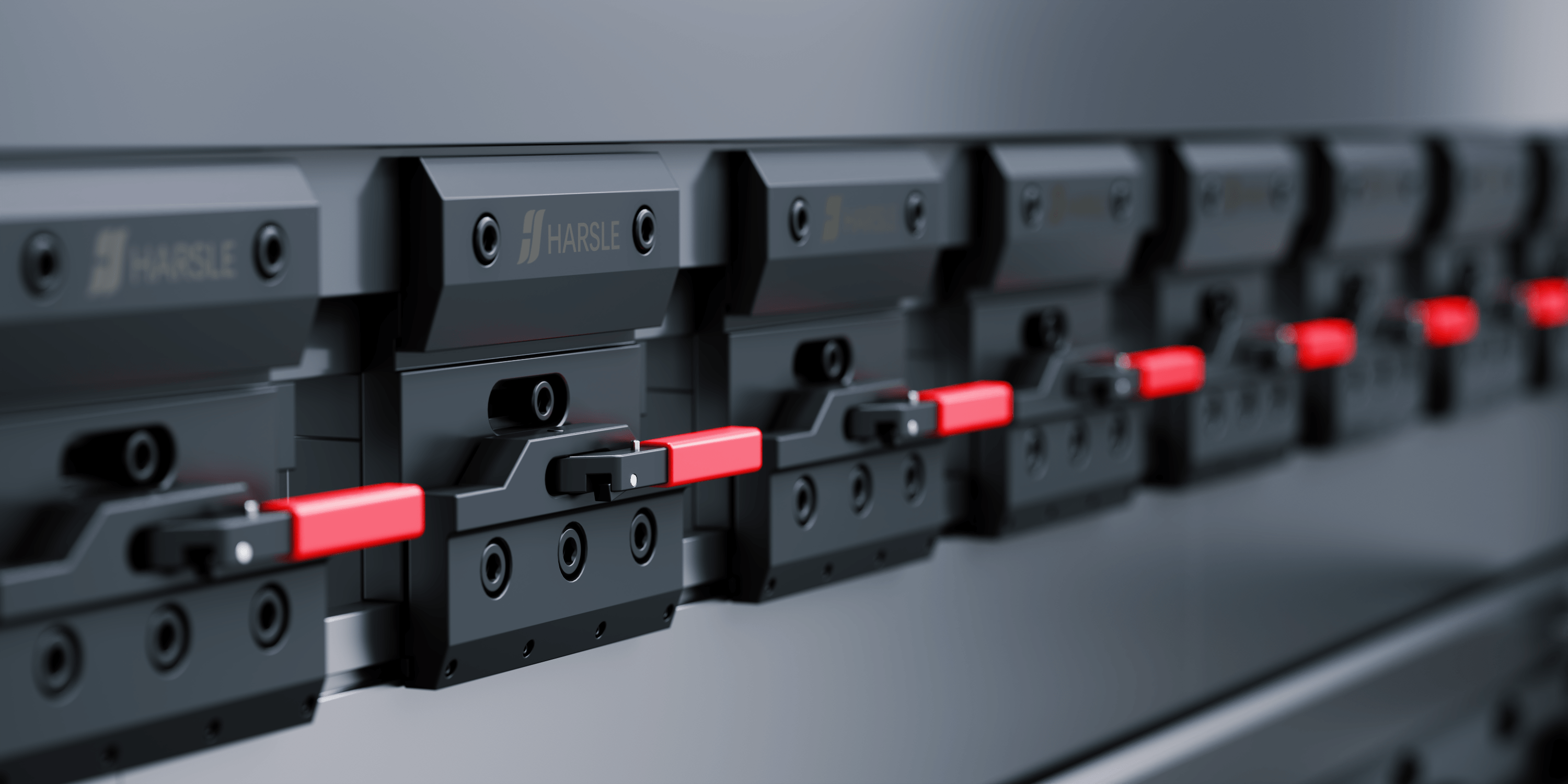

Three-Step Clamp
A structured three-step clamping design that ensures accurate positioning and enhanced safety, ideal for applications requiring stable and repeatable tool setup.
Elite Standard

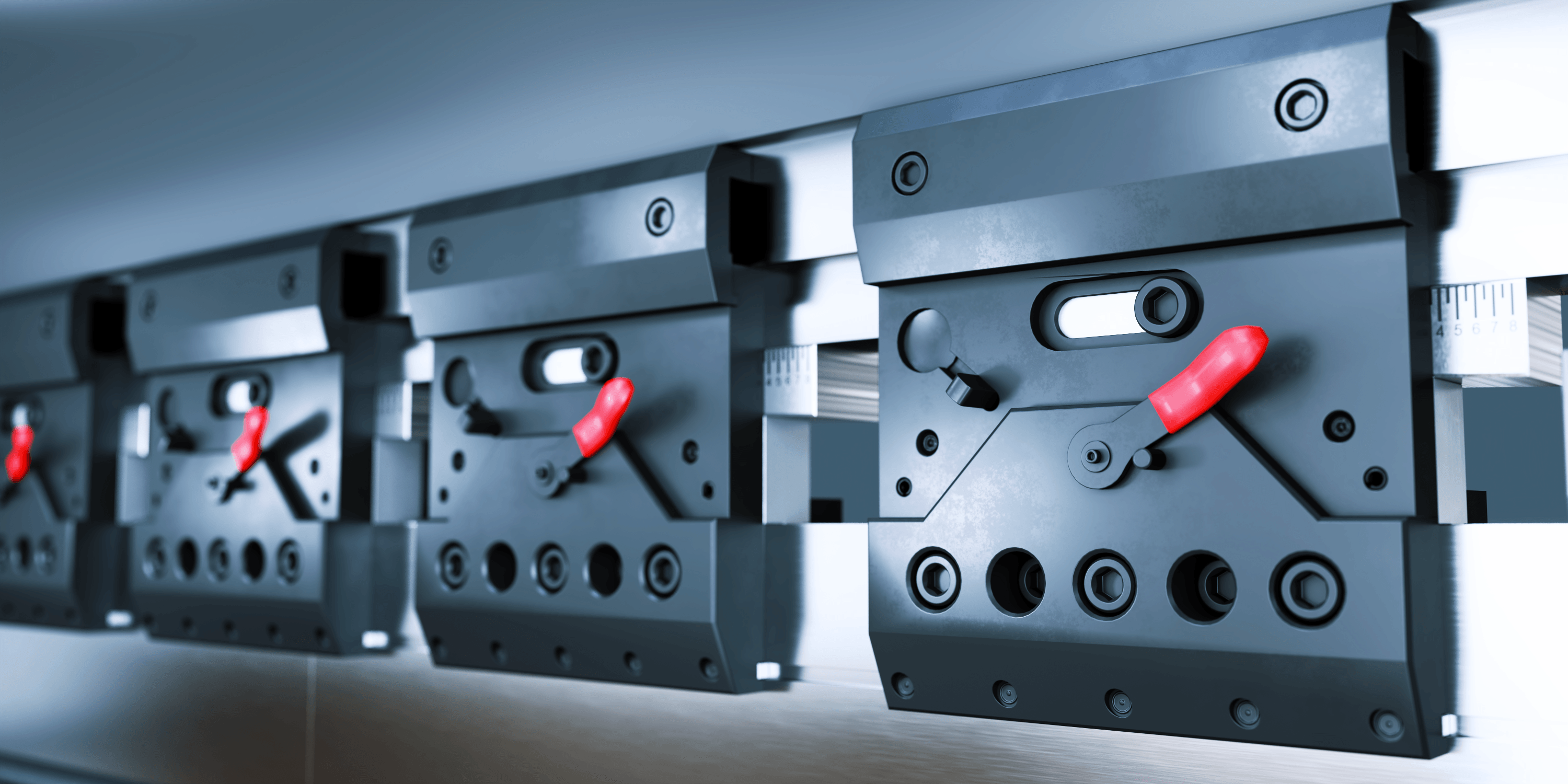

AMADA Style Clamp
Enables fast and effortless tool installation, reducing setup time and improving workflow efficiency for high-frequency production environments.
Hydraulic Power

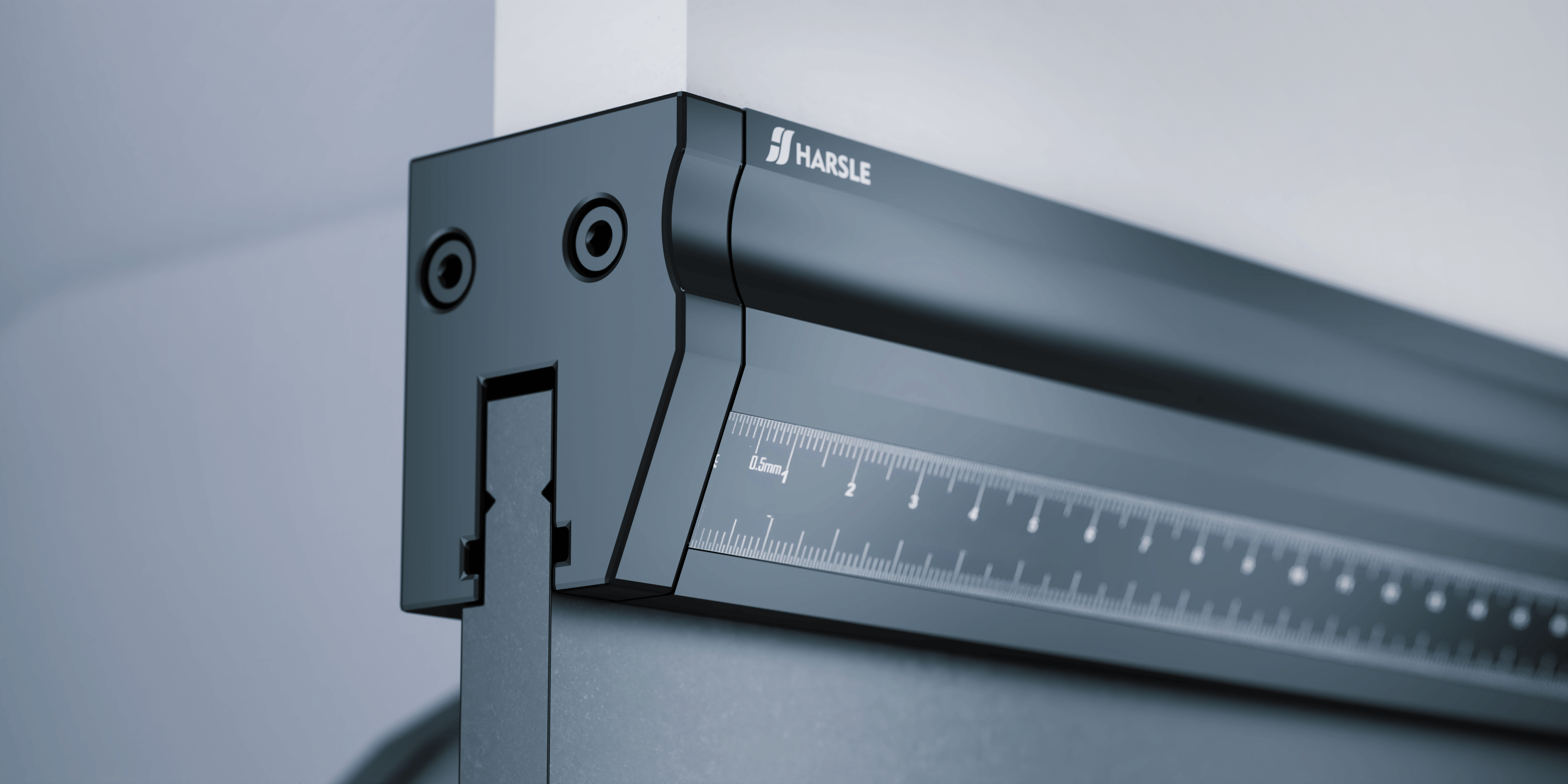

Hydraulic Clamp
Provides powerful and uniform clamping force through hydraulic actuation, ensuring superior stability and precision for heavy-duty and high-accuracy bending tasks.
01 / 03
Effortless Handling

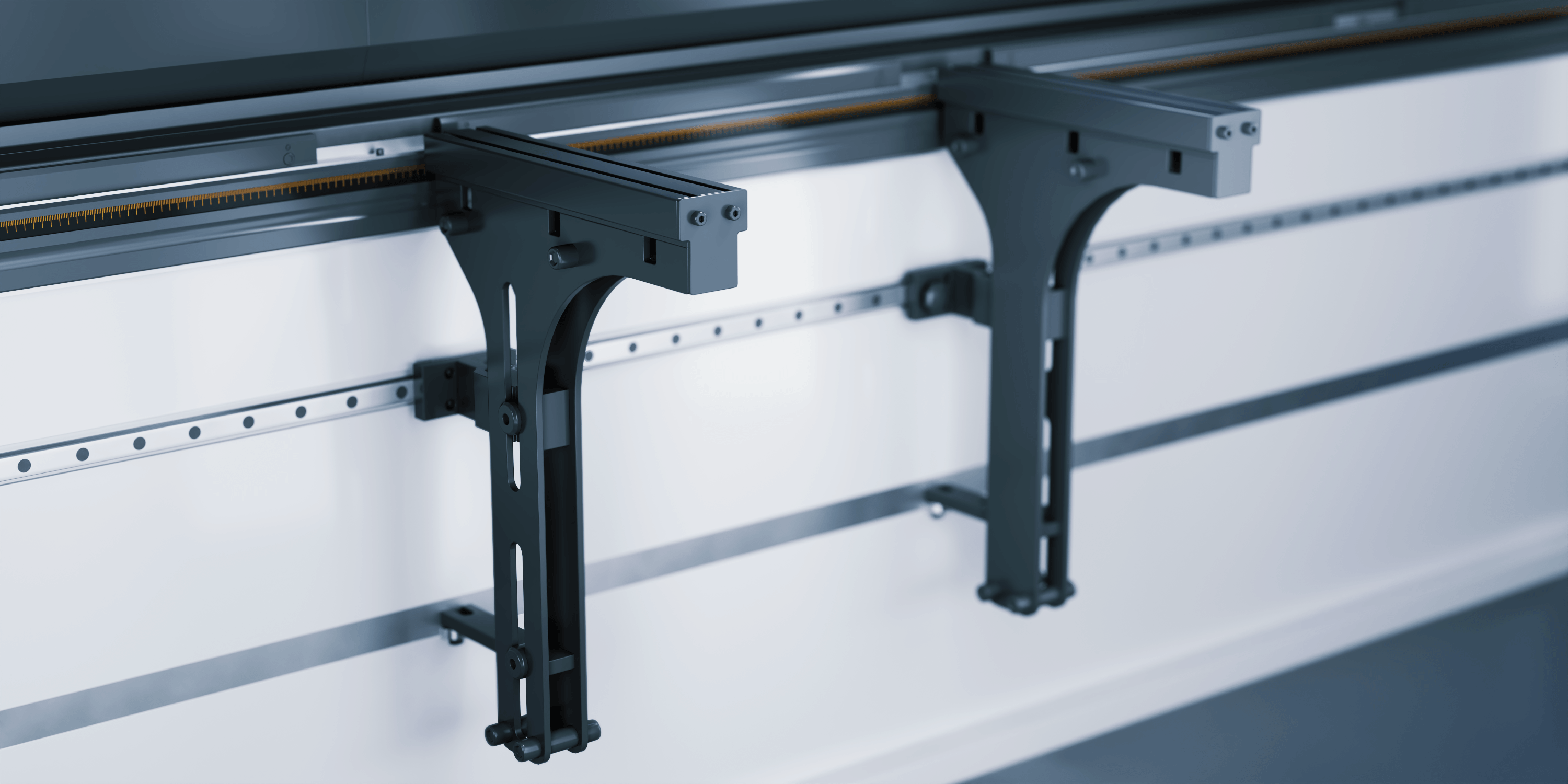

Front Support
Designed to support large and heavy workpieces with ease, the front support system improves operator comfort, enhances positioning stability, and ensures smoother, more accurate bending operations.
Enhanced Stability
Provides consistent support for large workpieces
Reduced Effort
Minimizes operator workload with smoother handling
Bend Without Limits
Maximum flexibility for complex bends.
Tooling System

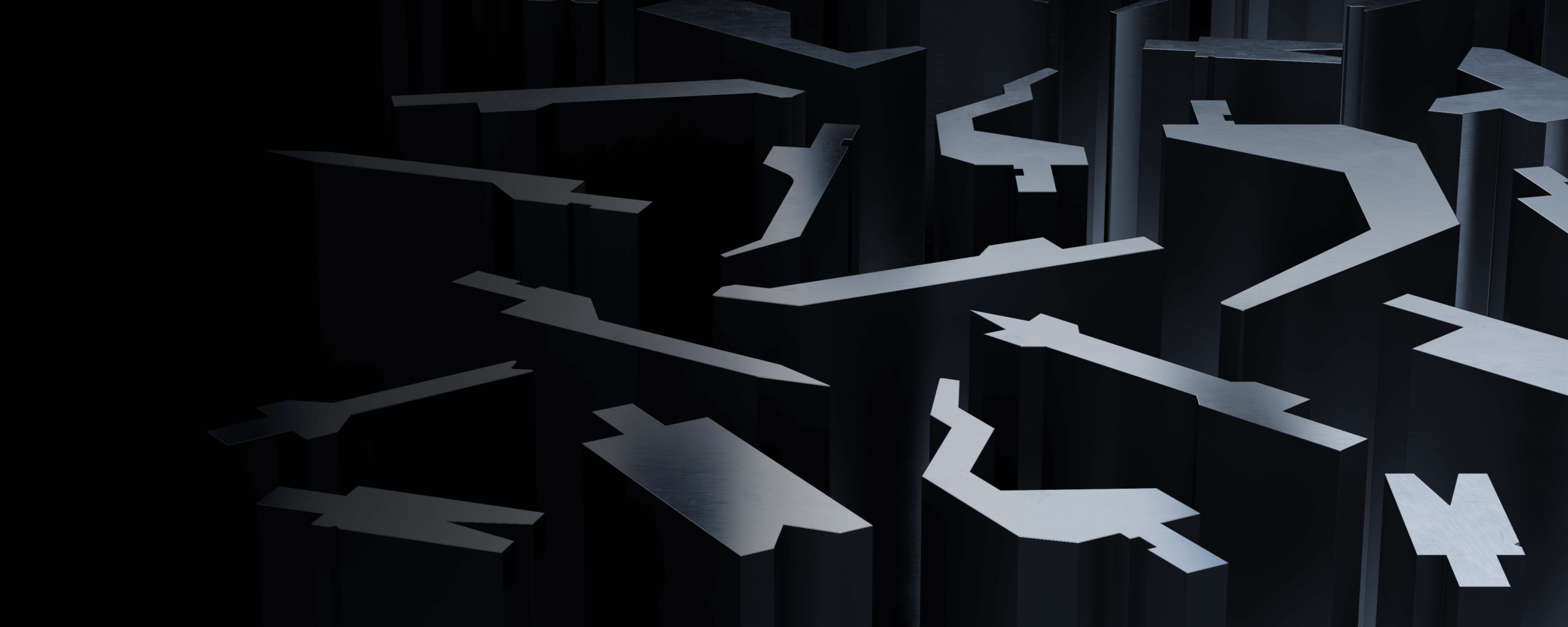

Precision Press Brake Tooling
A complete range of punches, dies, and clamping systems from HARSLE.
Punches & Dies
Gooseneck, acute, radius, hemming, multi-V — 58-62 HRC hardened.
Quick-Clamp Systems
Tool changes under 3 min. WILA, Amada, Euro compatible.
±0.01mm Precision
CNC precision-ground for repeatable bending angles.
Technical Data
Specifications
All models at a glance — compare side by side
FlexBend
6325
6325
FlexBend
11032
11032
FlexBend
17032
17032
FlexBend
20032
20032
630 kN
Bending Force
1100 kN
Bending Force
1700 kN
Bending Force
2000 kN
Bending Force
2500 mm
Bending Length
3200 mm
Bending Length
3200 mm
Bending Length
3200 mm
Bending Length
2100 mm
Column Distance
2600 mm
Column Distance
2600 mm
Column Distance
2600 mm
Column Distance
300 mm
Throat Depth
350 mm
Throat Depth
400 mm
Throat Depth
400 mm
Throat Depth
160 mm
Ram Stroke
200 mm
Ram Stroke
200 mm
Ram Stroke
200 mm
Ram Stroke
450 mm
Daylight
470 mm
Daylight
430 mm
Daylight
470 mm
Daylight
5.5 KW
AC Motor
7.5 KW
AC Motor
11 KW
AC Motor
15 KW
AC Motor
160 mm/s
Down Speed
200 mm/s
Down Speed
150 mm/s
Down Speed
120 mm/s
Down Speed
2900*1500*2400 mm
Dimension (L*W*H)
3500*1600*2600 mm
Dimension (L*W*H)
3600*1750*2700 mm
Dimension (L*W*H)
3600*1850*2750 mm
Dimension (L*W*H)
