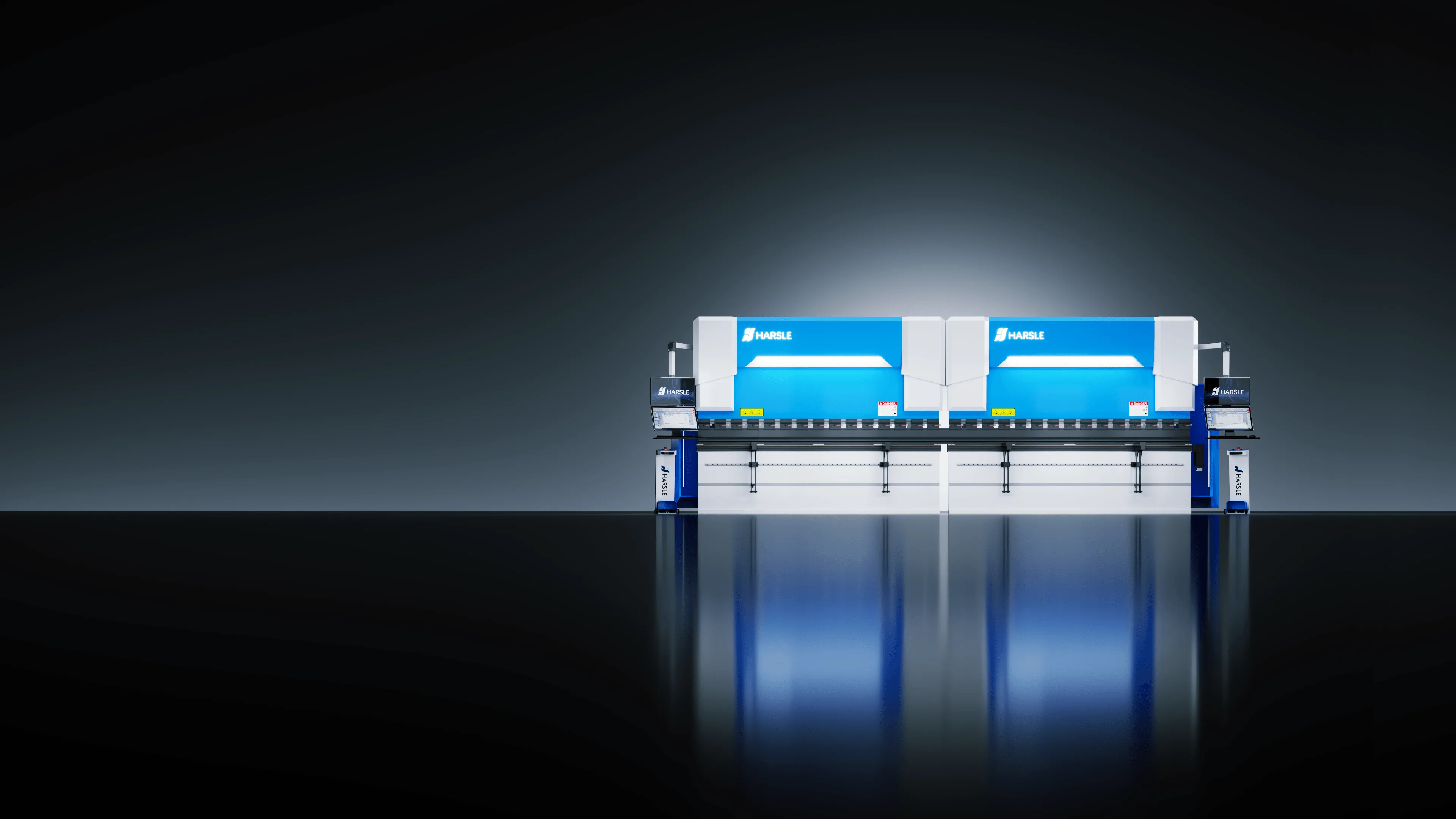

SyncBend
Synchronized motion meets perfect balance. Engineered for consistent accuracy.
Linked Or Independent
Flexible Mobility
Supports both synchronized operation and independent working modes, adapting flexibly to different production needs and improving overall efficiency.
Wide Coverage
Super Span
Designed for ultra-long workpieces, enabling precise and stable bending across extended spans with consistent performance.
Handles ultra-long workpieces with stable performance.
Maintains precision across the entire bending length.
Massive Capacity
Giga-Platform
Giga-Platform
Processing
Built for large-scale fabrication, handling oversized components with high load capacity and exceptional structural stability.
Perfect Sync
Zero-Latency
Zero-Latency
Synchronization
Advanced synchronization technology ensures real-time response and flawless coordination between machines for ultimate bending accuracy.
Real-Time Response
Instant synchronization ensures no delay during operation.
Perfect Consistency
Maintains identical bending accuracy across machines.
Safety Systems
Safety Protection
Comprehensive safety solutions to protect operators and ensure compliance with international safety standards.
Standard
Light Curtain
Infrared light curtain safety system provides full-length protection along the bending zone. Instantly halts ram movement when the safety field is breached, ensuring operator safety during every cycle.
Optional
Laser Protection
Laser-based safety device mounted on the ram provides a narrow detection zone close to the tooling point. Allows faster approach speeds while maintaining the highest level of operator protection.
Optional
AKAS Laser Protection
Advanced AKAS laser protection system with automatic height adjustment delivers smarter safety, enabling maximum productivity without compromising safety.
01 / 03
Perfectly Synced
Accuracy in every motion
Tooling System
Precision Press Brake Tooling
A complete range of punches, dies, and clamping systems from HARSLE.
Punches & Dies
Gooseneck, acute, radius, hemming, multi-V — 58-62 HRC hardened.
Quick-Clamp Systems
Tool changes under 3 min. WILA, Amada, Euro compatible.
±0.01mm Precision
CNC precision-ground for repeatable bending angles.
Technical Data
Specifications
All models at a glance — compare side by side
SyncBend
40060
40060
SyncBend
60060
60060
SyncBend
120080
120080
SyncBend
2000120
2000120
4000 kN
Bending Force
6000 kN
Bending Force
12000 kN
Bending Force
20000 kN
Bending Force
6000×2 mm
Bending Length
6000×2 mm
Bending Length
8000×2 mm
Bending Length
12000×2 mm
Bending Length
5000 mm
Column Distance
4800 mm
Column Distance
7000 mm
Column Distance
10000 mm
Column Distance
500 mm
Throat Depth
500 mm
Throat Depth
700 mm
Throat Depth
700 mm
Throat Depth
320 mm
Ram Stroke
320 mm
Ram Stroke
400 mm
Ram Stroke
400 mm
Ram Stroke
600 mm
Daylight
600 mm
Daylight
800 mm
Daylight
800 mm
Daylight
30×2 KW
AC Motor
45×2 KW
AC Motor
35×4 KW
Servo Motor
55×4 KW
Servo Motor
90 mm/s
Down Speed
80 mm/s
Down Speed
60 mm/s
Down Speed
60 mm/s
Down Speed
6400×2*2200*3350 mm
Dimension (L*W*H)
6600×2*2350*4500 mm
Dimension (L*W*H)
8280×2*4100*6500 mm
Dimension (L*W*H)
12280×2*4500*8200 mm
Dimension (L*W*H)
