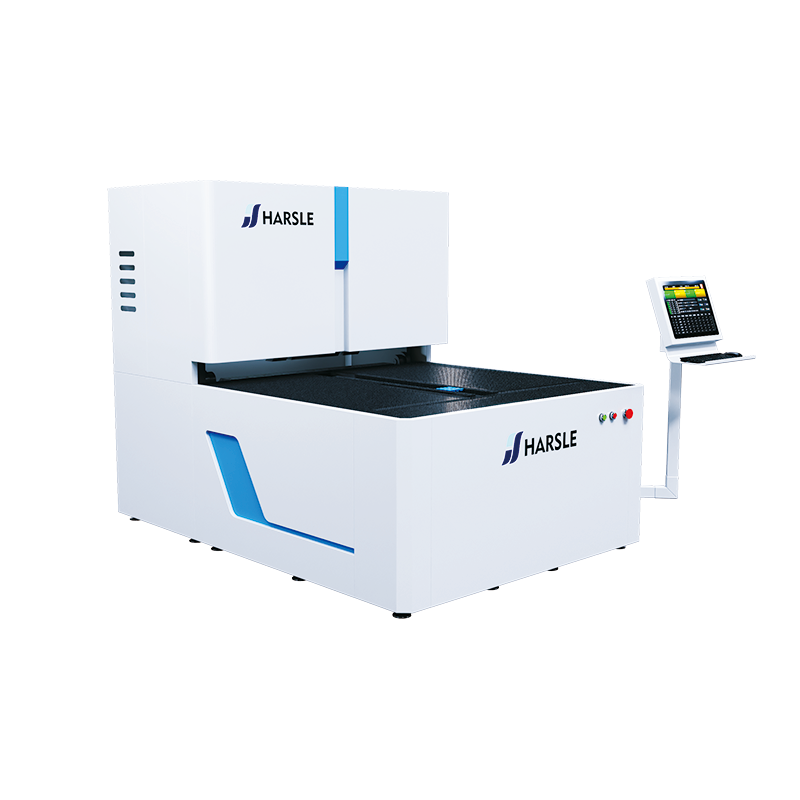

CNC Panel Flipper for Sheet Metal Handling

Name: CNC Panel Flipper for Sheet Metal Handling | HARSLE
SKU: HS202662204
Price: 29900 USD
Availability: InStock

Ursprünglicher Preis war: $33,000Aktueller Preis ist: $29,900. Satz

CNC Panel Flipper is an advanced sheet metal handling solution designed for safe, precise, and efficient panel rotation during fabrication processes. It helps operators flip heavy or large metal sheets with ease, reducing manual labor and improving production safety. Widely used in metal fabrication workshops, it ensures stable positioning and smooth operation. With CNC control integration, it enhances workflow efficiency and supports high-volume production environments, making it an ideal choice for modern automated sheet metal processing lines.

100 vorrätig

Notiz: Die Preise variieren je nach Modell und Konfiguration. Klicken Sie auf "Anfrage senden", um ein individuelles Angebot zu erhalten.

Vergleichen

Zu Favoriten hinzufügen

ANFRAGE SENDEN

Panel Flipper

Artikel	Einheit	AutoFlip 1200	AutoFlip 1600	AutoFlip 2000
Max. Biegelänge	mm	1200	1600	2000
Max. Biegebreite	mm	600	600	600
Max. Biegehöhe	mm	80	80	80
MS	mm	1.2	1.2	1.2
SS	mm	0.6	0.6	0.6
AL	mm	1.5	1.5	1.5
Min. Bending Thickness	mm	0.3	0.3	0.3
Min. Biegeradius	mm	2	2	2
Range of Folding Angles	°	0-120	0-120	0-120
Angular Accuracy	°/m	±1	±1	±1
Bend Dimensional Accuracy	mm/m	±0,1	±0,1	±0,1
Working Accuracy	mm	0.001	0.001	0.001
Biegegeschwindigkeit	s/Biegen	0.2	0.2	0.2
Operating Noise	dB	50	50	50
Air Supply Pressure	Mpa	0.5	0.5	0.5
Total Number of Controlled Axes	-	7	7	7
User Operating Environment	-	win10	win10	win10
Min. Inside Size (Four-Side)	mm	150*80	150*80	150*120
Min. Inside Size ( Double-Side)	mm	80	80	120
Durchschnittliche Arbeitsleistung	KW	1.5	1.8	2.1
Länge	mm	2500	3200	4500
Breite	mm	1800	2200	2300
Höhe	mm	2100	2100	2100

9 Leute, die sich dieses Produkt jetzt ansehen!

Beschreibung

CNC Panel Flipper is engineered to optimize sheet metal handling operations by providing stable, safe, and efficient panel flipping and positioning. It is widely used in press brake production lines, automated fabrication systems, and sheet metal workshops where large or heavy panels need to be rotated accurately without manual effort.

Designed with advanced CNC integration, the machine ensures precise control during flipping operations, reducing the risk of material damage and operator injury. Its robust structure allows it to handle a wide range of sheet sizes and weights, making it suitable for diverse industrial applications.

Hauptmerkmale:

High-precision CNC control system for accurate panel positioning
Heavy-duty frame structure for stable and reliable operation
Safe automated flipping to reduce manual labor and risk
Compatible with various sheet metal sizes and thicknesses
Smooth and efficient workflow integration with production lines

The CNC Panel Flipper significantly improves production efficiency by reducing handling time and increasing safety standards in metal fabrication environments. It is an essential solution for manufacturers seeking automation, consistency, and higher output in modern sheet metal processing.

Die beliebtesten Fragen

What is the AutoFlip Panel Flipper and how does it work?

The AutoFlip Panel Flipper is an automated sheet metal turnover machine designed to rotate heavy flat panels safely and precisely. The workpiece is placed on the flipper table and secured by adjustable clamps or a vacuum/suction system. A hydraulic or servo-driven mechanism then rotates the panel through 90° or 180° in a controlled motion. The entire cycle is completed in seconds with a single operator command — eliminating the need for cranes, slings, or manual repositioning.

Why is an automated panel flipper safer than manual turning methods?

Manual flipping with cranes, forklifts, or chains is physically demanding, time-consuming, and carries a high risk of dropped loads, pinch-point injuries, and surface damage. The AutoFlip Panel Flipper keeps the operator at a safe distance while the machine performs a smooth, synchronized rotation. Built-in safety interlocks, emergency stops, and mechanical position locks ensure the panel remains securely held throughout the entire flip cycle.

What types of panels and materials can the AutoFlip handle?

The AutoFlip Panel Flipper is built for a wide range of flat workpieces, including laser-cut, plasma-cut, and flame-cut steel sheets, stainless steel panels, aluminum plates, welded assemblies, electrical enclosures, and structural frames. It handles both individual panels and stacked sheet bundles. Optional rubber mats, nylon brushes, or felt linings can be fitted to protect pre-painted, powder-coated, or polished surfaces during rotation.

What are the load capacity and maximum panel size specifications?

We offer AutoFlip Panel Flipper models with load capacities from 750 kg up to 5,000 kg, with custom heavy-duty configurations available for loads exceeding 10 tons. Standard table sizes accommodate panels up to 1,200 × 800 mm, while extended models support panels up to 3,000 × 1,500 mm or larger upon request. Material thickness typically ranges from 0.5 mm thin sheets to 50 mm heavy plates, depending on the model selected.

Can the AutoFlip rotate panels to custom angles, not just 180°?

Yes. While 180° full turnover is the most common operation, the AutoFlip Panel Flipper supports programmable rotation to any angle between 0° and 180°, including 90° vertical-to-horizontal transitions. The hydraulic system maintains pressure at intermediate stop positions, allowing the panel to be held securely at the desired angle for welding, inspection, or machining access on both sides without additional support fixtures.

Where can the AutoFlip Panel Flipper be integrated in a production line?

The AutoFlip integrates seamlessly into sheet metal fabrication workflows — positioned between laser or plasma cutting and folding/bending stations, alongside welding cells for double-sided access, or at quality inspection points for top-and-bottom surface checks. It can be connected to roller conveyors, belt transfer systems, or robotic loading/unloading units for fully automated inline operation with minimal manual intervention.

Does the AutoFlip protect delicate or coated panel surfaces during flipping?

Absolutely. The flipper table surface can be equipped with replaceable rubber pads, nylon brushes, or soft felt covers to prevent scratching on painted, galvanized, brushed, or mirror-finish panels. Adjustable clamping pressure and vacuum suction options distribute holding force evenly across the panel surface. The smooth, vibration-free hydraulic drive ensures no impact or sudden jerking that could dent or mar the workpiece.

How long does a typical flip cycle take?

Cycle time depends on the model and rotation angle. Pneumatic AutoFlip models complete a 180° flip in approximately 5–10 seconds, making them ideal for high-frequency turnover tasks. Hydraulic models handling heavier loads typically complete a full rotation in 35–60 seconds. Compared to manual crane-based flipping that can take 5–15 minutes per panel, the AutoFlip dramatically reduces downtime and frees operators for other tasks.

What safety features are included with the AutoFlip Panel Flipper?

Every AutoFlip Panel Flipper is equipped with emergency stop buttons, mechanical and hydraulic position locks, synchronized cylinder operation to prevent tilting imbalance, and automatic pressure-hold at any stop angle. Optional safety fencing, light curtains, and two-hand control panels are available for enhanced operator protection. All units comply with CE safety standards and include automatic soft-reset and position-lock functions in case of power interruption.

What is the lead time, warranty, and after-sales support?

Standard production lead time is 15–30 working days for common models, with custom configurations requiring 30–45 days. We provide a 12-month warranty covering manufacturing defects, along with free lifetime technical support. Our after-sales team offers remote diagnostics, spare parts supply, on-site installation and commissioning, operator training, and preventive maintenance programs to keep your AutoFlip running at peak performance.
