W jaki sposób CYBELEC CybTouch 6 C EasyBend ułatwia zginanie?
When it comes to simplifying the bending process, the CYBELEC CybTouch 6 C EasyBend is an advanced solution that stands out. If you’re searching for ways to enhance the efficiency of your metalworking operations, you’re in the right place. In this article, I’ll explore how the CYBELEC CybTouch 6 C EasyBend streamlines the bending process with its user-friendly interface and advanced features. Whether you’re a seasoned professional or new to the field, understanding how this technology works will help you improve precision and productivity in your projects. Let’s dive into how the CYBELEC CybTouch 6 C EasyBend can transform your bending tasks.
Wstęp
The CYBELEC CybTouch 6 C EasyBend simplifies bending by providing an intuitive EasyBend page, perfect for handling individual bends. This feature is particularly useful when an external worker needs to pause regular production to make a single bend, often using the same tools.
The beauty of the CYBELEC CybTouch 6 C EasyBend lies in its seamless workflow; the ongoing production program is only temporarily interrupted, eliminating the need to save changes when accessing the EasyBend page. Once the individual bending task is completed, you can effortlessly return to the main program by selecting the Menu Button and then the Current program. This efficient switch back to the production program ensures minimal disruption, allowing for continuity in operations.

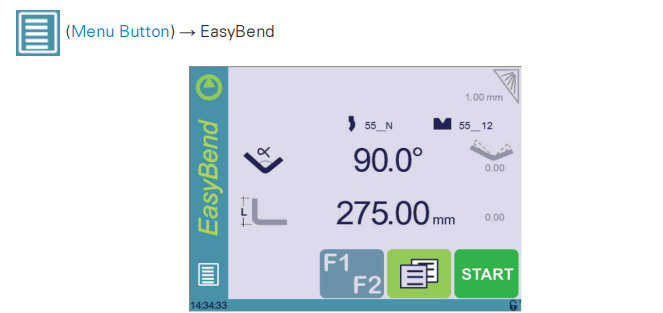

Making a bend on the EasyBend Page

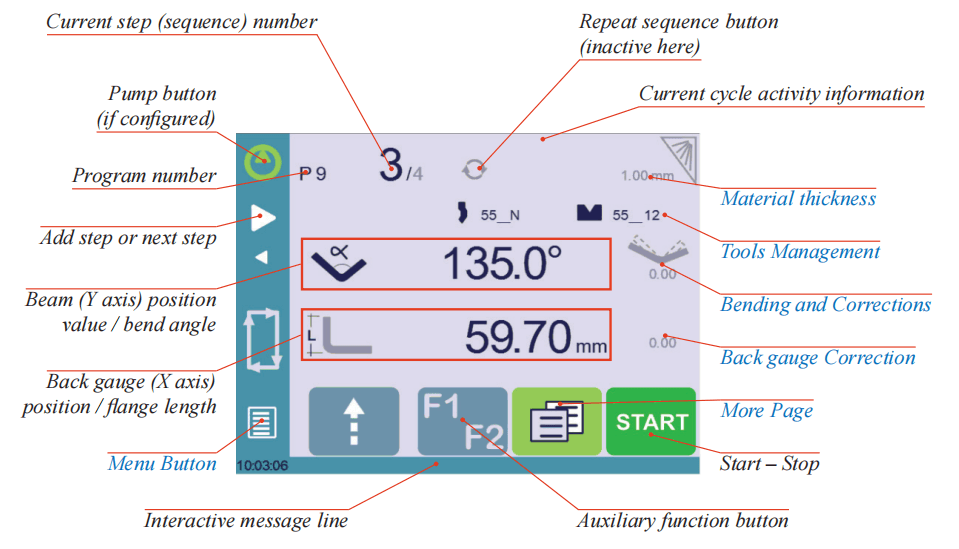

The EasyBend page is designed with intuitive controls that simplify complex bending tasks, making it easier for operators to achieve precise results. For more detailed information about these controls and how they can benefit your operations, see the Podstawowa strona Description.
Instrukcje ustawień:
1. Touch the material’s thickness (here 1.00). The Więcej stron is displayed. Enter the Grubość materiału i Siła.
2. If necessary, touch one of the tool’s icon to select a punch or die. (To learn how to configure tools, please refer to section Zarządzanie narzędziami).
3. Enter the angle
for the bend you wish to create (here 90°).
4. Enter the flange’s length
(here 275.00 mm).
5. Press this button
to go to the Więcej stron i wprowadź ewentualnie wymagane dodatkowe dane dotyczące gięcia.
6. Start the hydraulic pump motor (by pressing this button
(jeśli dostępne). Świeci na czerwono, gdy silnik pracuje.
7. Press the START przycisk, aby ustawić maszynę zgodnie z danymi, które właśnie zostały wprowadzone.
8. When the machine is ready to bend, a OK Wyświetla się przycisk.
9. Press the foot switch to execute the bend.
Error and Warning Messages
It’s essential to understand the types of warning and error messages that may appear while using the CYBELEC CybTouch 6 C EasyBend.
There are two categories of messages you might encounter:
- Komunikaty ostrzegawcze: Displayed on a green background, these messages provide information or instructions to the user. They are typically temporary and will disappear automatically once acknowledged or the situation is resolved. These messages are part of the proactive approach of the CYBELEC CybTouch 6 C EasyBend to keep you informed without disrupting workflow.
- Komunikaty o błędach: These are more critical alerts shown on a red background. They indicate an error on the machine or NC (numerical control), and may require prompt intervention by the user or a technician. The CYBELEC CybTouch 6 C EasyBend ensures that the nature of these errors is communicated clearly to facilitate quick resolution and minimize downtime.
When reporting error messages, please always indicate the error number at the end of the line. This number also refers to the first column in the section below.

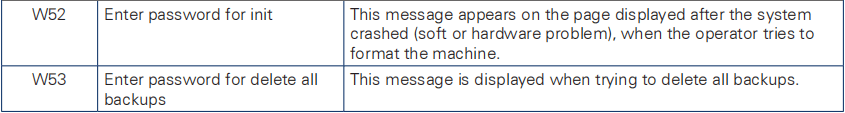

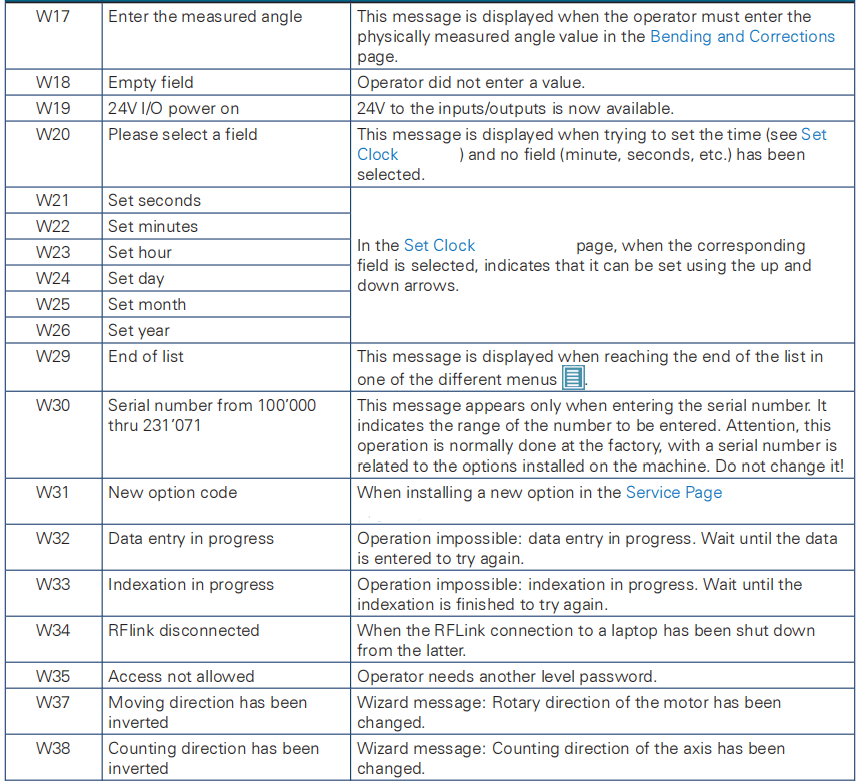

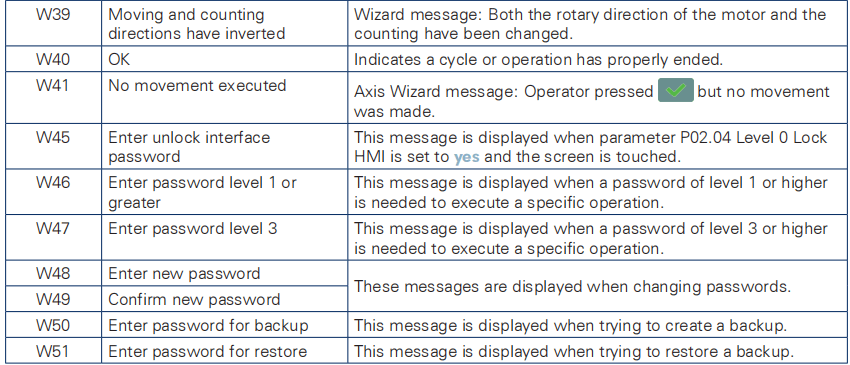

Komunikaty ostrzegawcze

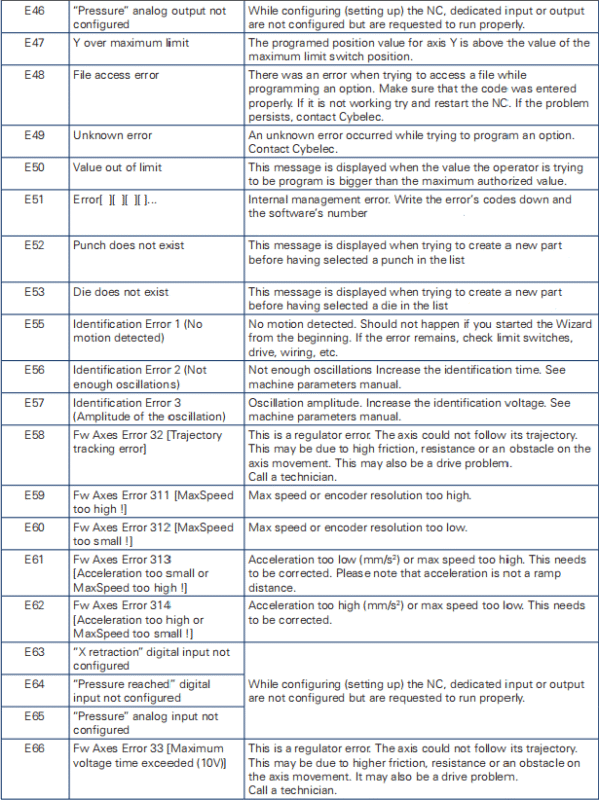

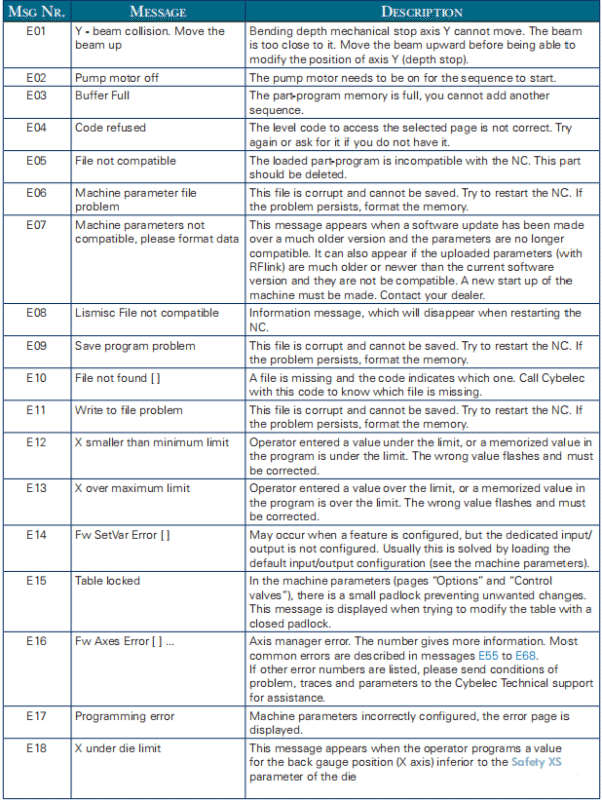

Komunikaty o błędach
Często zadawane pytania (FAQ)
What kind of training is required to operate the CYBELEC CybTouch 6 C EasyBend?
Minimal training is required to operate the CYBELEC CybTouch 6 C EasyBend, thanks to its user-friendly interface. Most users can become proficient in navigating the system with just a few hours of hands-on practice.
What is the best way to calibrate my press brake for accuracy with this system?
To calibrate your press brake accurately with the CybTouch 6 C EasyBend system, first ensure that the machine is leveled. Then, use a digital gauge to measure the angle of the bending die, adjusting it according to the manufacturer’s guidelines.
How often should I perform maintenance on my press brake to ensure the system functions optimally?
Routine maintenance should be performed every 500 hours of machine operation. This includes inspecting key components, cleaning the machine, and lubricating the moving parts to ensure the CYBELEC CybTouch 6 C EasyBend system functions optimally.
Wniosek
The CYBELEC CybTouch 6 C EasyBend plays a crucial role in simplifying and optimizing the bending process. Its intuitive design, precision controls, and efficiency enhancements collectively contribute to improved production outcomes. By embracing this technology, metal fabrication operations can achieve higher levels of productivity while ensuring accuracy and reducing waste.
For those interested in learning more about how the CYBELEC CybTouch 6 C EasyBend can benefit their specific bending operations, we encourage you to contact our team for further information or explore additional resources on our website. Proper implementation and use of this tool can truly transform your bending capabilities and production efficiency.
