If you’re looking to enhance your manufacturing efficiency, knowing how the ESA S530 update programs efficiently is essential. In this article, I’ll guide you through the efficient process of updating programs on the ESA S530, ensuring your machine operates at peak performance. By keeping your programs up-to-date, you can optimize precision and productivity, making the most of your manufacturing setup. Whether you’re new to the ESA S530 or looking to refine your skills, this guide will provide the insights you need.

List of Programs

Here is a step-by-step guide for efficiently managing the ESA S530 update programs:

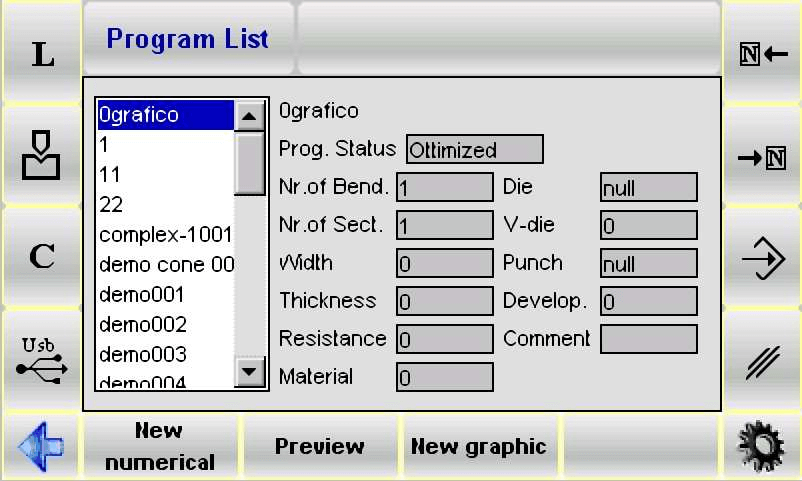

The window on the left is the list window. The central boxes contain the data or preview of the program on which the cursor has positioned (in the list). The display is selected by means of the second function key.

• Use arrow keys to scroll through the list.
• Use function keys to toggle between viewing program data and previews. The function keys have the following meanings:
  • [New Numeric] to enter a new program in the numeric mode;
  • use of the second function key changes depending on the display activated: the meaning will be [Zapowiedź] if the user wishes to display the preview of the program or [Data] if the data of the program are to be displayed.

Instrukcja obsługi

Below are some relevant operation guidelines:

1. How to Display the Preview/Data

Used to display the preview/data of the program (preview only if the program is graphic). It is normally enabled but can be disabled if required.

• wybierz Zapowiedź przedmiot.
• the preview or program data window will be disabled (depending on the status of the second function key), just repeat the operation to enable it again.

2. How to Copy a Program

• Access the menu and select the Kopia przedmiot.
• Enter a new name for the copied program and confirm with [WCHODZIĆ]

3. How to Rename a Program

• Access the menu and select the Przemianować przedmiot.
• Enter the new program name and confirm with [WCHODZIĆ].

4. How to Save a Program to USB Key

• the selected program will be saved on the USB Key.

5. How to Cancel a Program

• naciskać [WCHODZIĆ], the selected program will be cancelled.

6. How to Save All Programs to a USB Key

• Insert a USB Key with sufficient space.
• Access the menu and select the Save Programs przedmiot.
• All programs will be saved onto the USB Key.

7. How to Cancel All Programs

• Access the menu and select the Cancel Programs przedmiot.
• all the programs will be cancelled (confirmation will be requested for each program before it is cancelled).

List of Programs on USB Key

The ESA S530 update programs efficiently by simplifying the management of program data through a USB Key. You can conveniently display a list of programs stored on the USB Key, making it easy to execute operations like copying, renaming, or deleting. To do this, simply insert the USB Key into the ESA S530, press the designated key, and a list of programs will appear, ready for your action.

• Save a Single Program:
  • Navigate to the program you wish to save to the Numeric Control (NC).
  • Press the key to save this selected program from the USB Key to the NC, making it accessible for other controls or the kvara PC.
• Save All Programs:
  • For bulk saving, press the key to access the menu.
  • Select the ‘Save programs‘ option to transfer all programs from the USB Key to the NC in one go.

Program Update

Updating programs on the ESA S530 is a straightforward but essential task to ensure your machine’s optimal performance. When a tool used in an existing program is modified, it’s crucial to perform an update, as the pre-calculated targets will no longer align. Here’s a step-by-step guide on how to efficiently execute the ESA S530 update programs:

1. Start by loading the program from the list that needs updating.
2. Access the set-up menu by navigating to the set-ups mask and pressing the designated key.
3. Wybierz Update Prog. item from the menu. This action will automatically recalculate all relevant program data.
4. Once the data are recalculated, remember to save the updated program if necessary.

Keeping your ESA S530 update programs in check is vital for maintaining accuracy and enhancing your machine’s productivity, ensuring seamless operations and high-quality output.

Numeric Program Set-up

Proceed as follows to set-up a new program:

• select [New Numeric] to begin setting up a new program.

General Data Set-up

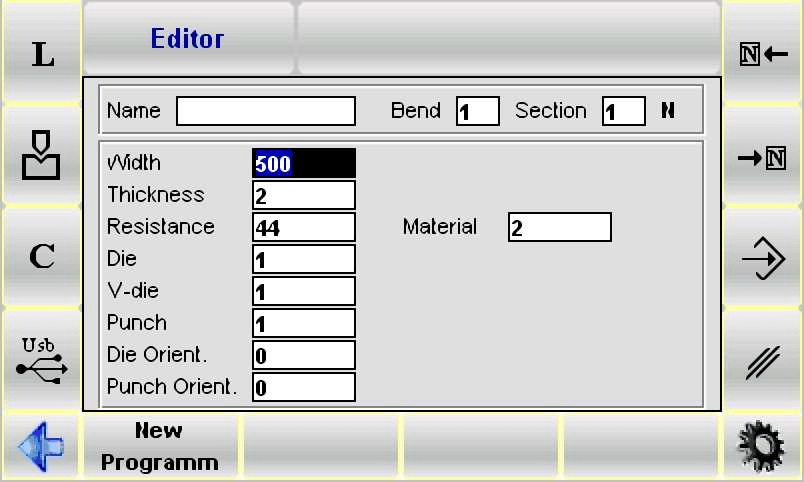

The first program data set-up window will appear:

• Input the width, thickness, and material strength of the sheet metal, bearing the following convention in mind:

−aluminium: 0 – 30;

− sheet metal: 31 – 50 (ideal value 42);

− stainless steel: over 50;

• Specify the die and punch details, including the slot and directional orientations.

Bend Set-up

Now press PgDn to access the mask where the bending data are entered:

Enter the following information for each bend:

− The required bending angle in the Y1 angle Y1 field;

− The required bend length in the X1 ends field.

All the other bend data are calculated automatically, but can be modified by the user.

Machining Data Entry

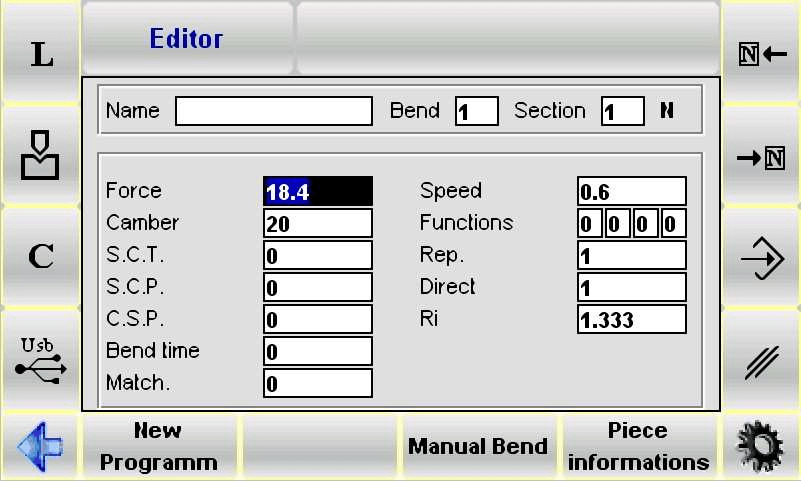

Now press the PgDn key to access the mask where the machining data of the bend are entered:

Workpiece Data Entry

naciśnij [Workpiece Data] key from the bending data set-up mask or machining data set-up mask. A window with the workpiece data will appear:

Machining Data

Used to display the data concerning the absolute T.D.C, S.C.P I P.C.P of that bend. Go to the required bend and comply with the following procedure:

• access the menu and select the Machining Data item;

• a window with the machining data will appear.

By following these simplified steps, you can efficiently set up numeric programs on the ESA S530, ensuring precision and adaptability in your manufacturing processes.

Bend Management

Use menu options to copy, insert, or modify bends as needed. For rolling operations, enter angles and radius details where applicable.

In the realm of industrial operations, the ESA S530 update programs streamline bending and flattening processes for maximum efficiency. When defining a bending and flattening operation, the ESA S530 allows users to enter specific parameters in the bend set-up window, such as setting the Y1 Angle field to 0.0. The machine then calculates the ram’s arrival value based on variables like slot depth and workpiece thickness. The ESA S530 update programs ensure precise positioning, with the X axis reaching its minimum target and the R axis accommodating die openness.

Bending and flattening correction

For corrections in bending and flattening, adjustments are seamlessly managed without altering the angle directly. Instead, users modify numeric values in the B.D.C. field of Y1, with any over-bending being corrected by increasing this value. Furthermore, the ESA S530 provides intuitive controls, allowing access to correction masks and automatic target calculations for continuous operational accuracy.

Conducting Striking or Coining

• Enter the same angle as your tools in the setup.
• Modify the force and adjust the B.D.C. points of Y1 and Y2 as needed for precision.

Perform Conical Bending

• Assemble special locators and configure the X2 axis.
• In the setup, enter the initial position of X1.
• Access the secondary menu and select [Conical] to enter the required angle.
• Confirm your entries and the system will auto-update X1 and X2 targets.

When modifying a conical bend on the ESA S530, if you need to change the phase angle or metal plate width, you must first cancel the existing bend and set up a new one before entering data with the [Conical] function key. Failing to do so will result in incorrect target calculations. If modifications are made to the bend data, such as plate width or thickness, the system will not automatically recalculate targets for X2, X2 Corrections, or X2 Recoil.

Make Off-Slot Bends

In off-slot bends, this position is above the upper die plane and the target is numerically higher than the theoretical plate crimping target.

1. Ensure Correct Order of Targets: Use decreasing numeric order:
   • Top Dead Center (TDC)
   • Speed Change Target
   • Crimping Target (Target 180)
   • End of Bend Target (Bottom Dead Center)
2. Enter Bending Data:
   • Set end of bend values directly into the Y1 I Y2 B.D.C. fields, with Y1 and Y2 Angles at zero.
   • Input the P.C.P. value such that when added to the Theoretical 180 target, it exceeds the B.D.C. values.
3. Adjust Speed Change:
   • Input the S.C.P. value so that added to the Theoretical speed change target, it exceeds the sum of the Theoretical 180 target I P.C.P.
4. Verify Top Dead Center: It must be above the combined value of the theoretical speed change target and S.C.P.

Save Your Program

To preserve modifications and create different versions, use the ESA S530 update programs feature to save a program with a different name:

• Access the menu and select the Save As opcja.

• Enter a new program name and confirm by pressing [WCHODZIĆ].

Graphic Program Entry (Options Feature)

To efficiently create a new graphic program using the ESA S530 Update Programs, follow these steps:

• Wybierać [New graphic].

General Data Entry

A window is opened where the general data of the program can be entered. Access to the drawing function will not be allowed unless these data are entered.

• Input the width and thickness of the metal.
• Specify material strength:
  • Aluminum: 0-30
  • Metal plate: 31-50 (ideal: 42)
  • Stainless steel: over 50
• Choose die and punch (ensure they are pre-drawn) and specify direction.
• Enter die cavity number and any comments if needed.

Okno rysunku

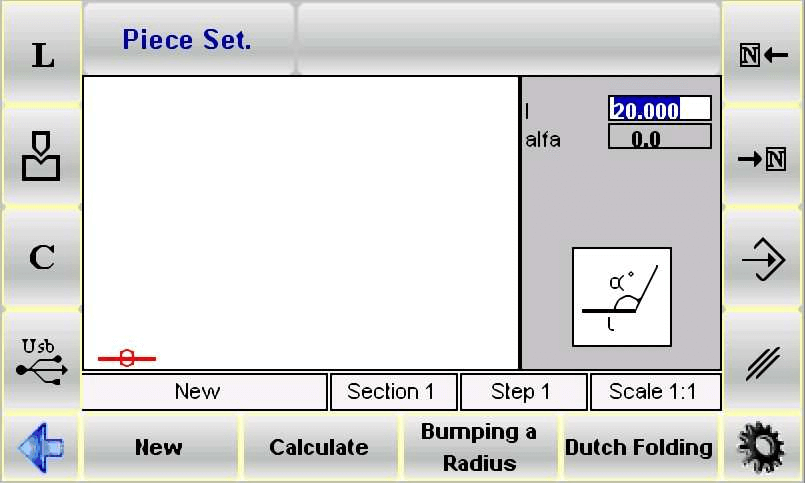

The drawing window of the workpiece will be opened and the workpiece produced by means of the drawing function.

Utilize the four data entry windows for different drawing aspects:

1. Polar drawing data
2. Cartesian drawing data
3. Roller-leveling drawing data
4. Pressed bend drawing data

How to Draw a Workpiece

Supposing that the workpiece shown in the figure must be drawn:

1. Begin Drawing:
   • Go to field 1 in the polar drawing data entry window.
2. Input Sections:
   • First Section: Length 20.0, Angle 120.0°.
   • Second Section: Length 45.0, Angle -120.0°.
   • Third Section: Length 70.0, Angle -90.0°.
   • Fourth Section: Length 20.0, Angle 90.0°.
   • Fifth Section: Length 30.0.
3. Complete Drawing:
   • Naciskać [WCHODZIĆ] after each input to progress automatically.

Using these steps, the ESA S530 Update Programs will efficiently process and complete your workpiece drawing.

How to Carry out a Roller Levelling Operation

Supposing that the workpiece shown in the figure must be drawn:

1. Initial Setup:
   • Enter the first section length (e.g., 20.0).
2. Configure Roller Leveling:
   • Wybierać [Roller Leveling].
   • Enter angle 90.0° in field αc i naciśnij [WCHODZIĆ].
3. Set Radius and Step:
   • Enter radius 60.0 in field R.
   • Specify step length in field P i naciśnij [WCHODZIĆ].
4. Complete Drawing:
   • Enter last section length (e.g., 30.0).

This streamlined process ensures efficient roller leveling using the ESA S530 Update Programs.

How to Carry out a Bend-and-Press Step

1. Start the Drawing:
   • Enter the length (L1: 30.0) in field 1.
   • Naciskać [WCHODZIĆ] i wybierz [Press-and-bend].
   • Enter the angle (45.0°) in the alpha field and press [WCHODZIĆ].
2. Proceed with Automatic Drawing:
   • Enter the next section’s length (100.0) and press [WCHODZIĆ].
   • Enter the angle (-90.0°) in the alpha field.
3. Complete the Drawing:
   • Continue with the next side’s length (100.0).
   • For the last section, input the length (22.0).

This streamlined method uses ESA S530 Update Programs to automatically manage drawing sections efficiently.

Często zadawane pytania (FAQ)

Wniosek

Efficiently updating programs on the ESA S530 involves understanding and utilizing key features such as the list of available programs, program updates, numeric program setups, and graphic program entry options. By keeping the ESA S530 programs updated, users can ensure optimal machine performance and precision in manufacturing. Leveraging both automatic and manual bending sequence calculations can enhance flexibility and accuracy. Utilizing the materials table and properly applying clinching and coining coefficients contribute to improving manufacturing precision with the ESA S530.

For more in-depth support on how to execute ESA S530 Update Programs or if you have any questions related to the ESA S530, we encourage you to reach out to our support team. Additionally, explore our extensive library of related documentation to further your understanding and effectiveness in using the ESA S530.
