التحكم الرقمي بالكمبيوتر مكابح الضغط CT12 operation causing you trouble? Learn the essentials of using the CT12 for efficient, precise bending.

Mastering the CNC مكابح الضغط CT12 is crucial for achieving high-precision bends. This guide provides step-by-step instructions on setting up and operating the CT12 effectively, ensuring optimal bending results. Let’s dive deeper into key steps and tips for operating the CT12.

الجزء الأول املأ توصيلات الزيت والكابلات

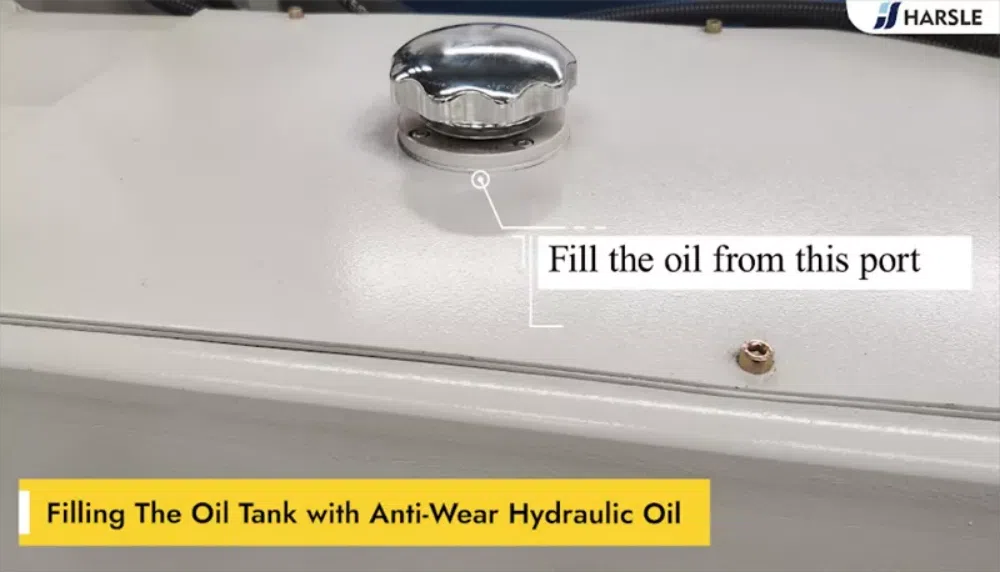

• Filling the oil tank with anti-wear hydraulic oil. And fill the oil from this port.

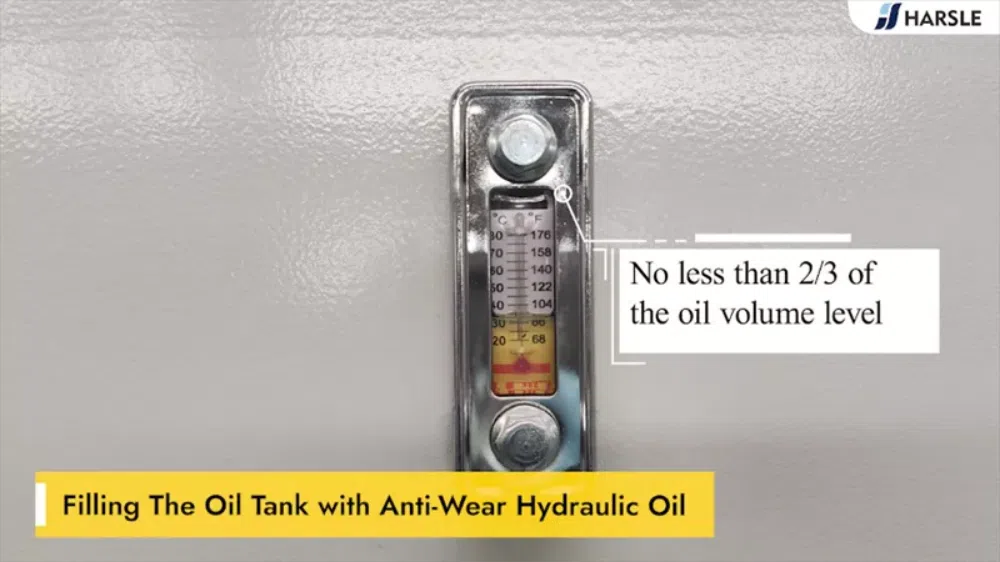

• No less than 2/3 of the Oil Volume Level.

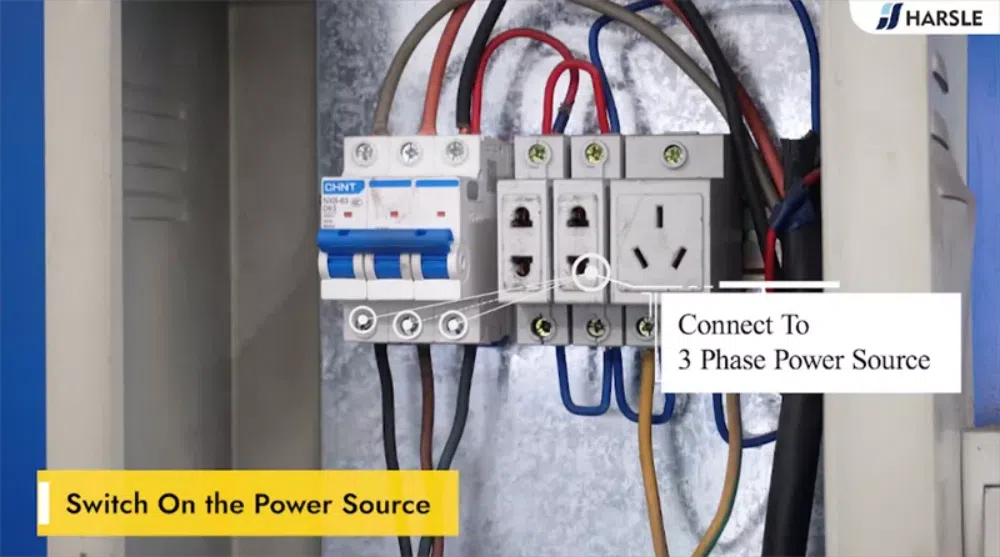

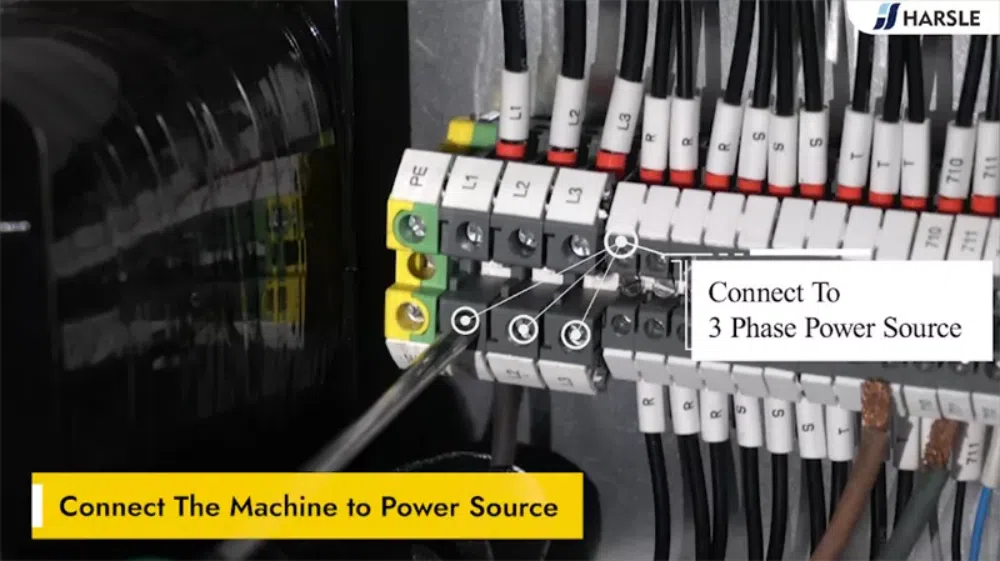

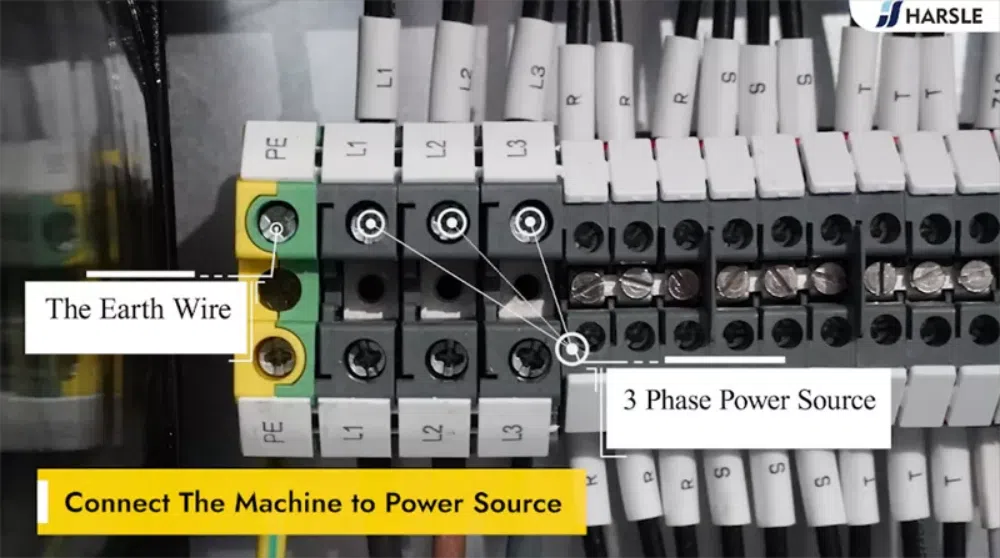

• Connect the machine to the power source. And connect to a 3-phase power source.

• Switch on the power source.

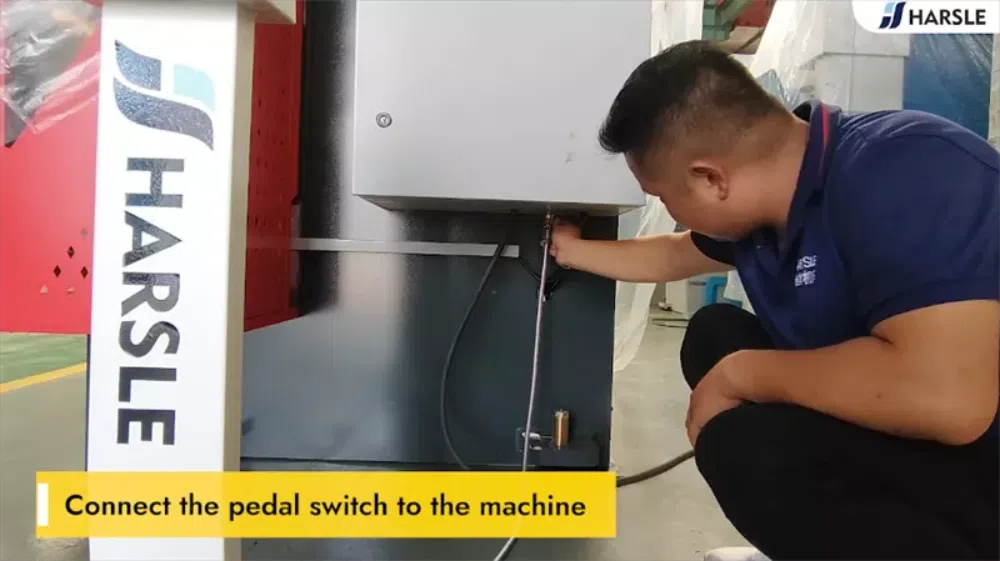

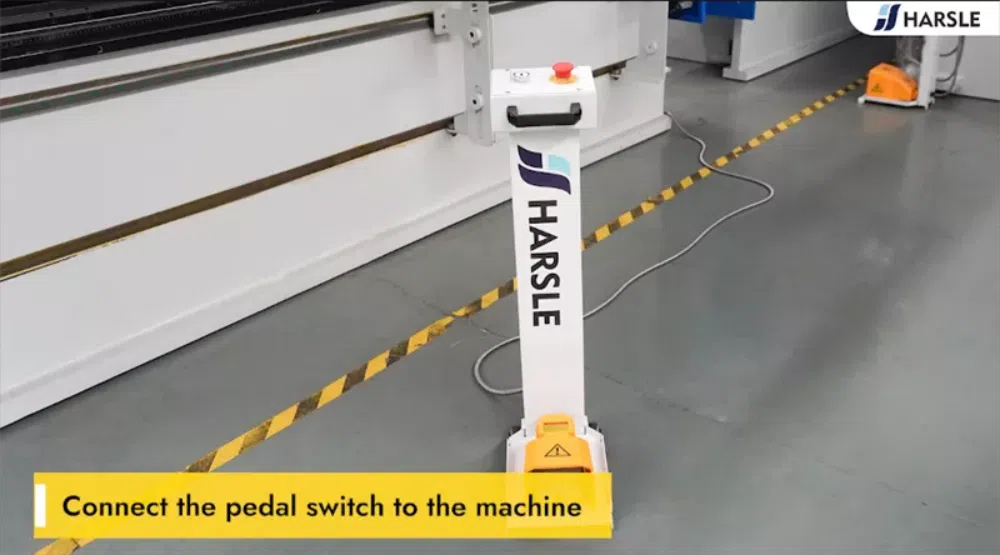

• Connect the pedal switch to the machine.

• Turn on the power switch.

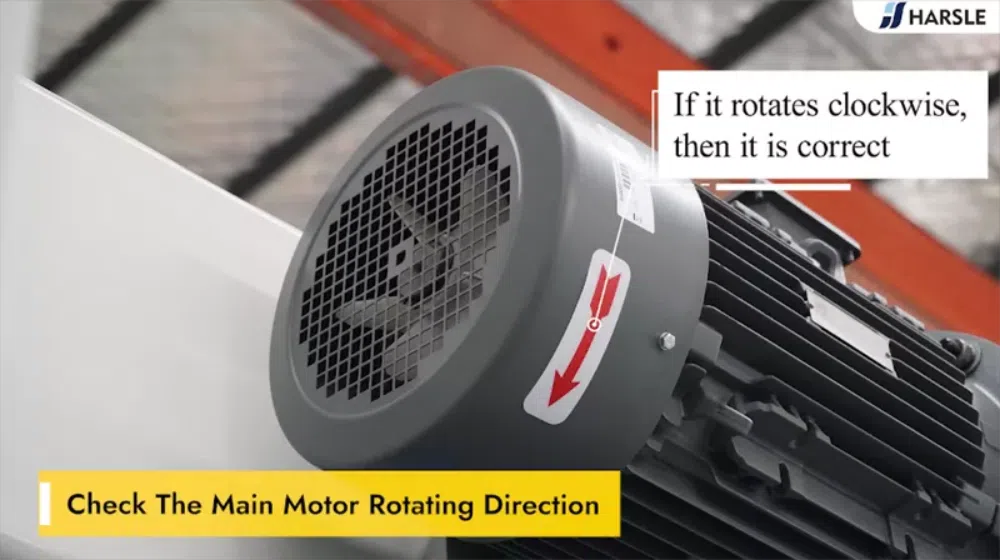

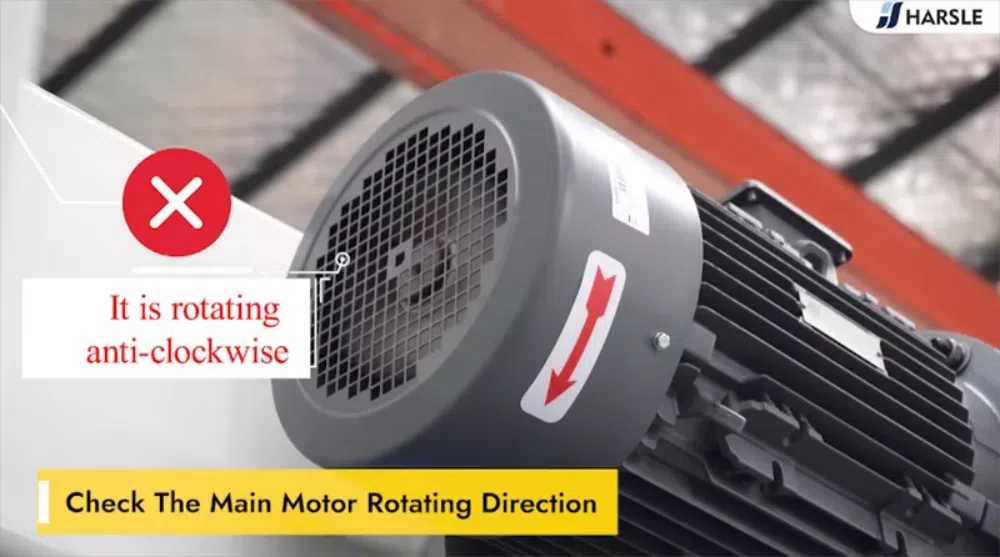

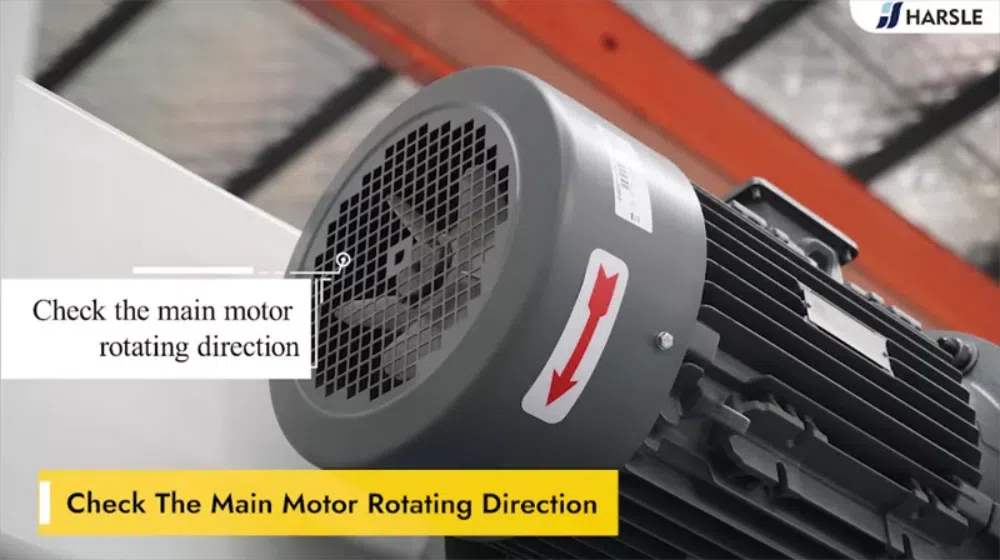

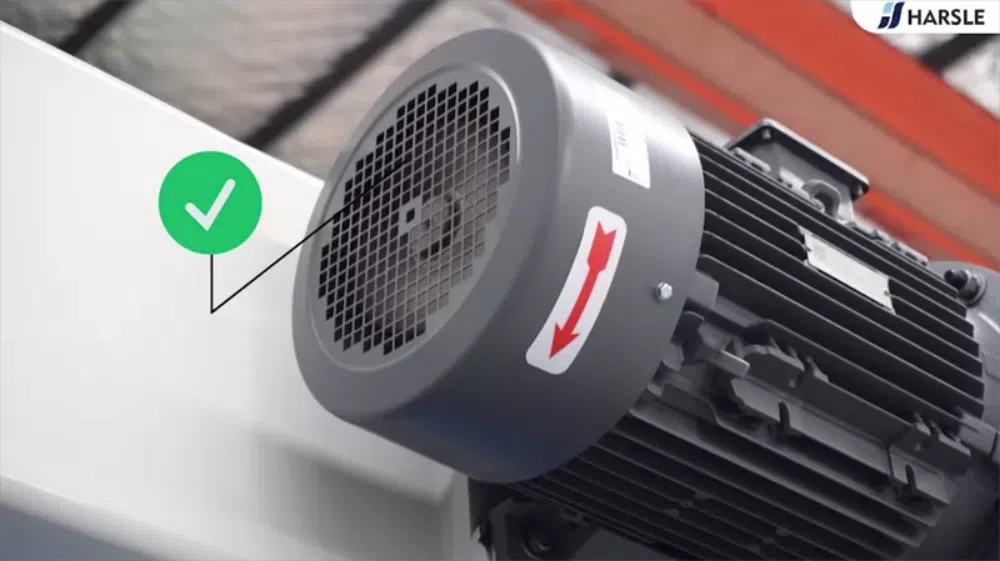

• Check the main motor rotating direction.

• If it rotates clockwise, then It is correct.

• If it is rotating anti-clockwise. And press the emergency stop.

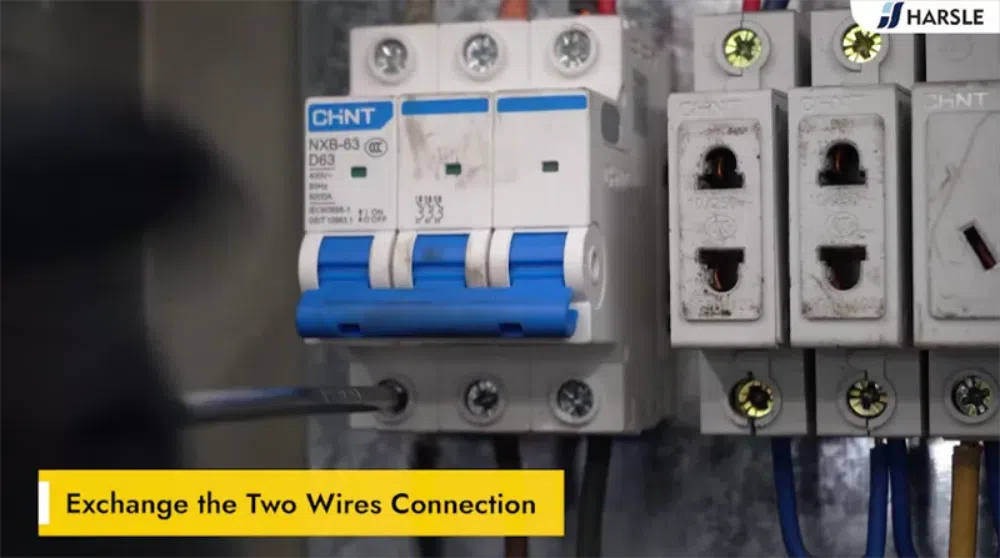

• Exchange the two wires connection.

الجزء الثاني بدء تشغيل الماكينة

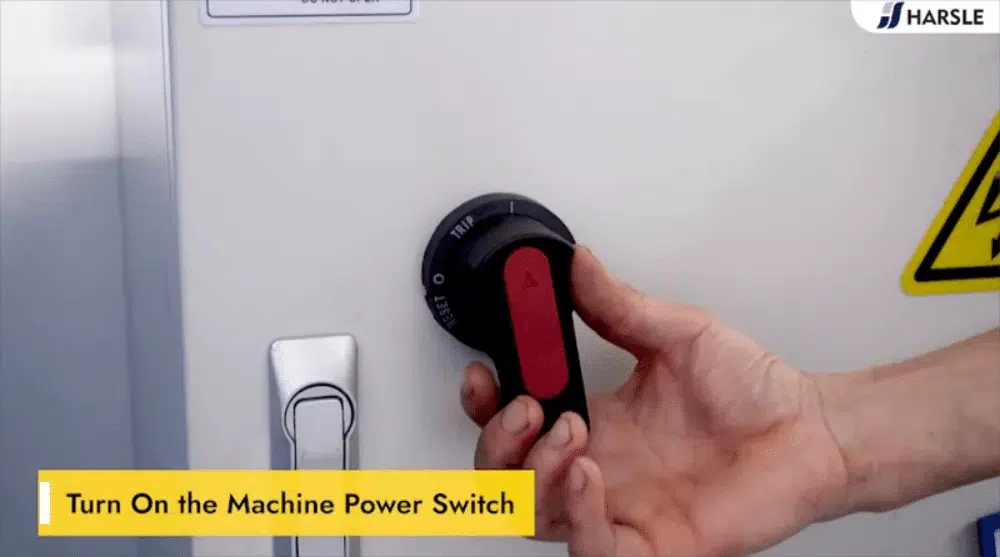

• Turn on the machine power switch.

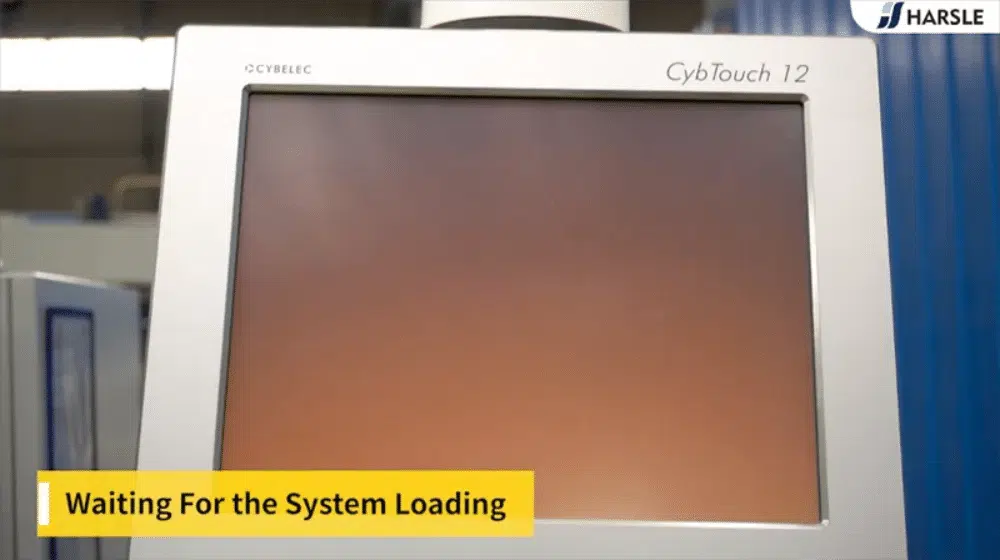

• في انتظار تحميل النظام

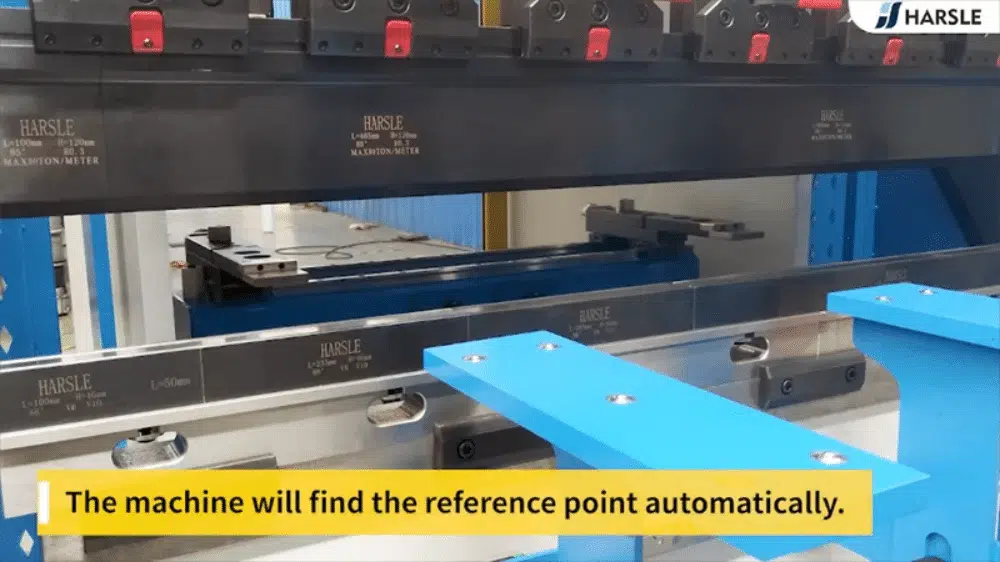

• The machine will find the reference point automatically.

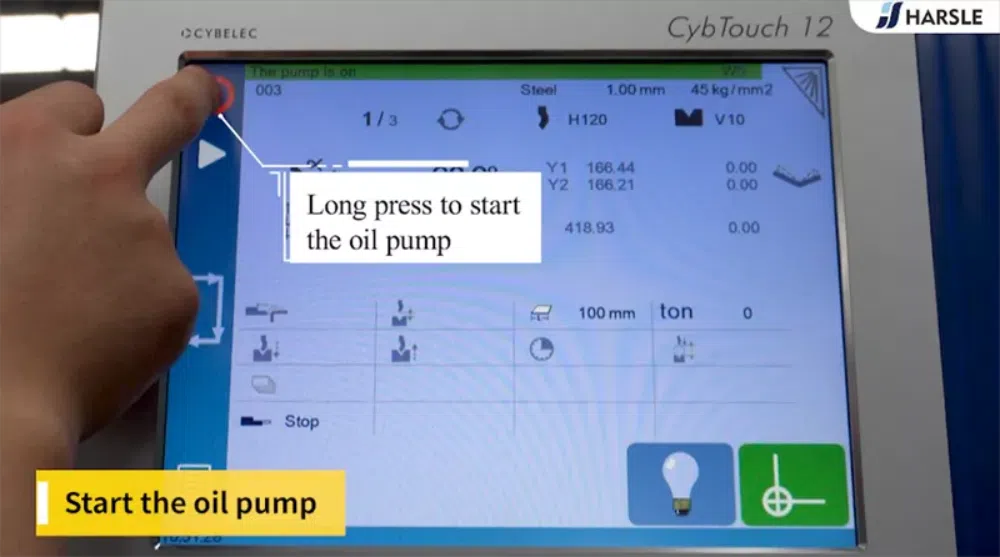

• Start the oil pump

الجزء الثالث CT12 Operation

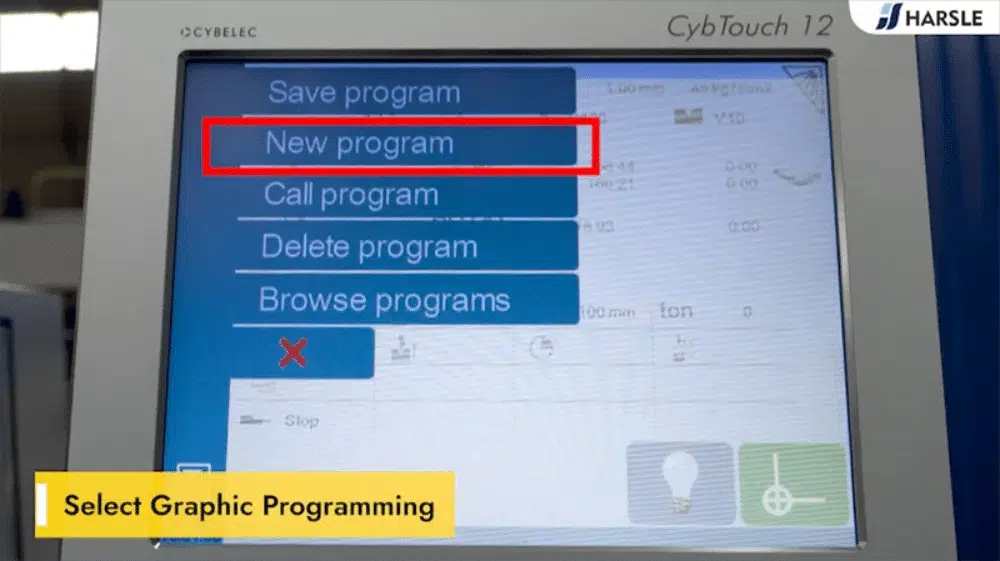

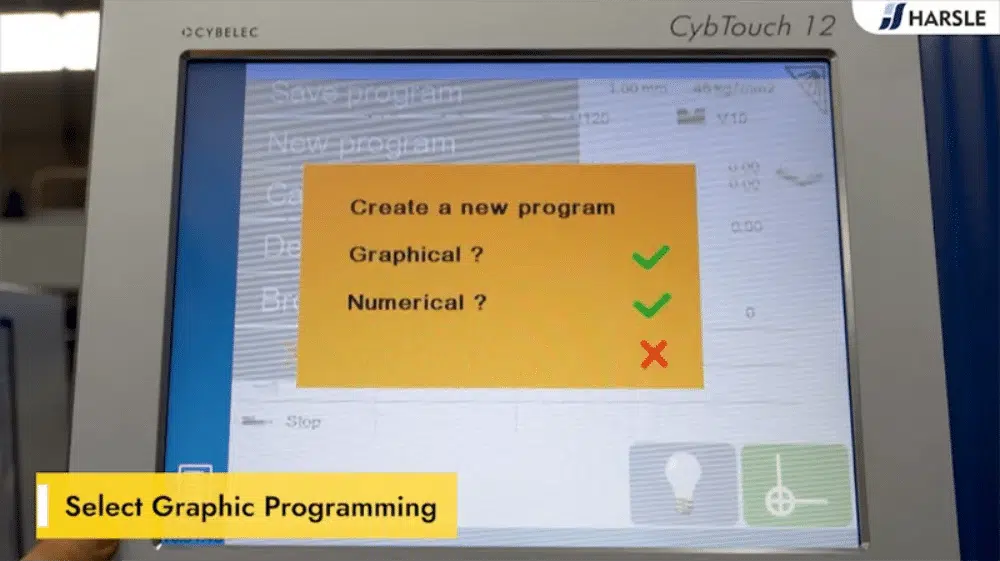

• Select Graphic Programming

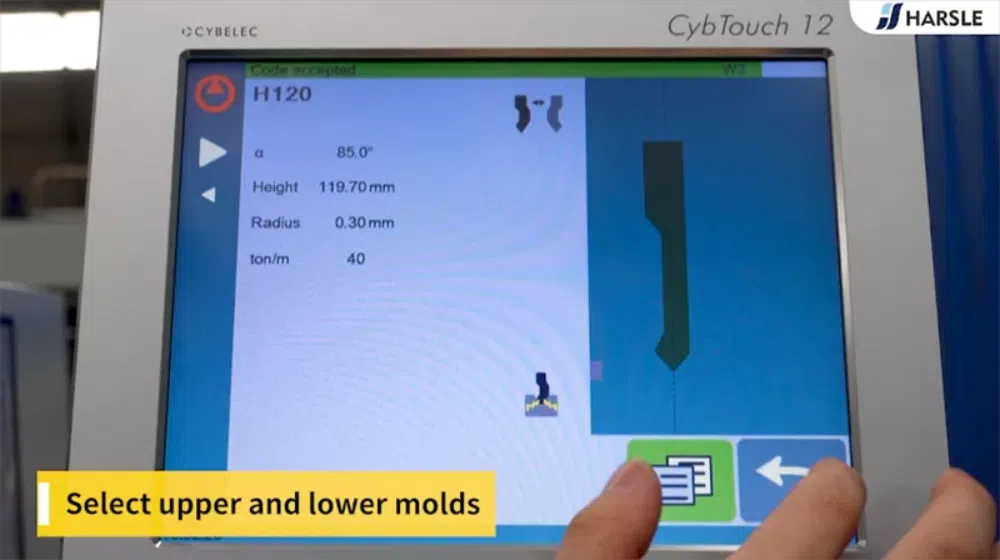

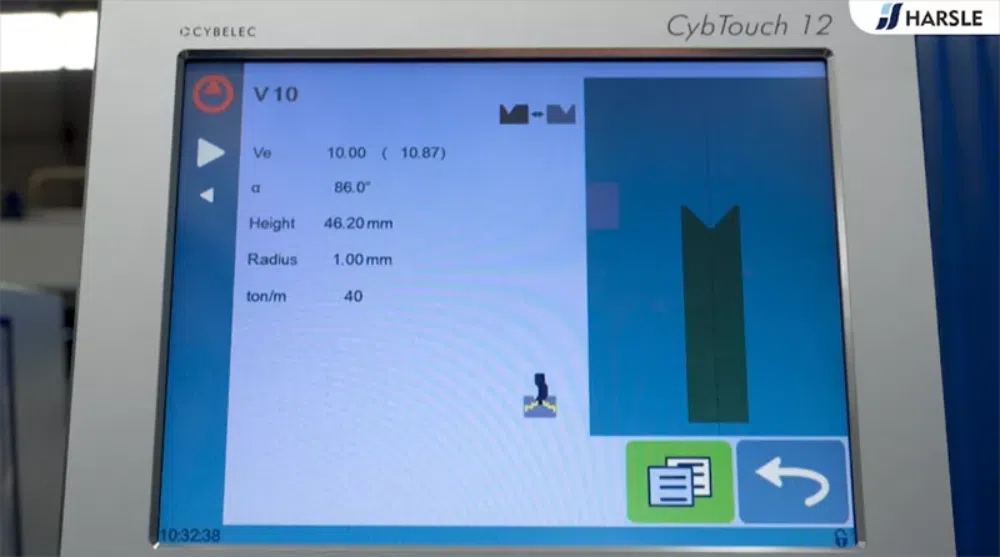

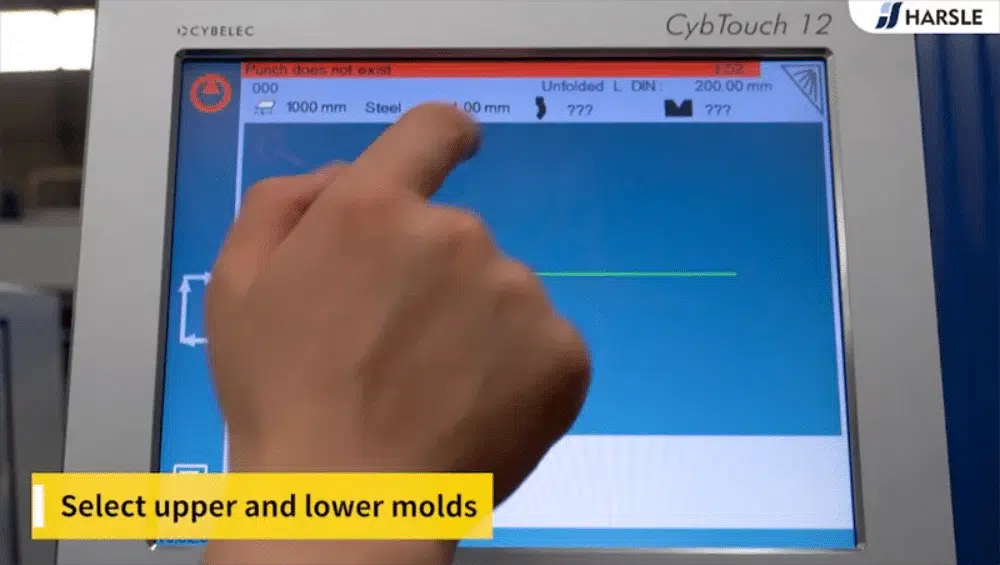

• Select upper and lower molds

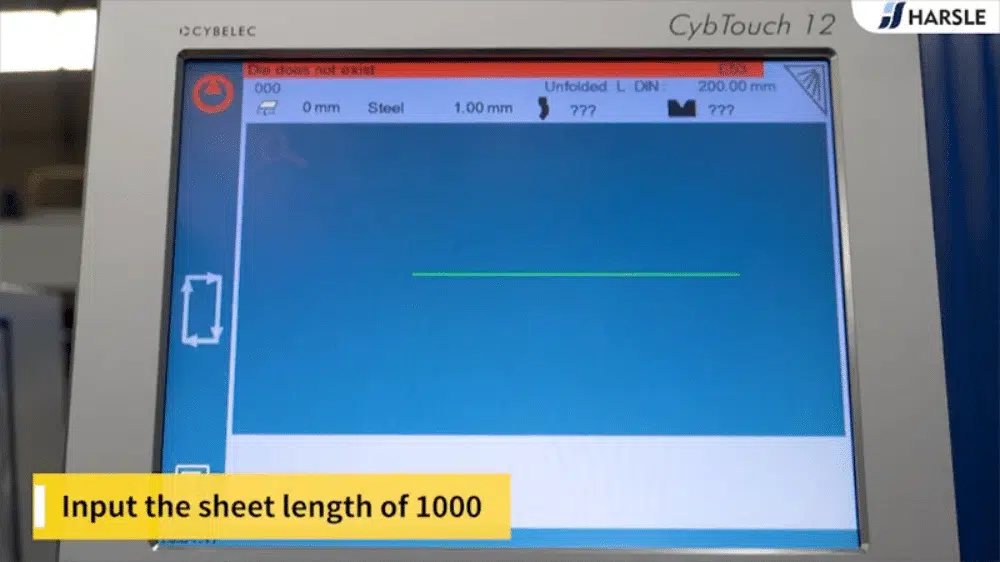

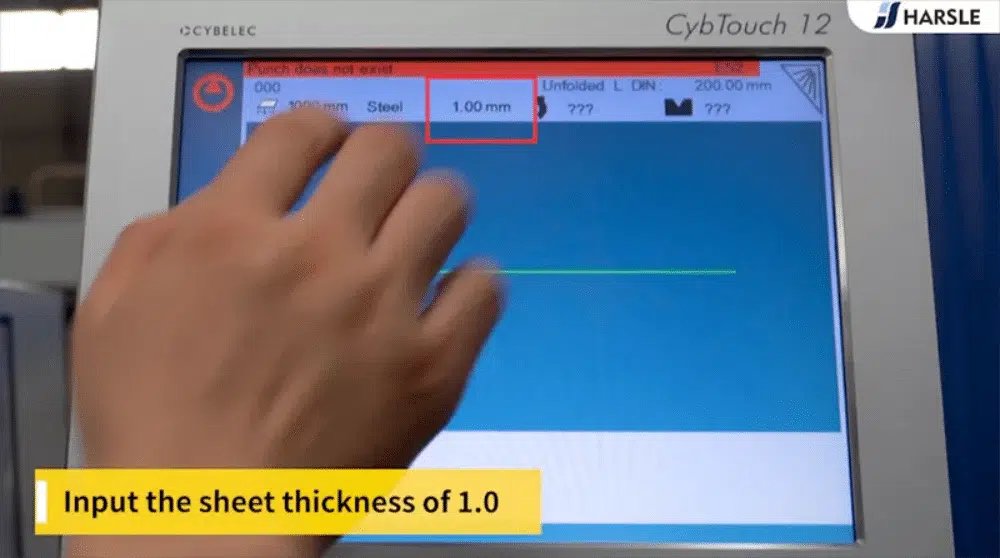

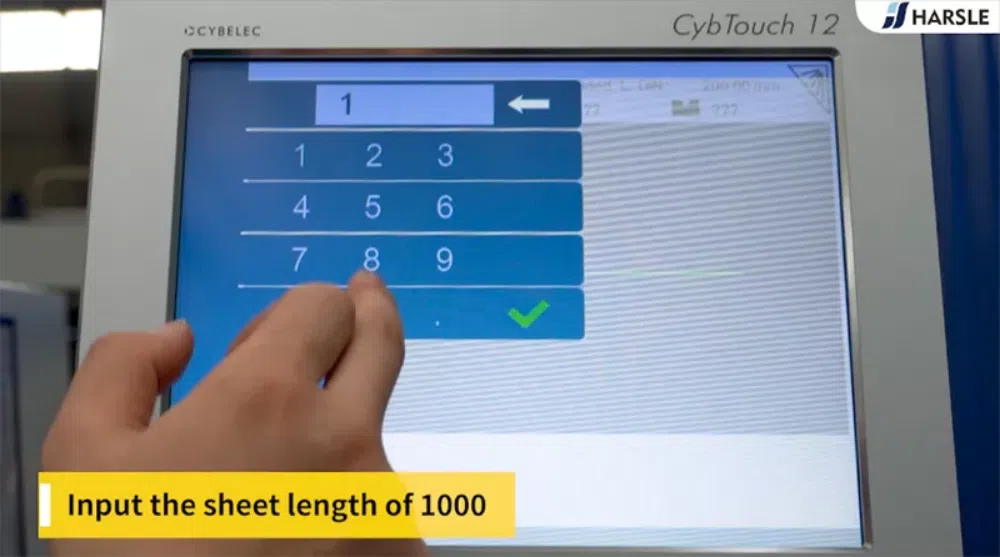

• Input the sheet length of 1000

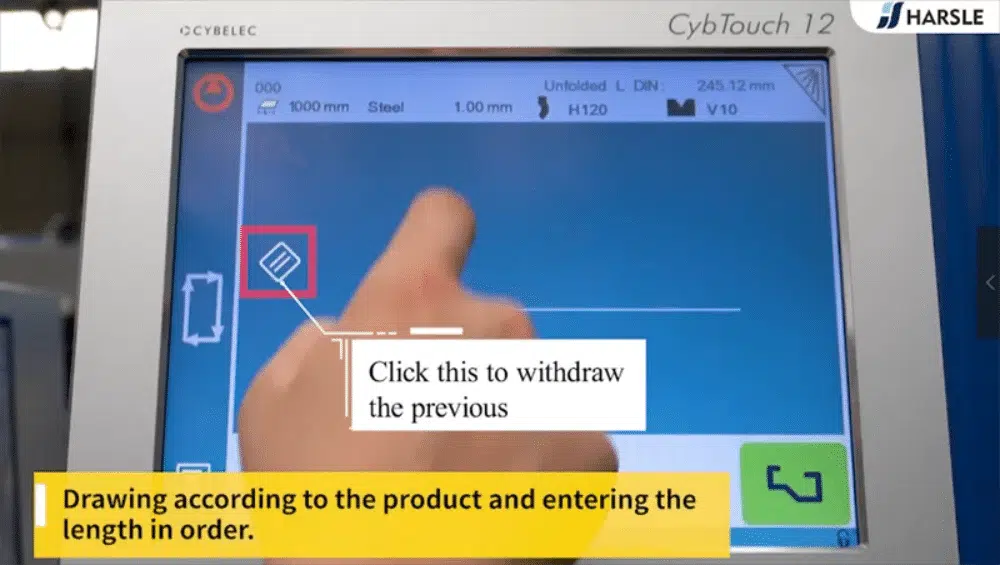

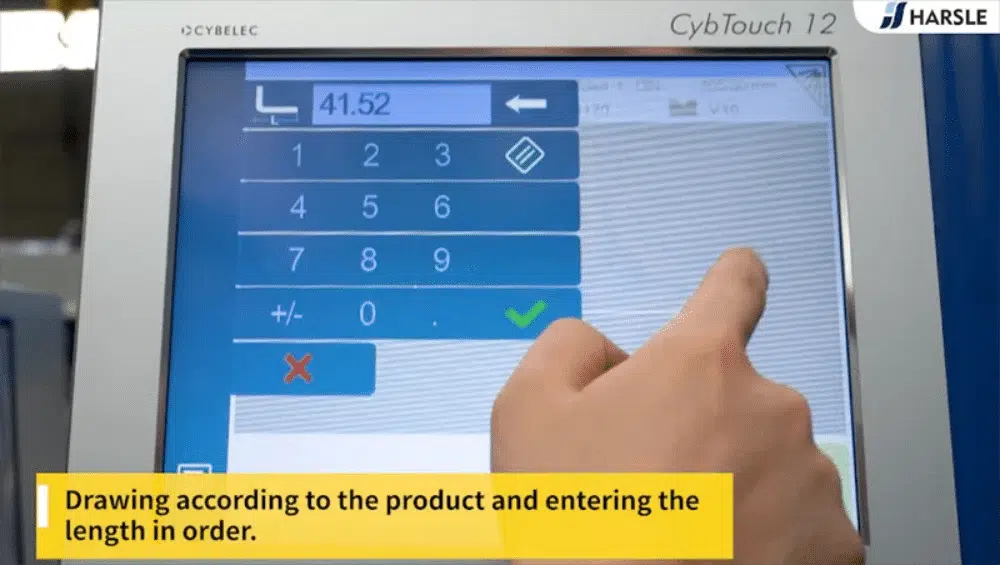

• Drawing according to the product and entering the length in order.

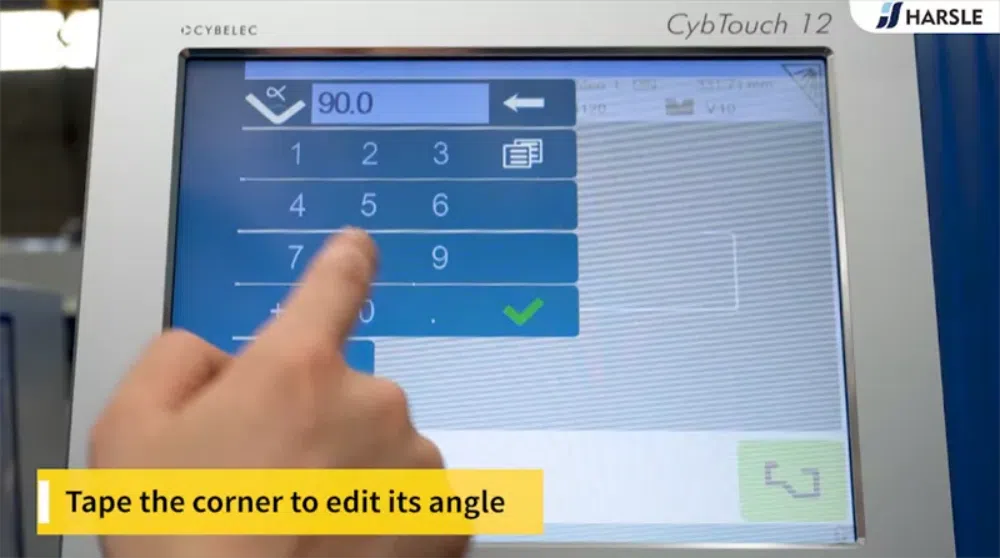

• Tape the corner to edit its angle

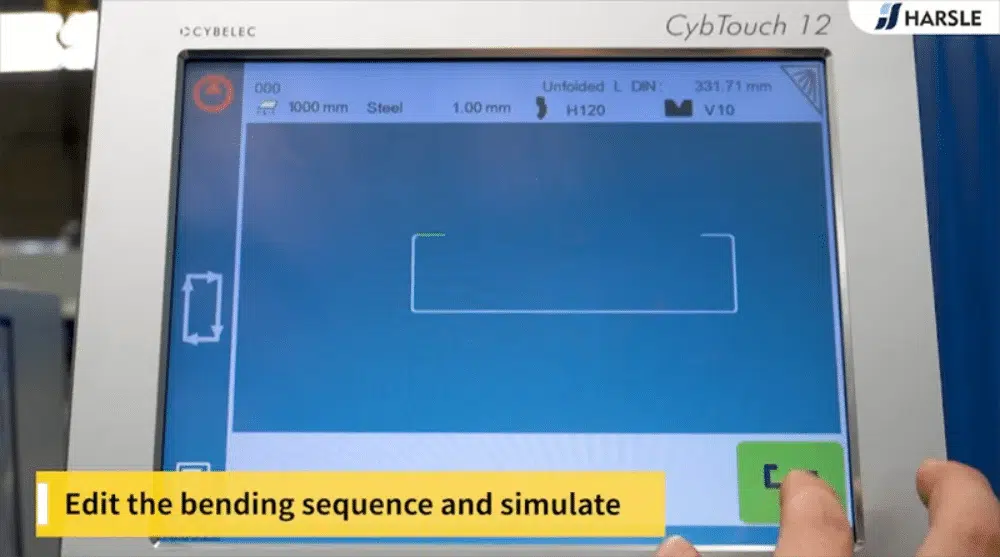

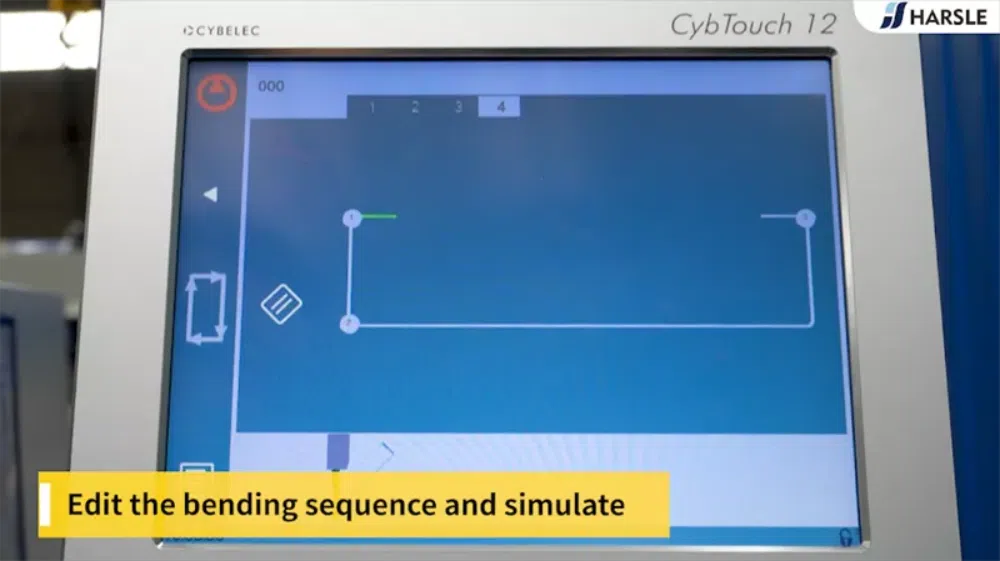

• Edit the bending sequence and simulate

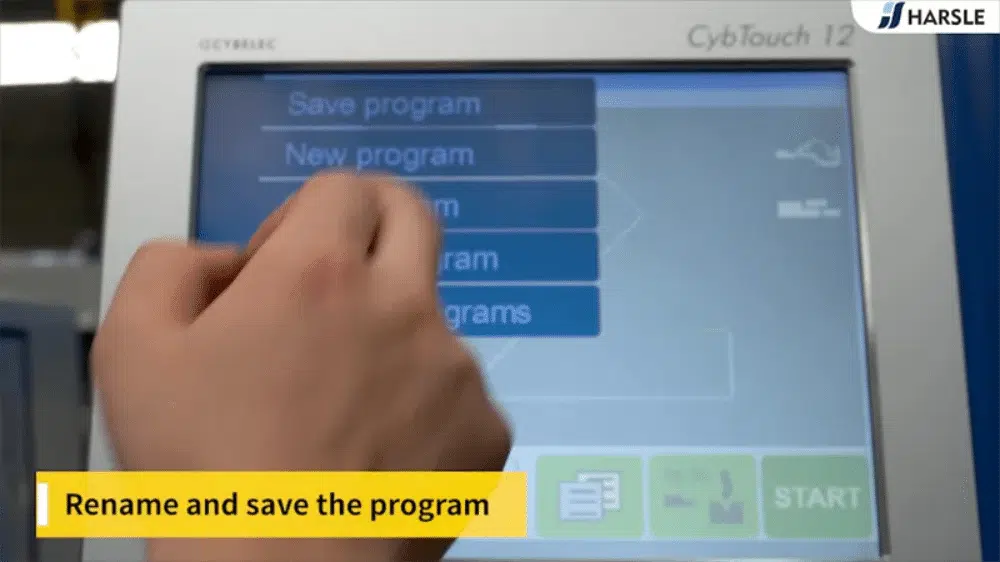

• Rename and save the program

الجزء الرابع الانحناء

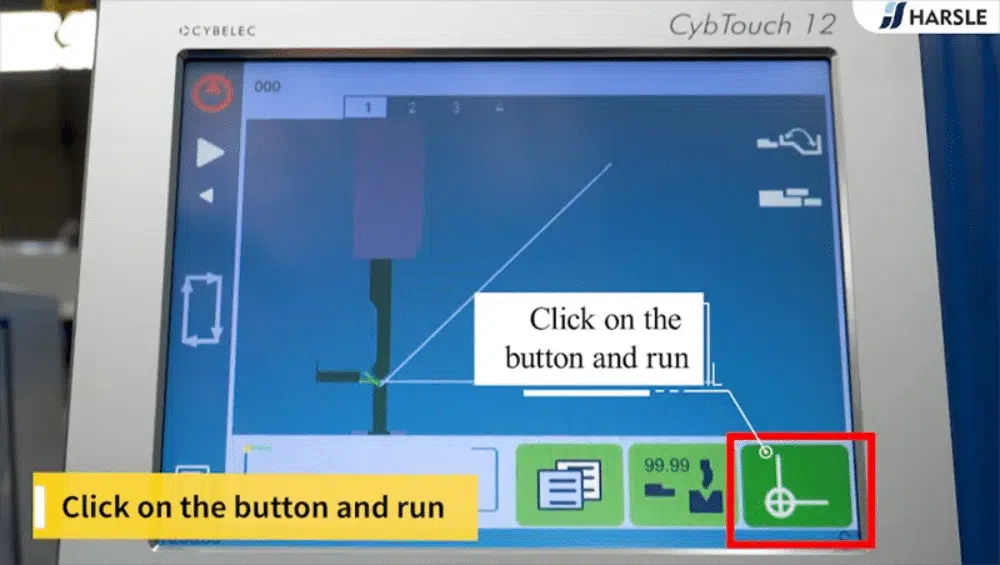

• click on the button and run

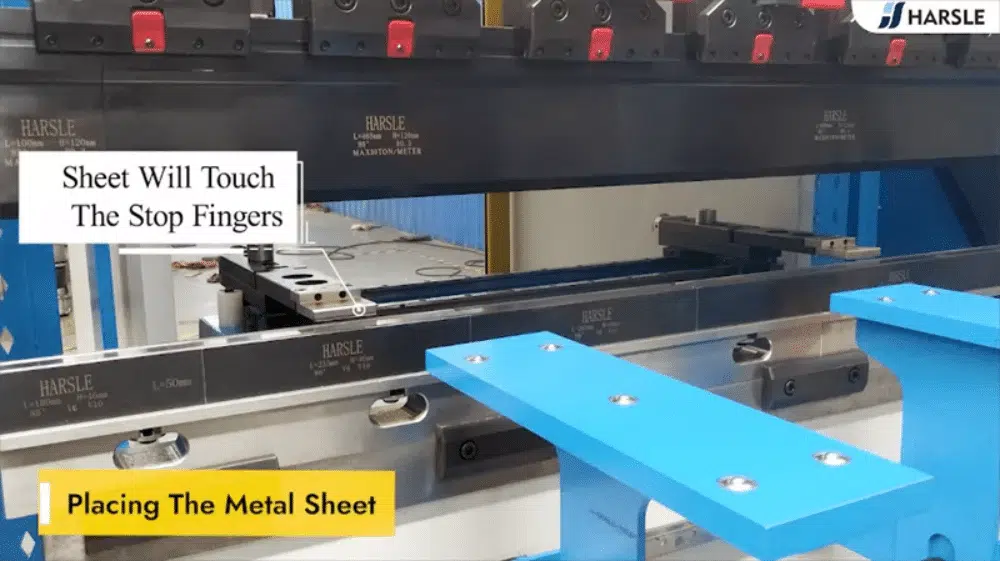

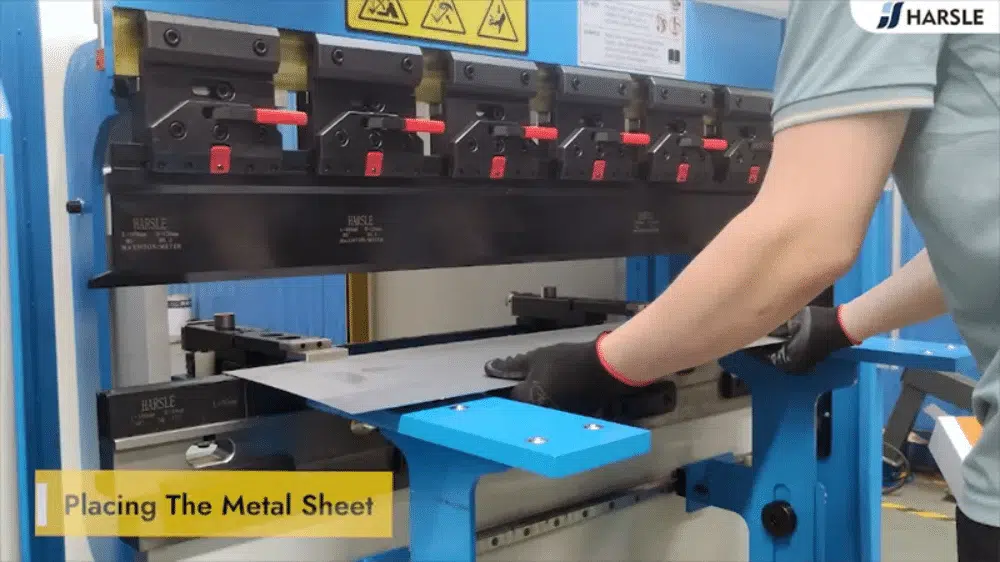

• Placing the metal sheet. And the sheet will touch the stop fingers.

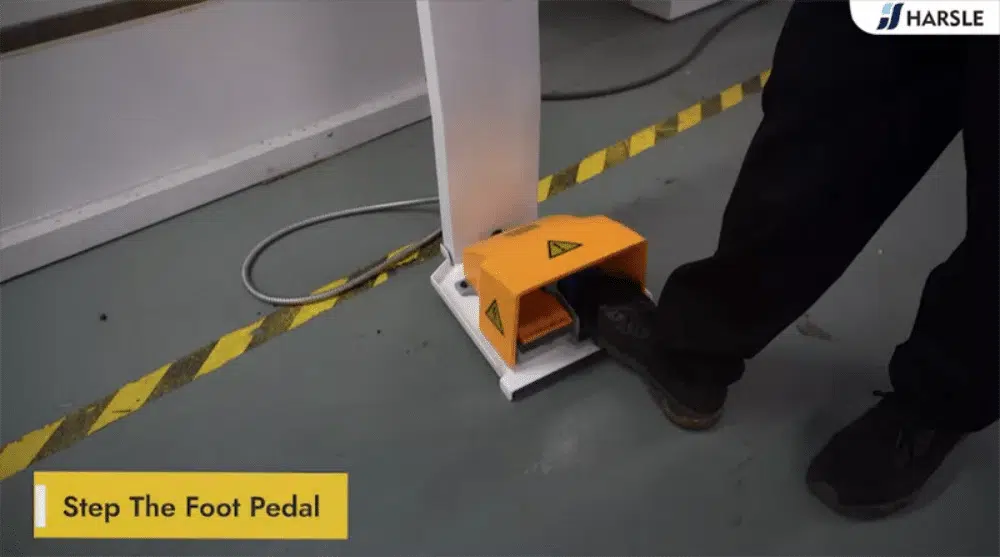

• Step the foot pedal.

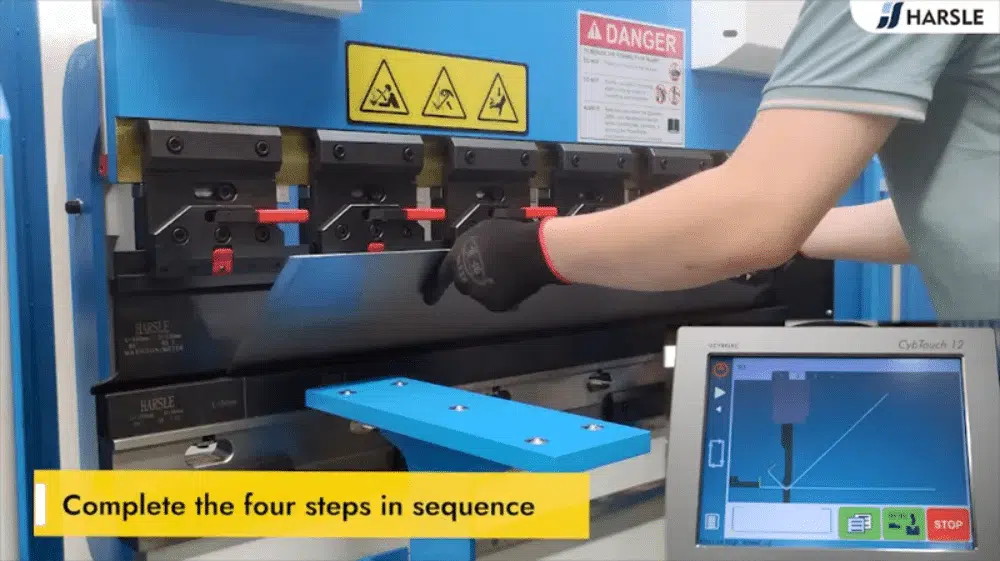

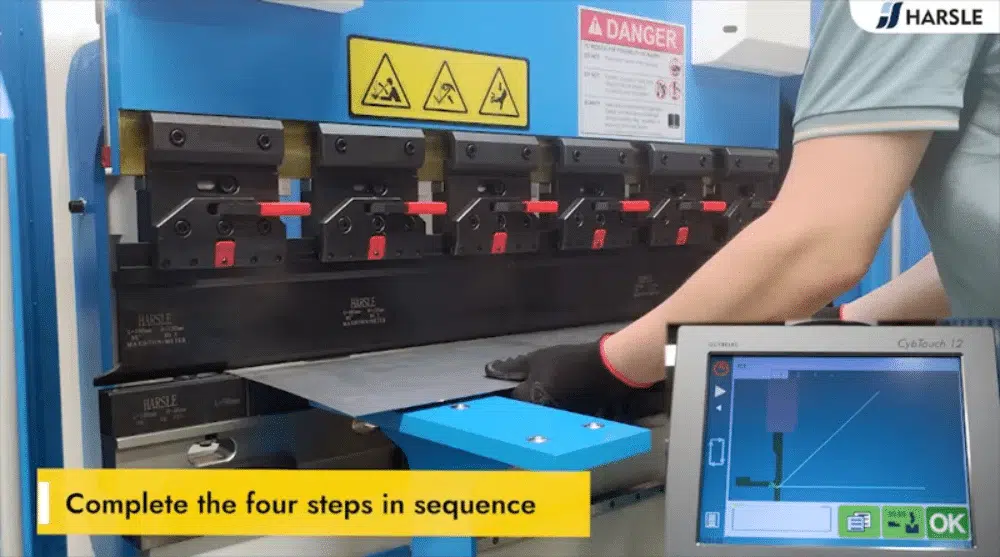

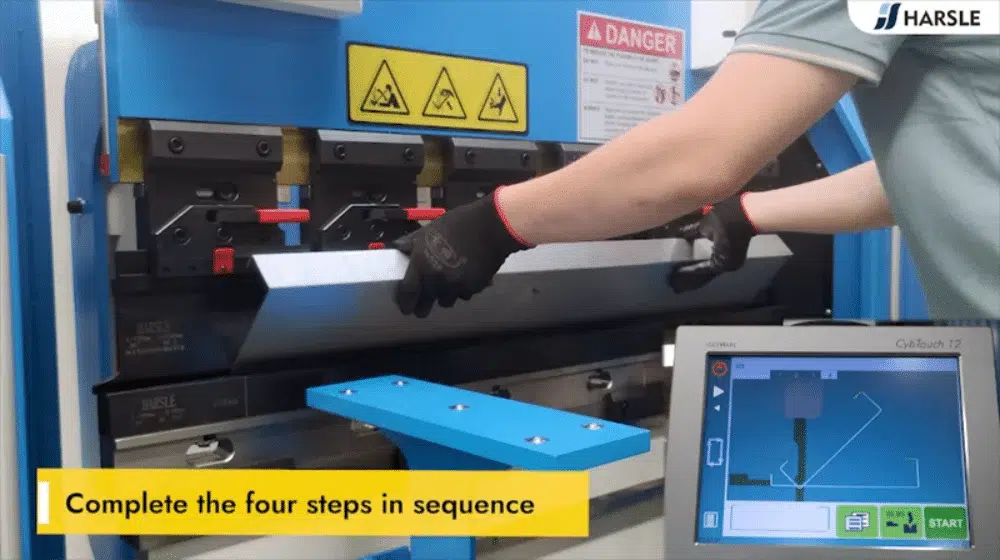

• Complete the four steps in sequence.

الجزء الخامس Measurement & Calibration

• قياس مسافة الانحناء الأولى

• قياس مسافة الانحناء الثانية

• Measure the angle

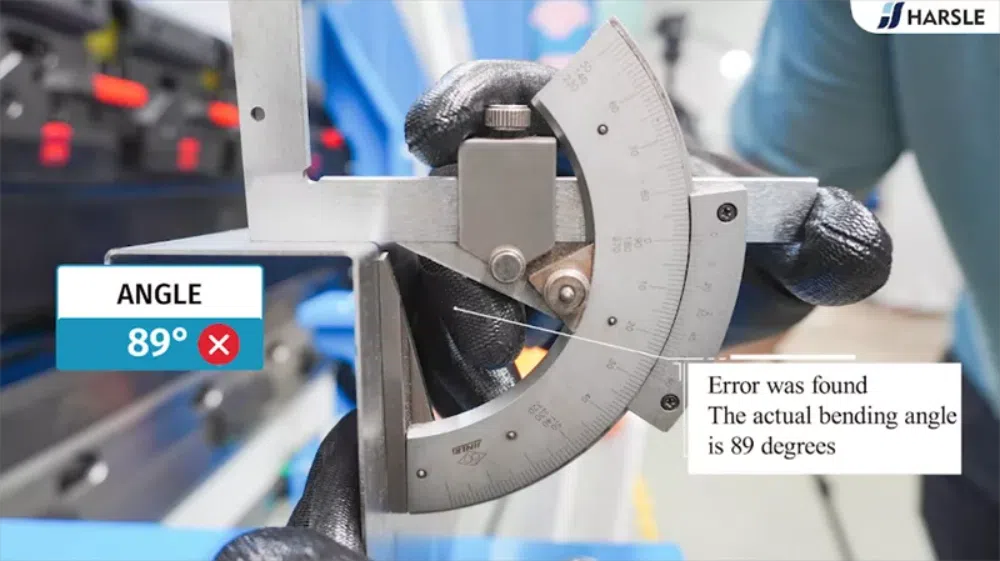

• Error was found, the actual bending angle is 89 degrees

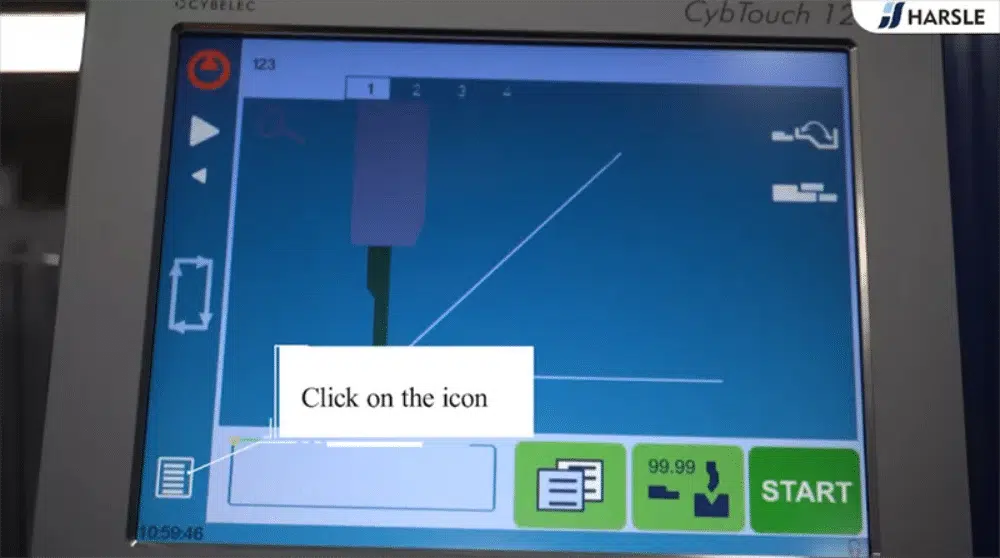

• Click on the icon

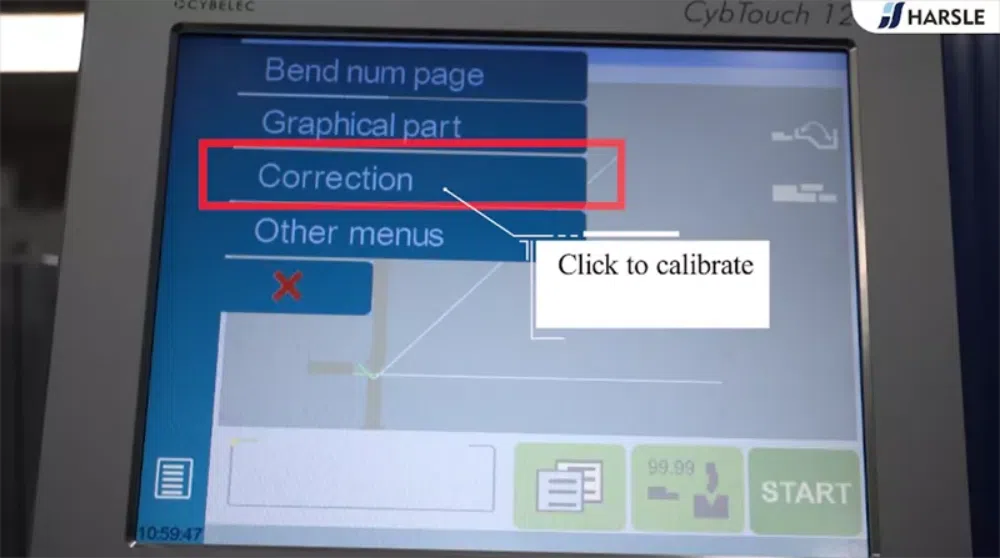

• Click to calibrate

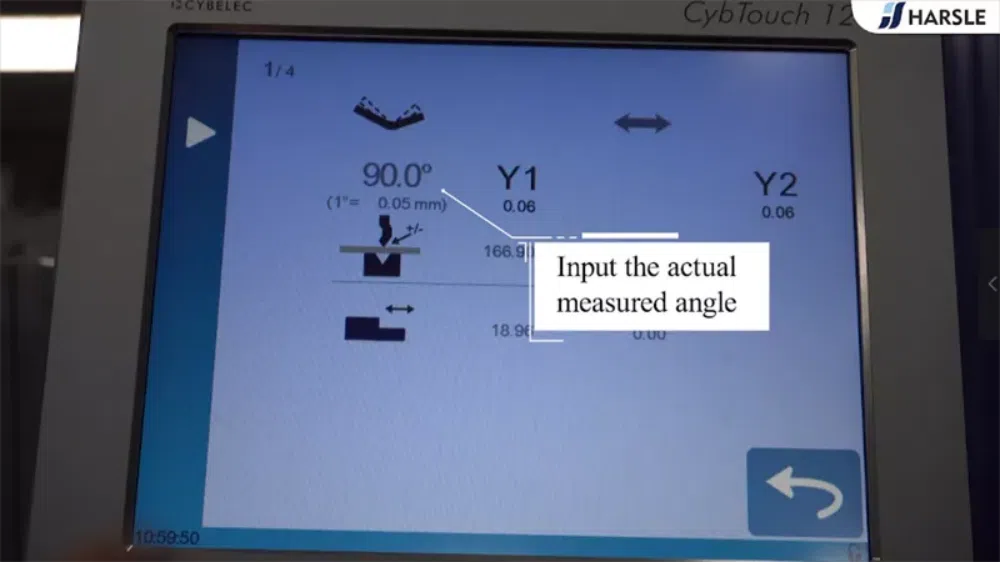

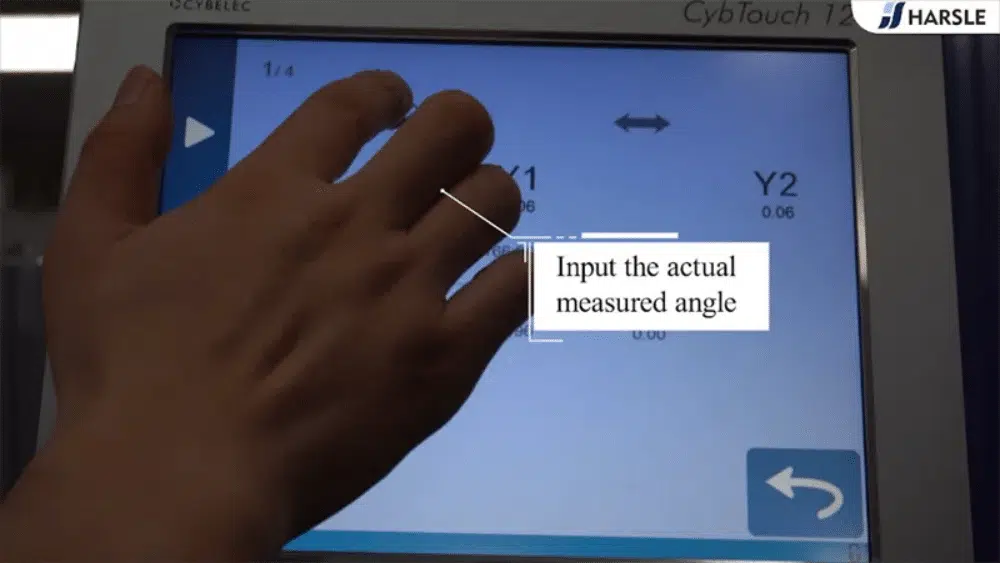

• Input the actual measured angle

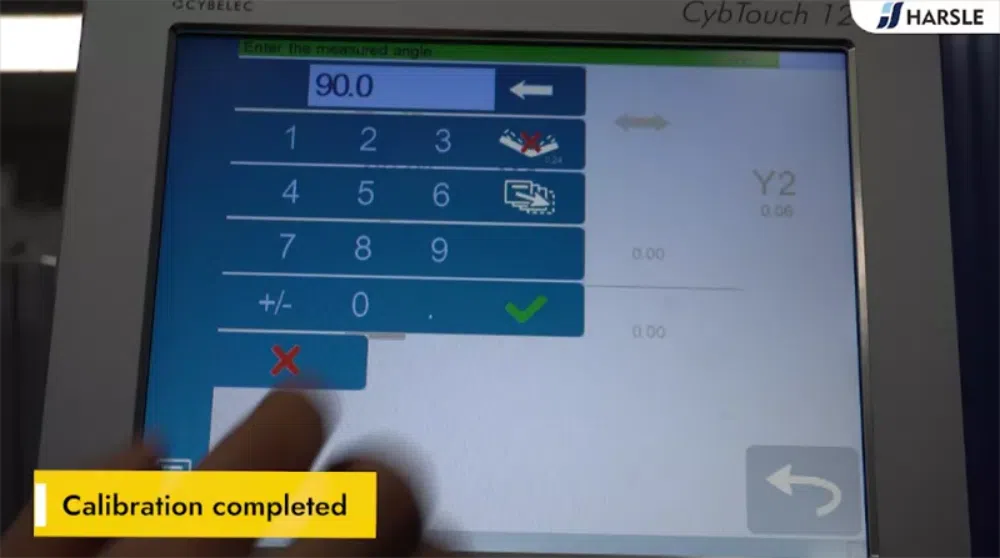

• Calibration completed

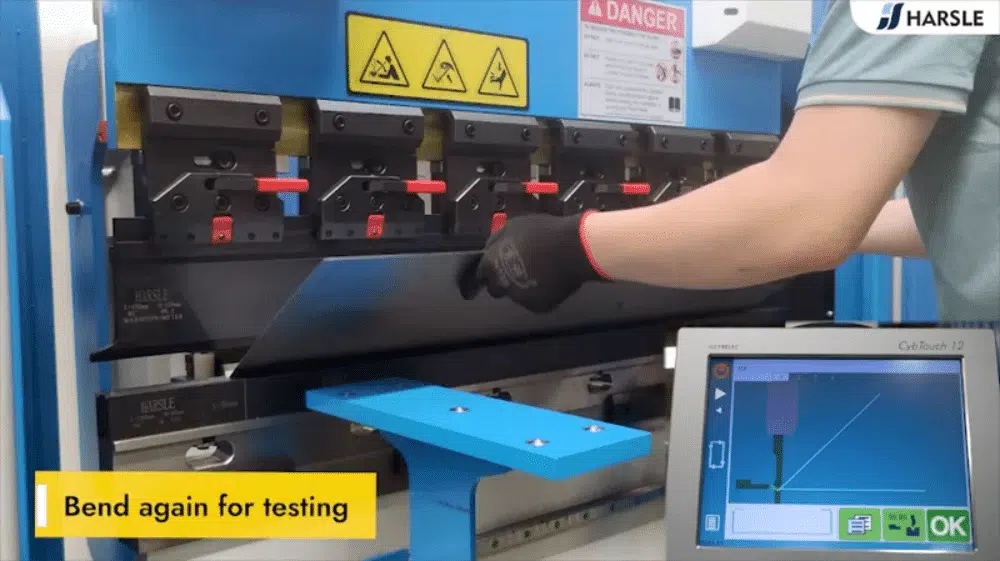

• انحني مرة أخرى للاختبار.

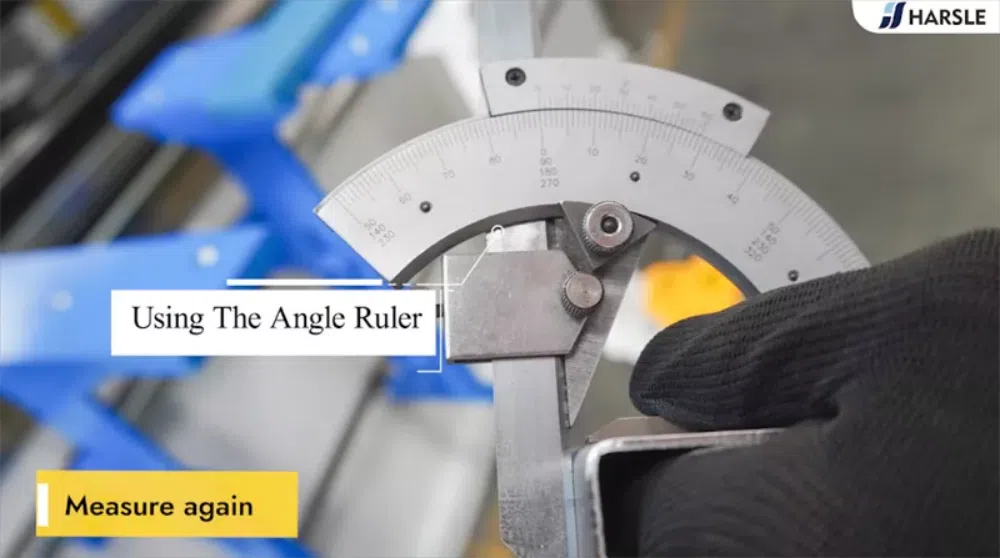

• Measure again.

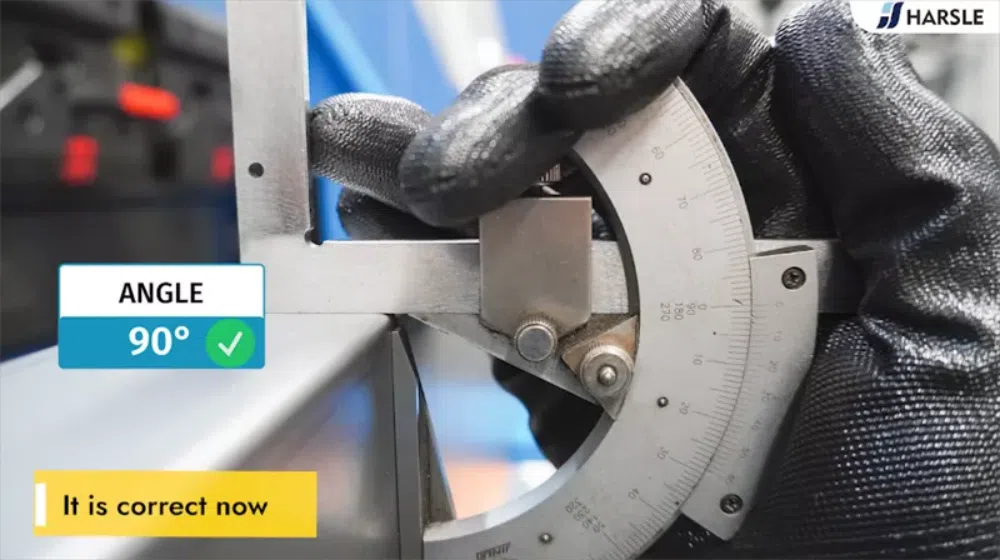

• It is correct now.

Part 6 Switch Off

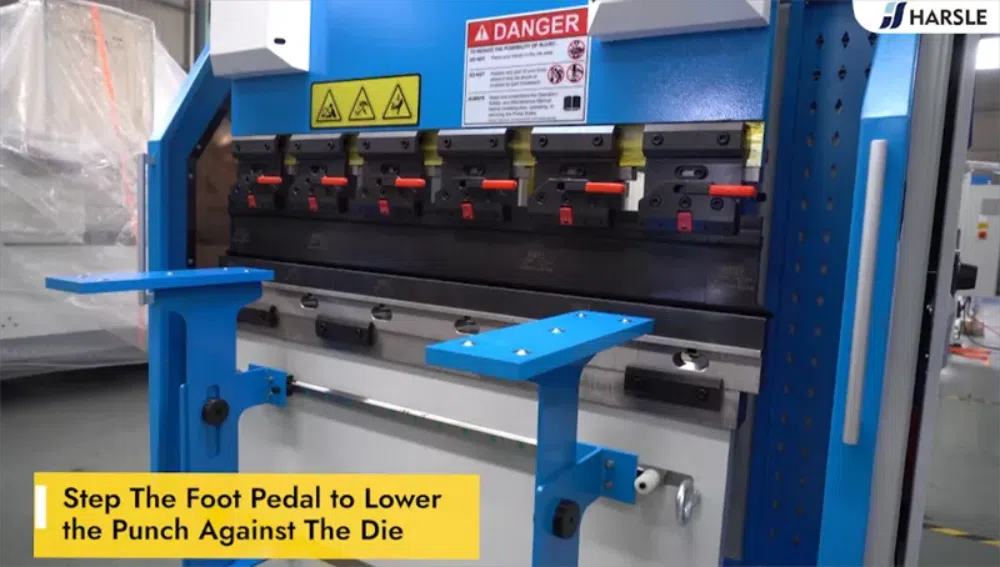

• Step the pedal switch to lower the punch against the die.

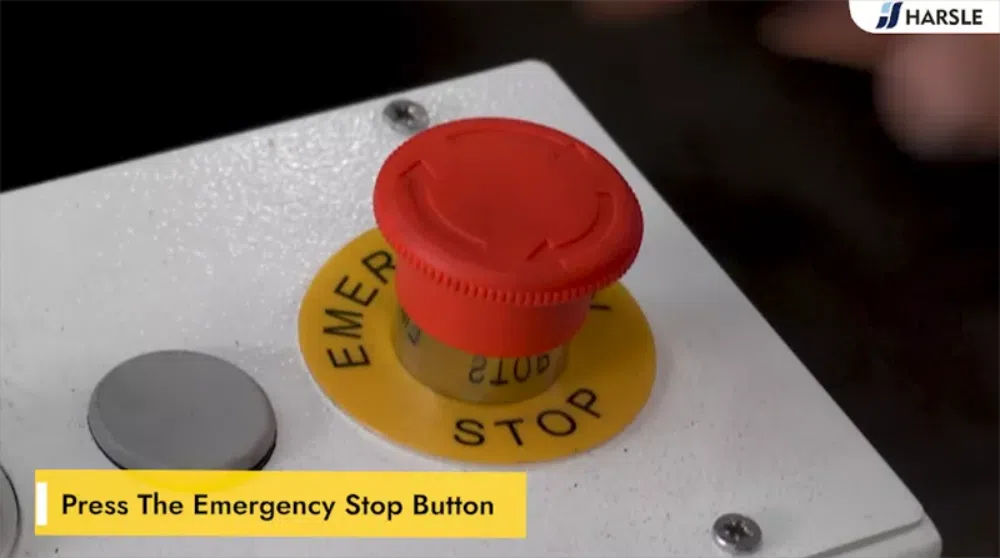

• Press the emergency stop buttons.

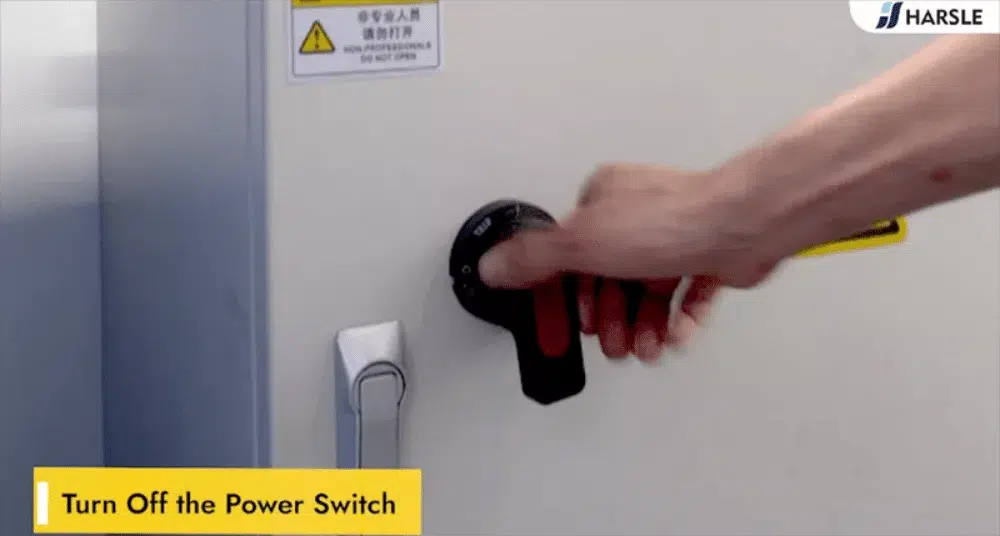

• Turn off the power switch.

عرض فيديو توضيحي
