Laser Cutting Dimension Error is a common concern for manufacturers who rely on CNC máquinas de corte por láser for precision production. If you’ve noticed that your finished parts do not match the intended dimensions, you’re probably wondering what causes these inaccuracies and how to correct them. In my experience, dimensional errors can result from machine calibration issues, mechanical wear, improper cutting parameters, thermal distortion, or programming mistakes. In this article, I’ll explain the most common causes of laser cutting dimension errors and provide practical solutions to help you improve cutting accuracy, reduce material waste, and maintain consistent production quality.

Comprensión Corte por láser Dimension Error

What Is a Laser Cutting Dimension Error?

A Laser Cutting Dimension Error occurs when the actual size of a cut part differs from the dimensions specified in the CNC program. Even small deviations can create assembly problems, reduce product quality, and increase production costs.

Typical dimension errors include:

• Oversized parts
• Undersized parts
• Hole diameter deviations
• Positioning inaccuracies
• Uneven contour dimensions

Understanding the source of these errors is the first step toward correcting them.

Common Causes of Laser Cutting Dimension Error

Mechanical Wear in Drive Components

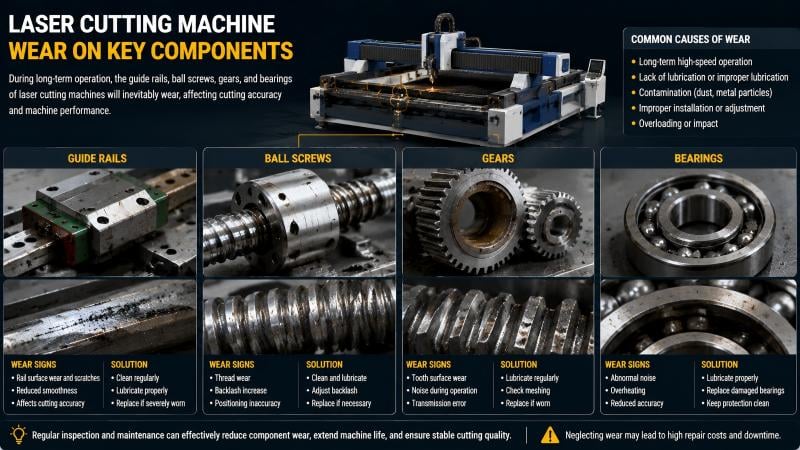

Over time, machine components such as guide rails, ball screws, gears, and bearings experience wear. This wear introduces backlash and positioning inaccuracies.

Los síntomas comunes incluyen:

• Repeated dimensional deviations
• Inconsistent cut sizes
• Poor repeatability

Regular inspection of motion components helps maintain positioning accuracy.

Improper Machine Calibration

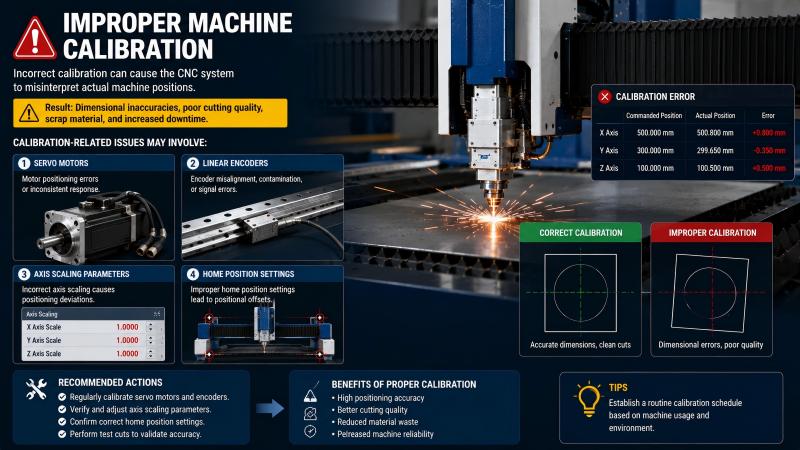

Incorrect calibration can cause the CNC system to misinterpret actual machine positions.

Calibration-related issues may involve:

• Servo motors
• Linear encoders
• Axis scaling parameters
• Home position settings

Even a minor calibration error can significantly affect finished part dimensions.

Incorrect Cutting Parameters

Laser power, cutting speed, focus position, and assist gas settings all influence kerf width and dimensional accuracy.

Los ejemplos incluyen:

• Excessive laser power causing wider kerfs
• Improper focus creating irregular edges
• Incorrect speed leading to excessive material melting

Optimized parameters are essential for precise cutting.

Thermal Expansion and Material Distortion

Heat generated during laser cutting causes materials to expand temporarily.

Factors affecting thermal distortion include:

• Espesor del material
• Tipo de material
• Cutting sequence
• Part geometry

Large sheets and thin materials are particularly susceptible to dimensional changes caused by heat.

Poor Material Positioning

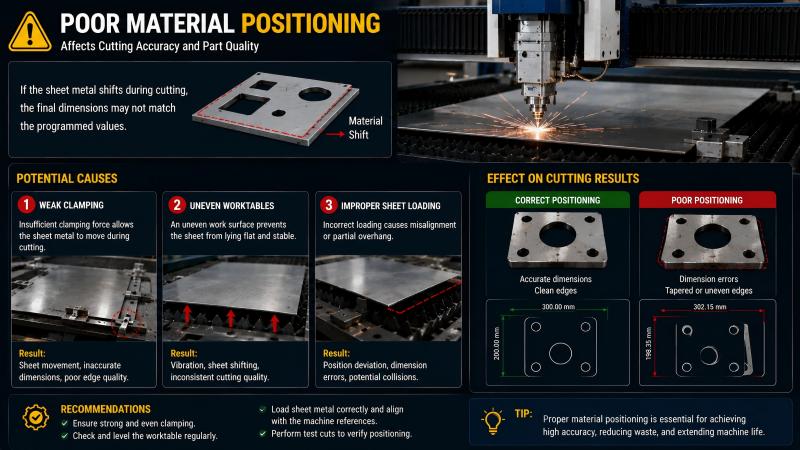

If the sheet metal shifts during cutting, the final dimensions may not match the programmed values.

Potential causes include:

• Weak clamping
• Uneven worktables
• Improper sheet loading

Stable material positioning is critical for precision manufacturing.

How to Diagnose Laser Cutting Dimension Error

Step 1: Verify Machine Calibration

I usually begin by checking machine calibration.

Inspect:

• Axis travel accuracy
• Encoder feedback
• Servo positioning
• Reference points

Use precision measuring equipment to confirm that machine movement matches programmed commands.

Step 2: Check Mechanical Components

Inspect all motion-related components for wear.

Pay special attention to:

• Rieles guía lineales
• Tornillos de bolas
• Bearings
• Rack and pinion systems

Excessive play or wear can directly affect dimensional accuracy.

Step 3: Evaluate Cutting Parameters

Compare the current cutting settings with recommended values.

Verify:

• Laser power
• Velocidad de corte
• Focus position
• Presión de gas

Test cuts can help identify parameter-related issues quickly.

Step 4: Measure Kerf Width

Kerf width directly affects finished dimensions.

To evaluate kerf consistency:

1. Perform a test cut.
2. Measure the kerf at multiple locations.
3. Compare results with programmed compensation values.
4. Adjust CNC kerf compensation if necessary.

Consistent kerf width is essential for accurate part dimensions.

Step 5: Inspect Material Flatness

Warped or uneven sheets can cause focal position variations during cutting.

Comprobar lo siguiente:

• Material bowing
• Surface irregularities
• Improper support

Flat materials help maintain consistent cutting conditions.

Best Practices to Reduce Laser Cutting Dimension Error

Realizar mantenimiento regular

Preventive maintenance keeps machine components operating within specification.

Maintenance tasks should include:

• Lubricating guide rails
• Inspecting bearings
• Checking ball screw wear
• Cleaning optical components

A well-maintained machine delivers more consistent results.

Optimize CNC Programming

Programming errors can create unexpected dimension deviations.

Review:

• Lead-in and lead-out settings
• Kerf compensation values
• Cutting sequence
• Corner processing parameters

Accurate programming is just as important as machine condition.

Control Cutting Environment

Environmental conditions affect machine accuracy.

Monitor:

• Temperatura ambiente
• Humidity levels
• Floor stability
• Machine vibration

Stable operating conditions improve dimensional consistency.

Use Proper Material Handling Procedures

Proper loading and clamping reduce the risk of sheet movement.

Recommended practices include:

• Securing material evenly
• Using clean support surfaces
• Verifying sheet alignment before cutting

Good material handling helps maintain precision throughout production.

Preguntas frecuentes

Conclusión

A Laser Cutting Dimension Error can result from mechanical wear, calibration problems, incorrect cutting parameters, thermal distortion, poor material positioning, or programming mistakes. By systematically inspecting machine components, verifying calibration, optimizing cutting parameters, and maintaining stable operating conditions, you can significantly improve dimensional accuracy.

Regular maintenance, proper kerf compensation, and consistent process control are essential for achieving high-precision laser cutting results. If you need additional assistance diagnosing dimensional accuracy issues or optimizing your CNC laser cutting machine, feel free to contact the HARSLE technical team for professional support and guidance.
