When it comes to operating CNC press brakes, understanding the control system is crucial for efficiency and precision. If you’re curious about the DELEM DA-58T Operation Overview, you’re in the right place.

In this article, I’ll delve into the essential features and benefits of the DELEM DA-58T control system, explaining how it enhances your metalworking processes and simplifies machine operation. Whether you’re new to using DELEM systems or seeking to optimize your workflow, this overview will provide the insights you need to maximize your press brake’s performance with the DELEM DA-58T Operation Overview.

Wstęp

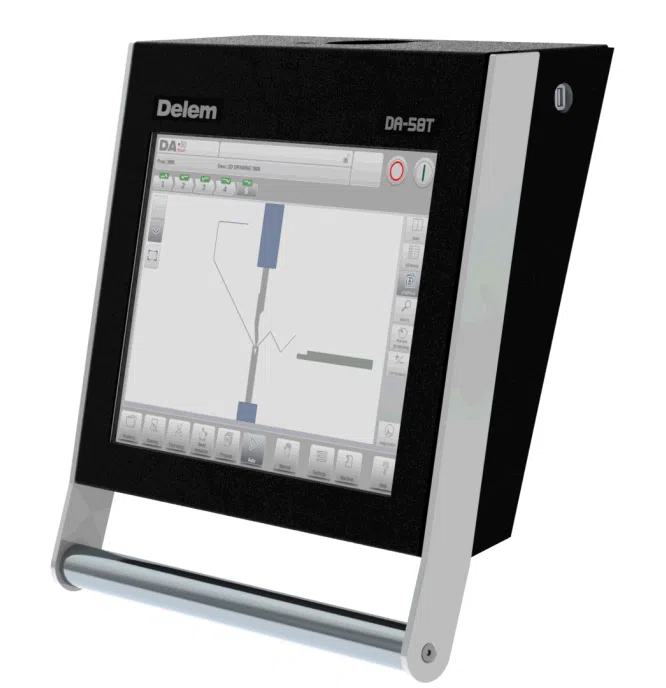

The Control Unit and Front Control Elements

The DELEM DA-58T control unit serves as the heart of the machine, providing a robust interface for all operations. The control looks as follows:

Dokładny wygląd Twojego urządzenia sterującego może się różnić.

With intuitive front control elements, users can easily interact with the system, ensuring seamless navigation and command execution. The Start and Stop button, integrated in the touch screen user interface:

These controls are designed for user-friendly operation, making the entire process more efficient and less time-consuming.

USB Connectors and Connectivity

With integrated USB connectors, the DELEM DA-58T allows for easy data transfer and program updates.

Operation and Programming Modes

The DELEM DA-58T Operation Overview highlights the controller’s versatility in offering various operation and programming modes tailored to meet diverse production requirements. Whether in manual or automatic mode, the DELEM DA-58T provides flexibility in task execution, allowing users to customize operations to specific project needs. This adaptability ensures that you can tackle a broad range of metalworking tasks with precision and confidence, further underscoring the value of the DELEM DA-58T Operation Overview in optimizing workflow and output quality.

Główny ekran sterowania DA-Touch wygląda następująco:

The DELEM DA-58T operation interface is designed to provide an intuitive and efficient user experience, tailored to enhance CNC press brake operations.

Main Screen Structure

Title Panel: This area consistently displays essential information, such as the logo, loaded product, active bend, selected subdirectory, and machine indicators.

Information Panel: Displays functions and details specific to the active mode, facilitating easy access to necessary data.

Panel poleceń: Integrated within the Information Panel, this section houses controls related to the current tasks.

Navigation Panel: Always visible, this panel offers large, icon-driven buttons for seamless switching between major modes.

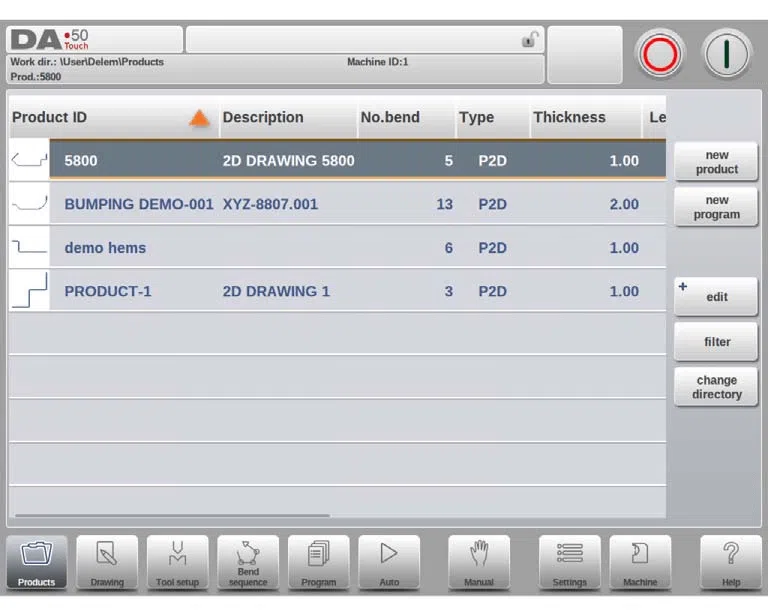

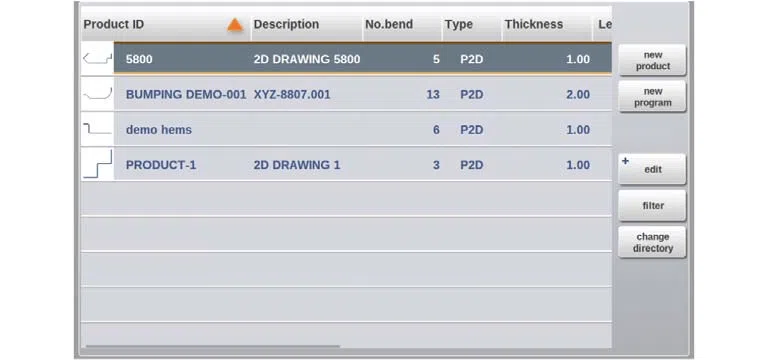

• Produkty: Easily create a new program or select one from the existing library.

• Rysunek: Design or modify products graphically to suit specific project needs.

• Konfiguracja narzędzia: Configure the machine and adjust tool setups efficiently.

• Sekwencja zginania: Calculate and fine-tune bend sequences for optimal performance.

• Program: Create or edit CNC programs numerically for precision control.

• Automatyczny: To start production of the selected product/program.

• Podręcznik: Program settings for individual bends independently from full programs.

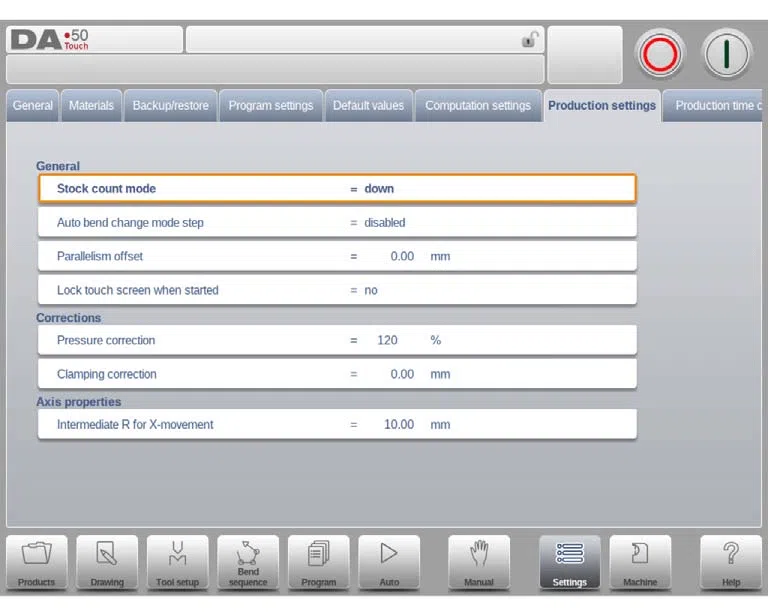

• Ustawienia: Customize settings related to product programming and material properties in the Material Library.

• Maszyna: Adjust settings for the machine, access the tooling library, and manage data backup and restoration.
• Help: Bez względu na to, gdzie aktualnie jesteś, za pomocą tego przycisku możesz uzyskać dostęp do systemu pomocy, który dostarczy Ci informacji zależnych od kontekstu.

This DELEM DA-58T Operation Overview ensures that users can efficiently manage CNC tasks, enhancing productivity and precision in your metalworking operations.

Getting Started

In the context of the DELEM DA-58T Operation Overview, the control system provides a robust feature that allows users to create a product drawing. Once the drawing and sequence are finalized, the system generates a comprehensive product program.

Aby to zrobić, należy wykonać następujące kroki:

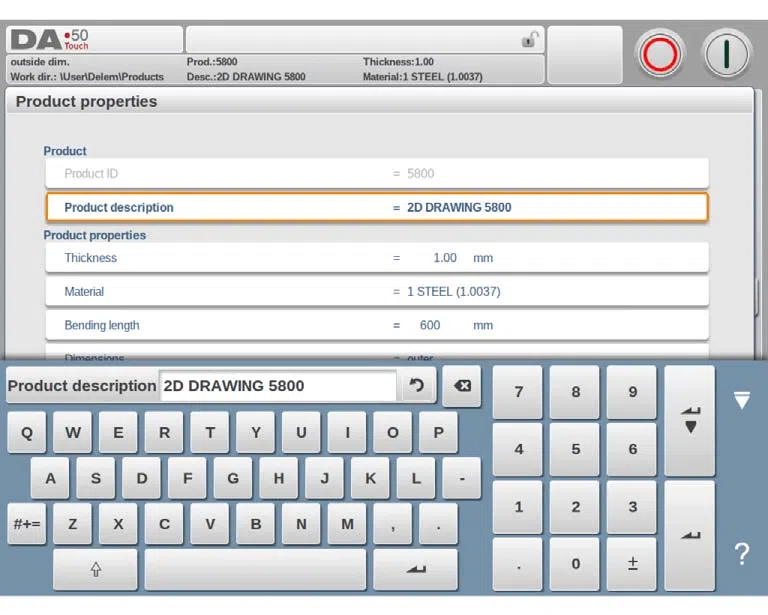

1. Przejdź do trybu Produkty w panelu nawigacyjnym i utwórz nowy produkt, dotykając opcji Nowy produkt.
2. Wprowadź właściwości produktu i rozpocznij rysowanie profilu produktu 2D w trybie Rysowanie.
3. Sprawdź narzędzia, zmodyfikuj je lub wykonaj nowe ustawienia w trybie konfiguracji narzędzi.
4. Użyj trybu Sekwencja gięcia, aby określić sekwencję gięcia, obliczając ją lub ręcznie modyfikując według własnego pomysłu.
5. W razie potrzeby zmodyfikuj program numeryczny CNC za pomocą trybu Program.
6. Kliknij opcję Auto i naciśnij przycisk Start, aby wytworzyć zaprogramowany produkt.

Preparations for Programming

Before beginning product programming, ensure the following prerequisites are met:

1. Materials Library: Correct material properties must be programmed. Access this through the Materials page in Settings mode.
2. Tool Library: Ensure the correct tools are programmed. This is essential for creating CNC programs. Tool libraries are accessible in Machine mode.

Creating a Drawing

The DELEM DA-58T offers robust drawing functionality to visualize the intended product in 2D:

• Szkicowanie: Use intuitive tapping on the touch screen to draft the product or tool shape. This ‘Dragging’ method allows you to adjust line lengths and angles dynamically.
• Ustawienie wartości: Once sketched, refine your drawing by setting precise values for line lengths and angles using the pop-up keyboard. Utilize the ‘Enter’ or ‘Enter-Next’ functions for seamless value entry.
• Korekta błędów: Easily amend errors by using the ‘undo’ button or delete the last character with the backspace key.

Navigation Tools

Enhance your efficiency with these navigation aids:

• Funkcja powiększenia: Pinch to zoom in and out, providing better control over the drawing and machine visualization.
• Dopasowanie do ekranu: Quickly adapt the drawing to the screen size for clarity by tapping the Fit-To-Screen icon.
• Płukanie: Use a single finger to pan across the screen effortlessly.

Drawing Tool Features

Leverage the drawing tool’s features to streamline your workflow:

• Create precise 2D designs with scaled sheet thickness and auto-scaling capabilities.
• Enter horizontal and vertical dimensions, and design real-scale tools.
• Modify lengths and angles and add special bend features like hemming and bumping bends.
• Copy, modify, and store existing products as new projects.
• Utilize advanced features like 3D-production by connecting 2D programs.

By familiarizing yourself with these aspects of the DELEM DA-58T operation, you can significantly boost your productivity and precision in CNC programming and metalworking tasks.

Określ kolejność gięcia

The DELEM DA-58T Operation Overview highlights the controller’s ability to streamline press brake operations with its advanced features. First, the Tool Setup mode enables precise tool arrangement based on the completed product drawing, ensuring accuracy and efficiency. Following this, the Bend Sequence mode allows users to determine and simulate the bending sequence with a visual depiction of the product, machine, and tools.

Key functionalities include:

• Automatic and manual bend sequence computation
• Collision visualization to prevent tool and machine conflicts
• Flexible tool selection
• Turn time and backgauge speed adjustments
• Blank length calculations
• Production time estimates
• Bending sequence simulations
• Programmable finger positions

Program numeryczny

The DELEM DA-58T simplifies CNC programming, accessible via the Program menu for active product management.

Creating CNC Programs

Two methods are available:

1. Manual Entry: Use Products mode and select New Program. Input is manual, requiring operator expertise. No collision check is included.
2. Graphical Bend Simulation: Access through Products mode by choosing New Product, then Drawing mode. This allows program visualization and edits.

Once a bend sequence is completed and stored, the system post-processes the data, making numerical programs available while automatically calculating:

• Required force
• Y/X-axis positions and retracts
• Dekompresja
• Y-opening
• R/Z-axes positions

These adjustments are fine-tuned to your machine’s configuration, ensuring precise and efficient operation.

Menu automatyczne i menu ręczne, tryby produkcji

In the context of the DELEM DA-58T Operation Overview, the controller offers two significant operation modes that elevate workflow efficiency and output quality in metalworking:

• Auto Mode: This mode allows the DELEM DA-58T to execute complete programs seamlessly. For more precise control, users have the option to employ Step mode.
• Manual Mode: In this mode, the DELEM DA-58T supports independent, single-bend operations, making it ideal for testing system behavior and executing precision tasks.

Understanding these modes within the DELEM DA-58T Operation Overview is essential for maximizing the controller’s capability and achieving high-quality metalworking results.

Kopia zapasowa danych, pamięć zewnętrzna

In the DELEM DA-58T Operation Overview, efficient data management plays a crucial role. Both product and tool files can be stored externally, providing users with flexible options for data backup and sharing. Depending on your configuration, these files can be stored on a network or a USB stick.

Pomoce programistyczne

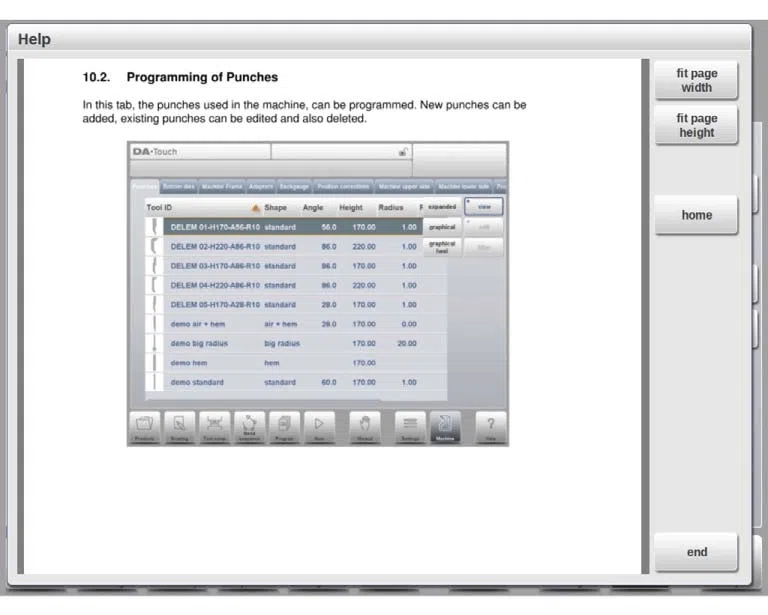

Tekst pomocy

The DELEM DA-58T offers a convenient on-line Help feature accessible through the Help button in the navigation panel. This context-sensitive tool provides immediate information on active parameters, mirroring the Operation manual.

To use, tap the Help button to open a pop-up with relevant details.

Scroll the text with a simple finger slide or use the screen’s edges for page navigation. By tapping on the lower or upper part of the screen Previous Page / Next Page can be used to browse through the help text.

The Index function allows quick access to the table of contents via hyperlinks. Tap End to exit the Help window.

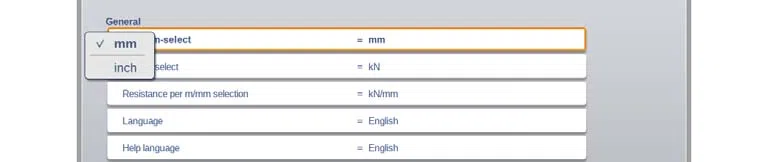

Funkcjonalność listy rozwijanej

In the DELEM DA-58T Operation Overview, select from predefined parameter values by tapping the parameter line to reveal a list. To close the list without changes, tap outside the box, ensuring efficient and intuitive adjustments.

Filtr, wyszukiwanie na żywo

In the DELEM DA-58T Operation Overview, efficient entity selection is key. Use the filter function in modes like Product Selection to find specific items. Press Filter, type part of the ID, and the list auto-filters. Separate terms with spaces for detailed searches. Close the filter screen using the keyboard-close button on the right. This feature enhances workflow efficiency by simplifying entity management.

Nawigacja

W niektórych trybach ekrany programu są podzielone na zakładki.

Karty można łatwo wybierać, dotykając ich. Jeśli karta nie jest całkowicie widoczna lub nie jest w ogóle widoczna, wystarczy przeciągnąć wiersz kart w poziomie, aby „wyciągnąć” żądaną kartę i ją zaznaczyć.

Wprowadzanie i edycja tekstu

Kursorem można wprowadzić konkretną wartość lub tekst w istniejącym polu. Wystarczy dotknąć żądanego miejsca. Pojawi się kursor, a dane zostaną dodane.

Wpisywanie znaków alfanumerycznych a znaków specjalnych

In the DELEM DA-58T CNC controller, effective data entry is crucial for seamless operation. Here’s a concise guide to typing alphanumeric and special characters:

• On-Screen Alphanumeric Keyboard: The DELEM DA-58T features a full on-screen alphanumeric keyboard that appears when needed, ensuring easy entry of both letters and numbers.
• Numerical Fields: When editing purely numerical fields, alphanumeric characters are “greyed-out”, and only the numerical keypad is active. This design helps prevent input errors.
• Alphanumeric Fields: Fields that require alphanumeric input allow full use of the keyboard, enabling the user to enter letters and numbers as needed.
• Dostęp do znaków specjalnych: Special characters such as ?, %, and – can be accessed using the special character button located at the bottom-left corner of the keyboard. This function enhances data input flexibility.

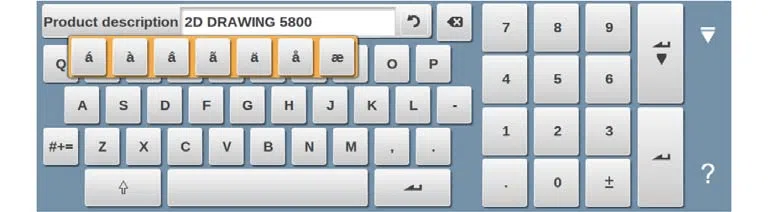

• Accent Characters: The on-screen keyboard supports accented characters (e.g., á, à, â, ã, ä, å, æ). You can access these by holding down the base character, such as ‘a’. This feature facilitates the input of various international characters.

By understanding how to efficiently use alphanumeric and special characters in the DELEM DA-58T, operators can enhance their control over the machine and improve overall workflow efficiency.

Sieć

The DELEM DA-58T is a cutting-edge CNC controller designed to enhance metalworking operations through advanced features and functionalities. One notable aspect of the DELEM DA-58T Operation Overview is its optional network interface capability, which significantly streamlines workflow and data management.

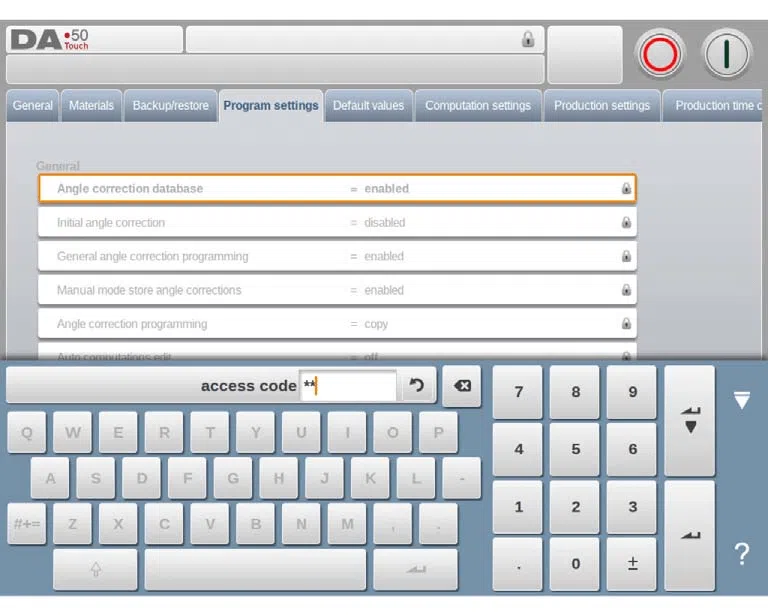

Funkcja blokady klawiatury

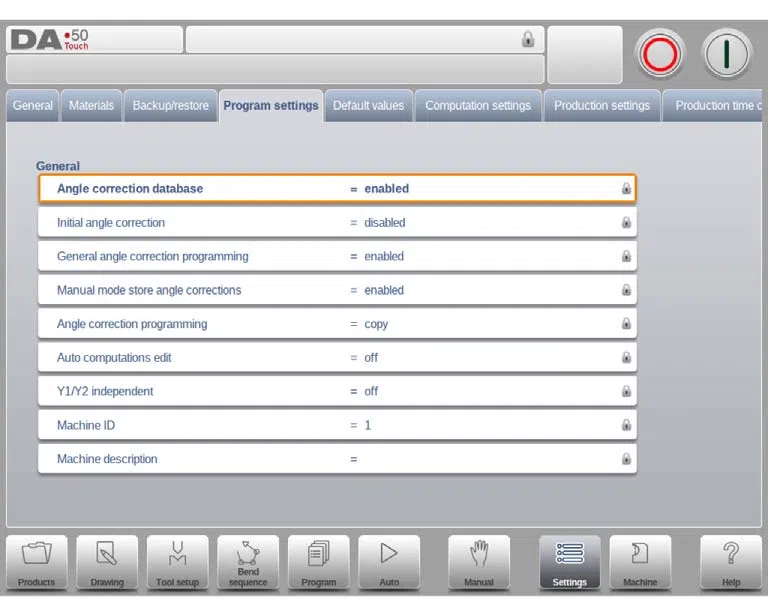

The Keylock function of the DELEM DA-58T is crucial for maintaining the integrity of your programs and machine settings. Here’s a streamlined overview of how it works:

• Zamiar: The Keylock function is designed to prevent unauthorized changes to products or programs by locking the control system.
• Two Lock Levels:
  1. Blokada programu: In this mode, users can only select and execute an existing product in Automatic mode. Modifications are restricted.
  2. Blokada maszyny: This mode locks the entire machine, rendering the control unusable.
• Activation:
  • Tap the lock symbol at the top of the screen.
  • Depending on the code entered, the control will enter either Program Lock or Machine Lock.
  • Program Lock displays a grey closed lock symbol, while Machine Lock shows a red colored lock.
• Indicators:
  • When Program Lock is active, lock symbols appear behind parameters, indicating that modifications are prohibited.
• Unlocking:
  • To unlock, tap the lock symbol and enter the appropriate code.
  • The lock symbol will indicate it is unlocked, and parameter lock symbols will disappear.
• Code Management: Codes can be customized as needed. Instructions for managing codes are available in the Installation Manual.

By integrating this feature, the DELEM DA-58T ensures secure operations while preserving system settings, contributing to a seamless CNC experience.

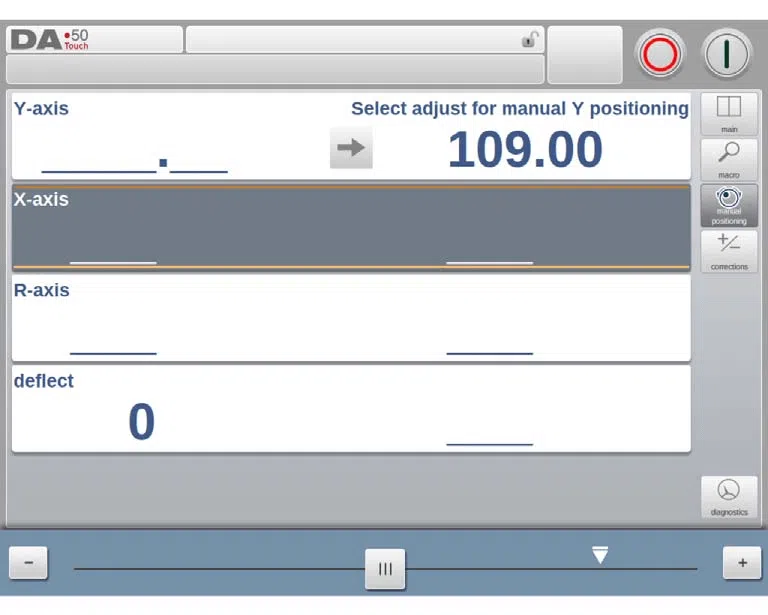

Pozycjonowanie ręczne

In the DELEM DA-58T Operation Overview, manual positioning is a straightforward process. Within both Manual and Automatic modes, users can utilize a slider at the bottom of the screen to position the axis. The axis’s speed corresponds to the distance the slider is moved, stopping when the slider is released. For precise adjustments, buttons at each end of the slider allow for fine-tuning. Additionally, an audible beep provides immediate feedback that the axis is in motion, enhancing user control and precision during operation.

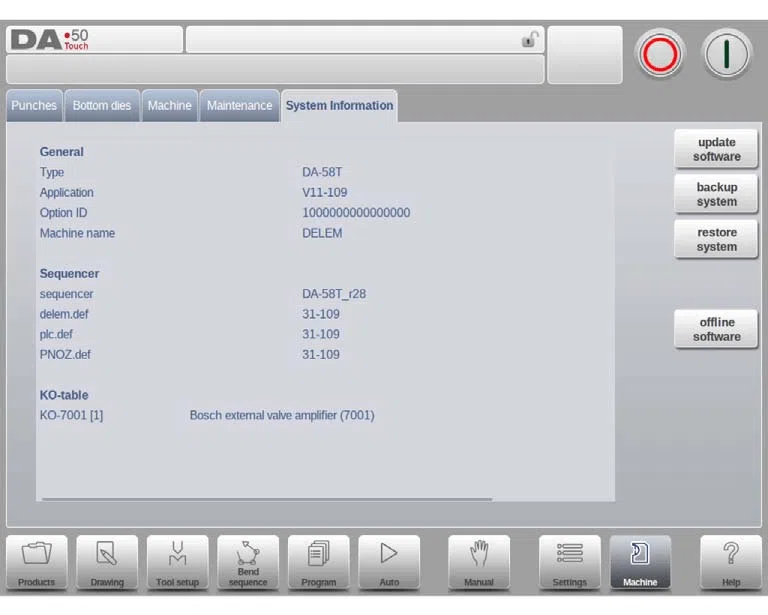

Wersje oprogramowania

The controller allows flexible operation with manual and automatic modes, tailored to various production needs. Important in the DELEM DA-58T Operation Overview is understanding software versioning:

• Major version (V 1.x.x): Represents significant new features that may alter operations.
• Minor version (V x.2.x): Adds features without changing workflow.
• Update version (V x.x.3): Provides corrections within the current system.

The major version number is increased when new major features are added to the software. These software changes require additional introduction and could change the normal working order. The minor version number is increased when new features and enhancements are integrated which do not change the working order. The update version number solely is used for software changes when corrections are needed in the existing software version.

Często zadawane pytania (FAQ)

Wniosek

In summary, the DELEM DA-58T Operation Overview emphasizes the controller’s role in improving operational efficiency through its intuitive interface, versatile operation modes, and clear software versioning. Proper understanding and utilization of these features are essential for achieving high-quality output and minimal downtime in metalworking processes.

To ensure the longevity and optimal performance of your CNC systems, it’s crucial to follow these guidelines and perform regular maintenance. For more detailed support or inquiries, don’t hesitate to contact our team. Additionally, we encourage you to explore more resources to further enhance your understanding and utilization of the DELEM DA-58T.
