Wstęp

The DELEM DA-58T Settings Mode, accessible from the navigation panel, is a hub for configuring default values and specific constraints that influence product programming.

Settings are categorized across several tabs for easy navigation, allowing users to adjust parameters by simply tapping on the desired tab and parameter. The system supports horizontal tab scrolling to access all available settings.

Ustawienia ogólne

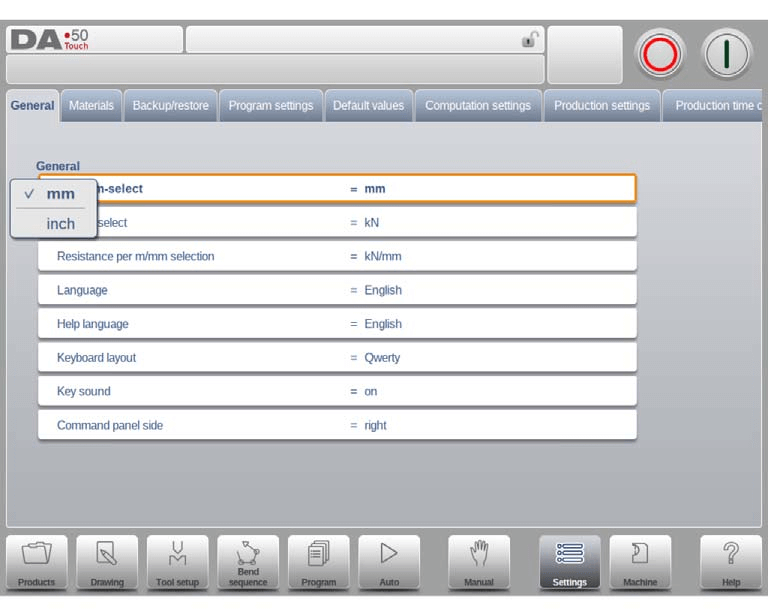

Within the DELEM DA-58T Settings Mode, users can customize basic parameters like unit selection (inch/mm or ton/kN), language preferences, keyboard layouts, and the sound of the input panel. The interface allows easy selection of these settings, ensuring a personalized user experience.

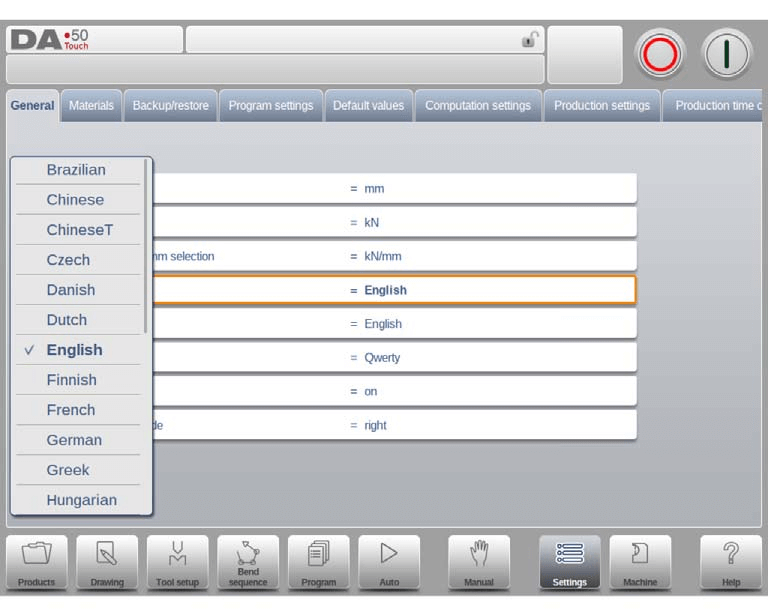

Język

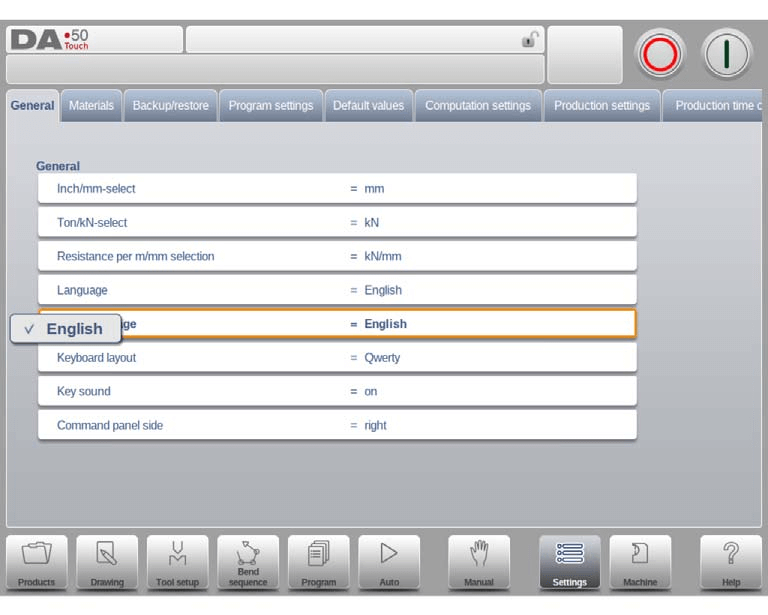

The user interface language can be selected from the list. There are more available languages than initially shown. Scroll vertically by dragging the list up en down to see all available languages. Tap to select the desired language for the user interface. (For languages using special, non standard alphanumerical characters, the control will reboot.)

Help language

The help language for the on-line Help function is by default set to the same language as the user interface. If that language is not available as on-line Help, English is chosen.

When Help Language is selected, the additional function Add Help Language appears.

With this function you can install a new help language on the control. Make sure the required help file is present on the control disk or another accessible location (network, USB stick). It will automatically be selected and installed.

Keyboard layout: Upon choice one can select Qwerty, Qwertz or Azerty keyboard layout. Default layout is Querty.

Key sound: Switch the sound function of the input panel on or off. Default sound is on.

Command panel side: Switch the command panel to the left side of the screen. Default is right side.

Ustawienia materiału

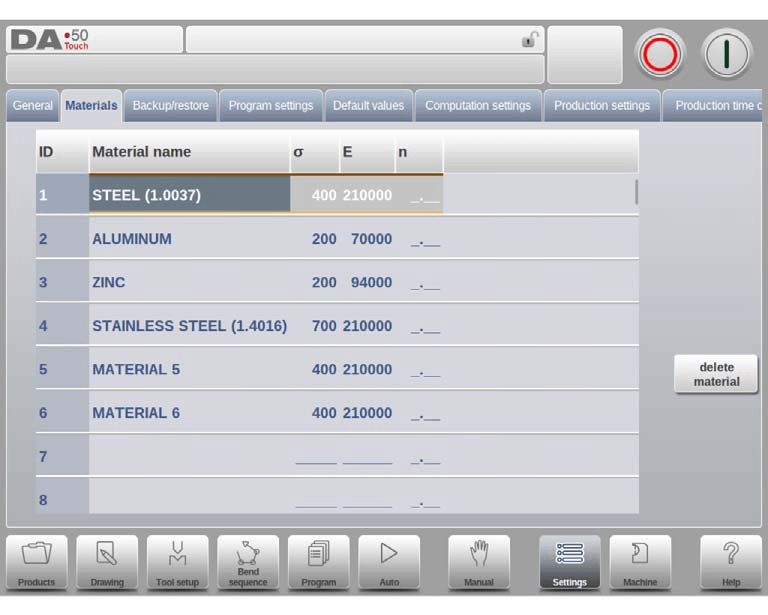

In the materials tab, the DELEM DA-58T Settings Mode allows the programming of up to 99 materials, each comprising properties like tensile strength and E-module. This feature enables precise material handling, ensuring compatibility with different bending operations.

In the DELEM DA-58T Settings Mode, you can view and edit three properties for each material: the Material Name, Tensile Strength, and E Module.

Ten Nazwa materiału, displayed on programming screens, can be up to 25 characters long and must start with a letter. Wytrzymałość na rozciąganie I Moduł E pertain to the material’s physical properties.

Materials are initially displayed by their material number (ID) in the first column, but you can sort them by tapping the column title for any property. To modify an existing material, select its line and adjust the values. To delete one, select it and choose Delete Material.

For adding a new material, select an empty line and input the new values.

Backup/Restore Functionality

The DELEM DA-58T Settings Mode includes robust backup and restore capabilities for products, tools, settings, and tables. This functionality ensures data security and facilitates seamless transitions between different control models.

If you have products or tools from older control models, DELEM DA-58T Settings Mode includes an import function for seamless integration.

Backing up and restoring tools and products follow the same straightforward procedures, whether you’re using a network or USB stick.

The backup directory is composed of a selected device (such as USB stick or network) and a directory, which you can create and select as needed.

The locations for storing backups of products and tools can be set up independently within the DELEM DA-58T Settings Mode.

Kopia zapasowa produktu

Aby wykonać kopię zapasową programów na dysku, wybierz opcję „produkty” w sekcji Kopia zapasowa na stronie Kopia zapasowa/przywracanie.

Po ustawieniu początkowego katalogu kopii zapasowej zostanie wyświetlony ekran kopii zapasowej produktu.

To efficiently manage your files, it’s essential to understand the DELEM DA-58T Settings Mode for backing up products. Here’s a simple guide to help you:

1. View Products: In the backup screen, you’ll see a list of products in the selected directory. Use the basic functions, similar to the Products mode, to browse and find the products you need to back up.
2. Check Locations: The top of the screen will display your current source location and the designated backup location.
3. Select Products: To back up a product, simply tap it in the list. A backup marker will appear to confirm your selection. If a product with the same name exists in the backup location, you will be prompted to choose whether to overwrite it.
4. Backup All at Once: If you wish to back up all products simultaneously, tap the “All” button.
5. Change Source Directory: If you need to change the source directory of the products to be backed up, tap “Source Directory”. This will open the directory browser to help you select the desired source.
6. Change Backup Directory: To change the backup location, use the “Backup Directory” option, which will allow you to navigate to and select the desired destination directory.

Przywracanie produktu

Aby przywrócić programy do sterowania, wybierz „produkty” w sekcji Przywracanie na stronie Kopia zapasowa/przywracanie.

Po ustawieniu początkowego katalogu przywracania zostanie wyświetlony ekran przywracania produktów.

In DELEM DA-58T Settings Mode, restoring products is straightforward. Here’s how you can do it in a few simple steps:

1. Access Restore Screen: View products in the chosen directory.
2. Adjust View: Modify view to find needed products.
3. Check Locations: Confirm source and destination paths.
4. Select Product: Tap a product to mark it for restore.
5. Handle Duplicates: Choose whether to replace existing files.
6. Change Source Directory: Navigate to a new source if needed.
7. Set Destination Directory: Select where restored products should go.

Kopia zapasowa narzędzi

Aby wykonać kopię zapasową narzędzi na dysku, wybierz opcję „Narzędzia” w sekcji Kopia zapasowa na stronie Kopia zapasowa/przywracanie.

Po ustawieniu początkowego katalogu kopii zapasowej zostanie wyświetlony ekran kopii zapasowej narzędzi.

Za pomocą tego menu można wykonać kopię zapasową narzędzi w systemie sterowania: stempli, matryc lub kształtowników. Procedury tworzenia kopii zapasowej narzędzi są podobne do procedur tworzenia kopii zapasowej produktów.

Przywracanie narzędzi

Procedury przywracania narzędzi są podobne do procedur przywracania produktów.

Kopia zapasowa i przywracanie tabel i ustawień

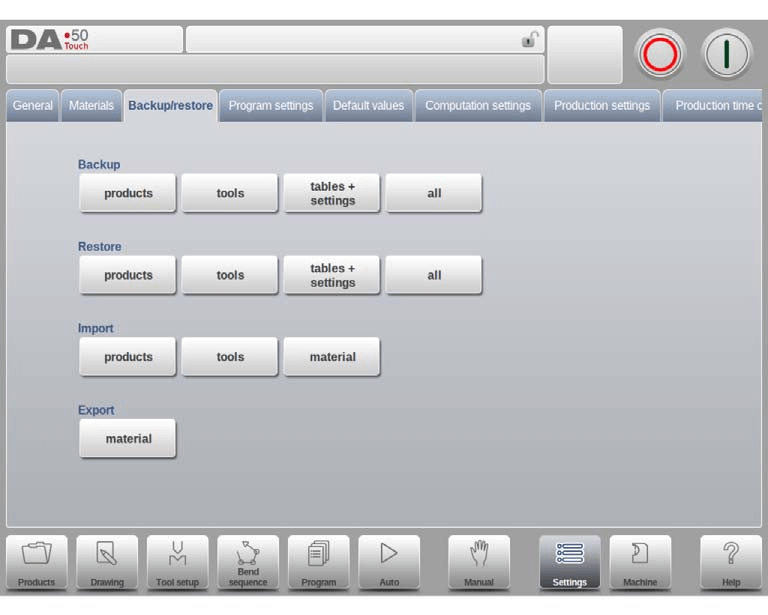

To backup user specific settings and tables the Backup/restore tab offers specific functionality. The procedure is again analogue to the backup and restore of products and tools. The special function All, will automatically execute all steps sequentially for either Backup or Restore (Products + Tools + Tables + Settings).

Nawigacja katalogowa

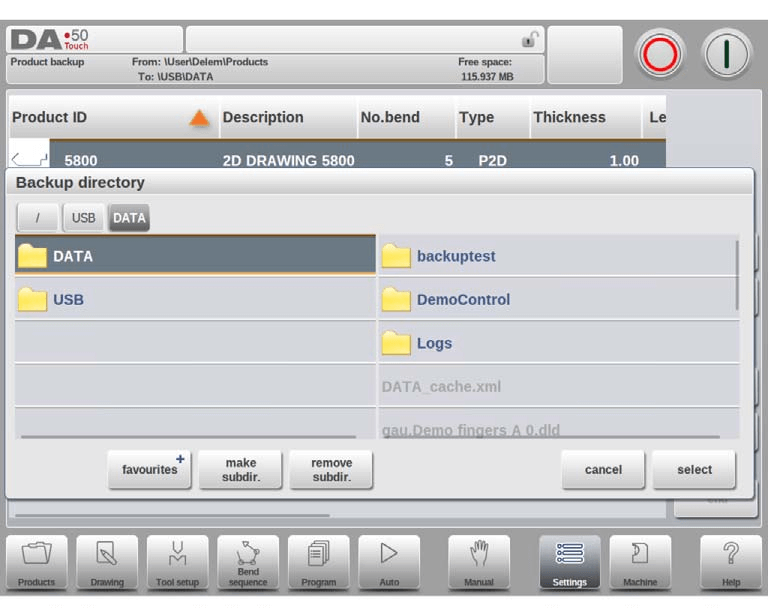

Po wybraniu opcji Katalog kopii zapasowych zostanie wyświetlone nowe okno z listą dostępnych katalogów kopii zapasowych.

To simplify the process of navigating and managing directories, follow these straightforward steps:

1. Exploring Directories: Tap the dot icon to enter a subdirectory. To go back one level, tap the (PARENT) icon. To select your current directory, tap “Select”.
2. Switching Devices: Continuously tap the (PARENT) icon until you reach the top level. From there, choose the appropriate device and the desired subdirectory.
3. Network Access: If a network connection is available, first select “Network”, then choose one of the network volumes. After selection, navigate as you would with other devices.
4. Zarządzanie podkatalogami: To create a new subdirectory, tap “Make Subdir”. To delete an existing one, tap “Remove Subdir”. To enter any subdirectory, just tap it and then tap “Select” to confirm your selection.

Ustawienia programu

A critical feature of the DELEM DA-58T Settings Mode is the angle correction database, which stores corrections applied during production, ensuring consistent results across various materials and bend types. This database is vital for maintaining precision in product programming.

To enable efficient DELEM DA-58T Settings Mode and effectively utilize the angle correction database, follow these simplified steps:

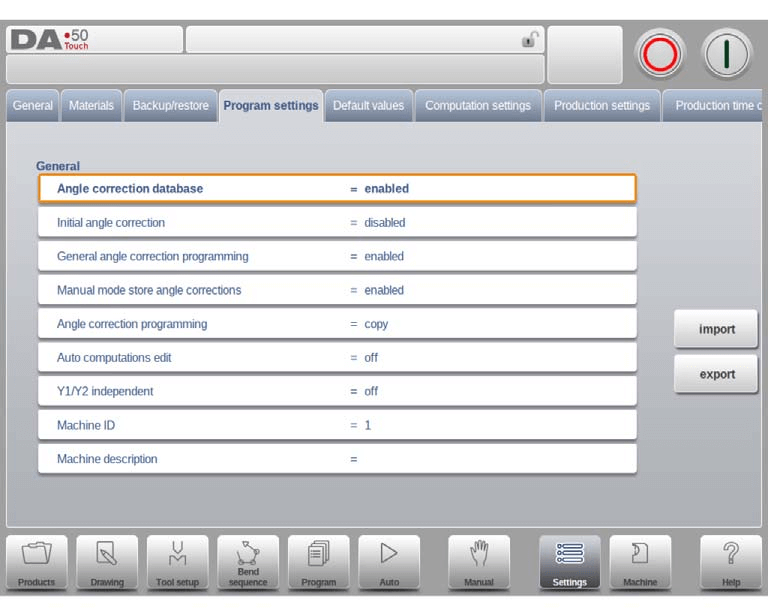

• Baza danych korekcji kąta
  • Enable Angle Correction Database: This parameter allows the database to store angle corrections entered during production mode (Auto mode). Once enabled, the control checks for similar bends in the database during production and offers corrections if available or interpolates them when necessary.
  • Angle Properties for Matching: The control compares bend properties such as material properties, thickness, die opening, die radius, punch radius, and angle. The first five properties must match exactly, while angle corrections are offered or interpolated based on proximity.
  • Początkowa korekta kąta: Independently programmed and only visible in automatic mode for small angle corrections. It combines with visualized corrections to form the total correction.
  • Programowanie ogólnej korekcji kąta: These corrections apply to all bends of a program and are not specific to any angle or stored in the angle correction database.
  • Tryb ręczny Przechowuj korekty kąta: Enables storing of angle corrections derived in Manual mode for future DELEM DA-58T Product Programming.
  • Programowanie korekcji kąta: Choose between copying, keeping delta, or changing Cα1 and Cα2 independently when adjusting angle corrections.
• Auto Computations Edit in DELEM DA-58T Settings Mode
  • Automatic recomputation of parameters such as force, decompression distance, crowning device setting, and others when changing material type, thickness, length, punch, or die, based on specific scenarios like bending methods.
• Y1Y2 Independent Programming
  • Option to program the two Y-axes independently or as a single unit.
• Machine ID and Machine Description
  • Assign a unique machine ID for each bending machine to facilitate program management. Use machine descriptions for better organization and identification in offline systems like Profile-T.

Default and Computation Settings

Default values such as Y-axis opening, pressing speed, and dwell time can be configured. Additionally, computation settings like active bend allowance table usage and data preparation adjustments provide flexibility in programming based on specific production needs.

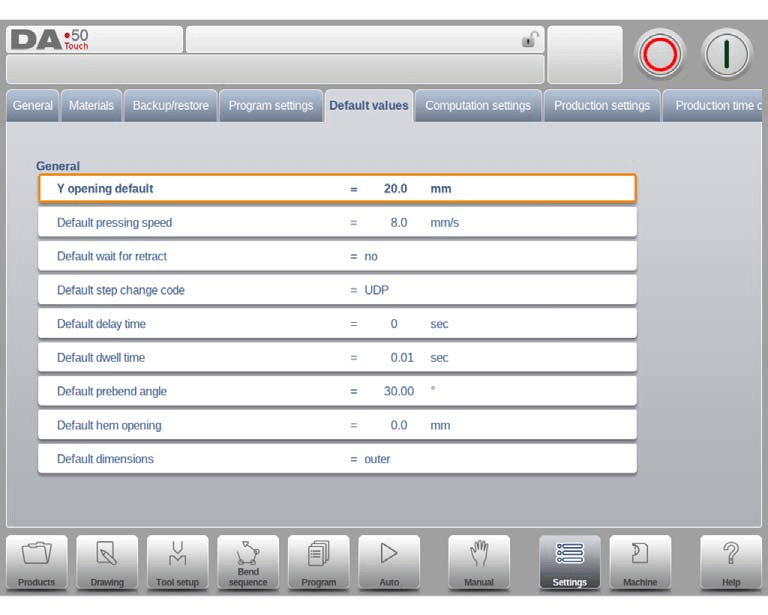

Wartości domyślne

• Domyślne otwarcie Y
  • Initial Y-axis opening value in DELEM DA-58T Settings Mode.
• Prędkość naciskania
  • Initial pressing speed for new programs.
• Wait for Retract
  • Initial setting for ‘wait for retract’ in bend programs; default is ‘yes.’
• Step Change Code
  • Default ‘step change code’ set to ‘UDP.’
• Delay Time
  • X-axis step change waiting time, initially zero.
• Dwell Time
  • Default dwell time for bend programs.
• Kąt wstępnego gięcia
  • Default prebend angle in graphical products.
• Otwarcie dołu
  • Default hem opening for beam position; starts at 0.0mm.
• Wymiary
  • Default for “dimensions (D1)” in graphical drawings.

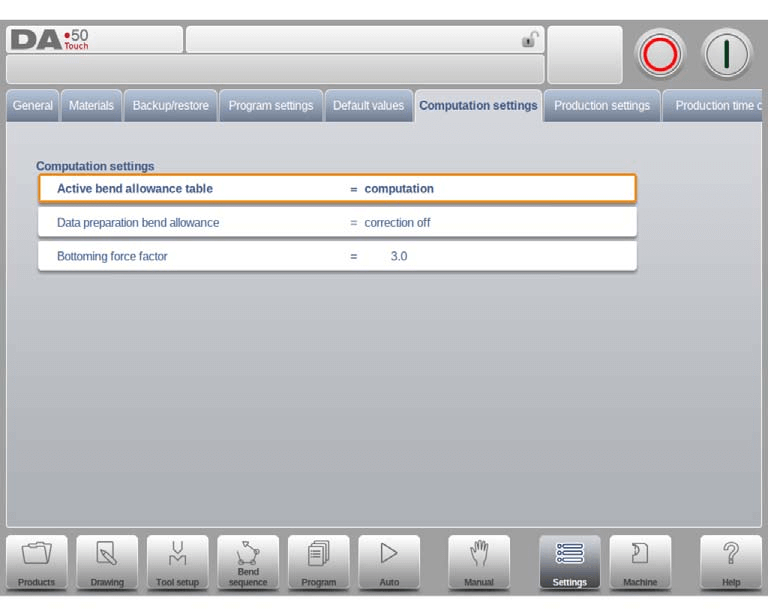

Ustawienia obliczeń

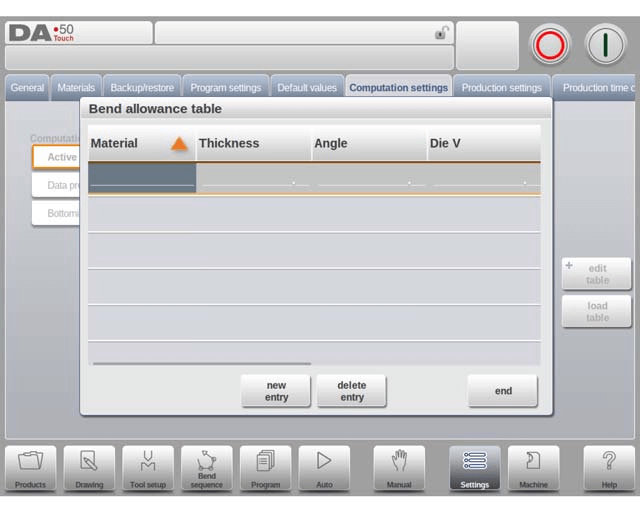

• Aktywna tabela tolerancji gięcia
  • Obliczenie: Uses the standard formula for bend allowance calculation.
  • Tabela: Utilizes a correction table, editable if present.
  • Allows for X-axis correction due to sheet shortening.

• Data Preparation Bend Allowance
  • Korekta wyłączona: Excludes bend allowance in programming.
  • Poprawka włączona: Includes corrections, visible and editable during production.
  • Does not affect Drawing mode post-process.

In DELEM DA-58T Settings Mode, changes don’t affect the Drawing mode’s post-process function. The system always considers bend-allowance when creating a CNC program from a drawing. If a bend-allowance table is active, you can use the Edit Table function to modify it in a new window.

In DELEM DA-58T Settings Mode, use Tab to select a field, enter a new value, and press ENTER to edit loaded table entries. You can’t create tables in this menu. Refer to the Delem manual for bend-allowance details. Use Load Table to find and load an existing table.

• Współczynnik siły docisku: Multiplies air bend force to obtain bottoming force.

• Z-Distance
  • Measures from finger edge to sheet corner.
  • Auto-calculates finger position with installed Z-axis.

Ustawienia produkcji

The DELEM DA-58T Settings Mode also includes settings that optimize production efficiency. Features like stock count mode, auto bend change mode, and parallelism offset are configurable, allowing users to tailor the production process to specific operational requirements.

• Tryb liczenia zapasów: Select up or down counting for production. Down counting stops at zero and resets on restart; ideal for quotas. Up counting tracks progress.

• Krok trybu automatycznej zmiany gięcia:
  • Wyłączony: Manual parameter selection and start required.
  • Włączony: Auto-loads next parameters; starts positioning after pressing start.

• Przesunięcie równoległości: Set overall parallelism for Y-axis, active below clamping point (Y2 + offset).

• Zablokuj ekran dotykowy po uruchomieniu: To enable the locking of the touchscreen while the controller is started.

• Korekta ciśnienia: Percentage of calculated force which actually controls the pressure valve.

• Korekta zaciskania: The position of the beam at which the sheet is clamped, is calculated. In order to have a firm clamped sheet it is possible to offset the calculated pinch point with the value here programmed. A positive value will result in a deeper position, a negative value in a higher position of the beam.

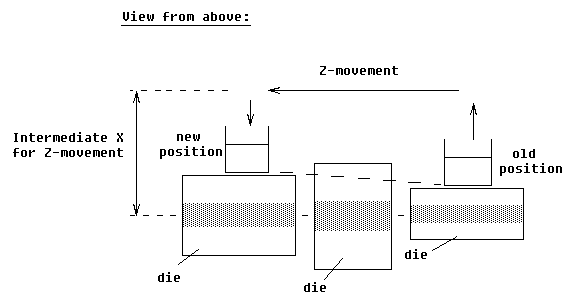

• Intermediate R for X-Movement: Temporary R-axis position to avoid collisions during X-movement. Activated by setting a non-zero value.

Back Gauge & X-Position Safety:
Movement scenarios based on safety zone positions:

• Both positions outside: X and Z move together.
• Old outside, new inside: Z moves first.
• Old inside, new outside: X moves first.
• Both inside: Intermediate X, then Z, then final X.

Safety Zone Definition:
SZ = X-safe + SD (SD is the supplier-defined safety distance).

Time and Network Settings

Time settings allow users to customize time and date displays, ensuring synchronization with operational schedules. Additionally, network settings, available when the network option is installed, facilitate connectivity and data sharing across systems.

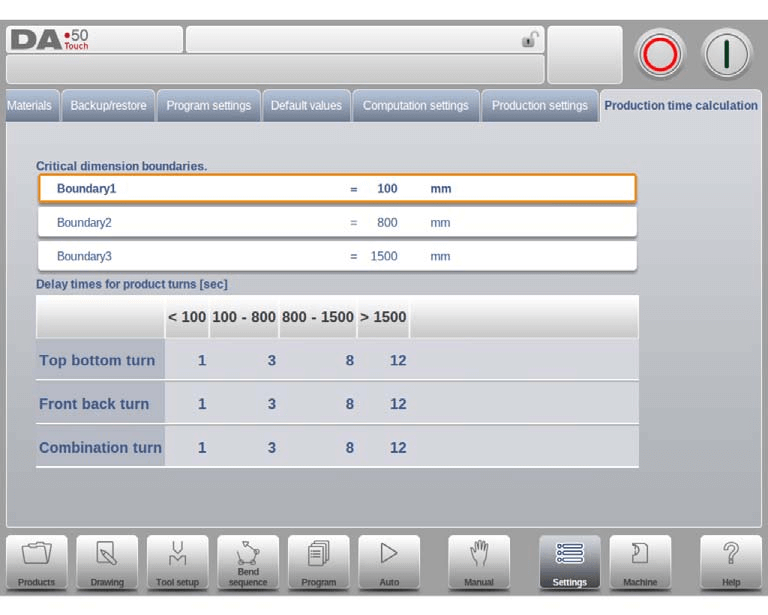

Obliczanie czasu produkcji

In DELEM DA-58T Settings Mode, Stock count mode calculates production time during bend sequence computation based on axes’ positioning speed and product handling times.

Manual handling, like turning a product, varies in time based on product dimensions. Smaller products in the Z-direction turn quickly, while longer products in the X-direction require more time.

Boundary 1/2/3

Threshold values for product size. For values between these boundary values different product turn times can be programmed.

Ustawienia czasu

• Czas wyświetlania: Wyświetlaj datę i godzinę na panelu tytułowym, tylko godzinę lub wcale jej nie wyświetlaj.

• Format czasu: Wyświetlanie czasu w formacie 24-godzinnym lub 12-godzinnym.

• Format daty: Wyświetla datę w formacie dd-mm-rrrr, mm-dd-rrrr lub rrrr-mm-dd.

• Dostosuj czas:Aby dostosować datę i godzinę. Dostosowanie daty i godziny spowoduje również dostosowanie daty i godziny w systemie operacyjnym Windows.

Network settings (only available when Network option has been installed)

<to be described>

Często zadawane pytania (FAQ)

Wniosek

Overall, the DELEM DA-58T Settings Mode is an essential tool for users looking to enhance the functionality and precision of their press brake operations. With its extensive features and customization options, this mode is integral to optimizing product programming and production workflows.

Proper setup and regular maintenance are crucial to maximizing the performance and lifespan of your press brake machine. Implementing these features ensures minimized downtime and increased production efficiency. For comprehensive support or further inquiries, feel free to contact our team. Additionally, explore our related documentation for more insights on enhancing your machine’s capabilities.
